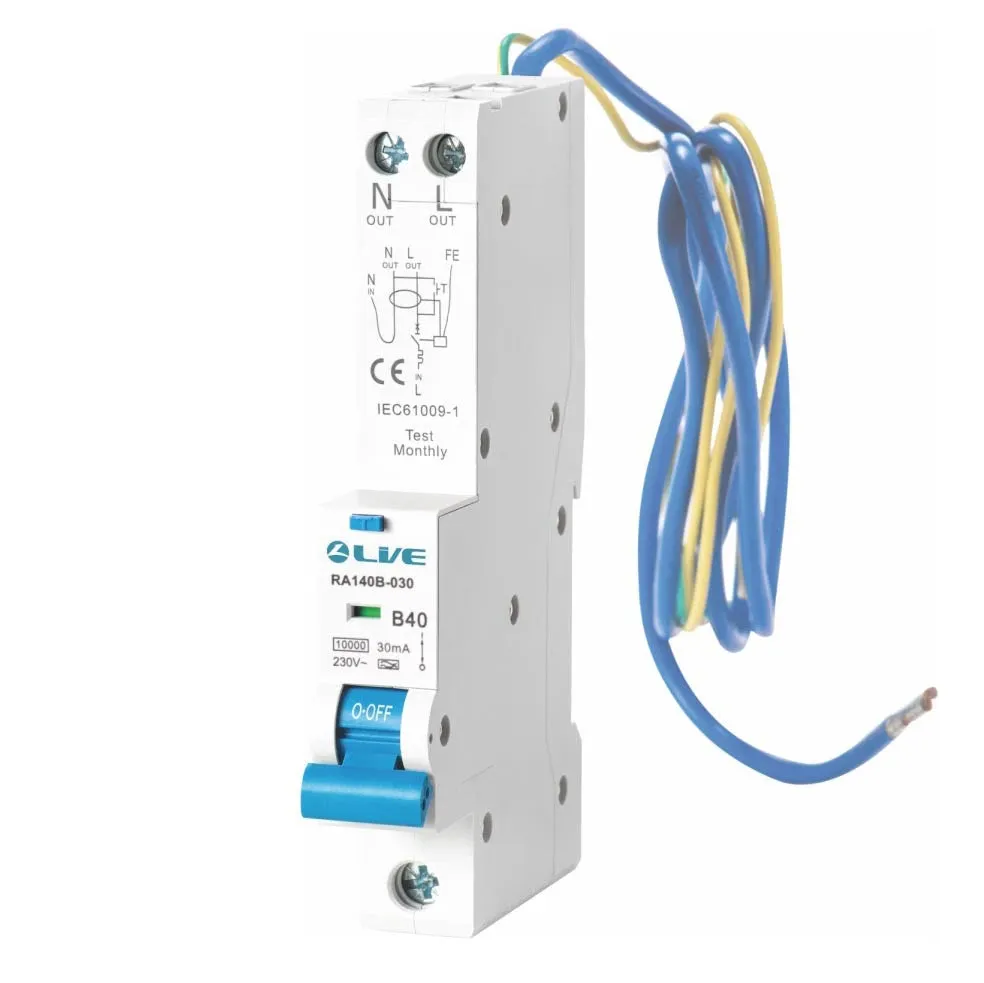

LIVE Electrical RA140B-030 Type A Single Module 40A B Curve 10kA 30mA High Immunity RCBO
Product Description
Type A RCBO Single Module
LIVE Electrical brand high immunity RCBO is an ideal solution for providing over current & earth leakage protection. They ensure reliable protection to people & installation in networks having pulsated DC, harmonics & transients currents, while maintaining continuity of supply by reducing nuisance tripping. Handle can be locked with pad-lock to prevent unwanted operation for safety.
Specification:
- Rated current (In): 40A.
- Rated voltage (Ue): 230V AC.
- Breaking capacity (Icn): 10kA.
- Rated residual current: 30mA.
- Tripping characteristic: B.
- Electrical endurance: 400 cycles.
- Mechanical endurance: 100000 cycles.
- Complies with BS EN 61009-1.
- Type: A.
Data Sheet:
LIVE Electrical Catalogue:
