Key Features:
Advanced MPPT Technology: Utilizes an advanced MPPT control algorithm for quickly tracking the maximum power point (MPP) of the PV array, improving charging efficiency by 20%-30% compared to PWM charging.
Self-Adaptive Charging: Features a three-stage charging mode based on a digital control circuit to prolong battery lifespan and enhance system performance.
Comprehensive Protection: Provides electronic protection for overcharge, over-discharge, PV and battery reverse polarity.
Compatibility: Supports lead-acid (wet and AGM) and lithium batteries.
High Efficiency:
- Tracking Efficiency: Up to 99.5%
- DC/DC Transfer Efficiency: Up to 98.6%
LCD Display: Offers real-time energy statistics and multiple load work modes.
Environmental and Mechanical Parameters:
- Environmental Temperature: -25 to 50°C
- Storage Temperature: -20 to 70°C
- Ingress Protection: IP33
- Dimensions: 230 x 165 x 63 mm
- Mounting Hole Dimensions: 173 x 156 mm, Hole Size: 5 mm
- Maximum Cable Size: 8 AWG (10mm²)

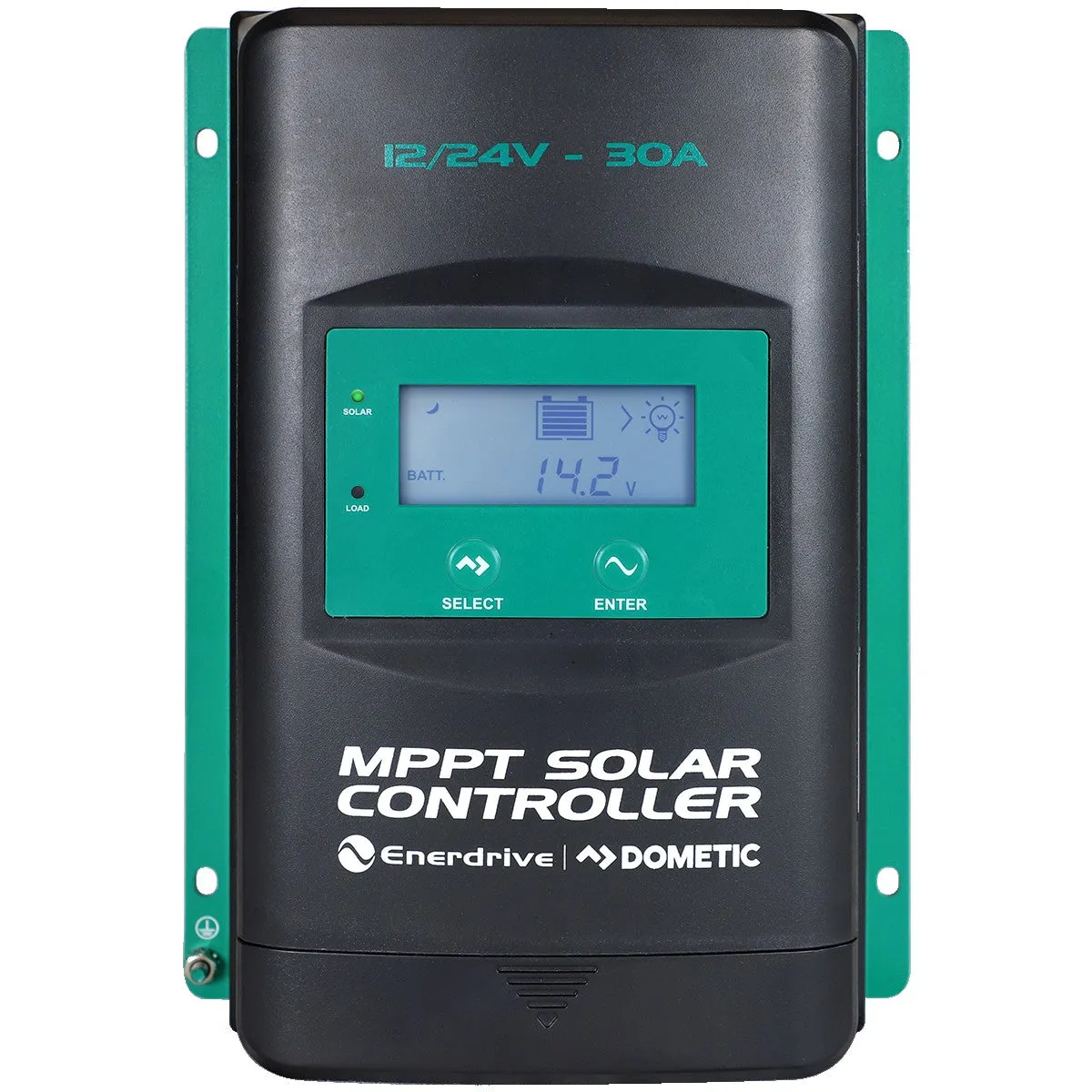

Model: EN43530
- Nominal Voltage Range: 12/24VDC Auto Select
- Battery Voltage Range: 8 - 32V
- Maximum Battery Current Output: 30A
- Maximum Load Current Output: 30A
- Maximum PV Open Circuit Voltage: 100V
- MPPT Voltage Range: (Battery Voltage 2V) - 72V
- Maximum PV Array Power Recommended: 450W/12V, 900W/24V
- Maximum PV Array Power Allowed (Overdrive): 540W/12V, 1080W/24V
- Self-Consumption: 30mA (12V), 16mA (24V)
- RS485 Interface: 5VDC/200mA (RJ45)
Additional Features:
- Real-time energy statistics function
- Power reduction automatically over temperature value
- Comms port included for future applications
This MPPT Solar Controller is designed for efficient and reliable solar charging in various applications.
