Name: FLIR Pro Thermal Imager with FlexView DFOV 42°/24° Lens 30 Hz 320 x 240 Thermal Studio PRO and Route Creator Plugin
SKU: 243400

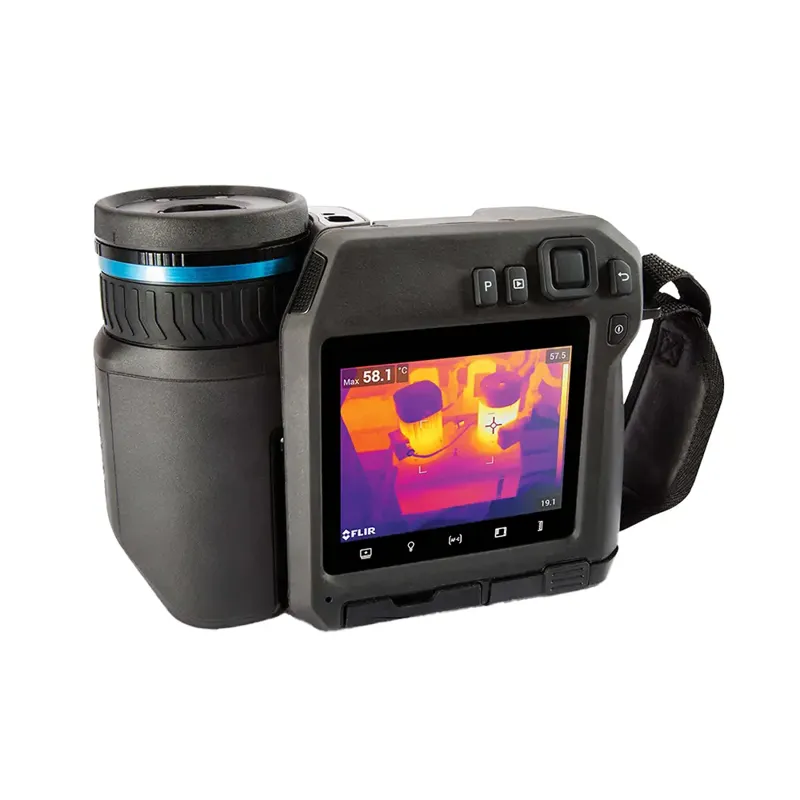

The Teledyne FLIR T530-DFOV-24-42 Professional Thermal Imager is designed to help professionals quickly identify potential issues in industrial, mechanical, and electrical systems. With its 320 x 240 thermal resolution and advanced features like MSX image enhancement and UltraMax super-resolution, it delivers precise thermal detail in real time. The integrated FlexView DFOV 42°/24° lens enables seamless switching between wide-angle scanning and narrow telephoto inspections, improving both speed and accuracy while reducing the need to physically change lenses in the field.

Operators can work from virtually any angle thanks to a 180° rotating optical block, while the laser-assisted autofocus and 1-Touch Level/Span features ensure measurements are consistently sharp. With route-based inspection capability powered by Thermal Studio PRO and the Route Creator Plugin, the T530 simplifies repetitive surveys and streamlines reporting. Secure cloud connectivity through FLIR Ignite allows professionals to upload, organize, and share images, enabling faster diagnostics and documentation.

What's Included:

Teledyne FLIR T530 Thermal Camera
FlexView Dual Field-of-View 42°/24° Lens
FLIR Thermal Studio PRO Software
Route Creator Plugin

Features

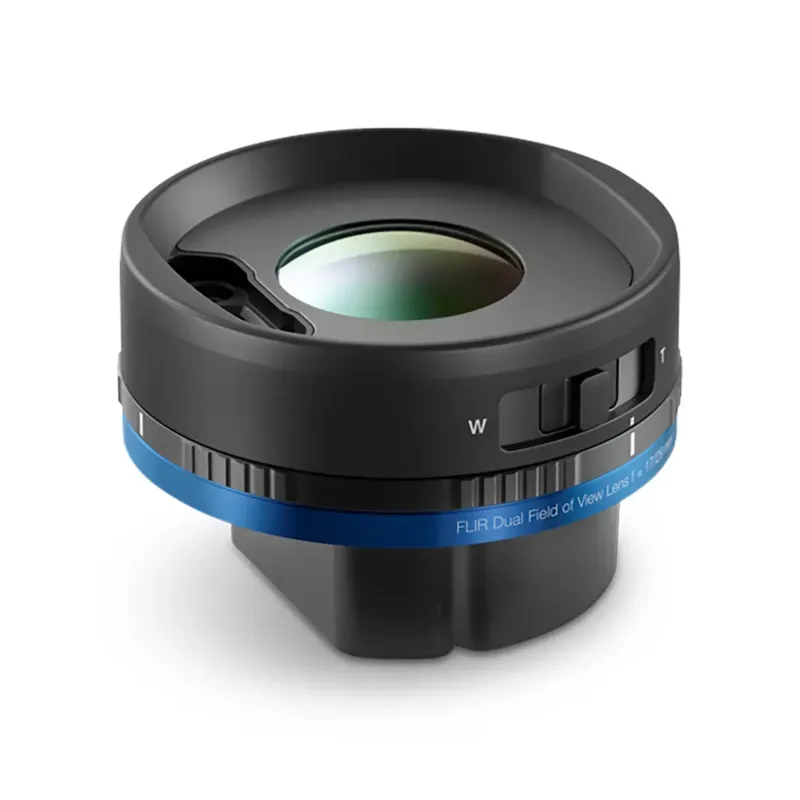

Dual Field of View Lens

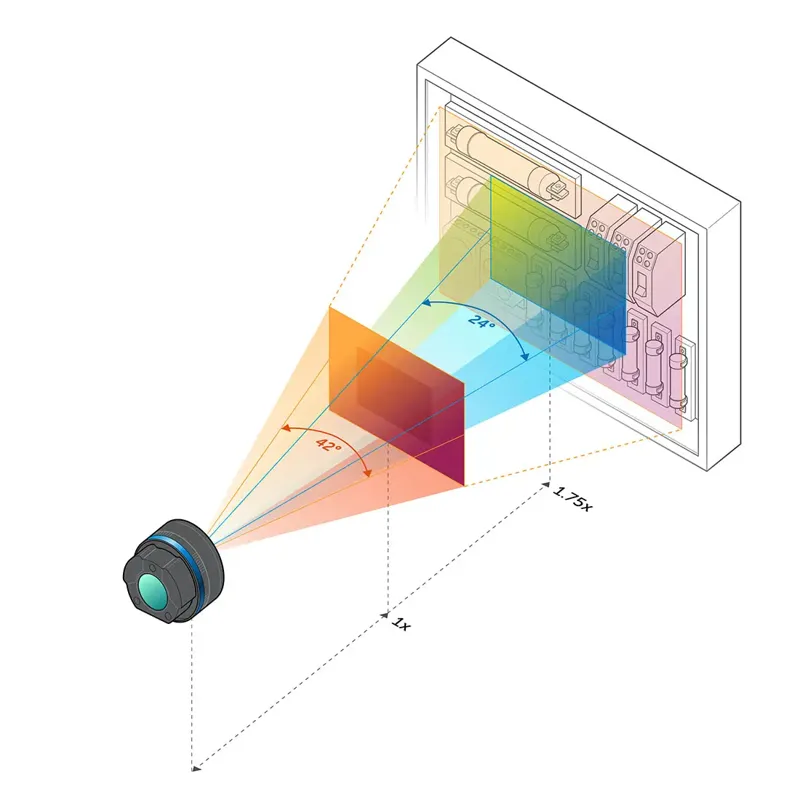

FlexView DFOV lens provides the ability to toggle between wide-angle and telephoto views in under one second for efficient scanning and precision analysis.

Advanced Image Quality
Equipped with MSX image fusion, UltraMax super-resolution, and adaptive filtering to enhance clarity and detail.

Rotating Optical Block
180° rotating lens design allows ergonomic viewing of targets at awkward angles with less operator strain.

Laser-Assisted Autofocus
Increases focus precision with laser distance measurement and 1-Touch Level/Span for fast, accurate readings.

Inspection Route Integration
Pre-load inspection routes from FLIR Thermal Studio PRO directly to the camera for organized surveys.

Cloud Connectivity
Upload and manage thermal images via FLIR Ignite Cloud for secure backup and easy reporting.

Intuitive Controls
Includes a fast-response touchscreen and two programmable buttons for streamlined field use.

Measurement Versatility
Access hot/cold spot tracking, spotmeters, image annotations, and GPS tagging for comprehensive documentation.

Robust Construction
Lightweight, rugged build ideal for demanding industrial environments without compromising on portability.

Universal Lens Compatibility
AutoCal optics allow lens sharing across the FLIR T-series fleet without recalibration.

What's Included

Included with Your Purchase:

Teledyne FLIR T530 Thermal Camera
FlexView Dual Field-of-View 42°/24° Lens
FLIR Thermal Studio PRO Software
Route Creator Plugin

Specifications

IR Resolution: 320 x 240 (76,800 pixels)
UltraMax Resolution: 307,200 effective pixels
Object Temperature Range: -4° to 248°F, 32° to 1202°F
Thermal Lens: FlexView DFOV 42°/24°
Detector Type: Uncooled microbolometer
Detector Pitch: 17 µm
Digital Zoom: 1 to 4x, continuous
Thermal Sensitivity/NETD: 30 mK at 86°F (42° lens)
Spectral Range: 7.5 to 14 µm
Image Frequency: 30 Hz
Lens Identification: Automatic
Focus: Continuous, LDM, contrast, manual
Programmable Buttons: 2
Display: 4 in. touchscreen LCD, 640 x 480 px with auto-rotation
Digital Camera: 5 MP with LED lamp
Color Palettes: Iron, Rainbow, Rainbow HC, White Hot, Black Hot, Arctic, Lava
Image Modes: Infrared, visual, MSX, Picture-in-Picture
UltraMax: Quadruples pixel count, software processed
Accuracy: ± 3.6°F / ± 2% of reading
Spotmeter/Area: 3 each in live mode
Measurement Presets: Center spot, hot spot, cold spot, presets
Laser Distance Meter: Yes, with dedicated button
Annotations: Voice, text, touchscreen sketch, GPS, METERLiNK
Cloud Services: FLIR Ignite via Wi-Fi
Storage: Removable SD card and cloud via Wi-Fi
File Format: JPEG with measurement data
Timelapse Recording: 10 sec. to 24 hrs (IR)
IR Video Recording: Radiometric (.csq), Non-Radiometric (H.264)
Video Streaming: Radiometric via UVC/Wi-Fi, Non-Radiometric via H.264/MJPEG
Interfaces: USB 2.0, Bluetooth, Wi-Fi
Video Out: DisplayPort via USB Type-C

FAQ

Q: Can I switch between wide and narrow views without removing the lens?
A: Yes, the FlexView DFOV lens allows instant toggling between 42° and 24° fields of view.

Q: Is the T530 compatible with other FLIR lenses?
A: Yes, it supports AutoCal optics, allowing easy lens sharing across compatible FLIR cameras.

Q: Can I use the T530 for pre-planned inspections?
A: Absolutely. You can download inspection routes using FLIR Thermal Studio PRO and follow them with the camera’s route feature.

Q: Does the camera store images in a standard format?
A: Yes, all thermal images are saved as JPEGs with embedded measurement data.

Q: How is image clarity enhanced?
A: Through MSX, UltraMax, and adaptive filtering, which work together to maximize detail and clarity.
