KEY FEATURES

• Complete digital sound processing solution
• Internal DSP FIR filtering
• 4 in / 8 out matrix
• AES Digital input
• Password protection for venue install
• 24-bit 96 kHz AD/DA converters
• RMS compressors AND Peak limiters on all outputs
• USB / RS232 / RS485 / RJ45 connectivity
• User-friendly software included

DESCRIPTION

External signal processing is essential to get the most from any PA system.

To route, tune, and protect. The new flagship SC-48 FIR Versadrive delivers new levels of processing power and parameter control to get EVEN more from any PA system. What’s unique about this model? The clue is in the product code! FIR Filtering!

FIR Filtering gives independent control of magnitude and phase, more detailed equalization, and optimization of frequency and power response. This leads to highly improved system performance. The SC-48 FIR has 4 input channels and 8 output channels. This makes routing and distribution for large systems as simple (or complex) as the project requires.

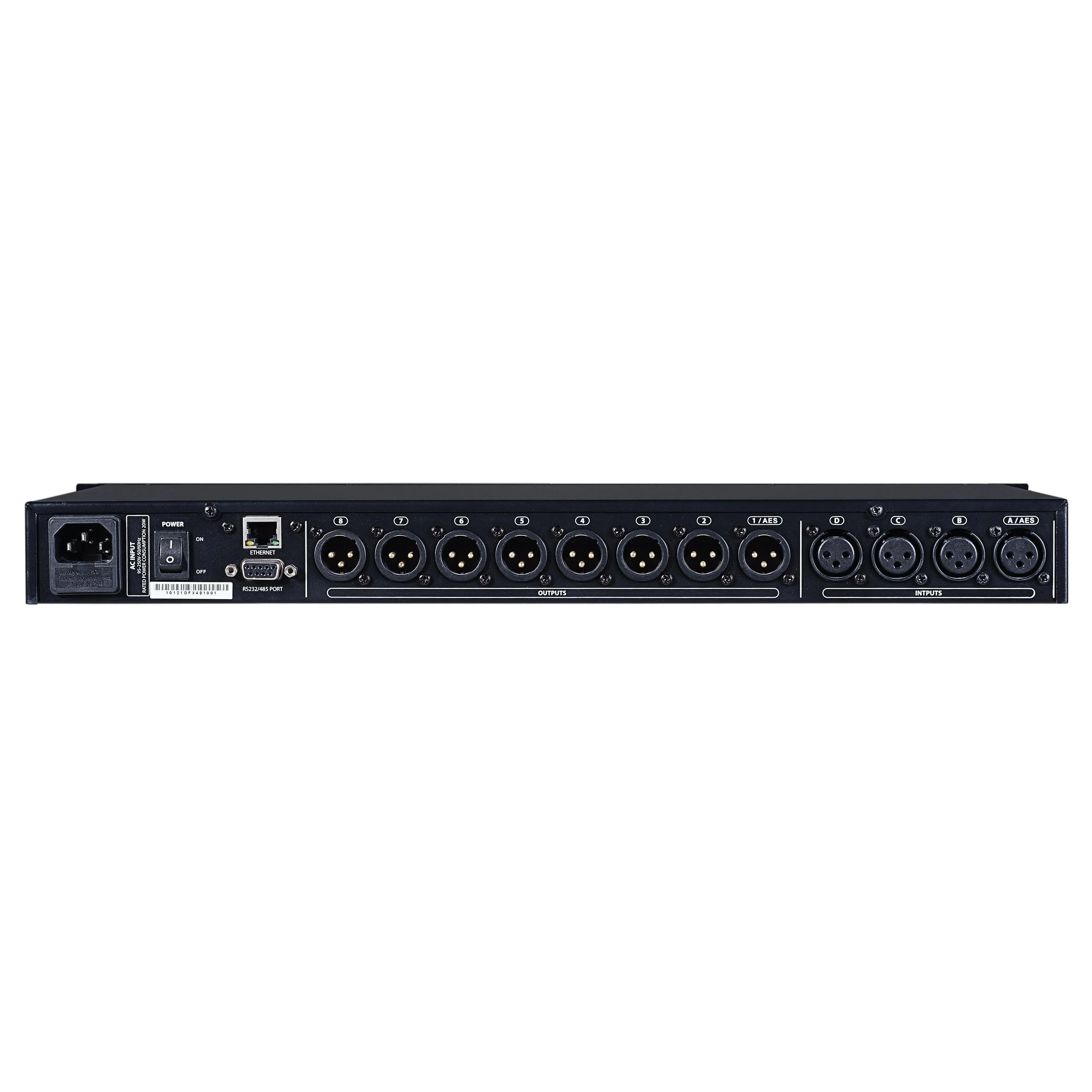

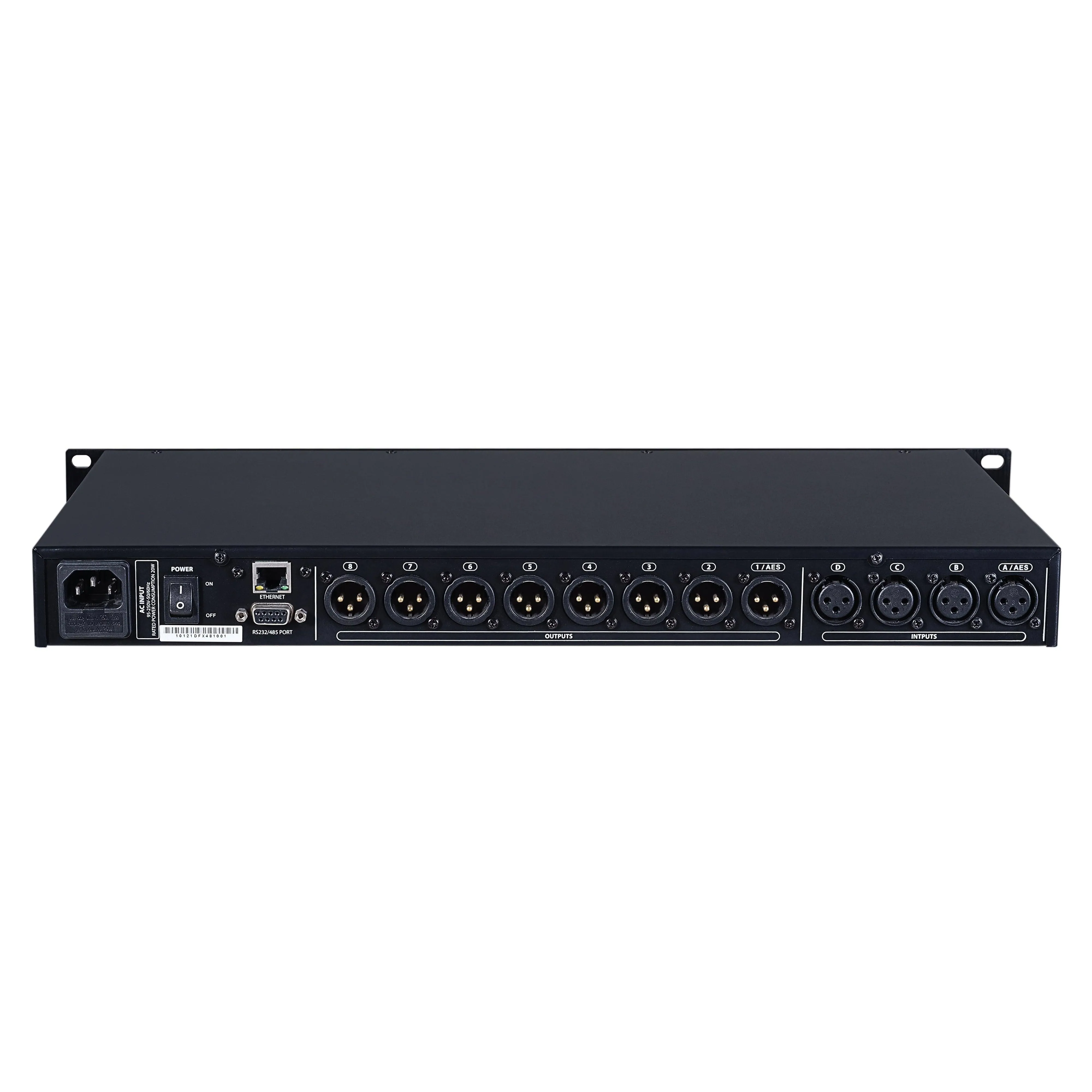

Remote control editing via PC is handled by a USB, D-sub connector (RS485), and RJ45 connector (Ethernet). Editing software is included and downloadable at the bottom of this page. In the end, SC-48 FIR brings improved system performance by including powerful FIR filtering. Let’s get serious!

SPECIFICATIONS
