KEY FEATURES
- Complete digital sound processing solutions
- 8-band parametric EQ with low/high shelf
- Limiter / Crossover / Filters
- Independent processing for each output channel
- Password protection for venue install
- 24-bit 96 KHz AD/DA convertors
- 40-bit internal processing
- USB / RS232 and RS485 connectivity
- User friendly software included
DESCRIPTION
TAKE CONTROL

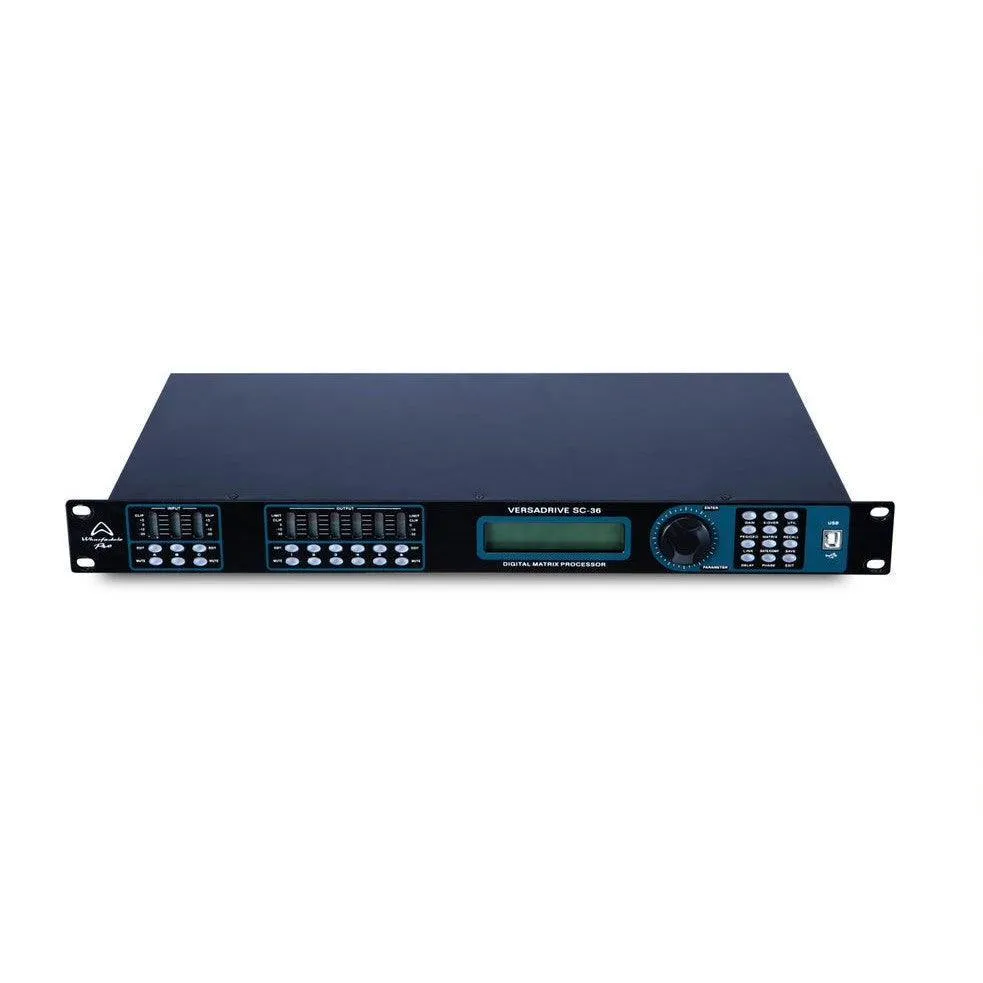

The Versadrive speaker management system offers all the digital signal processing and detailed control that a live sound engineer needs.
SOFTWARE CONTROL
All parameters of the Versadrive can be controlled via PC.
Not only is this extremely convenient, but a clear central graphical representation of your EQ and crossover points are displayed. This also makes light work of copying channel settings and organising your presets.
SPECIFICATIONS
| Input Effects | Gain, Mute, Link, High-pass filter, Low-pass filter, Noise Gate, 8PEQ, 31 band graphic EQ, Phase, Delay |
| Output Effects | Crossover, 5PEQ, Gain, Mute, Compressor / Limiter, Phase, Delay, Link |
| Software | Included via CD or download. Full matrix input output control. Intuitive UI. |
| User Presets | 20 |
| Total units linkable | 255 via RS485 and optional wireless router |
| Audio Inputs | |
| SC-36 | 3 x Balanced XLR |
| Audio Outputs | |
| SC-36 | 6 x Balanced XLR |
| USB | 1 (PC Control) |
| Ethernet | 1 |
| RS232 Port | 1 |
| Frequency Response | 20 Hz – 20 KHz |
| S/N Ratio | >115 dB |
| Distortion (THD) | <0.005 at 1 KHz (0 dBu) |
| Max output level | 20 dBu |
| Impedance | <500 Ω |
| D/A Convertors | 24-bit Sigma Delta |
| Sampling Rate | 96 KHz |
| Display | 20 x 2 LCD Parameter / Function Display, 5-Segment Led Level Display |
| Dimensions | 480 x 50 x 45 mm |
| Weight | 2.62 kg |
