KEY FEATURES
- Complete digital sound processing solutions
- 8-band parametric EQ with low/high shelf
- Limiter / Crossover / Filters
- Independent processing for each output channel
- Password protection for venue install
- 24-bit 96 KHz AD/DA convertors
- 40-bit internal processing
- USB / RS232 and RS485 connectivity
- User friendly software included
DESCRIPTION
TAKE CONTROL

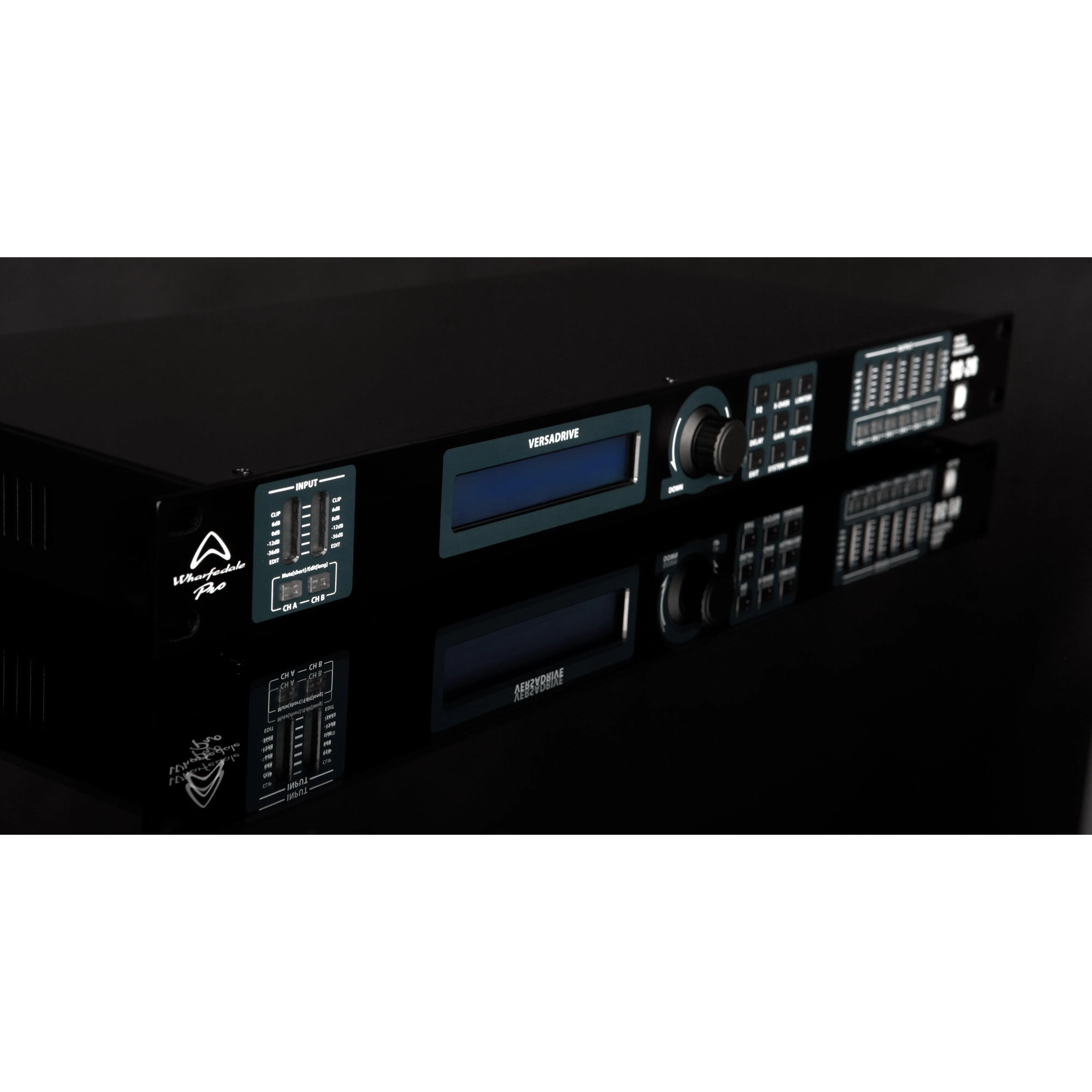

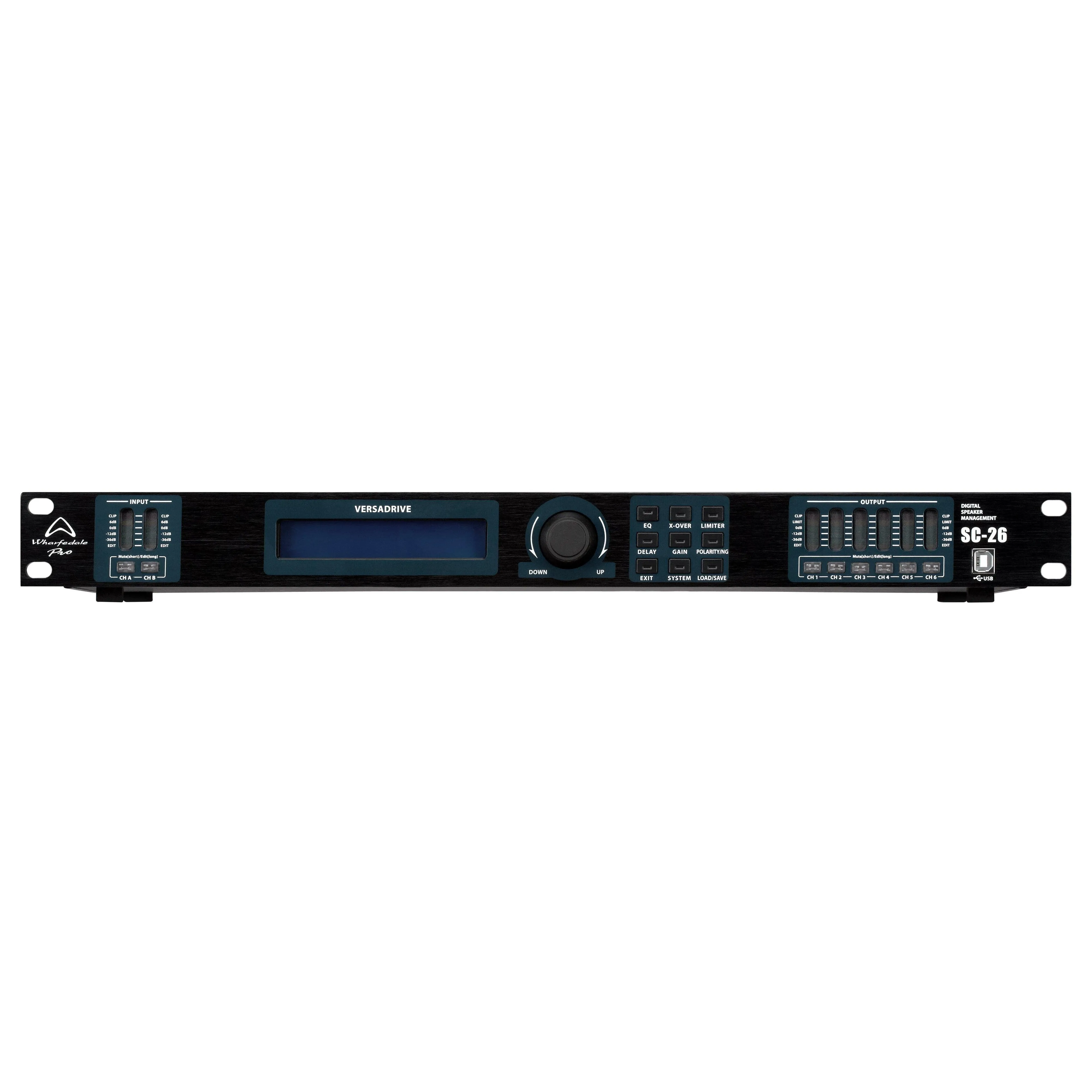

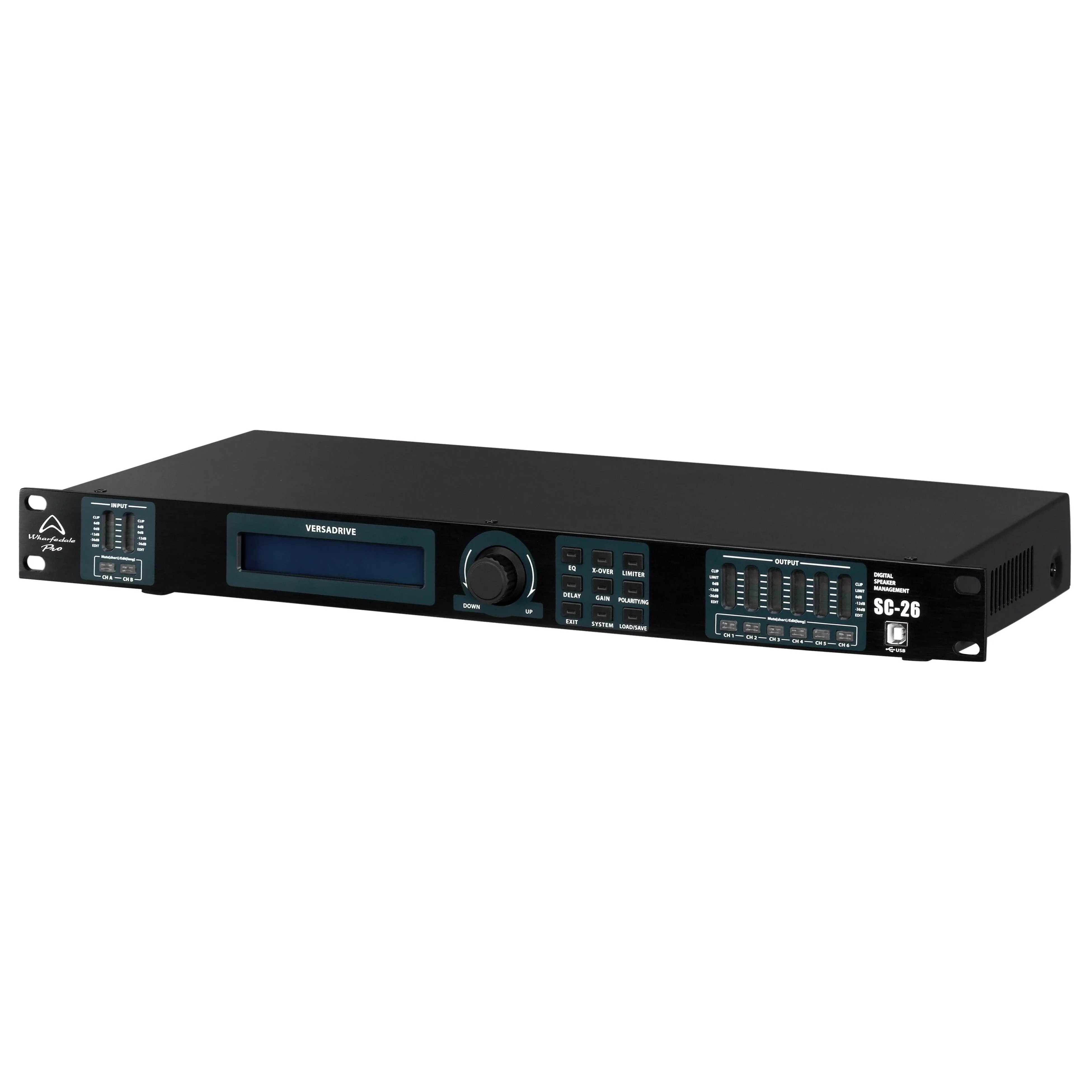

The Versadrive speaker management system offers all the digital signal processing and detailed control that a live sound engineer needs.
SOFTWARE CONTROL
All parameters of the Versadrive can be controlled via PC.
Not only is this extremely convenient, but a clear central graphical representation of your EQ and crossover points are displayed. This also makes light work of copying channel settings and organising your presets.
SPECIFICATIONS
| Frequency Response (±0.5 dB) | 20 Hz – 20 KHz |
| DSP | 32 bit |
| A/D D/A Converter | 24 bit / 96 KHz |
| S/N Ratio | >110 dB |
| Delay time range | 0-1000 ms |
| Filter Types | Linkwitz-Riley, Bessel, Butterworth up to 48 dB/oct. |
| EQ | 6-band parametric / low shelf / high shelf |
| Memory | 30 save slots |
| Number of inputs | 2 |
| Number of outputs | 6 |

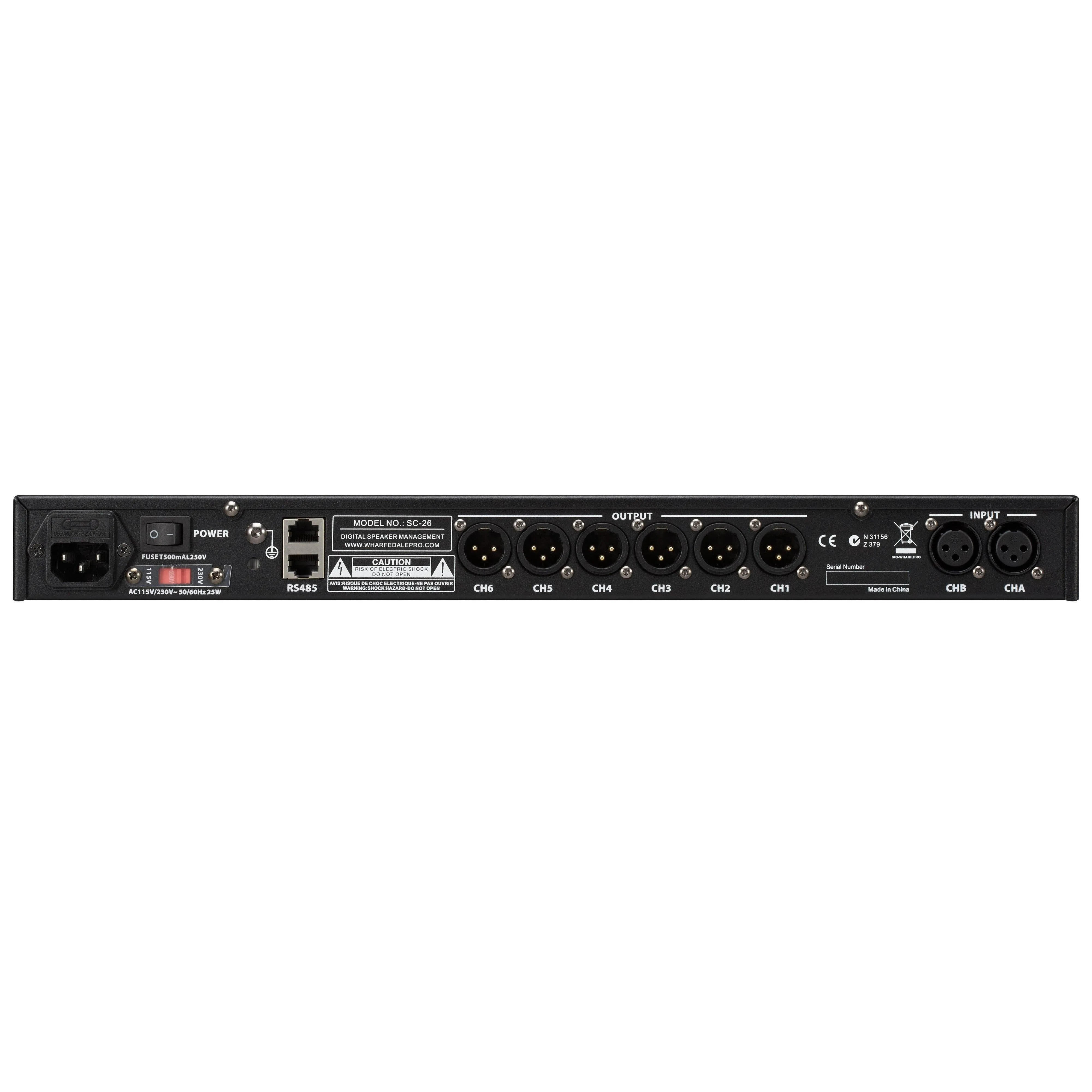

| Input connection | XLR |
| Output connection | XLR |
| PC connections | USB / 2 x RS485 |
| Net Weight | 3.6 kg / 7.94 lbs |
| Gross Weight | 4.6 kg / 10.14 lbs |
| Product dimensions | 44 x 482 x 190 mm |
