Violectric DHA V590² PRO DAC/Amp - Impressively Clean and Powerful Sound
The Violectric DHA V590² PRO is a premium DAC/Amplifier/Pre-Amp packed in a single, compact device. With a 256-step relay, Dual DAC, High-Output Power, and support for a wide variety of I/O, the DHA V590² PRO is all you need to unlock a new dimension of sound at home or in the studio.
What's In The Box?
- Violectric DHA V590² PRO Headphone Amplifier, Preamp, and DAC
- Remote Control
- Power Cord
- Limited 5-Year Manufacturer Warranty
The DHA V590² PRO features a 256 Step Volume Pot for a precise sound
The DHA V590² PRO separates itself from the standard V590² with a 256-step volume relay, for a more precise sound at any volume. Plug in your headphones or active speakers and enjoy crisp, clean, and detailed sound without distortion.
The DHA V590² PRO is quiet and powerful, so you can enjoy new details on any headphone
The DHA V590² PRO delivers jaw-dropping power to any device. With up to 6400mW of power at 50 Ohms or 740mW at 600 Ohms, the DHA V590² PRO will drive any dynamic or planar headphones without breaking a sweat. It does all this with minimal noise, so your music sounds clean and detailed - just like the artist intended.

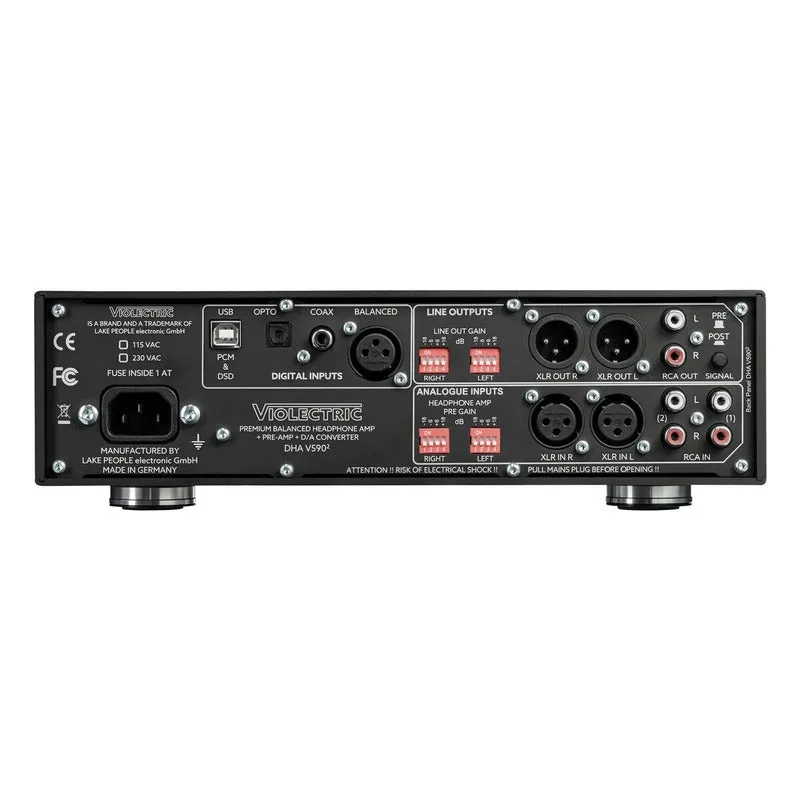

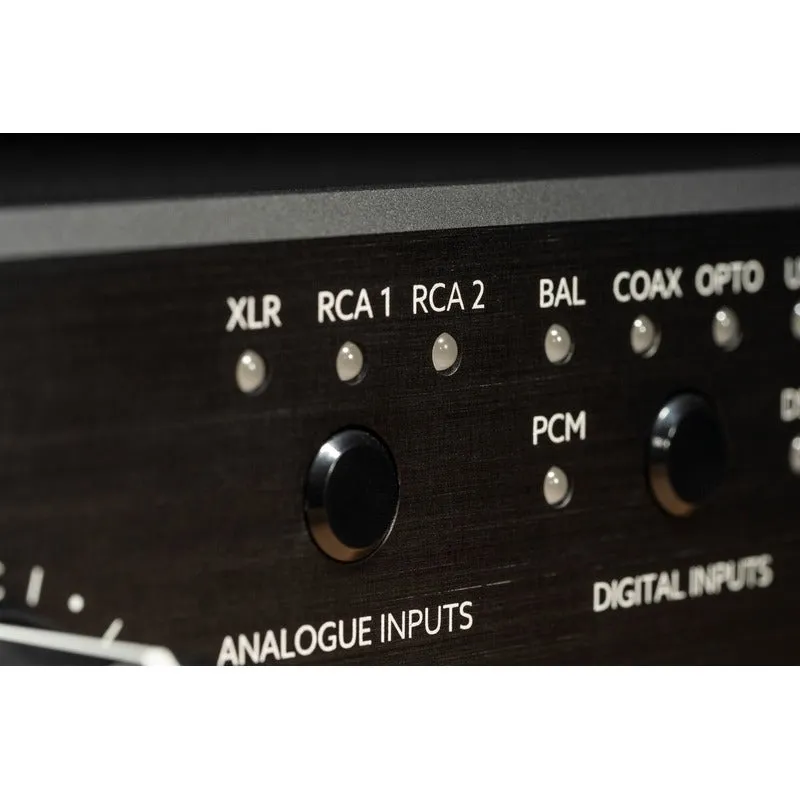

The Violectric V590² PRO supports a wide array of input/output, so you can plug in any device conveniently
The Violectric V590² PRO is designed to be convenient and easy to use. Plug in any headphone or active speaker through the generous selection of analog input and output jacks, and enjoy a dynamic sound experience minus the extra cables or adapters.
The V590² PRO supports digital inputs as well, including XLR 3-pin AES3, RCA Coax AES3, and TOSLINK Optical ADAT, so you can enjoy a precise and natural sound from any source.
DIP Switch, Pre/Post Gain, and A Sleek Remote, so you can tune your sound your way
The Violectric V590² PRO gives you full control over your music.
A dedicated DIP Switch lets you fine-tune gain levels to match headphones or active speakers perfectly, while a pre/post gain switch offers extended control over your audio setup.
To cap everything off, the V590² PRO comes with a sleek remote so you can control its various functions from the comfort of your couch.
Violectric DHA V590² Specs
Form Factor
Desktop
Converter Type
D/A Converter
Number of Channels
1x D/A
Maximum Sampling Rate
384 kHz / 32-Bit (PCM)
Analog Audio I/O
2x XLR 3-Pin Balanced Line Input
1x Stereo RCA Coaxial Unbalanced Line Input
2x XLR 3-Pin Balanced Line Output
2x Stereo RCA Coaxial Unbalanced Line Output
1x XLR 4-Pin Balanced Headphone Output (Front Panel)
1x 1/4" TRS Unbalanced Headphone Output (Front Panel)
1x 1/8" / 3.5 mm TRS Unbalanced Headphone Output (Front Panel)
Digital Audio I/O
1x XLR 3-Pin AES3 Input
1x RCA Coaxial AES3 Input
1x TOSLINK Optical ADAT Input
D/A Chipset:
1x
Maximum Sampling Rate
384 kHz / 32-Bit (PCM)
Gain/Trim Range
0 dB to 6 dB
-18 dB to 18 dB (Pre-Gain DIP Switches)
USB (Non-Host)
1x USB-C (Digital Input)
Frequency Response
5 Hz to 250 kHz -0.5 dB
Maximum Input Level
21 dBu
Maximum Output Level
21 dBu
Headphone Output Power
700 mW into 4 Ohms
1300 mW into 8 Ohms
2000 mW into 16 Ohms
4700 mW into 32 Ohms
6400 mW into 50 Ohms
4300 mW into 100 Ohms
1450 mW into 300 Ohms
740 mW into 600 Ohms
Impedance
Line Inputs: 10 Kilo Ohms
Line Outputs: < 1 Ohm
Dynamic Range
Analog: > 131 dBA
Digital: 180 dB (Typical)
THD N
Analog:
< -102 dB / < 0.0008% (At 1 kHz, 2 x 10V, 100R = 1W)
< -100 dB / < 0.001% (At 1 kHz, 2 x 4V, 32R = 0.5W)
Crosstalk
-105 dB (At 1 kHz)
-100 dB (At 15 kHz)
Sample Rates
Up to 384 kHz (PCM)
Bit Depths
Up to 32-Bit (PCM, D/A Conversion, Playback)
Digital Audio Decoding
DSD, PCM
Power Requirements
AC Input
AC Input Power
115 to 230 VAC, 50 / 60 Hz (T 1 A)
Power Consumption
50 VA
Dimensions
11.4 x 11.1 x 3.5" / 29 x 28.2 x 9 cm (with Feet)
