Item Description

Waterproof cosine corrected UV sensor for outdoor use

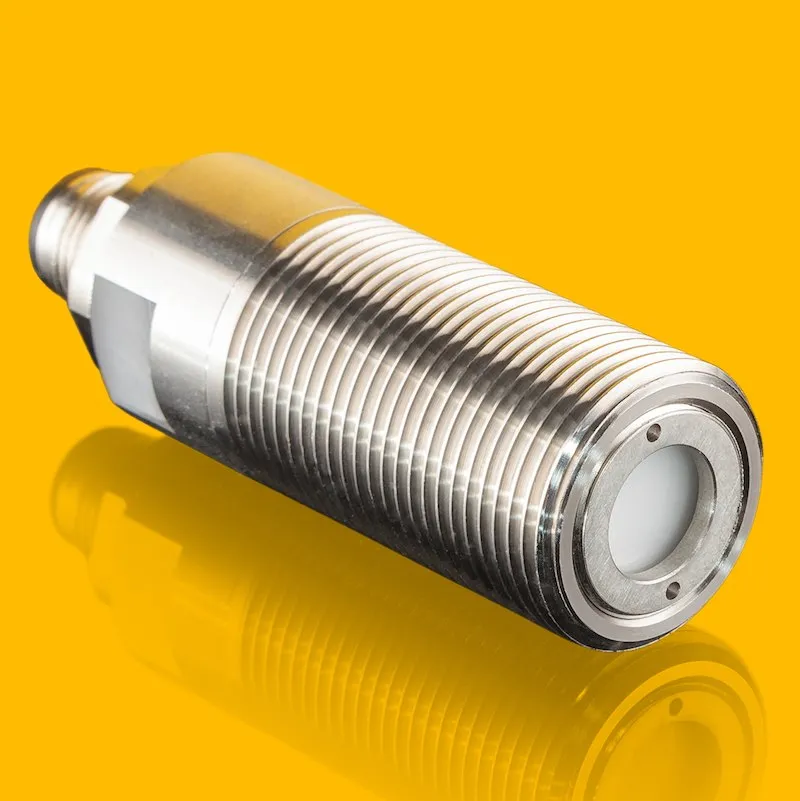

The “UV-Cure” is a UV sensor for high UV irradiance (>100mW/cm2) and moderate operating temperature (<80°C). Typically this sensor is used as a duty sensor in LED and cooled medium pressure lamp based UV curing systems. Typically this sensor is used as a duty sensor in LED and cooled medium pressure lamp based UV curing systems.

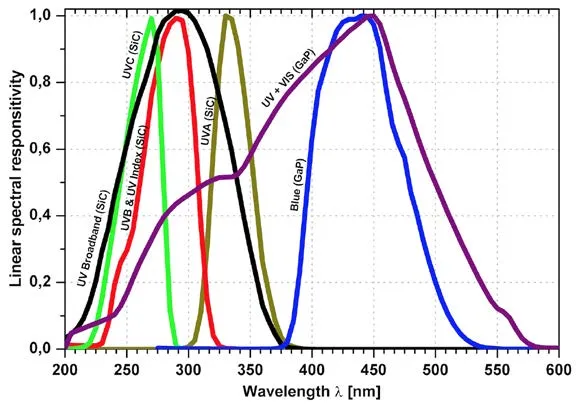

Configurable parameters are the signal output type, the measurement range and the spectral responsivity. The signal output is configurable as a 0…5V or 0…10V voltage output or a 4…20mA current loop. Digital output sensors are available with a MOD bus, a CAN bus or a USB interface.

Product Technical Specs

• Summary product specifications are below
• View and download the detailed product sheet at the Download PDF tab
• Please contact us with any questions for or assistance via our  or at 617-566-3821
