Please note: Since this is a back order product we cannot guarantee when it will be available, please also note that the price is indicative and subject to change. Please contact us for more information
Are you looking for a reliable and powerful loudspeaker for your PA applications?

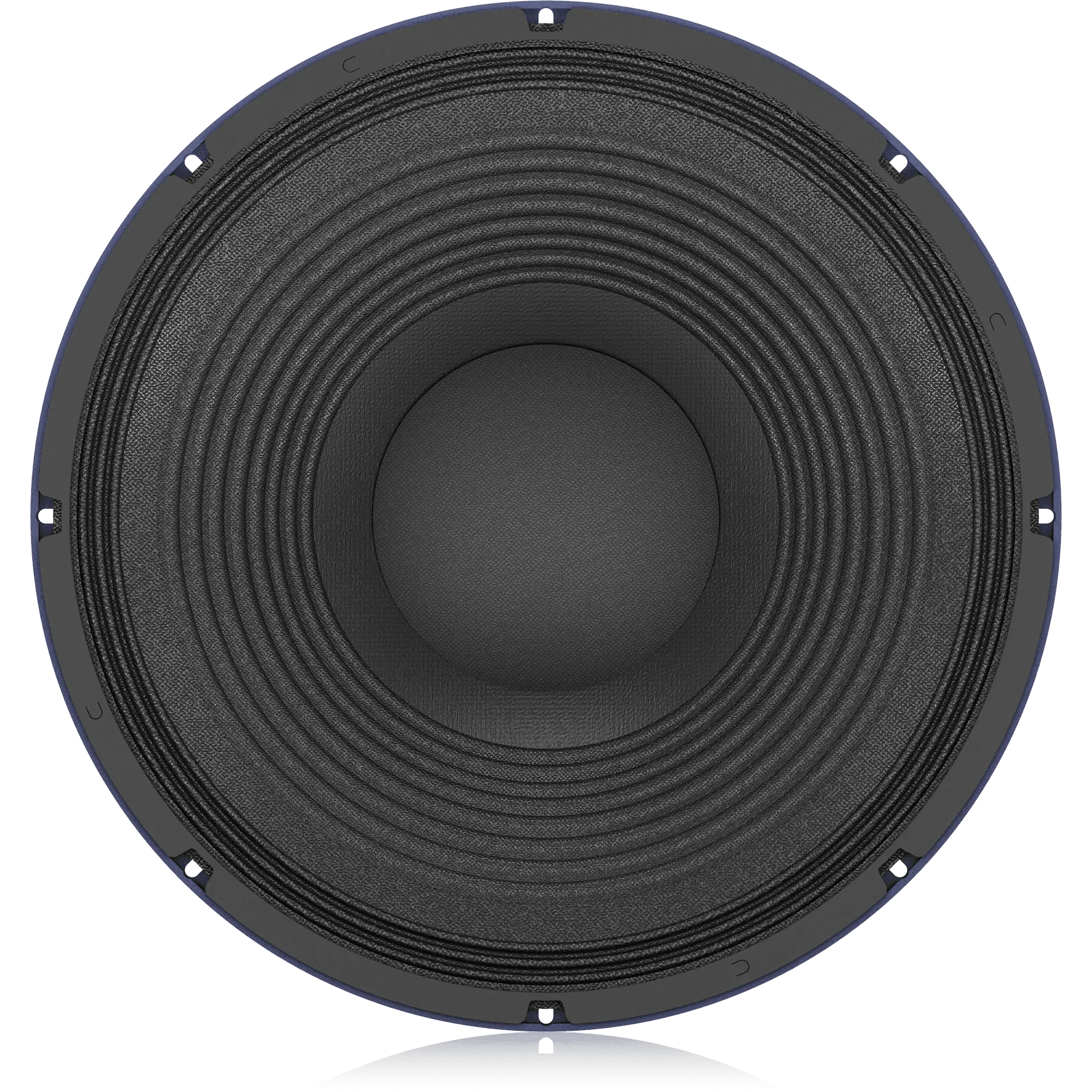

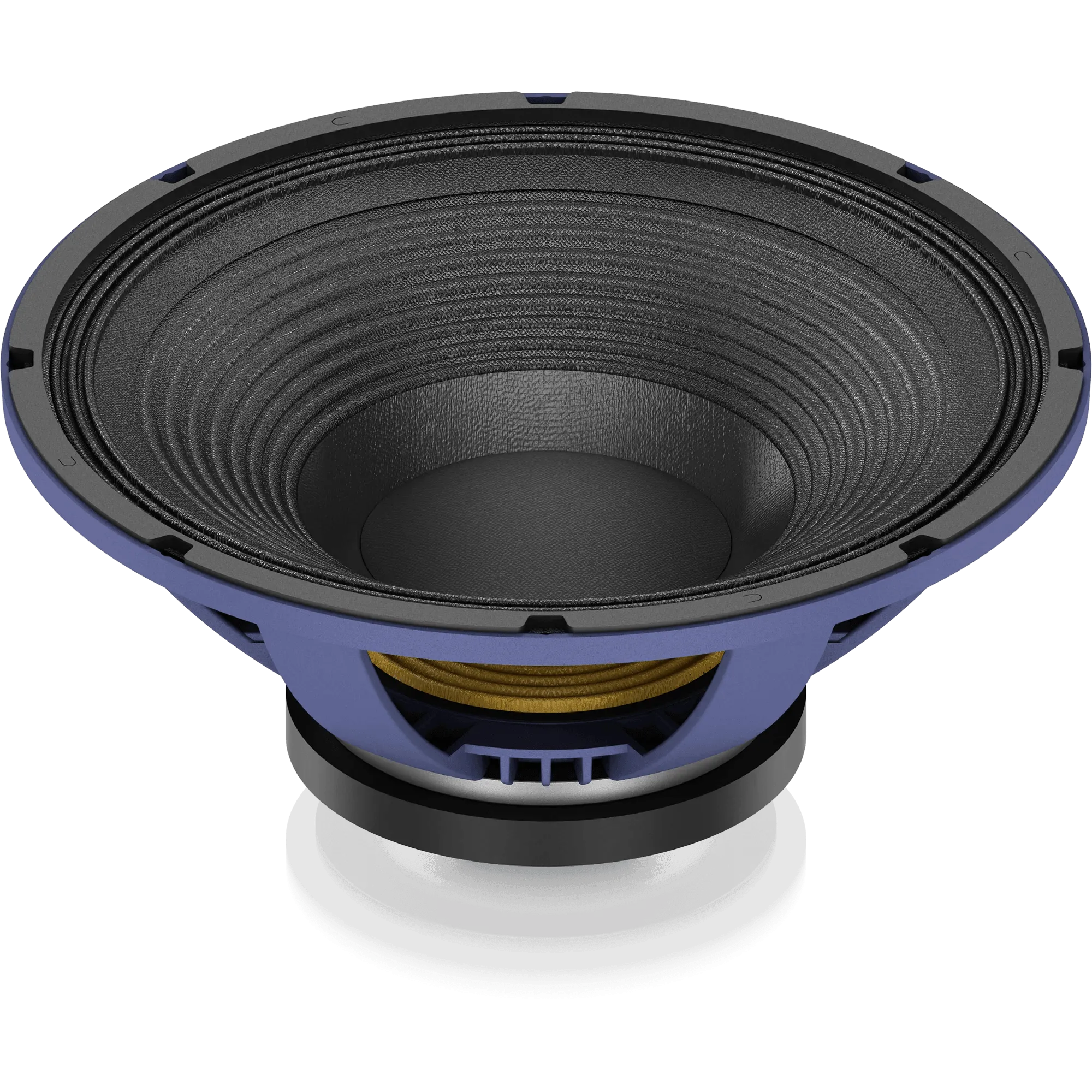

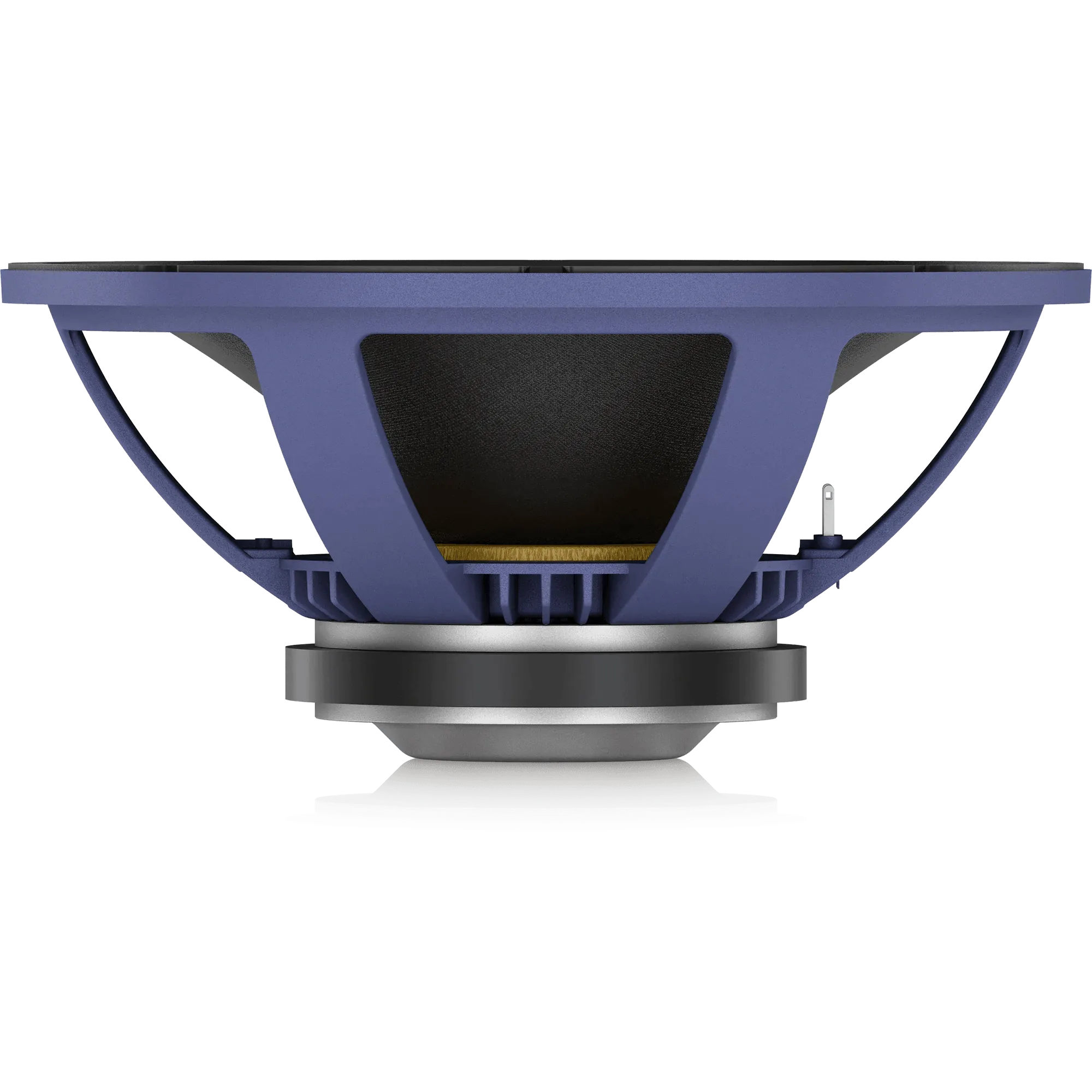

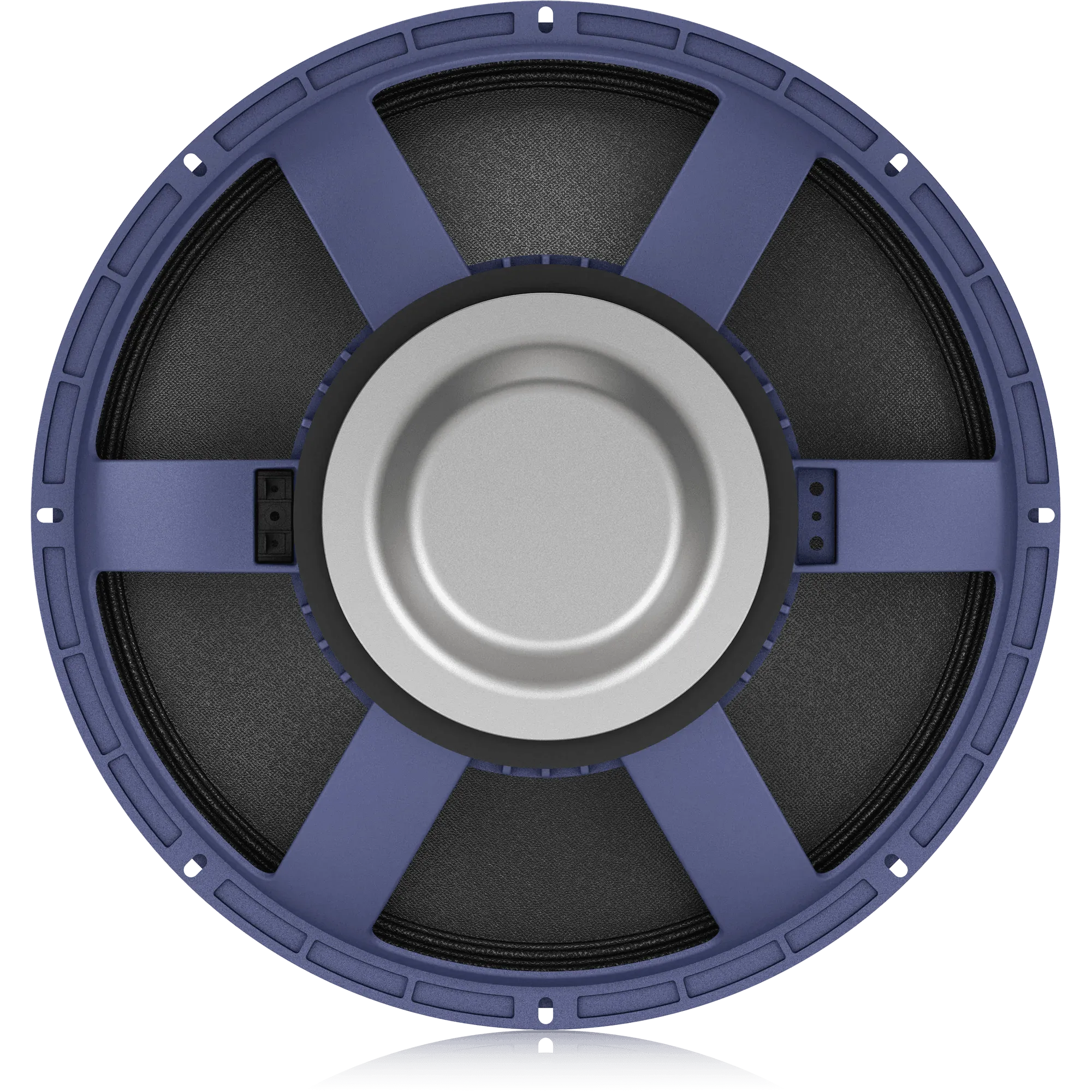

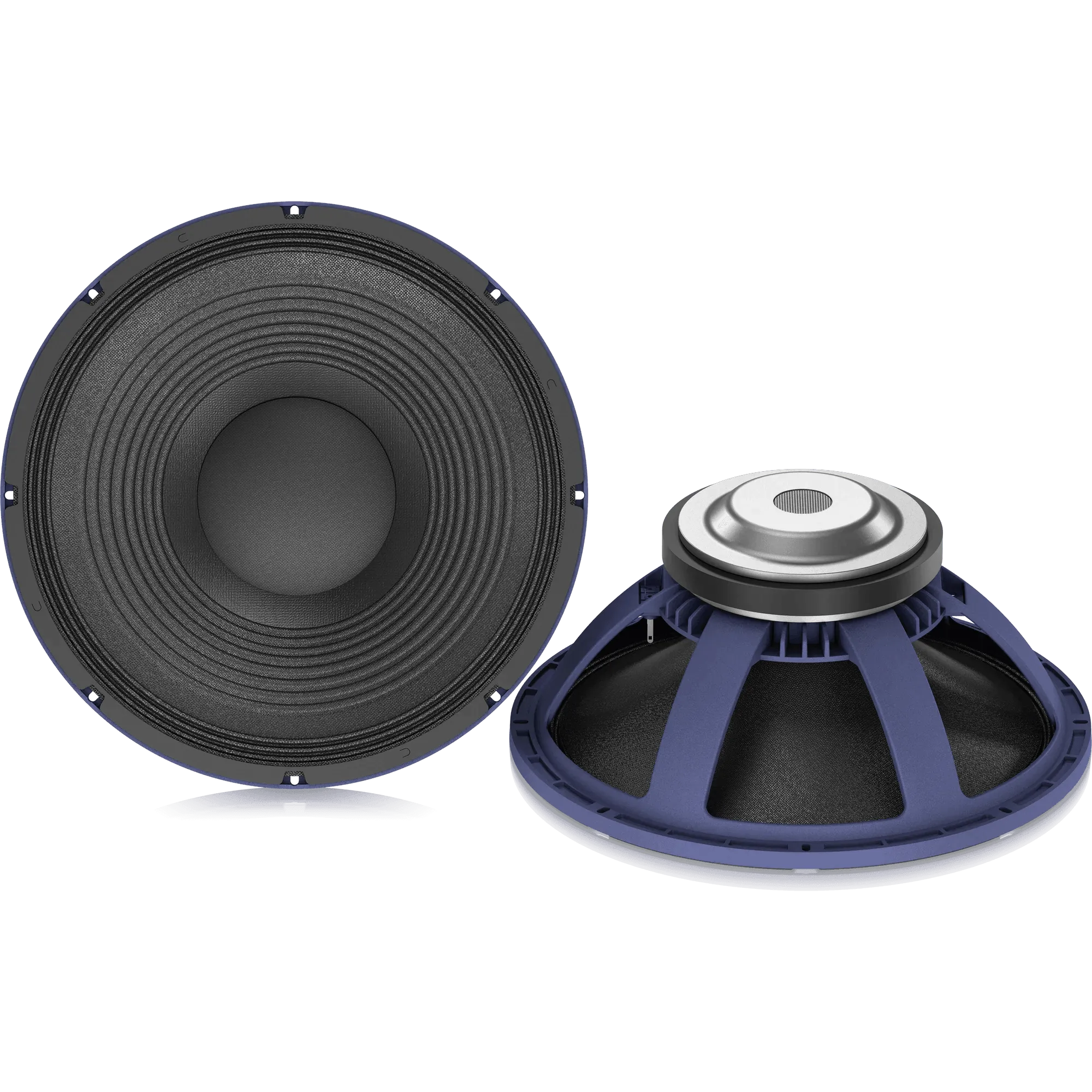

Look no further than the Turbosound TS-18SW700/8A 700W 18" Low-Frequency Loudspeaker. This speaker is designed to deliver tight and punchy bass performance, with a frequency range of 35 Hz to 2 kHz and a continuous power rating of 700 Watts RMS and a peak power rating of 2,800 Watts. The die-cast aluminum frame is lightweight and rigid, making it perfect for use as a replacement driver or in custom-engineered multi-way PA and subwoofer enclosures.
FEATURES:
-
18" high-power woofer for PA applications
-
Continuous?power: 700 Watts RMS
-
Maximum?power: 2,800 Watts
-
Impedance: 8 Ohms
-
Frequency Range: 35 Hz - 2 kHz
-
SPL: 96 dB (1 W / 1 m)
-
Rigid aluminum die-cast frame
-
Mounting hole diameter: 442 mm (17.4")
-
Shipment Weight: 16.5 kg (36.3 lbs) and Net Weight:12.8 kg (28.2 lbs)
-
Overall Diameter: 460 mm (18.11")
SPECIFICATIONS:
| Loudspeaker diameter | 460 mm / 18" |
| Impedance | 8 Ω |
| Continuous power rating1 | 700 W |
| Peak power rating2 | 2800 W |
| Sensitivity | 96 dB (±2.5 dB, 1 W / 1 m) |
| Frequency range | Fo ~3 kHz (-10 dB) |
| Magnet size | 220 mm |
| Voice coil diameter | 100.2 mm / 4" |
| Bobbin material | Glass black fiber |
| Wire type | Copper wire |
| Winding height | 27 mm |
| Layers | 2 |
| Cone body | Paper |
| Cone surround | Cloth |
| Item part number | H77-00002-31675 |
Thiele & Small Parameters
| Resonance frequency (Fs) | 35 Hz |
| DC resistance (Re) | 5.2 Ω |
| Mechanical Q factor (Qms) | 25.9 |
| Electrical Q factor (Qes) | 0.44 |
| Total Q factor (Qts) | 0.43 |
| Mechanical moving mass (Mms) | 185 g |
| Mechanical compliance (Cms) | 0.11 mm/N |
| Force factor (Bl) | 22 |
| Equivalent acoustic volume (Vas) | 250 I |
| Maximum linear displacement (Xmax) | 7.5 mm |
| Diaphragm area (Sd) | 1288 sq cm |
| Voice coil inductance @ 1 kHz (Le) | 1.03 mH |
HOW IT WORKS:
The TS-18SW700/8A low frequency driver works by converting electrical signals into sound waves. This is done by connecting the speaker to an amplifier or other audio device, which then sends the audio signal to the speaker. The speaker then converts the electrical signal into sound waves that can be heard by the listener.
PRODUCT FAQ:
Q: What is the power rating of the TS-18SW700/8A low frequency driver?
A: The continuous power rating is 700 Watts RMS and the peak power rating is 2,800 Watts.
Q: What is the frequency range of the TS-18SW700/8A low frequency driver?
A: The frequency range of the TS-18SW700/8A low frequency driver is 35 Hz to 2 kHz.
Q: What is the SPL of the TS-18SW700/8A low frequency driver?
A: The SPL of the TS-18SW700/8A low frequency driver is 96 dB (1 W / 1 m).
