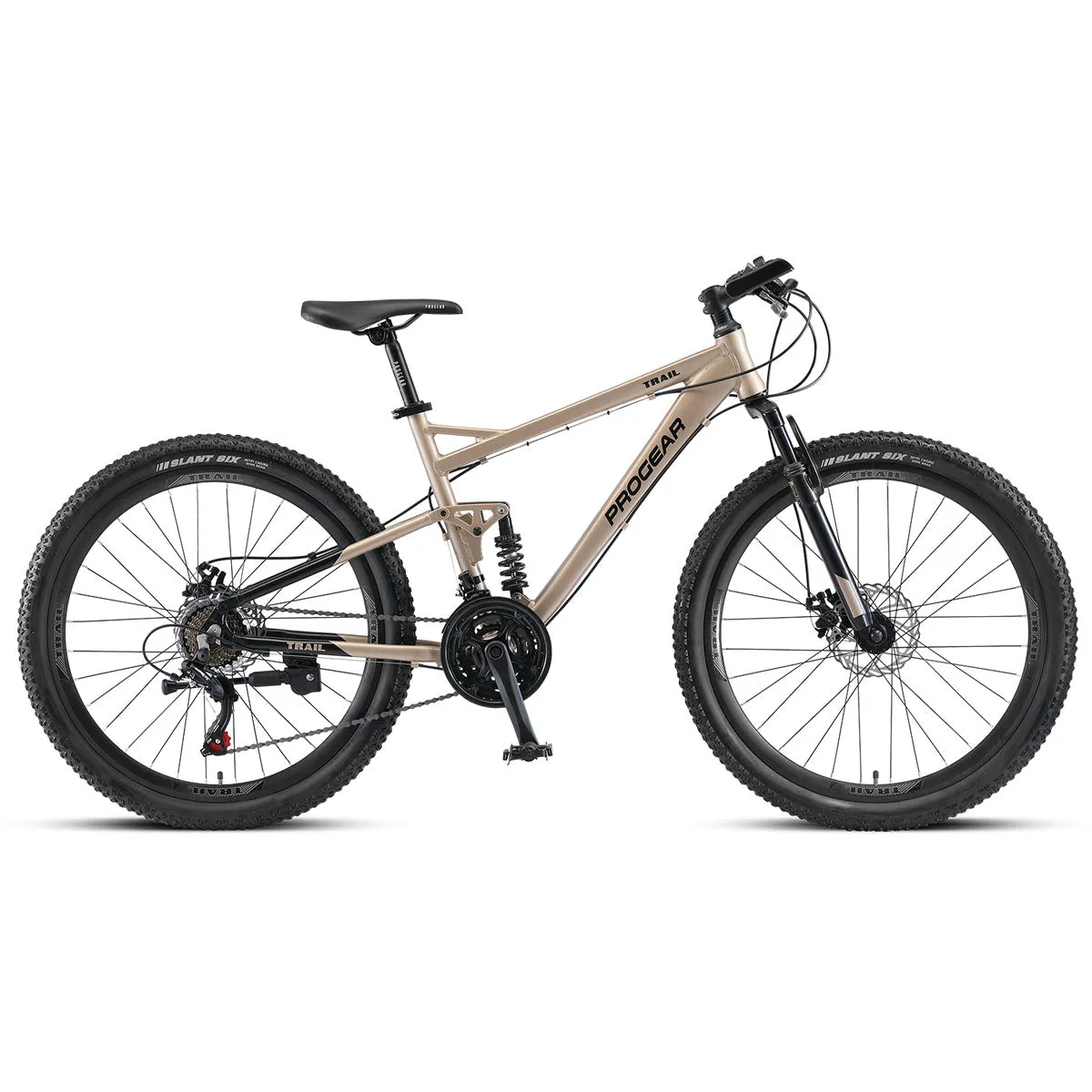

The Bike for Everywhere

Take the edge off rough trails, and ride in comfort with a full suspension set-up with the Trail Mountain Bike.

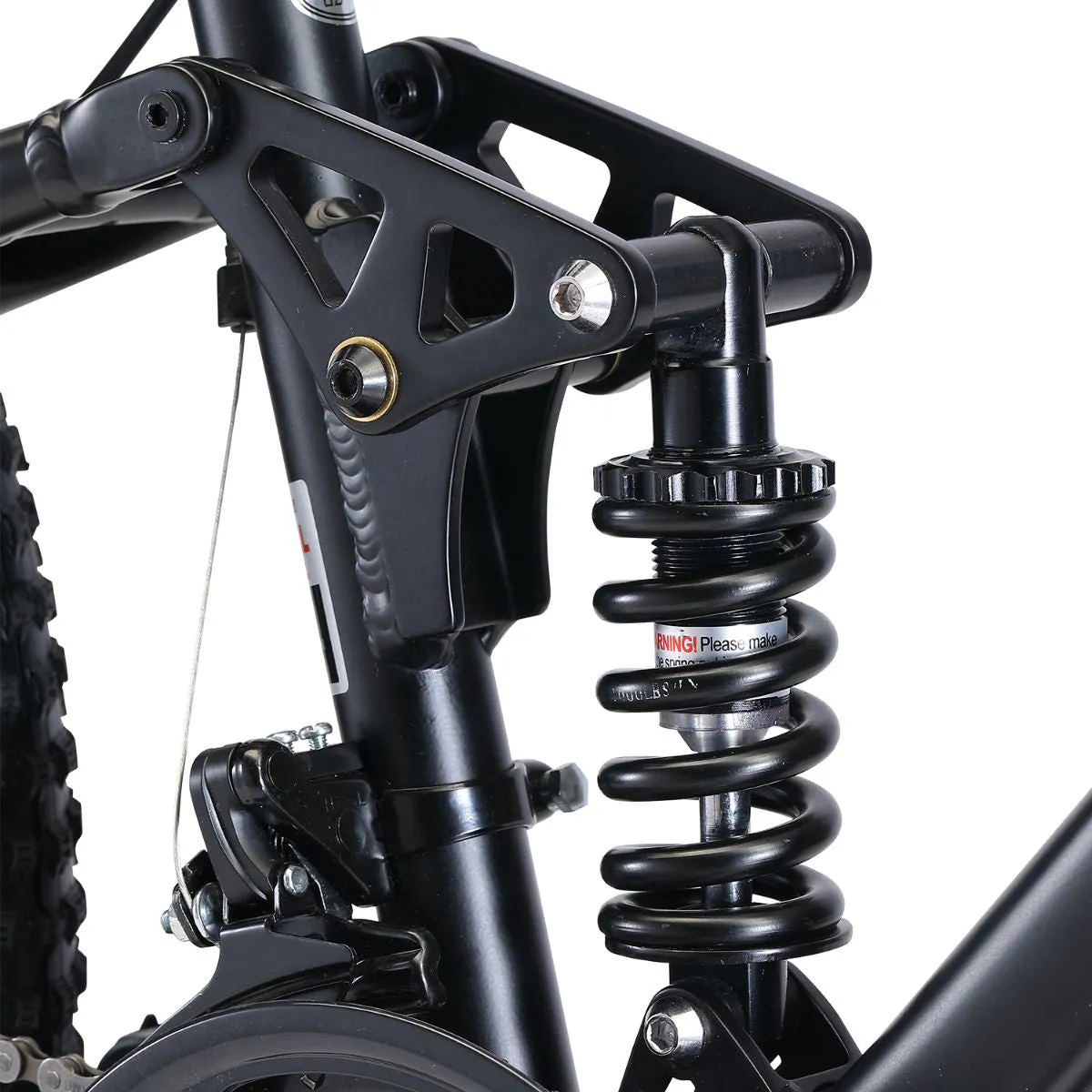

Dual Suspension

Fitted with front and rear suspension, our dual suspension set-up allows you to experience the highest levels of comfort and control to tackle even the most rugged and toughest terrain. Absorb bumps from front and rear wheels with ease while keeping you in close contact and control on the ground for the tricky terrains.

Lightweight 6061 Alloy Frame

Experience less drag on or off the road with a lightweight but durable alloy frame.

21 Speed Drivetrain

Maintain cadence and find the right gear ratio for any incline with the (3x7) 21 Speed Drivetrain.

Reliable Braking

Experience a smooth and comfortable stop with Front and Rear mechanical disc brakes.These brakes are simple, reliable and easy to maintain.

30mm Double Wall Rims

Our 30mm Double Wall Rims are appropriately sizes for mountain bike riding, for optimum weight and strength.

The Blueprints

An awesome package with the following components:

The Blueprints

An awesome package with the following components:

A. Removable Bar Ends

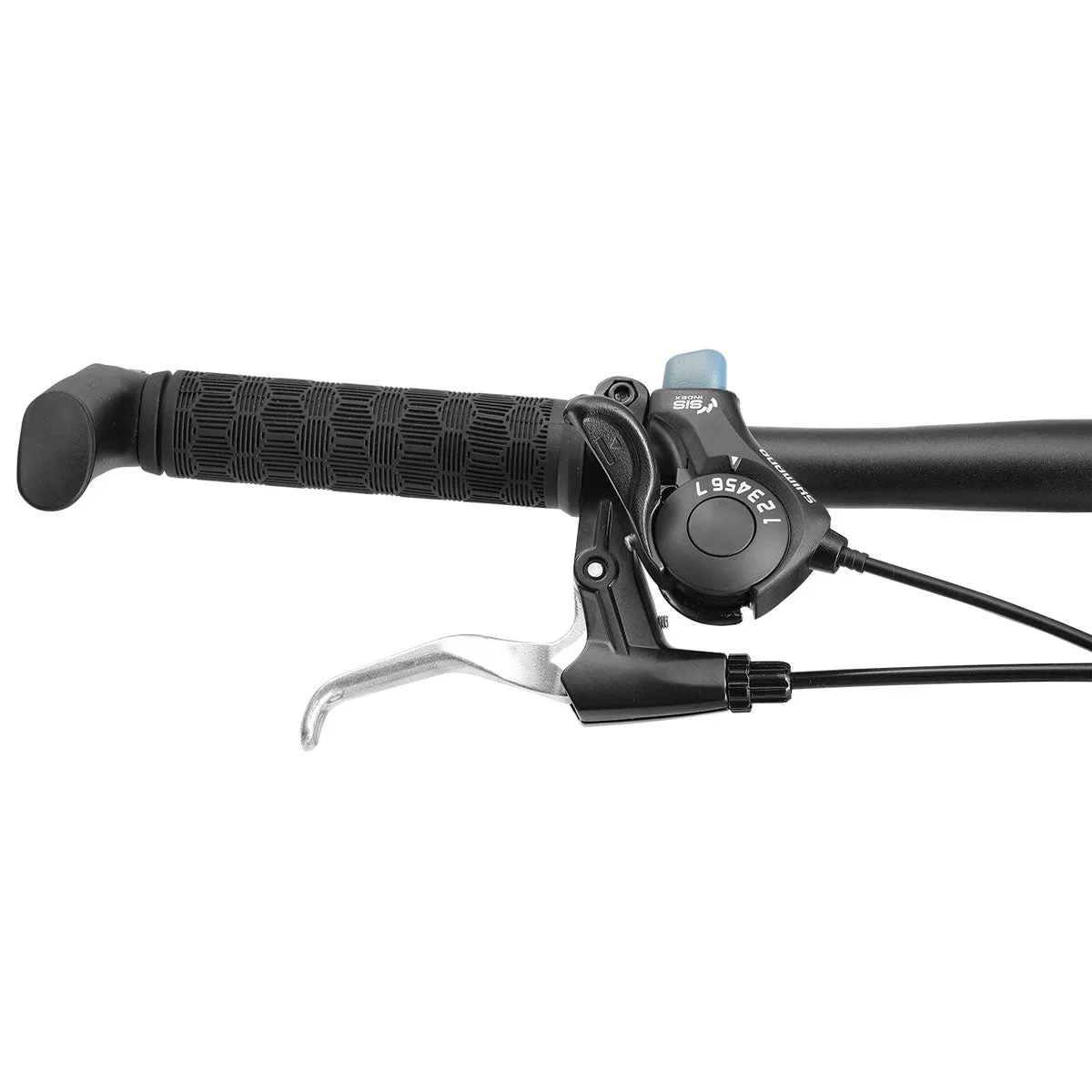

B. Alloy Brake Levers
C. Alloy 6061 Alloy Frame
D. Quick Release Adjustable Seat-Post
E. 21-Speed Drivetrain
F. Front Mechanical Disc Brake
G. 30mm Double Wall Rims

Where to ride?

Specification

Technical Specifications

Frame Sizes	17", 19"
Frame	Alloy 6061 MTB Dual Suspension Frame

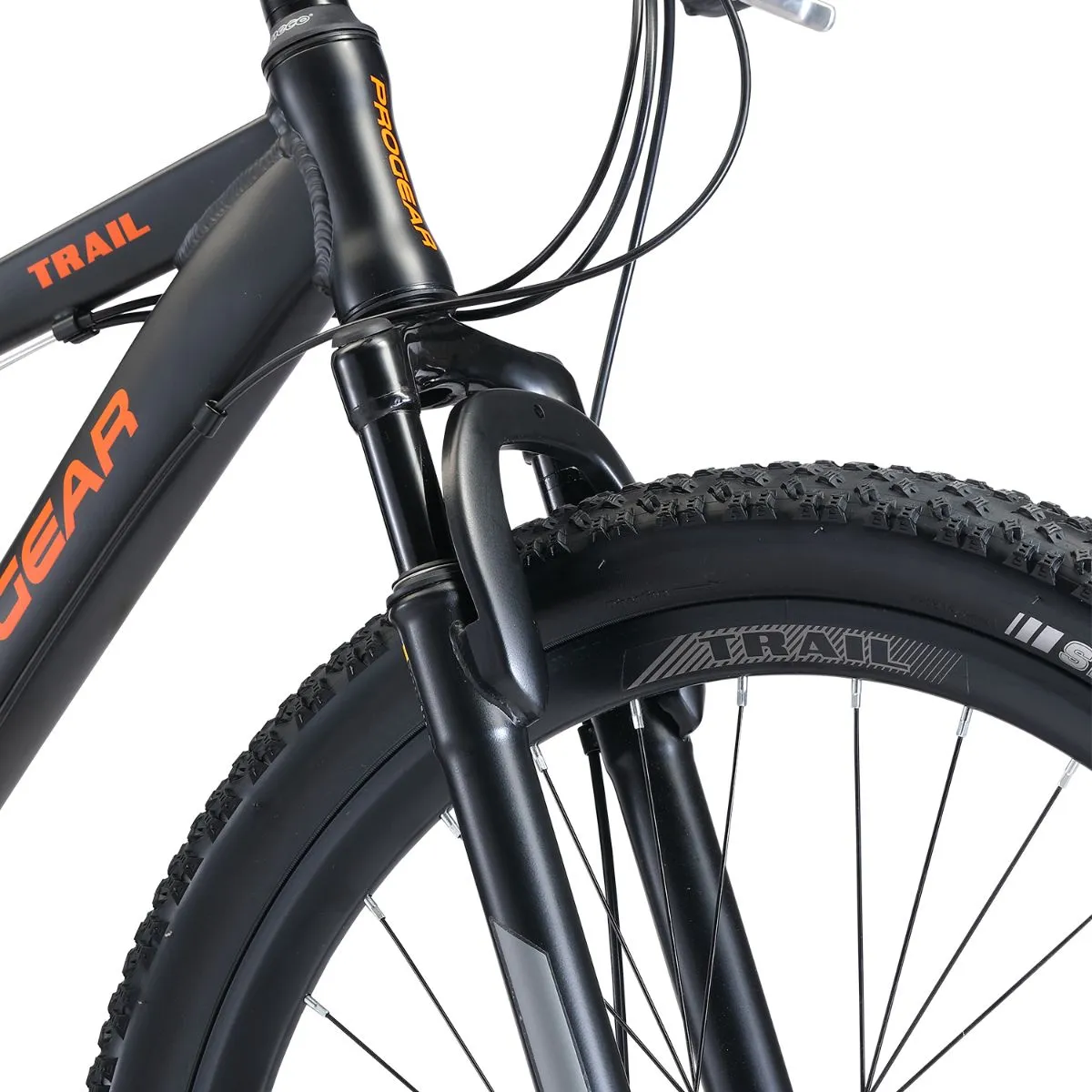

Fork	Suspension Forks
Grips	Rubber, Black, 125mm
Handlebars	Alloy Handlebar with Bar Ends
Brakes	Front and Rear Alloy Disc Brakes (160mm)
Brake Levers	Alloy Brake Levers
Chainwheel	3/32"—24/34/42T—170L
Gear Shifters L	3-SP positioning thumb shifter
Gear Shifters R	7-SP positioning thumb shifter
Front Derailleur	￠31.8 clamp 42T

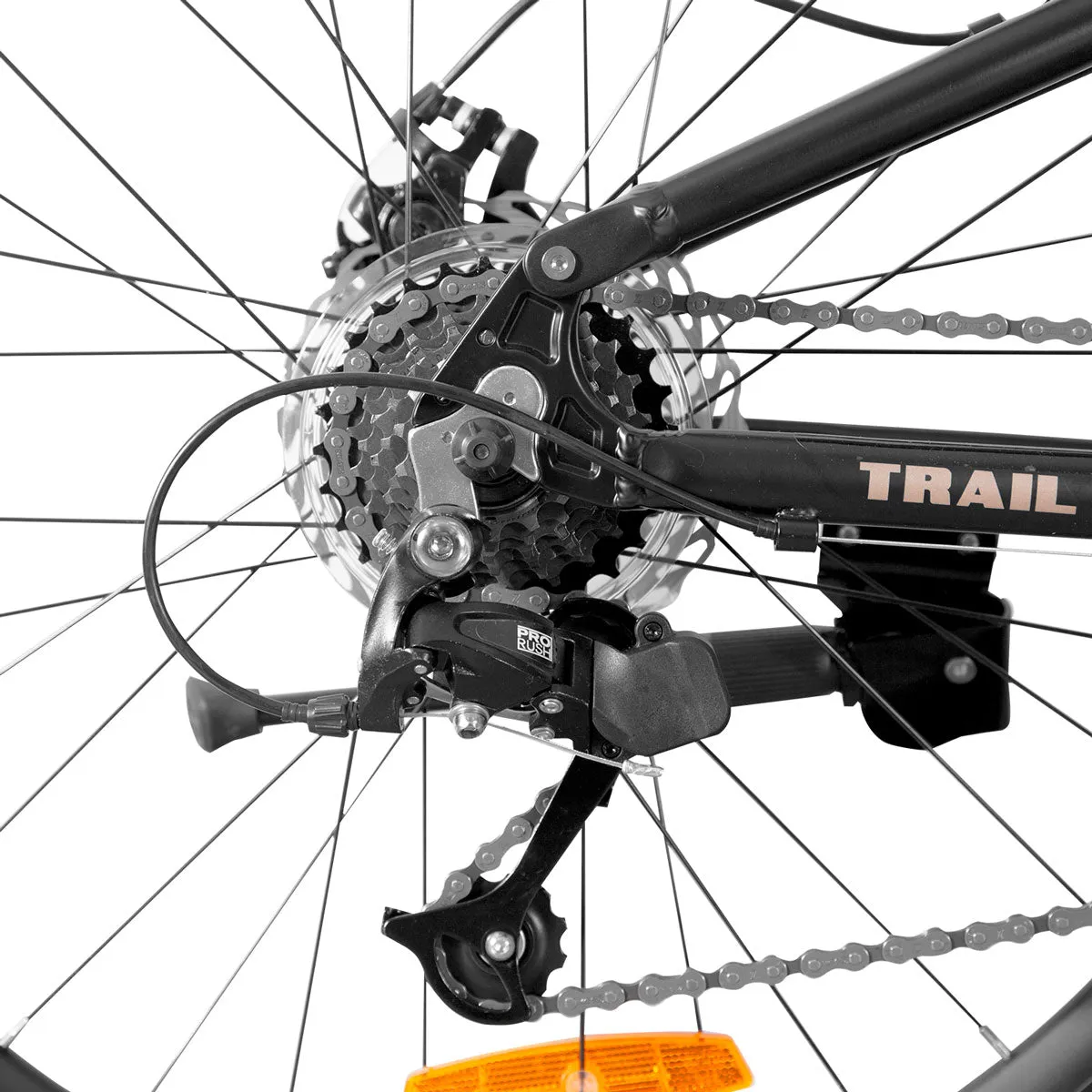

Rear Derailleur	7-SP index
Freewheel	14-28T 7-SP
Saddle	Progear Sports Saddle
Seat Clamp	Alloy Quick Release
Wheels	Alloy rims, 26"
Tyres	Kenda 26" x 2.35" A/V
Front Hub	Steel 14Gx32H 3/8"x100x108 QR
Rear Hub	Steel 14Gx32H 3/8"x135x145 7-SP
Suspension Travel	70mm
Warranty	Lifetime warranty on frame and fork

Box Sizing Guide

Frame Size Number	17"	19"
Wheel Size	26"	26"
Suggested Height	150-180cm	175-195cm
Minimum Suggested Inseam	75cm	78cm
A - Seat Tube	43.2cm	48.3cm
B - Seat Tube Angle	71deg	71deg
C - Head Tube Length	11cm	11cm
D - Effective Top Tube	57cm	58.5cm
E - Chainstay length	47.5cm	47.5cm
F - Wheelbase	109cm	109cm
G - Standover	70cm	73cm
