KEY FEATURES-
Professional stereo and 5.1 audio meter for mixing, mastering and post production
-
7" high resolution LCD display for precision metering in all studio environments
-
USB connection for hassle-free VST*, Audio Units and AAX* plug-in metering
-
Compliant with all major broadcast standards including ITU BS.1770-4, ATSC A/85, EBU R128, TR-B32 and OP-59
-
6 input channels of unbalanced AES3 digital audio on 75 Ohm BNC connectors for broadcast-grade 5.1 metering
-
Legendary LM6 Loudness Radar Meter provides all essential loudness monitoring information on a single screen
-
State-of-the-art true peak meter identifies clipping in DACs, CODECs and downstream filters
-
Downmix compliance meter based on TC Electronic's industry-standard loudness measurement algorithms
-
Precision stereo/surround correlation meters
-
High accuracy real time analyzer with 1/3 octave resolution
-
Detailed statistics overview for all key loudness measuring parameters
-
Provision for custom logo on LCD display
-
RAM-mount compatible for wall or ceiling mounting (not included)
-
Stereo Optical Input for TOSLink* source
-
General purpose input (GPI) for meter reset
DESCRIPTION

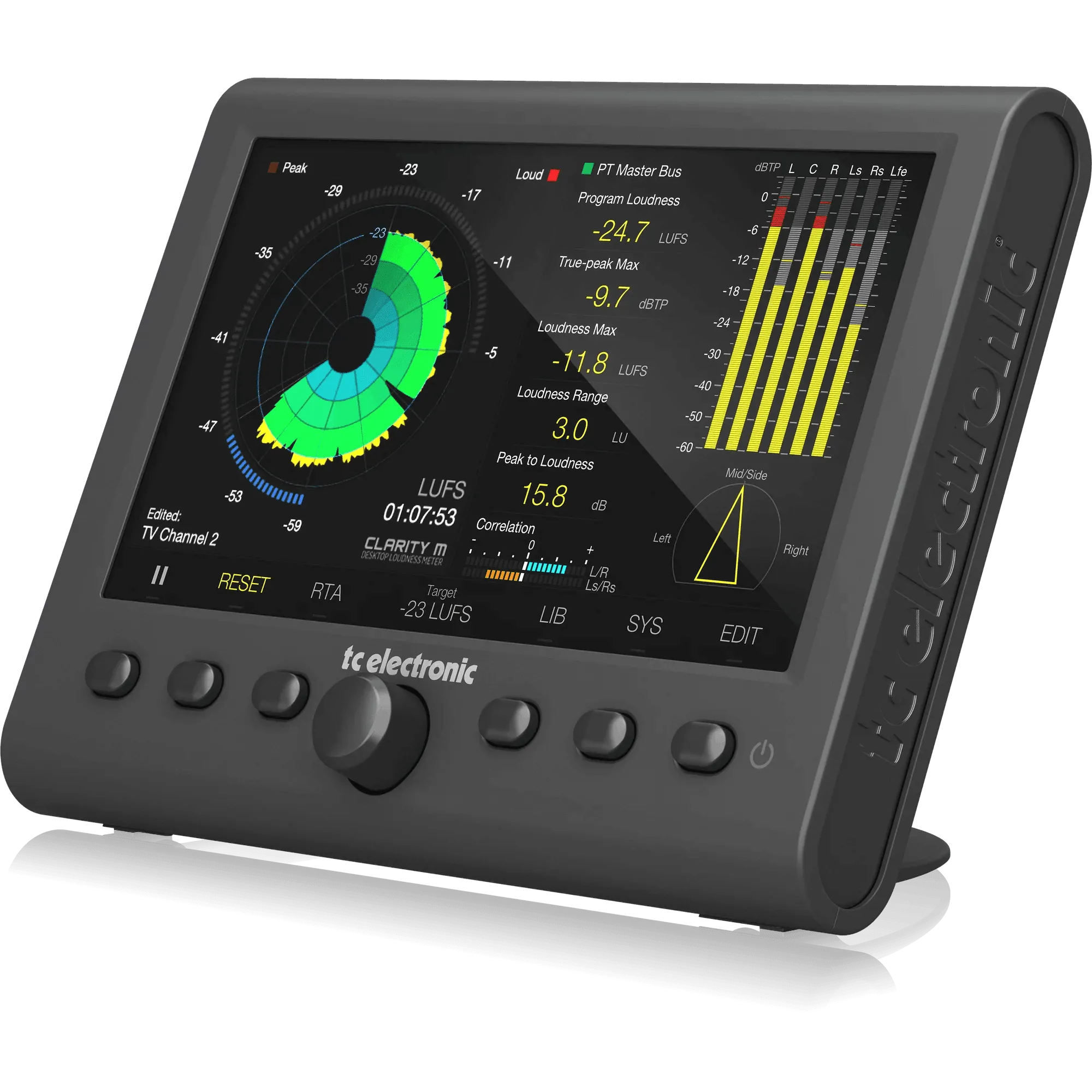

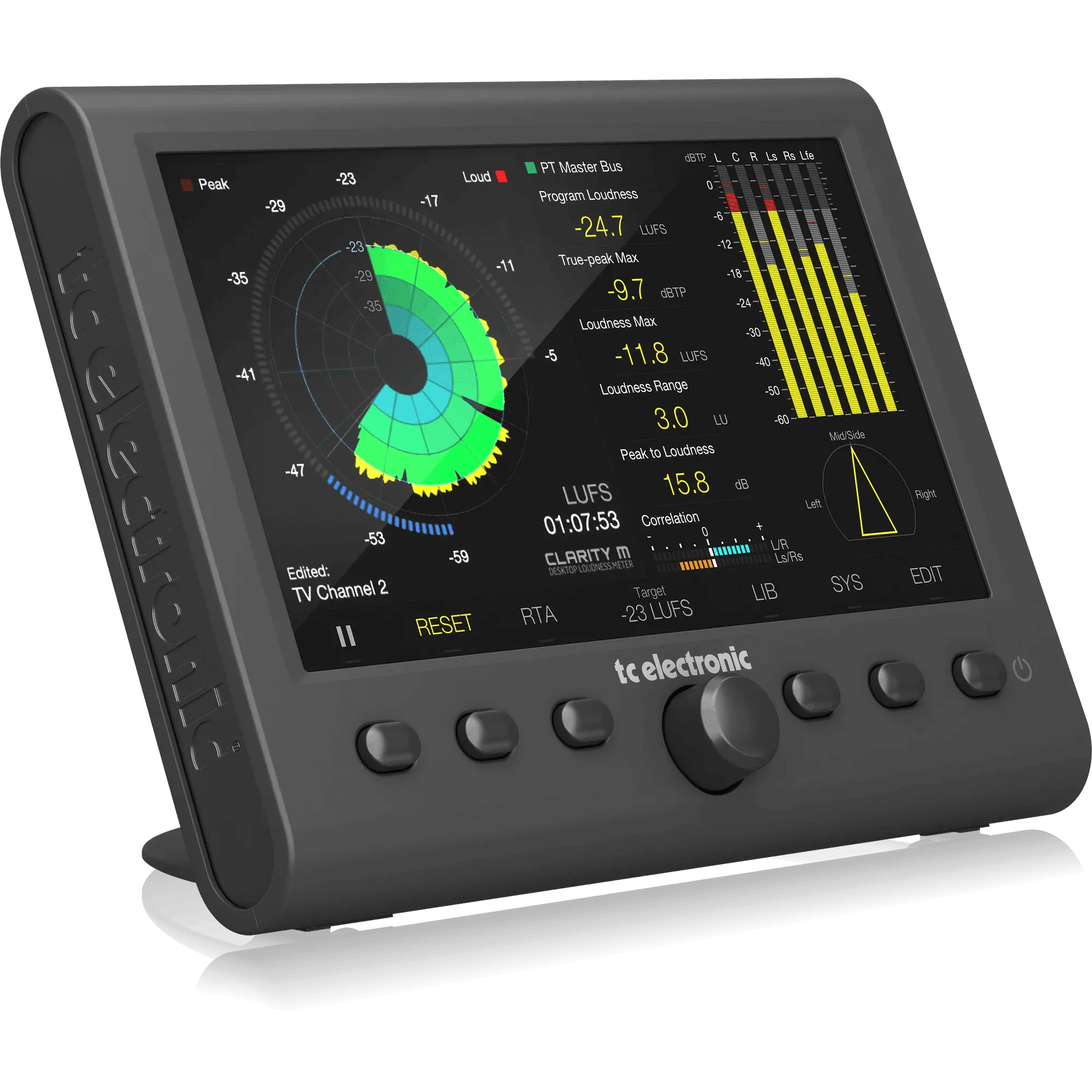

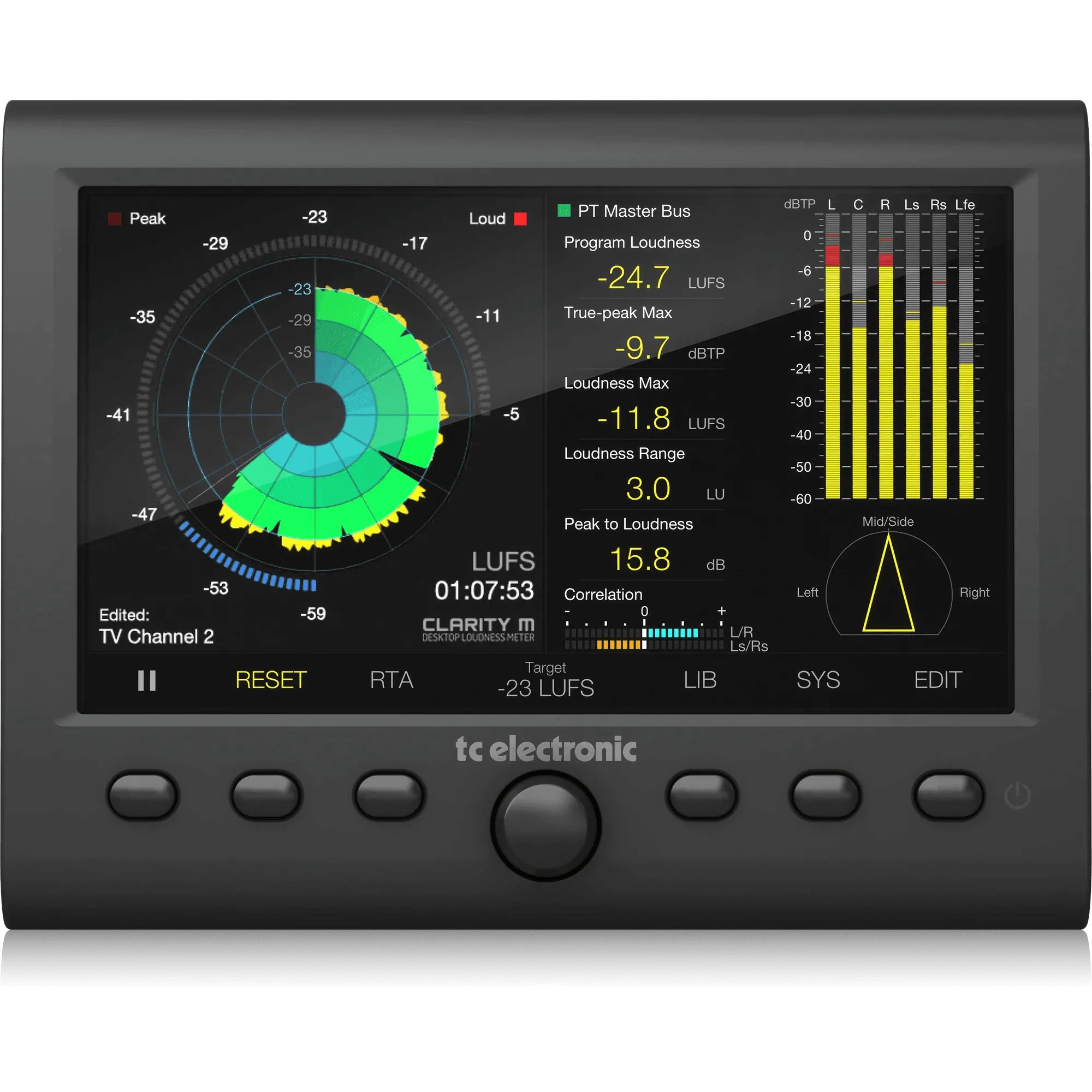

The CLARITY M provides a comprehensive set of precision tools essential to the success of any audio producer. Ideally suited to stereo and 5.1 mixing, mastering and post-production, CLARITY M’s 7" high-resolution LCD display provides a wealth of monitoring information at-a-glance via a single screen. Metering options include; the legendary LM6 Loudness Radar Meter; a state-of-the-art true peak meter; downmix compliance; stereo/surround correlation meters; and a RTA (Real Time Analyzer).
Source inputs come in a vast array of options including: USB for hassle-free VST*, Audio Units* and AAX* plug-in metering; 6 channels of unbalanced AES3 digital audio on 75 Ohm BNC connectors for broadcast-grade 5.1 metering; and stereo optical for maximum fl exibility. CLARITY M is fully compliant with all major broadcast standards including ITU BS.1770-4, ATSC A/85, EBU R128, TR-B32 and OP-59, and is recommended for all studio environments.
SPECIFICATIONS
| Connections | |

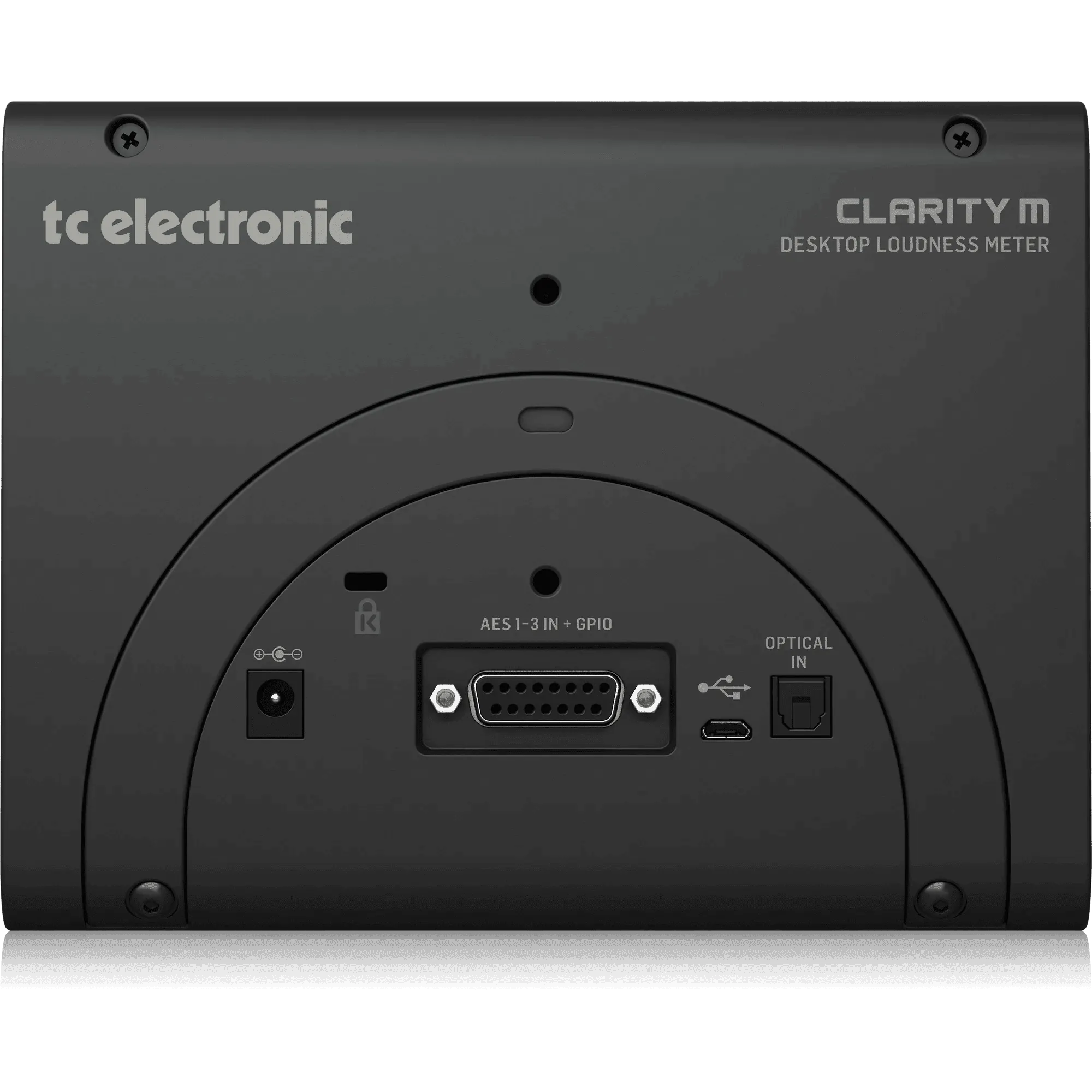

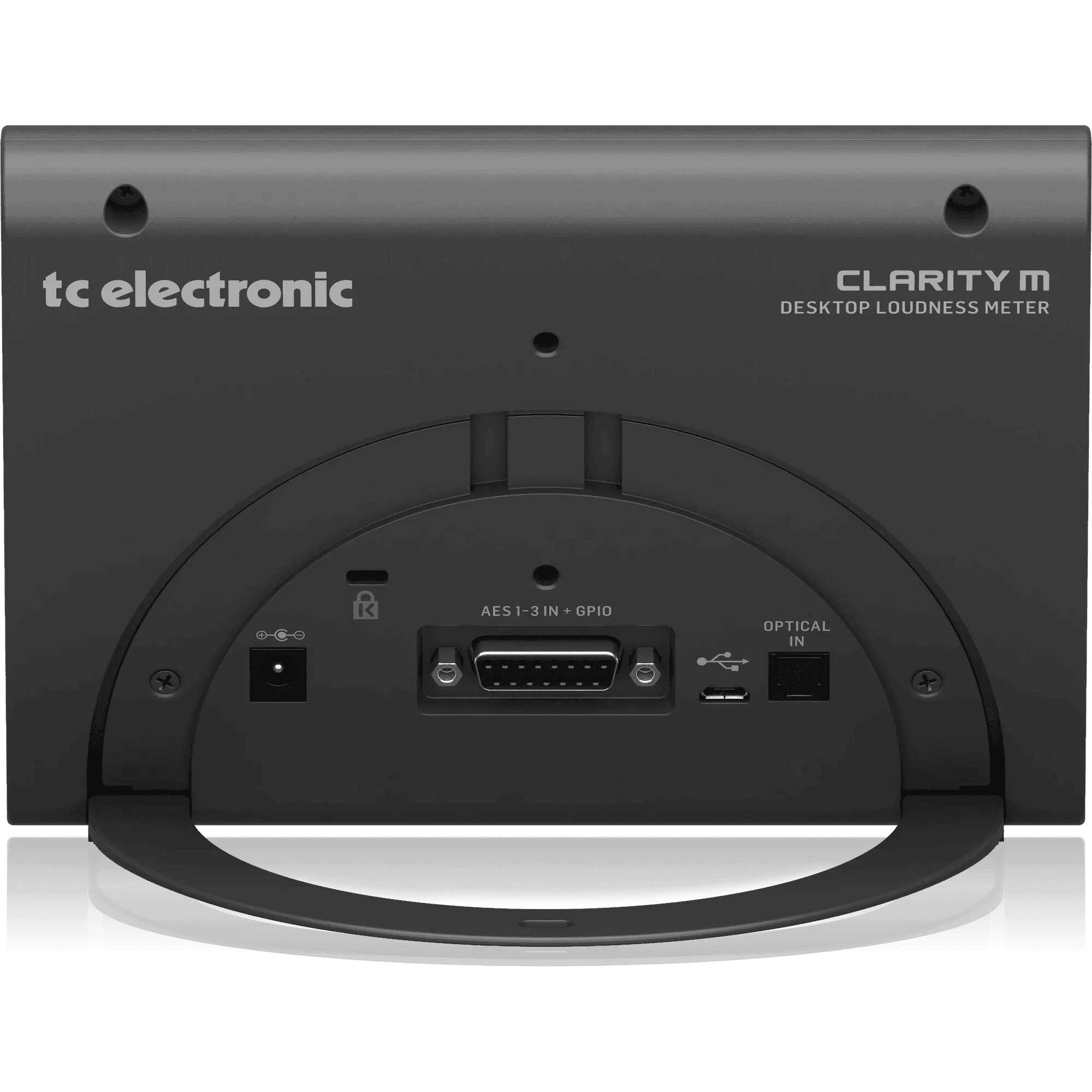

| Digital Audio Inputs | Input 1 – BNC (AES3id, S/PDIF) Input 2 – BNC (AES3id, S/PDIF) Input 3 – BNC (AES3id, S/PDIF) Input 4 - TOSLINK (EIAJ optical) |
| GPIO | 2 external switch inputs, 1 relay output (100 mA max, optically isolated) 1/8" mono female (GPO) ." stereo female (2x GPI) |
| USB | USB 2.0 (Micro type B) |
| Display and Controls | |
| User controls | Rotary encoder, 6 selection buttons |
| Display | 7" TFT color 800 x 480 |
| Sample Rate | |
| Standalone mode | Stereo: 44.1, 48, 88.2, 96 kHz Surround: 44.1, 48 kHz |
| Plug-in | Stereo: 44.1, 48, 88.2, 96 kHz Surround: 44.1, 48, 88.2, 96 kHz |
| Power | |
| Power consumption | 12 V DC, 0.5 A |
| Physical | |
| Dimensions | 140 x 182 x 38 mm (5.5 x 7.2 x 1.5") |
| Weight | 1.2 kg (2.6 lbs) |
| Accessories | |
| Included accessories | AC adapter DB15 cable assembly BNC female to RCA male adapter USB cable type A male to micro B male, 1 m long |
| Compliance | |
|
| Compliance with all worldwide standards ITU BS.1770-4, ATSC A/85, EBU R128, TR-B32 and OP-59 |
