ALLOY MTB
FRAME
ALLOY RIMS
26" X 1.95" TYRES
21 SPEED SHIMANO
DRIVETRAIN
ALLOY 170MM CRANK

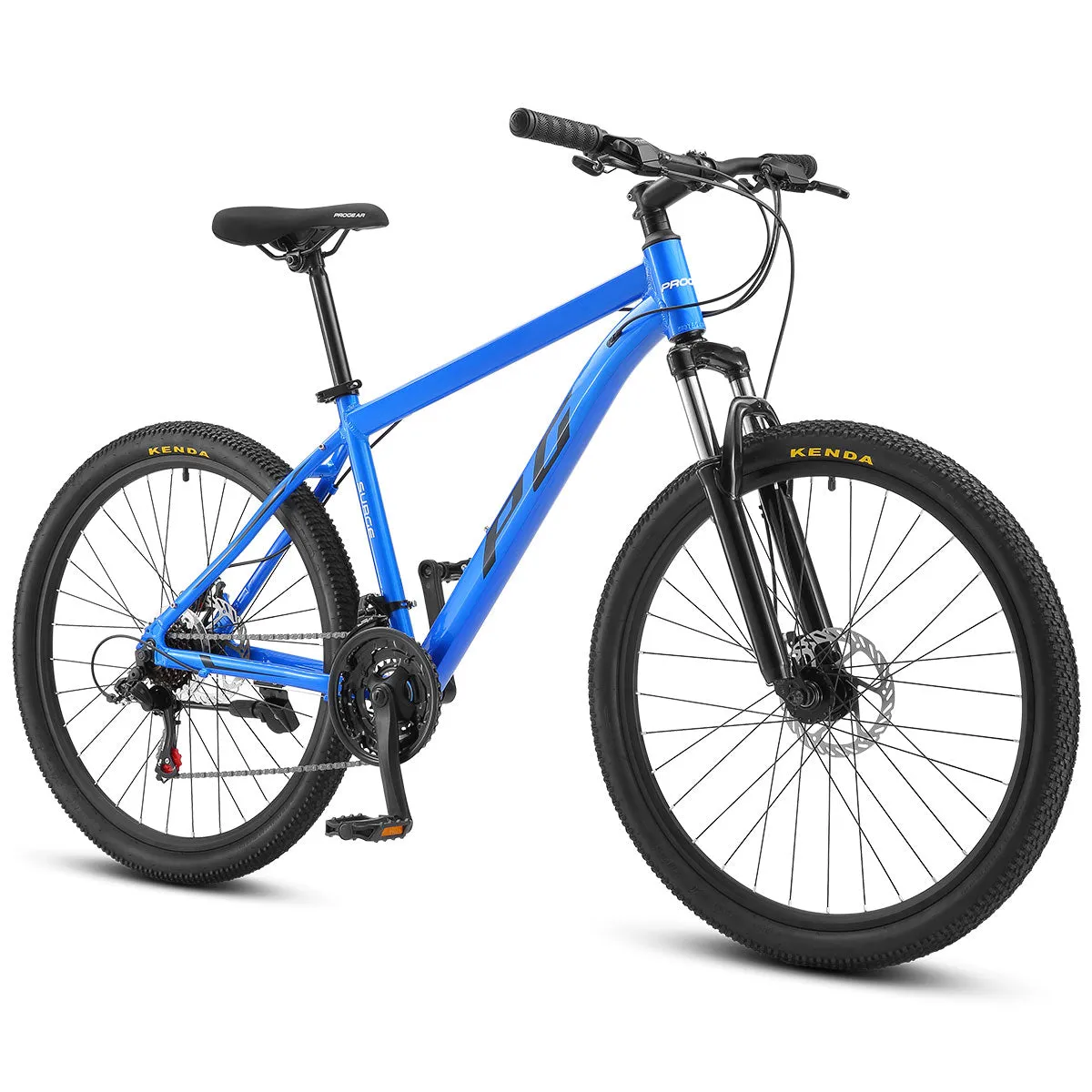

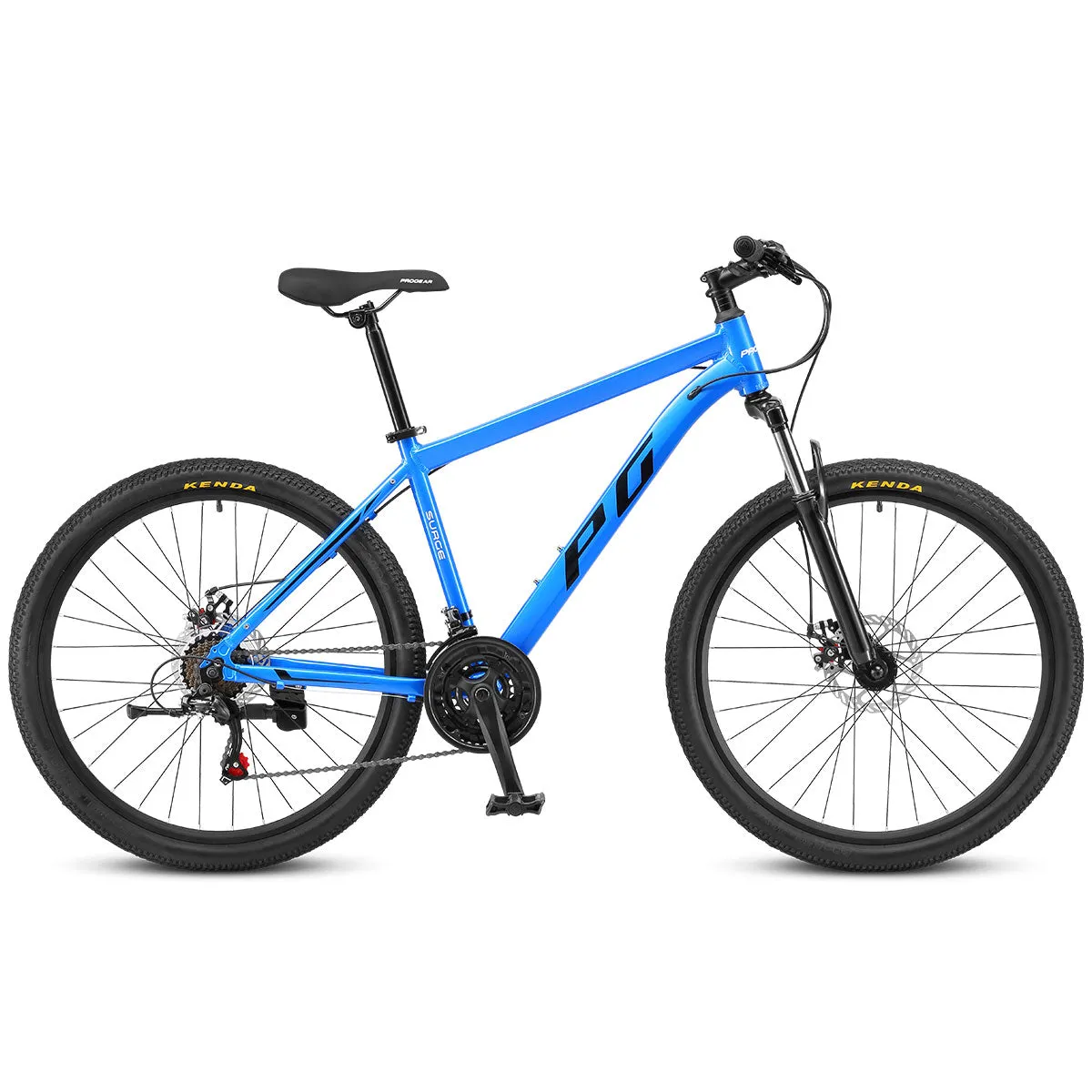

Just the Bike for Everywhere
Off-road, on-road, the Surge will be great for mountain biking and street cycling. A fantastic and affordable package in a mountain bike.
Alloy Frame
A light-weight alloy frame helps increase the agility and handling of your bike, making it essential for any mountain bike rider.

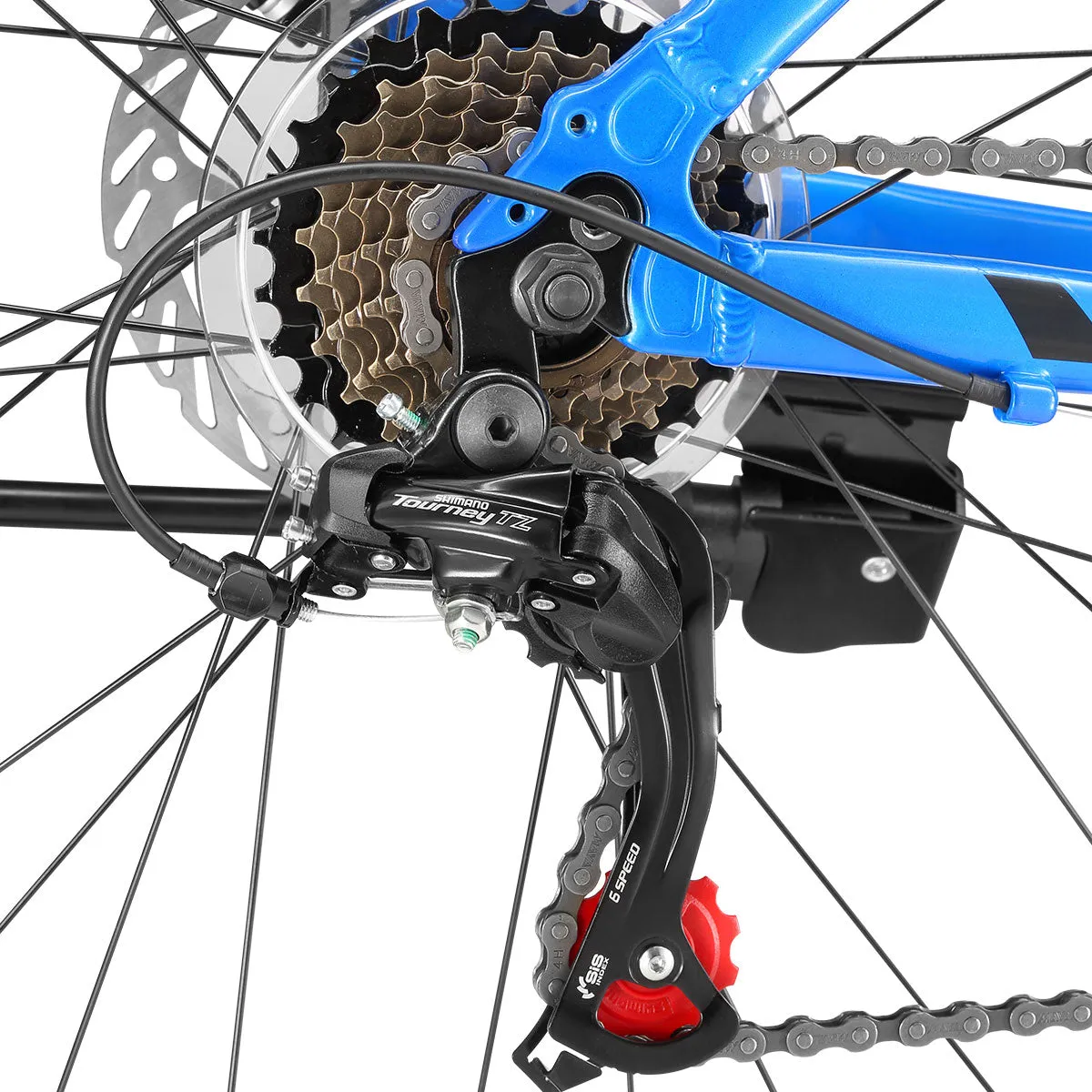

21 Speed Shimano Drivetrain
With a front and rear derailleur combining 21 gears, you'll be able to maintain cadence and find the right gear ratio for any incline. Comes equipped with a reliable Shimano Drivetrain and Shimano Thumb shifters.
Strong Stopping Power
Strong, reliable stopping power is paramount to any bike rider, especially if you're manoeuvring through tough terrain. That's why our Surge comes with Disc brakes for consistent, high-powered braking performance.
- ✓ Rim Brakes (like Caliper or V Brakes) can be unreliable in wet or muddy conditions
- ✓ Longer lasting
- ✓ Stronger braking performance
- ✓ Less adjustment and maintenance required
Suspension Forks
You'll be able to chew up bumpy and uneven terrain with ease on the Surge's suspension forks. Don't settle for standard forks, you'll be in for an uncomfortable and bumpy ride!
Steel/Resin Pedals
Pedals are the main contact point for all of your power & torque, which is why our Surge comes with quality steel/resin pedals rather than plastic.
Double Wall 30mm Rims
Our 30mm Double Wall rims are appropriately sized for mountain bike riding, for optimum weight and strength.
The Blueprints
An awesome package with the following components:
- A. Quick Release Adjustable Seat-Post
- B. Rear Disc Brakes
- C. Shimano 21 Speed Drivetrain
- D. Steel Resin Pedals
- E. Alloy Frame
- F. Removable Bar ends
- G. Front Disc Brakes
- H. 26" x 1.95 MTB Tyres
Where to ride?
Specification
Technical Specifications
| Frame | 6061 Alloy MTB Frame with oversize tubing |
|---|---|
| Handlebars | Alloy Handlebar with Bar Ends attached |
| Crankset | Alloy 170mm Crank with 24/34/42t Steel chainwheel |
| Brakes | Front and Rear Mechanical Disc Brakes |
| Sizes | 17", 19" |

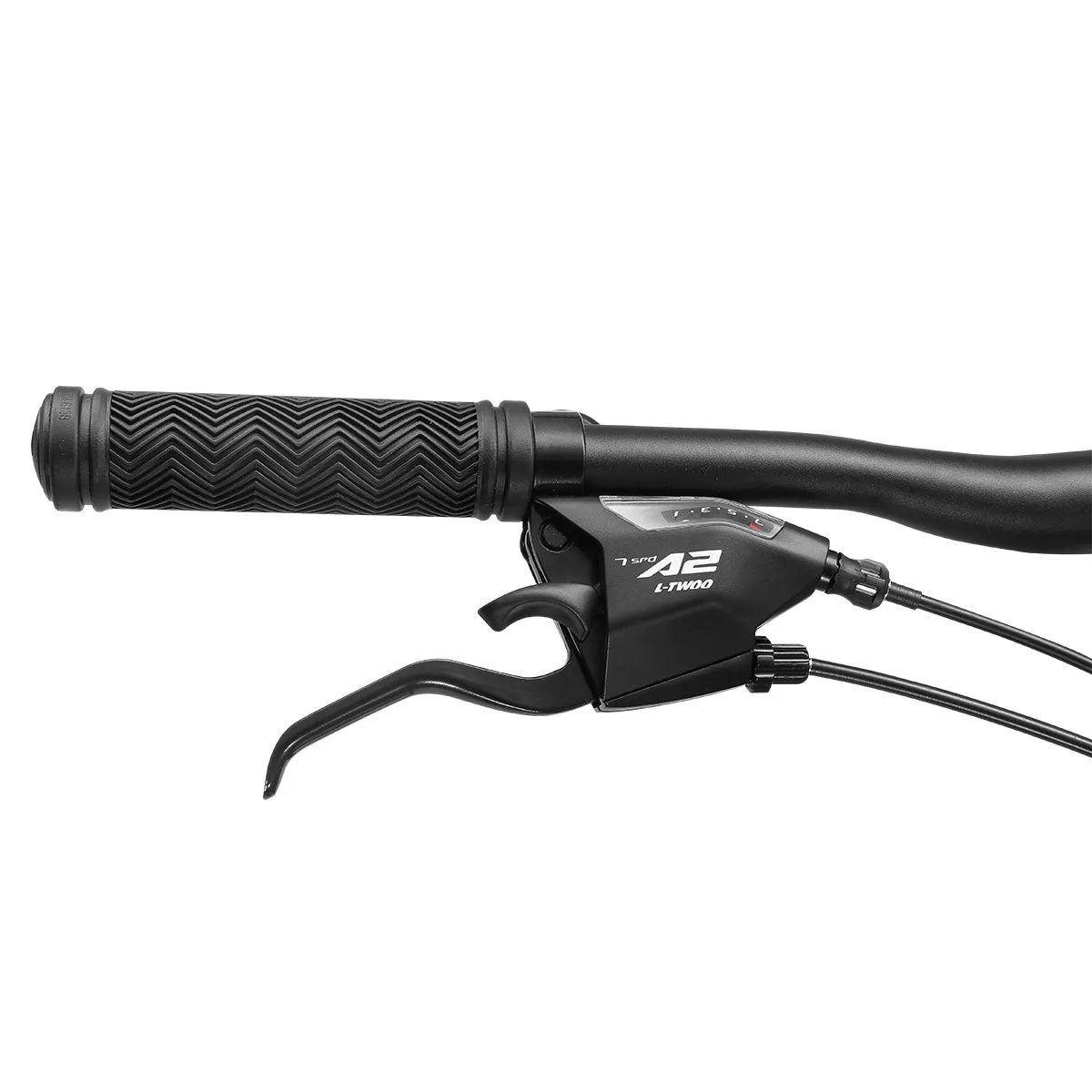

| Gear Shifters L | 3-SP positioning thumb shifter |
| Gear Shifters R | 7-SP positioning thumb shifter |
| Front Derailleur | Shimano TZ500 3sp |
|---|---|
| Rear Derailleur | Shimano TZ500 7sp |
| Freewheel | 18-28T 7-SP |
| Saddle | Comfortable Sports Saddle |
| Wheels | Alloy rims, 26" x 1.95 MTB Tyres |
| Colour | Bright Blue |
| Warranty | Lifetime warranty on frame and fork |
Box Sizing Guide
| Frame Size Number | 17" | 19" |
| Wheel Size | 26" | 26" |
| Suggested Height | 155-170cm | 170-190cm |
| Minimum Suggested Inseam | 74cm | 78cm |
| A - Seat Tube | 43cm | 48cm |
| B - Seat Tube Angle | 73deg | 73deg |
| C - Head Tube Length | 12cm | 12cm |
| D - Effective Top Tube | 56cm | 58cm |
| E - Chainstay length | 42cm | 42cm |
| F - Wheelbase | 104cm | 105cm |
| G - Standover | 72cm | 76cm |
