Alloy, The Metal of Choice

Designed to last, the Sierra Hybrid has been built with an Alloy frame and other Alloy components. The alloy material offers greater durability, increasing the bike's lifespan while remaining lightweight, offering superb balance and handling.

Front Suspension

Fitted with a Suspension Fork, the Sierra Hybrid will easily absorb any bumps giving you a smoother ride both off-road and on-road.

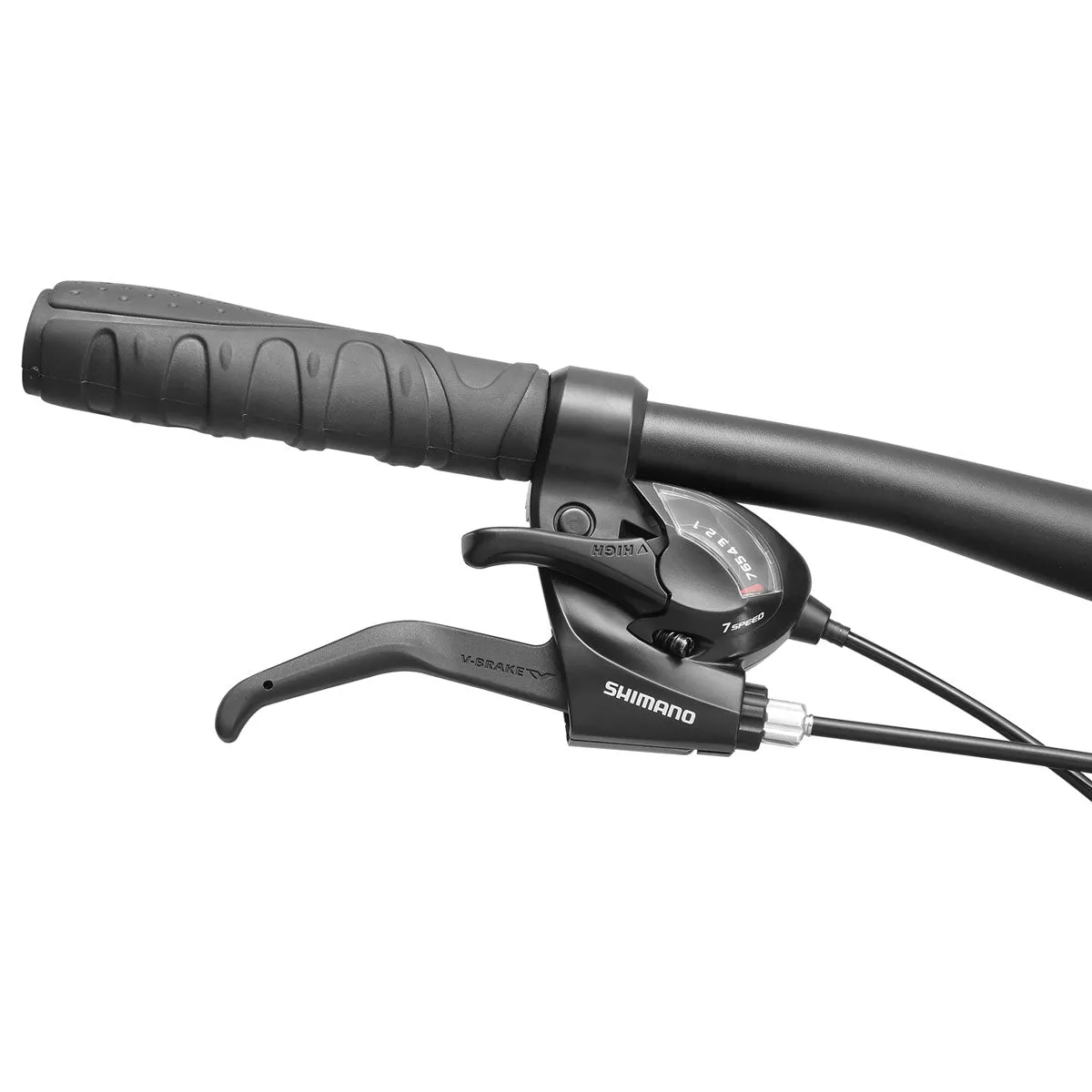

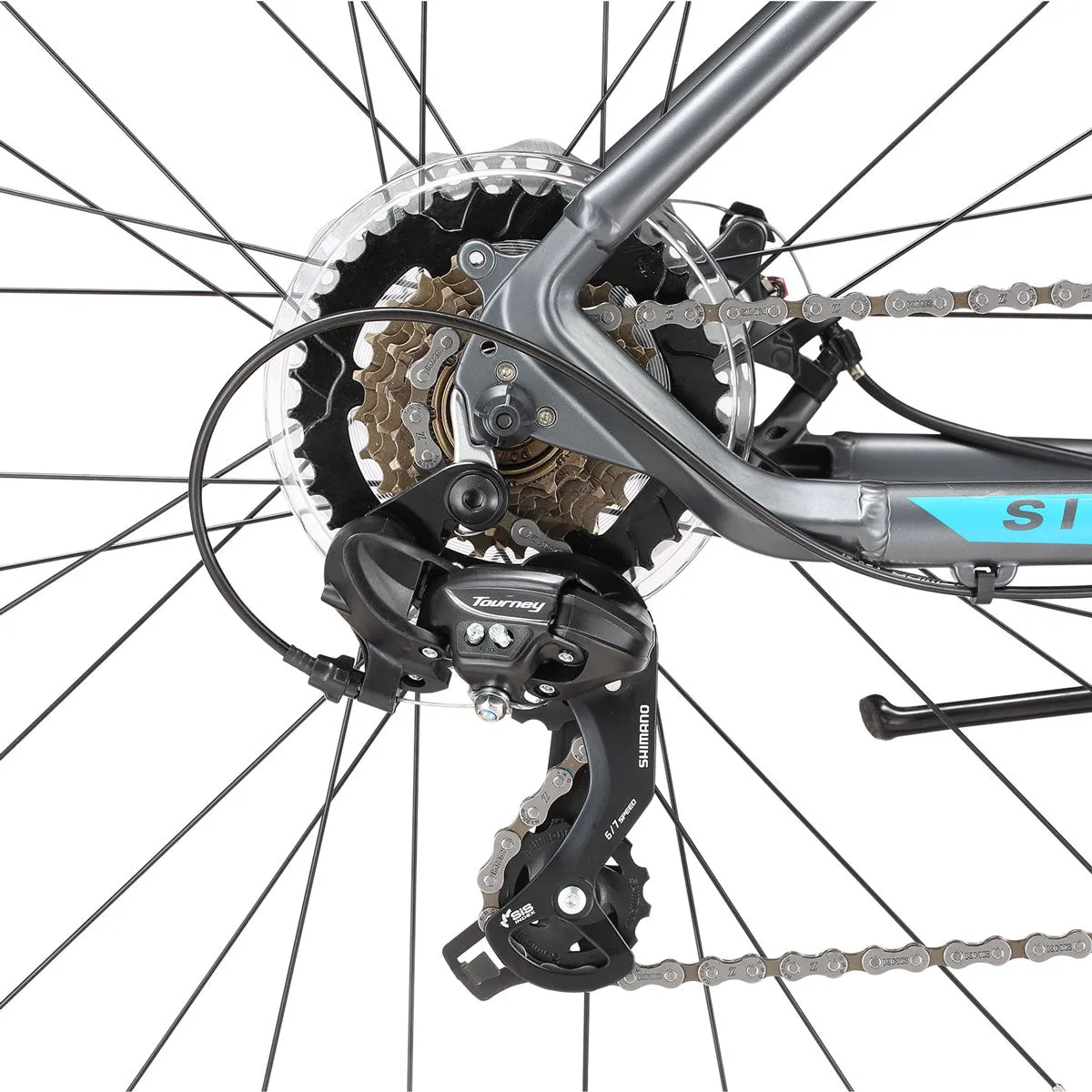

21 Speed Sunrace Drivetrain and F/R Rapid Fire Shifter

Find versatility riding in any terrain with a 21 Speed Sunrace Drivetrain.At the command of convenient RapidFire shifters, Sunrace derailleurs shift comfortably through 3 front and 7 rear gears.

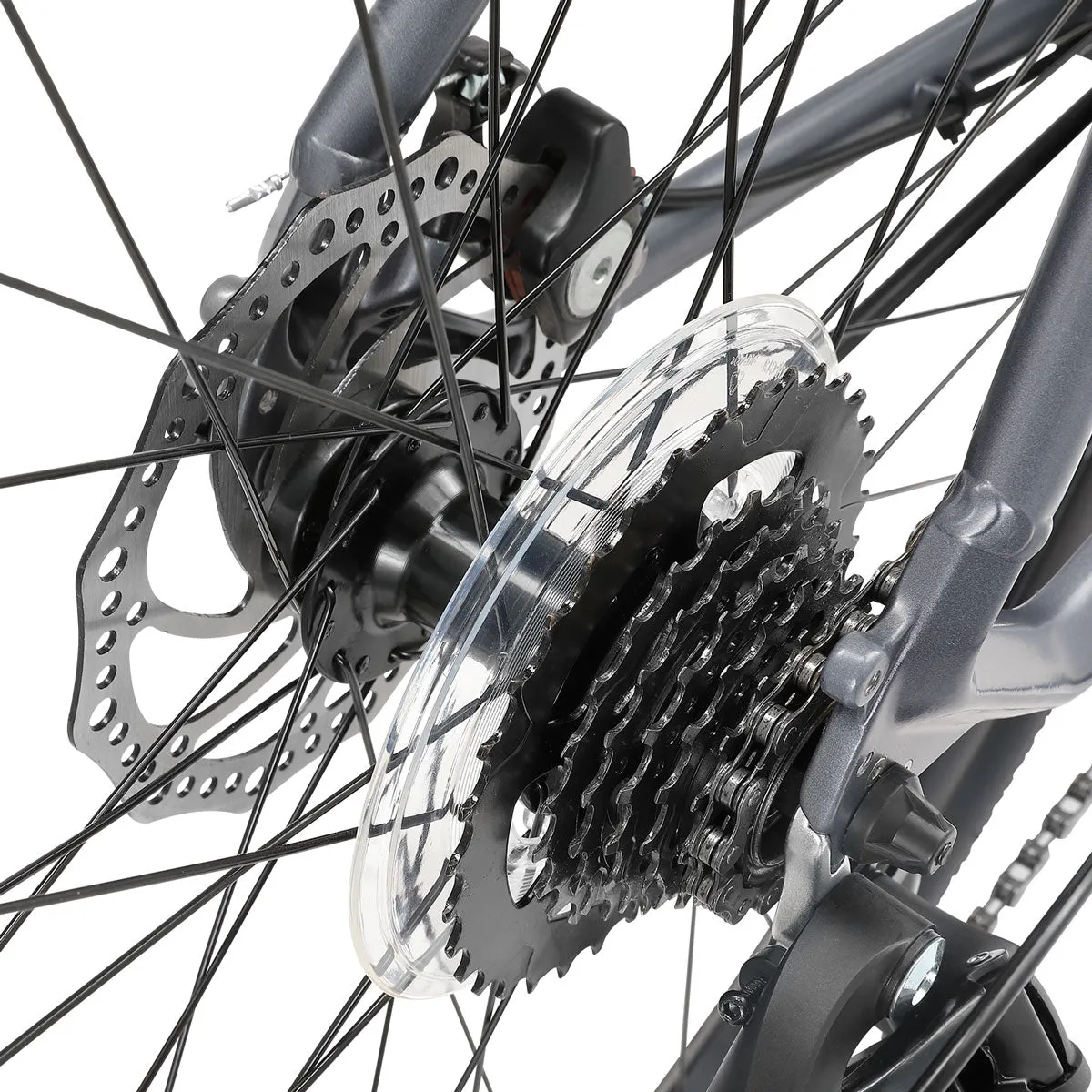

Mechanical Disc Brakes

Strong, reliable stopping power is paramount to any bike rider, especially if you're going between off-road and on-road trails. That's why our Sierra Hybrid comes with Disc brakes for consistent, high-powered braking performance.

700X40c Tyres

Experience the versatility of a 700Cx40C hybrid wheelset. Taller rims support more efficient riding on road, and medium width tyres offer solid traction off-road without too much roll resistance on road.

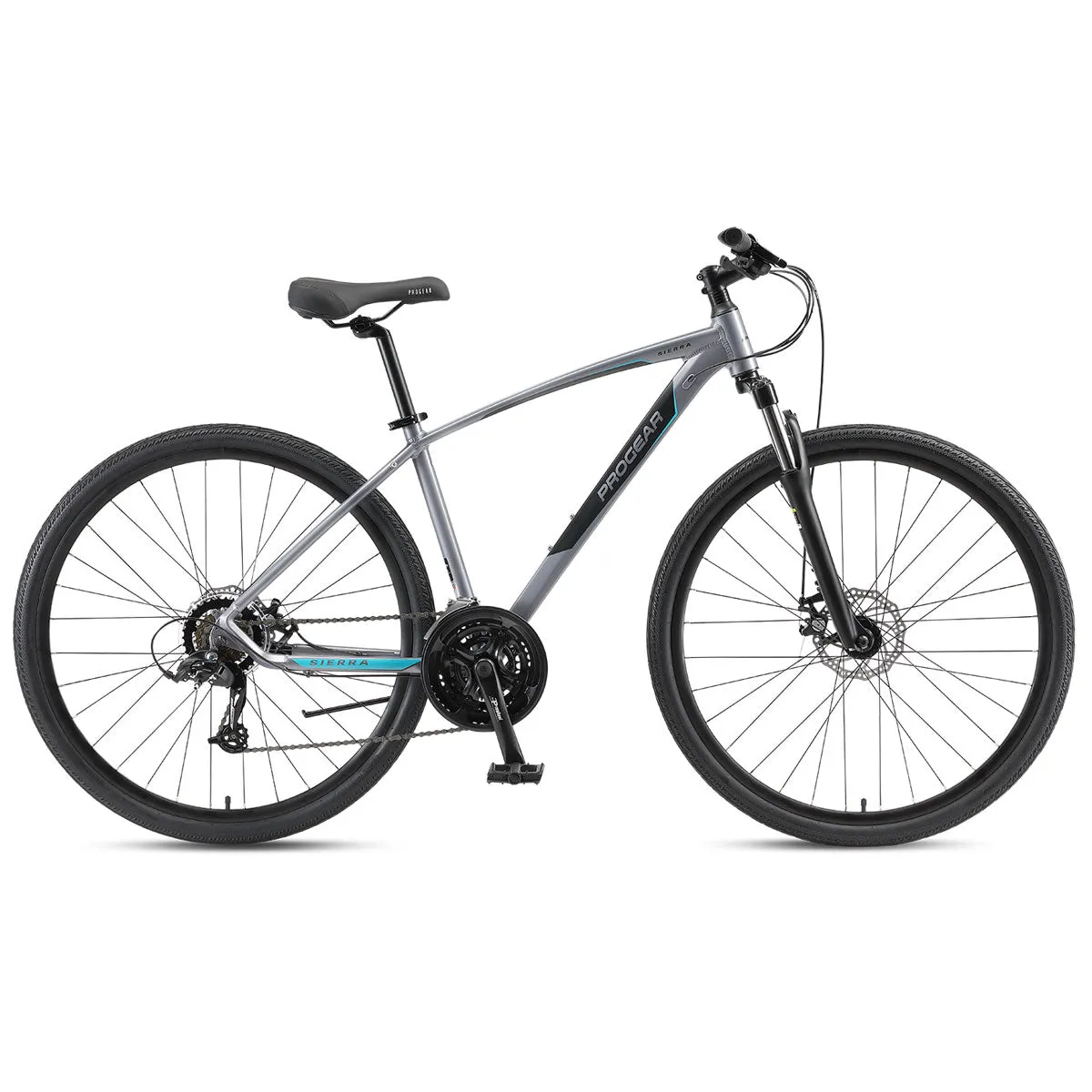

The Blueprints

An awesome package with the following components:

The Blueprints

An awesome package with the following components:

A. Rapid Fire Shifters
B. Adjustable Seat-Post
C. Alloy Frame
D. 21 Speed Sunrace Drivetrain
E. Mechanical Disc Brakes
F. 700Cx40C Hybrid Wheelset
E. Front Suspension

Where to ride?

Specification

Technical Specifications

Frame	Alloy
Fork	Suspension Fork -65mm Travel.
Handlebar	Alloy W:680mm 5° H：25mm
Stem	φ28.6mm E:70mm 7° Rise
Grip	130mm Rubber

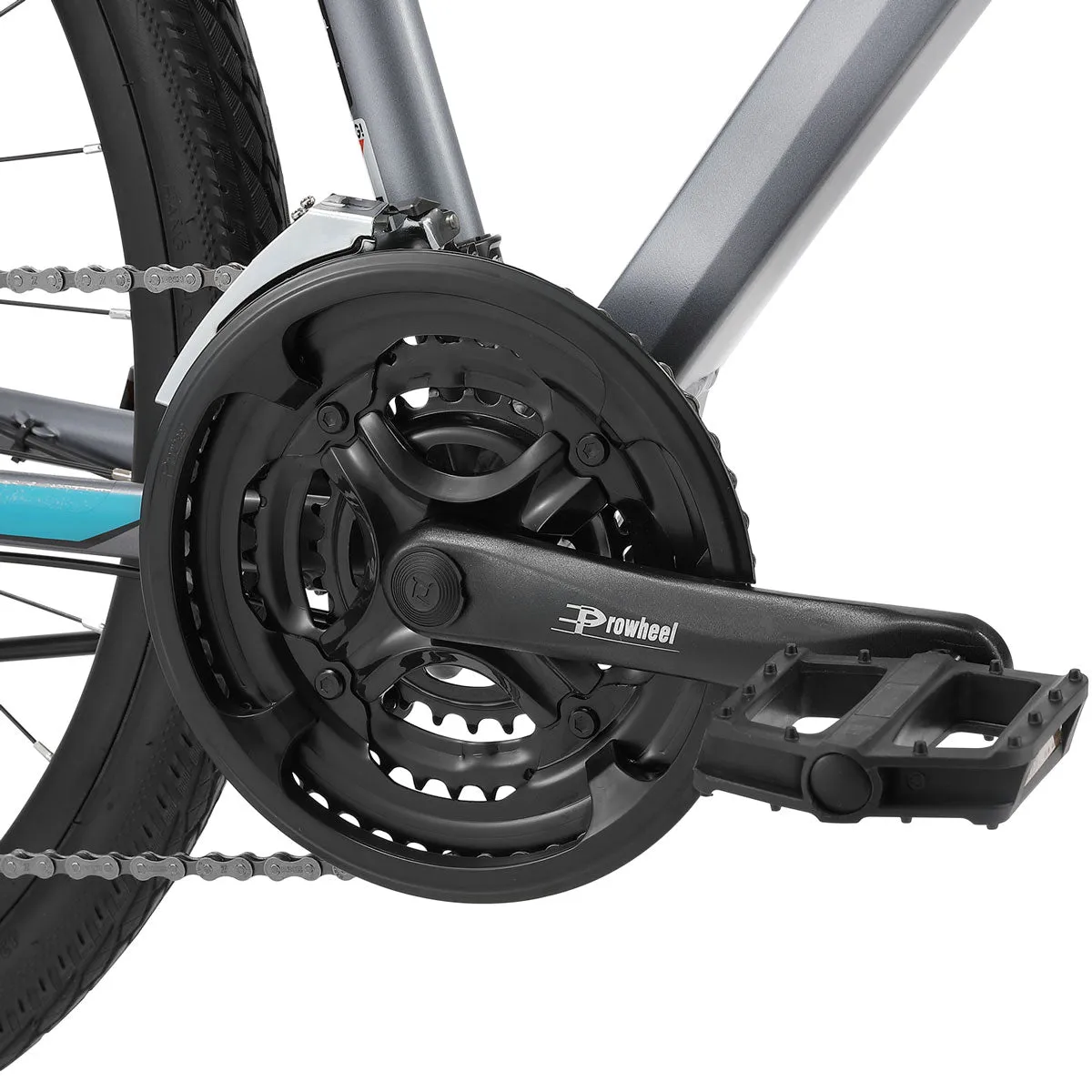

Crank sets	Alloy 170mm - 28/38/48T
Pedal	Alloy 9/16:
Chain	1/2″×3/32″×114L
Freewheel	14-34T 7-Speed
F.Derailleur	Sunrace 3-Speed FD

R.Derailleur	Sunrace 7-Speed RD
Shifter Front	3 Speed Rapid Fire
Shifter Rear	7 Speed Rapid Fire
Brake	Mechanical Disc - 160mm Rotor
Bottom Bracket	68mm L:124.5mm
Rims	700C×14G×32H
Spokes	14G
Tire	700 x 40c
Seat Post	φ27.2×350mm
Seat Clamp	φ31.8mm Quick Release

Box Sizing Guide

Frame Size Number	15"	17"	19"
Wheel Size	700c	700c	700c
Suggested Height	155-165cm	165-180cm	180cm
Minimum Suggested Inseam	74cm	78cm	82cm
A - Seat Tube	38cm	43cm	48cm
B - Seat Tube Angle	73deg	73deg	73deg
C - Head Tube Length	10cm	10cm	10cm
D - Effective Top Tube	57cm	58cm	59cm
E - Chainstay length	44cm	44cm	44cm
F - Wheelbase	105cm	106cm	107cm
G - Standover	72cm	76cm	80cm
