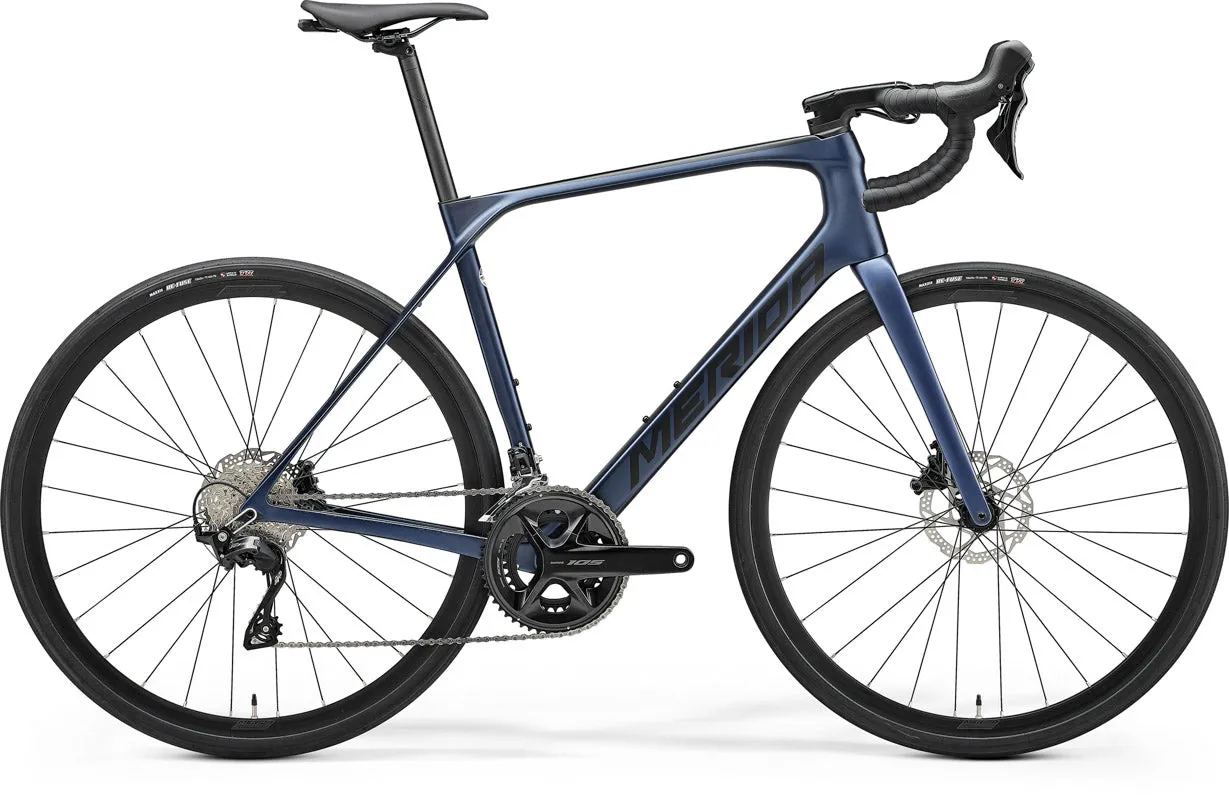

The lowest-priced carbon version of our test and award-winning SCULTURA ENDURANCE concept, but a bike that can keep up with the best. Top-end carbon frame combined with the latest 105 mechanical groupset make for a virtually flawless and cost-effective package.
Features
*Lightweight CF3 carbon frame with comfort orientated geometry and confidence inspiring handling
*Shimano 105 12-speed groupset
*MERIDA EXPERT SL II stem and MERIDA EXPERT SL handlebar combo
*MERIDA carbon seat post
*Maxxis Re-Fuse 32 mm tyres
*Under-saddle pouch with MERIDA multitool
Specs
| FRAME | SCULTURA ENDURANCE CF3; MAT carbon; 700x35C max./ 700x32C (with fender) max. WHS; 100x12/ 142x12 AST; BB86 BBR |
| FORK | SCULTURA ENDURANCE CF3 DISC; MAT carbon; 700x35C max. WHS |
| BRAKE LEVER | Shimano 105 |
| BRAKE - FRONT | Shimano 105; Hydraulic disc |
| BRAKE - REAR | Shimano 105; Hydraulic disc |
| ROTOR - FRONT | Shimano RT54; 160mm |
| ROTOR - REAR | Shimano RT54; 160mm |
| C-HOUSING | LEX40-L3 |
| CHAIN | Shimano CN-M6100-12 |
| CHAINWHEEL | Shimano 105; FCR7100, 50-34 ATC |
| CRANK/SIZE | 165 mm-XXS, 170 mm-XS, 172.5 mm-S/M/L, 175 mm-XL |
| BB SET | SM-BB71-41B, Pressfit 86.5 |
| DERAILLEUR - FRONT | Shimano 105 |
| DERAILLEUR - REAR | Shimano 105; GS |
| FREEWHEEL | Shimano CS-R7101; 11-34 ATC; 12 GER |
| PEDAL | |
| GRIP | MERIDA ROAD Expert |
| HANDLEBAR | MERIDA EXPERT SLII; MAT aluminium; 380mm (XXS-XS-S), 400mm (M-L), 420mm (XL) |
| H-B STEM | EXPERT SL 2PII; MAT aluminium; -9 ASD |
| H-STEM/SIZE | 90 mm-XXS/XS/S, 100 mm-M, 110 mm-L/XL |
| HUB - FRONT | Shimano HB-TC500; 100x12 WHF; 28 SPH; Centerlock |
| HUB - REAR | Shimano FH-TC500-HL; 12-142 WHR; 28 SPH; Centerlock |
| AXLE - FRONT | MERIDA EXPERT TR |
| AXLE - REAR | MERIDA EXPERT SL; including removable lever; 6/4mm allen key |
| RIM | MERIDA EXPERT SLII; 23 IWR; 25 HRI; MAT aluminium; Tubeless ready (tubeless tape and valves not included) |
| SADDLE | MERIDA COMP SL; 25% recycled material; V-mount |
| SEAT CLAMP | MERIDA EXPERT |
| SEAT POST | MERIDA EXPERT CC; 27.2 DSP; 15 SSB; Carbon |
| SHIFTER - FRONT | Shimano 105 disc |
| SHIFTER - REAR | Shimano 105 disc |
| TYRE - FRONT | Maxxis RE-FUSE; 700x32C; fold |
| TYRE - REAR | Maxxis RE-FUSE; 700x32C; fold |
| E-SHIFT PARTS-2 | |
| E-SHIFT PARTS-3 | |
| OTHER 5 | MERIDA Multitool with saddlebox |
