Name: Satking High Definition Vast Satellite Receiver Vast Box - Old Model
SKU: 204074

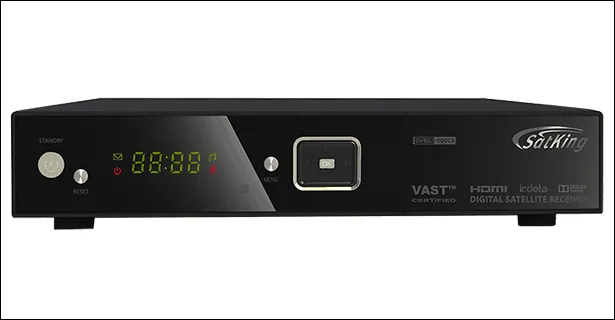

SatKing High Definition Satellite Receiver VAST Set Top Box

The SatKing DVBS2-800CA VAST (Viewer Access Satellite Television) certified high definition satellite receiver brings a new level of features to the Australian VAST platform. Designed with ease of use in mind customers will find this VAST receiver a pleasure to use. From first turn on you will notice the unit is super fast to turn on and scan in channels, the Optus VAST card is already loaded in the decoder for you. A large remote control with easy to read and use buttons with built in learning function to take over basic controls of your TV (no need for two remote controls any more). The compact design is a real winner measuring 220 mm in width and very low power consumption, well below 15 watts. With PVR ready via USB as standard, connect your external USB device (Maximum 1TB) to use to unit as a PVR. You will also find a fast operating and easy to read 8 day Electronic Program Guide (EPG). The unit can be used for either VAST traveller customers (12 Volt) or VAST at home customers (240 Volt) via the included power pack. For self installation SatKing has developed an internal signal finder with an intensity beeper to assist with installations the higher the signal the faster the beeping and an electronic map built in to give you your coordinates for easier dish positioning. The unit also has a detailed electronic help guide and handy features like a USB speed test to test your USB device. For the VAST traveller caravan market the unit also has an optional IR target so you can place the VAST decoder in a cupboard and hide the unit out of sight also handy two place the unit behind large screen TV’s in home when you don’t want to look at the STB. Commercial installations and customers with older TV’s will find the built in RF modulator of great assistance, you can simply use the SatKing decoder on any TV new or old without any extra expense.

Features:

Australian VAST certified
High definition MPEG-4
12/240 Volt operation for home or RV use
Compact size 220 mm x 180 mm x 47 mm
Friendly bright coloured menu
Signal finder with beeper
USB PVR ready as standard (compatible with most drives and memory sticks)

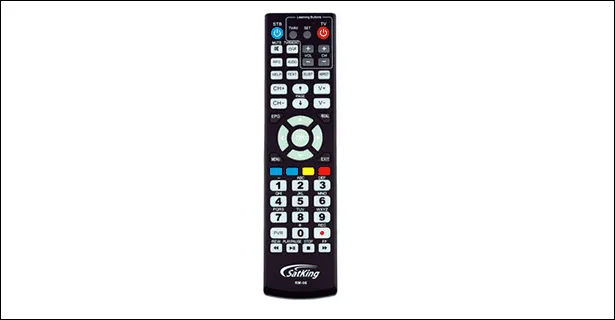

Large button remote with learning functions
Fast operating 8 day EPG
Infrared target (optional)
Parental control
Time shift function via PVR
Program auto tune with reminder
HDMI output
Component output
CVBS output
RF modulator
Digital audio (Coaxial and S/PDIF)
Dolby digital audio
LNB loop out (for connection to another decoder)
USB-2.0
USB speed test
DiSEqC 1.0/1.2 supported
Adjustable LNB settings
Low power consumption (less than 15 W)
Over the air software download supported
Subtitles supported
IRDETO secure silicon inside

Specifications:

System:

CPU: STi7111
Processor: Speed 450 MHz
Flash memory: 16 MB (NOR) 128 MB (NAND)
DDR: 256 MB
EEPROM: 32 kB

Tuner:

Input Frequency: 950 ~ 2150 MHz
Loop out frequency: 950 ~ 2150 MHz
Signal level: -25 dBvM ~ -65 dBvM
Impedance: 75Ω
Symbol rate DVBS: 2 ~ 45000
Symbol rate DVBS-2: 2 ~ 45000
Standard: DVB-S (EN300 421) DVB-S2 (EN302 307)
Demodulation: QPSK, 8PSK
DiSEqC: 1.0, 1.2 USALS compatible
22 kHz Tone: 22 kHZ 2 kHz
LNB Power: 13V/18V 500mA Max
FFC Mode: QPSK: 1/2, 2/3, 3/4, 5/6, 7/8 8PSK: 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9
Reed Soloman: 204, 188, t = 8

Demultiplexer:

Standard: ISO/IEC 13818-1
Input max: 120 Mbps (Serial) and 15 Mbps (Parallel)

Video Decoder:

Standard: ISO/IEC 13818-2, MPEG-2 MP@HL, MPEG-4 AVC/H.264 [email protected], [email protected]
Aspect: 4.3, 16:9
Video resolution: 1080i, 720p, 576p, 576i
