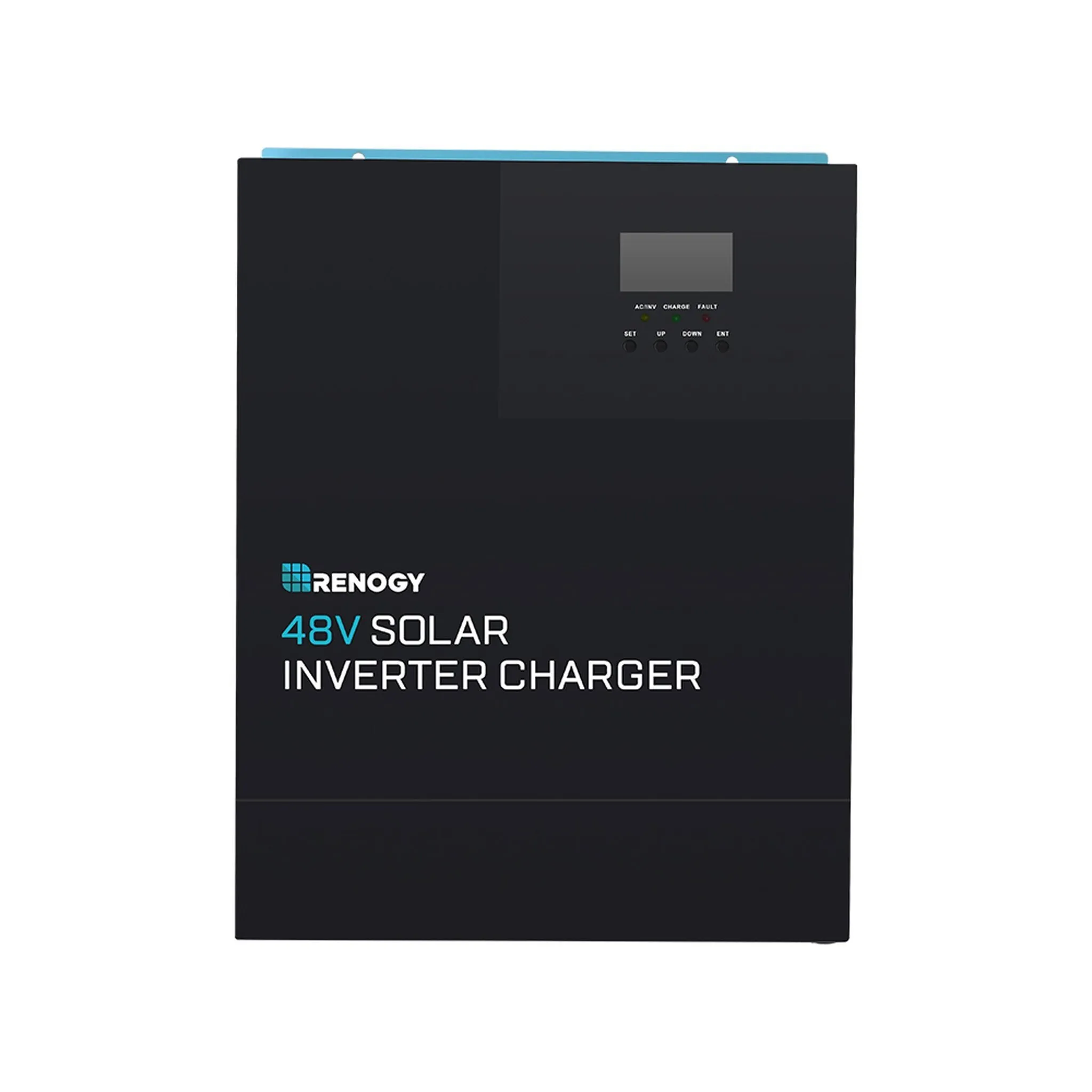

Renogy 48V 3500W Solar Inverter Charger

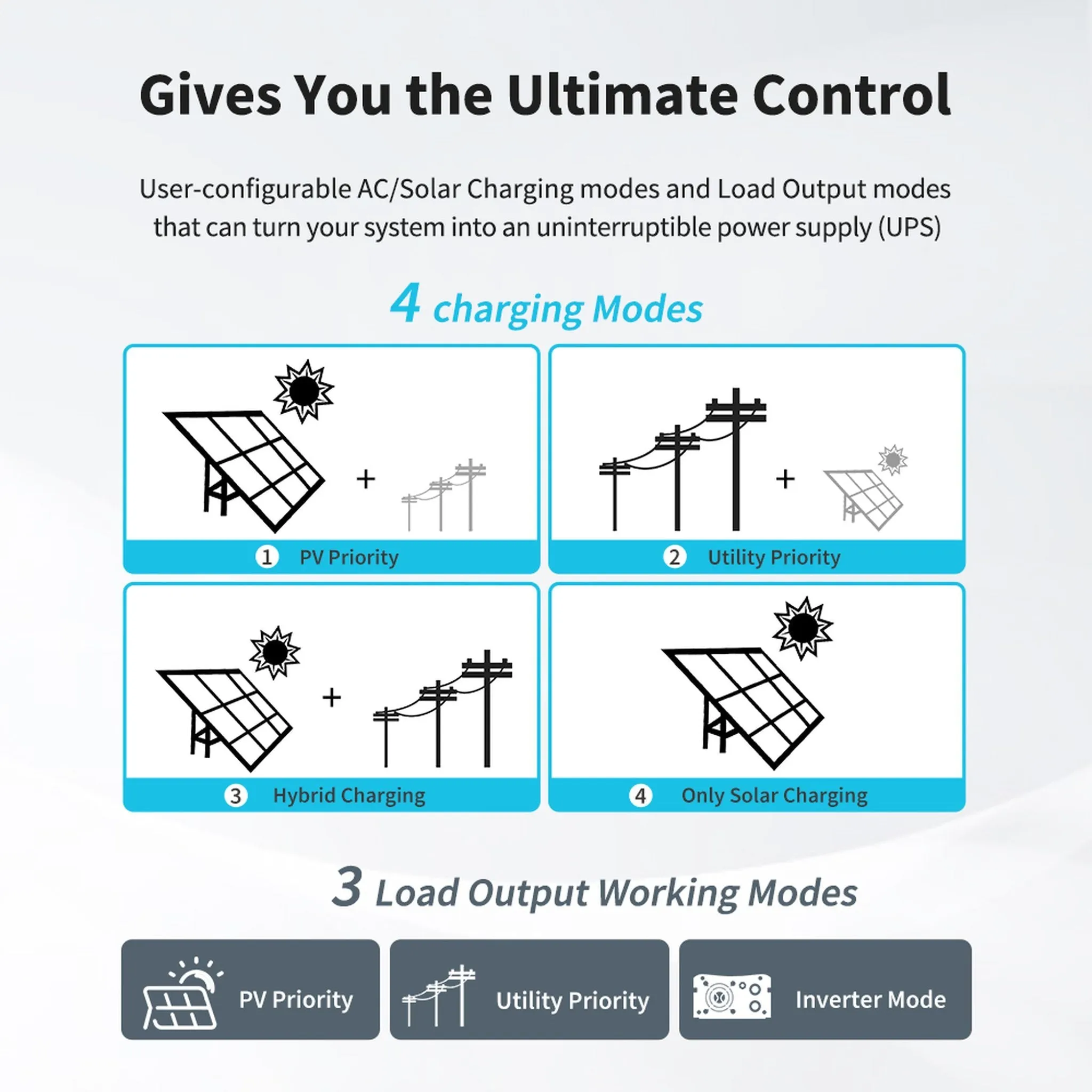

Renogy's 3500W 48V Solar Inverter Charger combines solar charging, AC/generator battery charging, and battery inverting into one convenient solution to take your off-grid system to the hybrid level. Compatible with 48V battery banks, this solar inverter charger gives you the ultimate control with four user-configurable AC/Solar Charging modes and three Load Output modes that can turn your system into an uninterruptible power supply (UPS), automatically switching to Off-Grid Mode in just 10 milliseconds to keep loads securely powered.
Power-packed with the latest MPPT and battery charging technology, you can be sure that the charge controller captures maximum solar energy in real-time and uses the 120A battery charger to ensure the best system performance. This reliable, solar pure sine wave inverter charger has built-in electronic safeguards to protect you and your system. Equipped with multiple features and modes, the Renogy Solar Inverter Charger is a powerful addition to any 48V system!

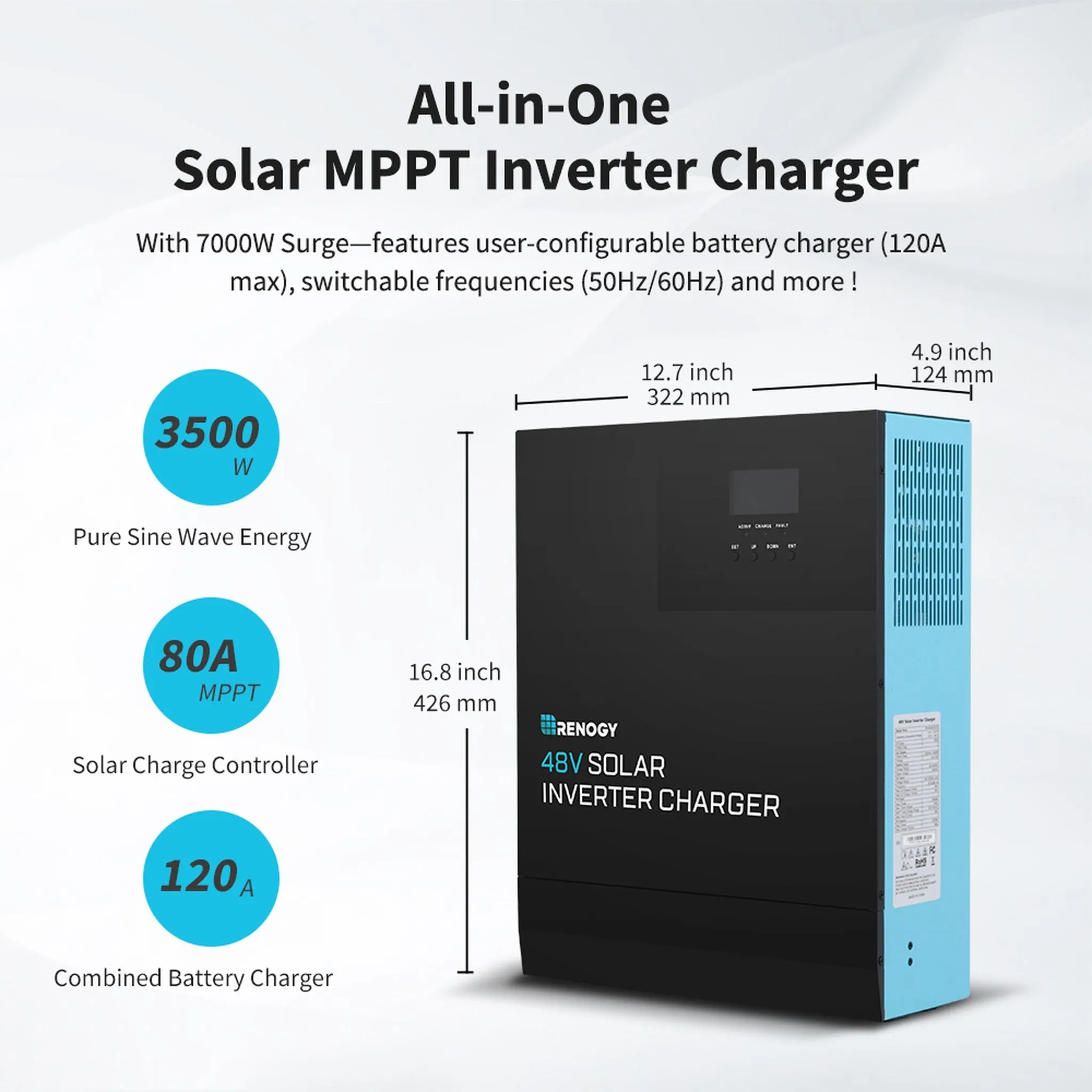

【STABLE AND PURE SINE WAVE CHARGING】 3500W continuous, 7000W peak surge during load start-up and combines 80A MPPT solar charging, AC/generator battery charging, and battery inverting into one convenient solution to take your off-grid system to the hybrid level and can turn your system into an uninterruptible power supply (UPS).
【HYBRID SYSTEM 】 Integrated with 80A/145V MPPT solar charge controller, 3500W pure sine wave inverter, and 40A battery charger in one compact unit to let you enjoy the stable power from the sun and the utility grid to keep you powered under any circumstances.
【POWER SAVING】 48W low idle power consumption and a maximum of 25W when the Power Saving Mode is on will not waste your precious power.
【UNINTERRUPTIBLE POWER SUPPLY】 In the event of AC Charging or the solar charging failure, the Inverter Charger takes over the supply to the alternative option within 10ms, which will not let your electronics shut down.

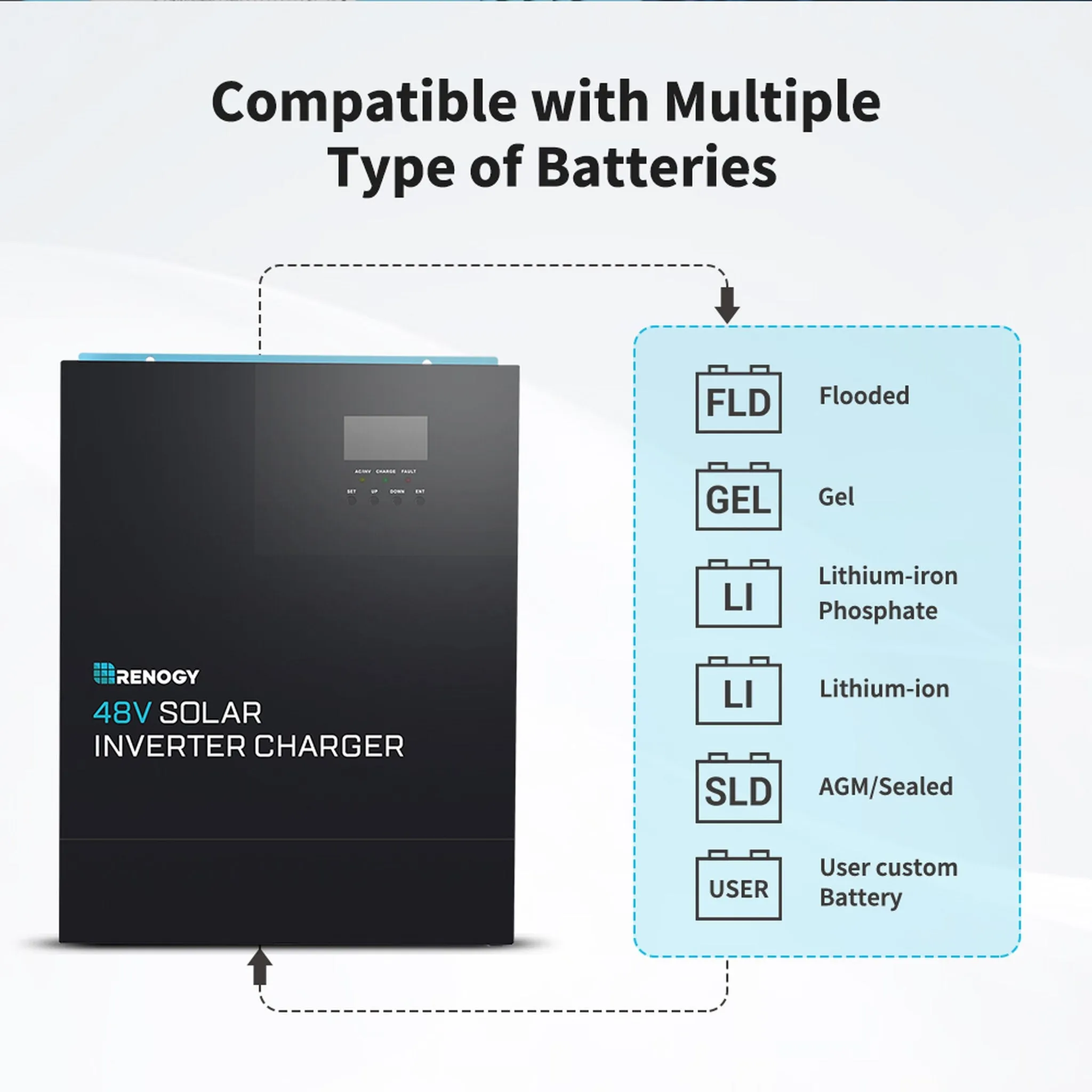

【ALL TYPE OF BATTERY】 Preset battery mode for 48V AGM/Sealed, Gel, Flooded, and Lithium batteries. Includes a User Mode for custom inputs to work with virtually all battery types.
【RELIABLE QUALITY】 Complete software and hardware protection, including short circuits, over-voltage, overload, and more! This device complies with Part 15 of the FCC Rules and is certified with ROHS.

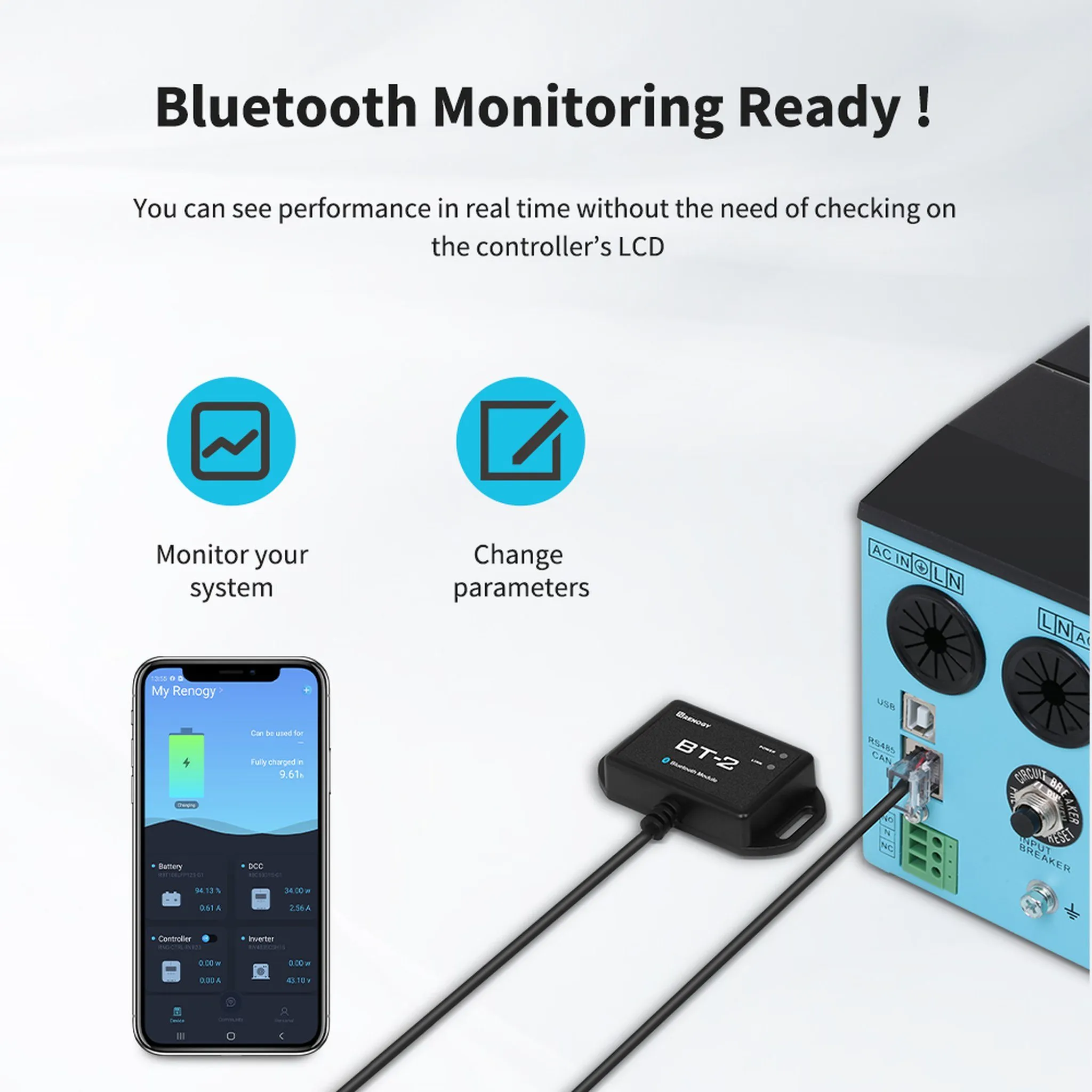

| RENOGY 48V 3500W SOLAR INVERTER CHARGER WITH 80A/145V MPPT | | Inverter Mode Specifications | Solar Charging Mode Specifications | | Output Waveform | Pure Sine Wave | Charge Controller Type | MPPT | | Continuous Output Power | 3500W | Maximum Input Power | 4400W | | Peak Power Rating | 7000W | Maximum Input Current | 50A | | Output Voltage | 120VAC | PV Charging Current Range | 0-80A | | Output Frequency | 50 Hz ± 0.3% 60 Hz± 0.3% | Recommended Max. PV Open Circuit Voltage | 145VDC | | Input Voltage / Rated Battery Voltage | 48VDC (minimum start-up voltage 44V) | PV Operating Voltage | 60-145VDC | | Nominal Efficiency | > 90% | MPPT Voltage Range | 60-115VDC | | Bypass Breaker Current Load | 40A | Short-circuit Protection | Internal Fuse | | Idle Consumption | 48W | Wiring Protection | Reverse Polarity | | Power Saver Mode Idle Consumption | ＜25W | Recommended Wiring | 4 AWG | | AC / Grid Charging Mode Specifications | Mechanical Specifications | | Rated Input Voltage | 110VDC | Dimensions | 16.8*12.7*4.9 in / 426*322*124 mm | | Frenquency | 50 Hz / 60 Hz (auto detect) | Weight | 23.8 lbs /10.8kg | | Efficiency | ＞95% | Communication Port | RS485/CAN Communication Port (BT-2 Bluetooth Module) | | Conversion Time | 10ms | Cooling Fan | Yes | | Battery Type | Lead Acid and Lithium Battery | Operating Temperature Range | 5°F ~ 131°F/ -15°C ~ 55°C | | Maximum Charging Current | 40A | Storage Temperature | -13°F ~ 140°F / -25°C ~ 60°C | | Charging Voltage Range | 40-60VDC | Humidity | 5% to 95% (three-layer paint protection) | | Short-circuit Protection | Breakers and fuses | Noise | ≤60dB | | Overcharge Protection | Yes. Automatically alerts and turns off charging after 1 min) | IP Grade | IP 20 | | Reverse Flow Protection | Yes | Safety Class | I | |
