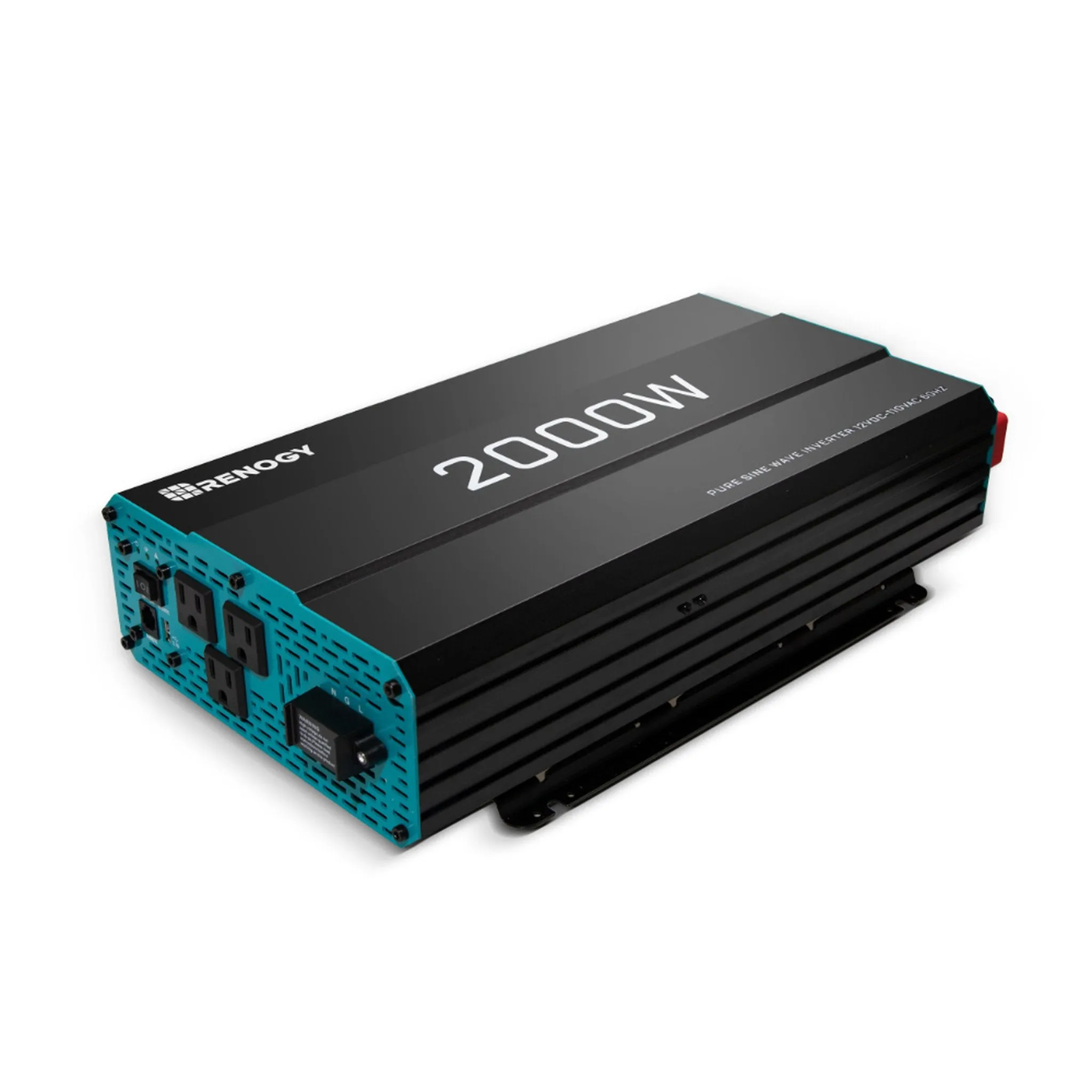

Name: Renogy 2000W 12V Pure Sine Wave Inverter
SKU: 196388

The Renogy 2000W 12V Pure Sine Wave Inverter is perfect for most off-grid systems, whether for a van, semi-truck, 5th wheel, cabin, or any remote location needing power. The 2000W Pure Sine Wave Inverter converts DC Power stored in batteries into the AC Power that allows you to power your household appliances. The advanced Renogy pure sine wave technology will allow you to power just about any AC appliance without risk of damage to even your most sensitive equipment. It is a reliable source of electricity for various appliances, including high inductive loads, with no strange buzzing sounds when your electronics are turned on and allows for smooth operation.

【POWERFUL DC-AC】 2000W continuous with 4000W peak surge during load start-up. 12V to 115VAC pure sine wave with conversion efficiency >90%, reduces conversion loss.

【SAFE】 The built-in Ground-Fault Circuit Interrupter (GFCI) will protect users by de-energizing the circuit when it detects a fault condition. An LED indicator will signal over-load, over-temperature, over-voltage, short-circuit, and under-voltage protection.

【PROTECTS YOUR ELECTRONICS】 Advanced pure sine wave technology provides power in a way that will protect and extend the life of your electronics and appliances. The Renogy 2000W 12V Pure Sine Wave Inverter offers quiet operation, with no background buzzing when your electronics are turned on and allows for smooth operation.

【EASY TO USE】 Offers a built-in 5V/2.1A USB port, AC outlets and an AC hardwire port. It also comes with a 3tf 4AWG cable and a 19 Ft wired remote included.

【RELIABLE】 ETL listed to CSA Standard C22.2 No. 107.1 and UL 458. 1-Year material and workmanship warranty.

120VAC OUTPUT

3 AC Port and built-in 5V/2.1A USB port.

1 AC Terminal Block

The Renogy 2000W 12V Pure Sine Wave Inverter is perfect for most off-grid systems, whether for a van, semi-truck, 5th wheel, cabin, or any remote location needing power. The 2000W Pure Sine Wave Inverter converts DC Power stored in batteries into the AC Power that allows you to power your household appliances.

12VDC INPUT

The Renogy 2000W 12V Pure Sine Wave Inverter is optimized for 12V DC systems and is compatible with all type of batteries. It is thermally controlled, using high-speed ventilation fans to help keep the inverter running at a low temperature.

RENOGY 2000W 12VDC-110VAC PURE SINE WAVE INVERTER
Inverter Output Specifications		Input Specifications
Continuous Output Power	2000W	Nominal Input Battery Voltage	12V
Peak Power Rating	4000W	Battery Terminal Size	M8
Output Voltage	115V	Low Battery Alarm	10.5V ± 0.5V DC
Output Frequency	60 Hz ± 0.1%	High Voltage Alarm	16V
AC Output Sockets	3	Battery Low Shutdown	10.0V ± 0.5V DC
AC Terminal Block	1	Over Voltage Shutdown	16.5V ± 0.5V DC
USB Power Port	5V/2.1A	No Load Current Draw	< 2A
Power Output Control	AC On/Off Switch, and Remote Control	Accessories
Output Waveform	Pure Sine Wave	Cable	4 AWG 3ft *2
Nominal Efficiency	> 90%	Inverter Remote Control	19 Ft
Total Harmonic Distortion (THD)	< 3% Linear Load < 5% Non-linear Load	Certifications
Mechanical Specifications		ETL Listed to UL 458 and CSA 22.2 NO 107.1-01	YES

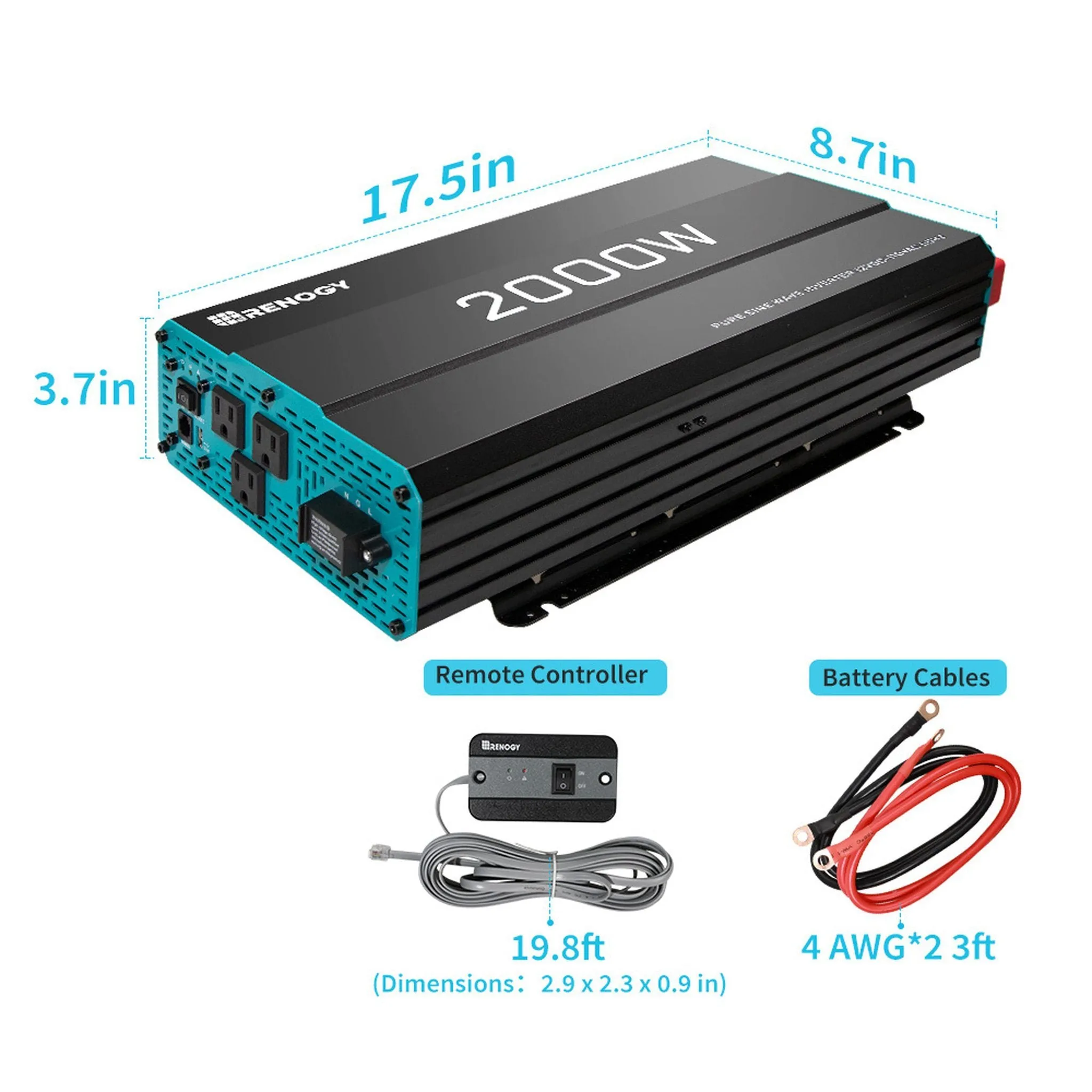

Dimensions	17.8 x 8.6 x 4 in	FCC Part 15 class B	YES
Weight	11.7 lbs	Warranty
Cooling Fan	Thermally controlled	Material and workmanship warranty	1 Year
Operating Temperature Range	-4°F - 158°F
