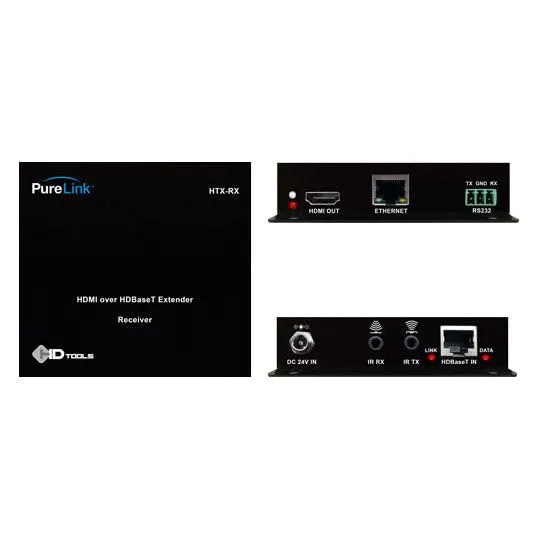

Designed as a simplified extension solution for the HTX-8800-U/4400-U matrix switchers , the HTX Rx 4K HDMI over HDBaseT Extender Receiver provides an accessible, easy-to-install solution for extending Ultra HD/4K HDMI video and embedded audio over long distances using a single CATx cable. The HTX Rx supports full 3D content and extends uncompressed HDMI video and embedded lossless audio formats with bi-directional control signals (IR) up to 330 ft. at Ultra HD/4K resolutions. Using POE technology, the HTX Rx can draw power from the HTX matrix chassis, eliminating the need for additional power supplies.
Key Features
- Supports distances up to 330 ft. (100m)
- HDMI v1.4b uncompressed video/audio up to 10.2 Gbps
- Receives PoE from HTX-8800/4400 matrix switchers
- Bi-directional IR and RS232
- LED indicators for HDMI and HDBaseT signal status
- Supports HD multichannel audio including Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio plus LPCM (up to 192kHz)
- Compact enclosure enables discreet installation behind displays
- Ethernet port for easy third party device networking
