TRI-FOLDING
ALLOY
16 X 1.95
ALL BLACK
SHIMANO 7 SPEED
DRIVETRAIN
AIKEMA 250V
ELECTRIC MOTOR

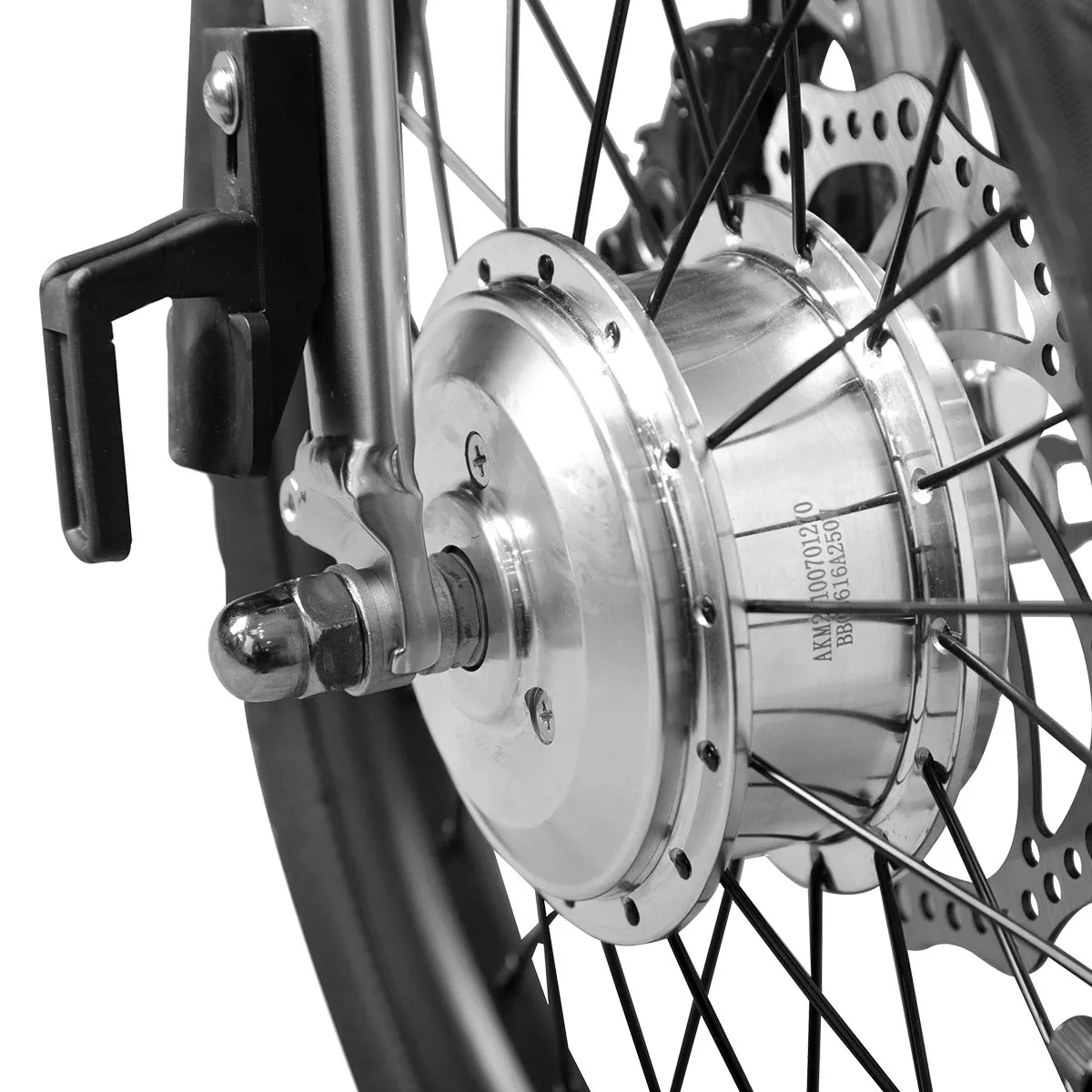

An Effortless Ride
Make your ride more efficient with the Aikema 250v Electric Motor fitted on the front hub. This powerful yet lightweight motor assists each stride of the pedal, making your cruise or commute smoother and effortless.

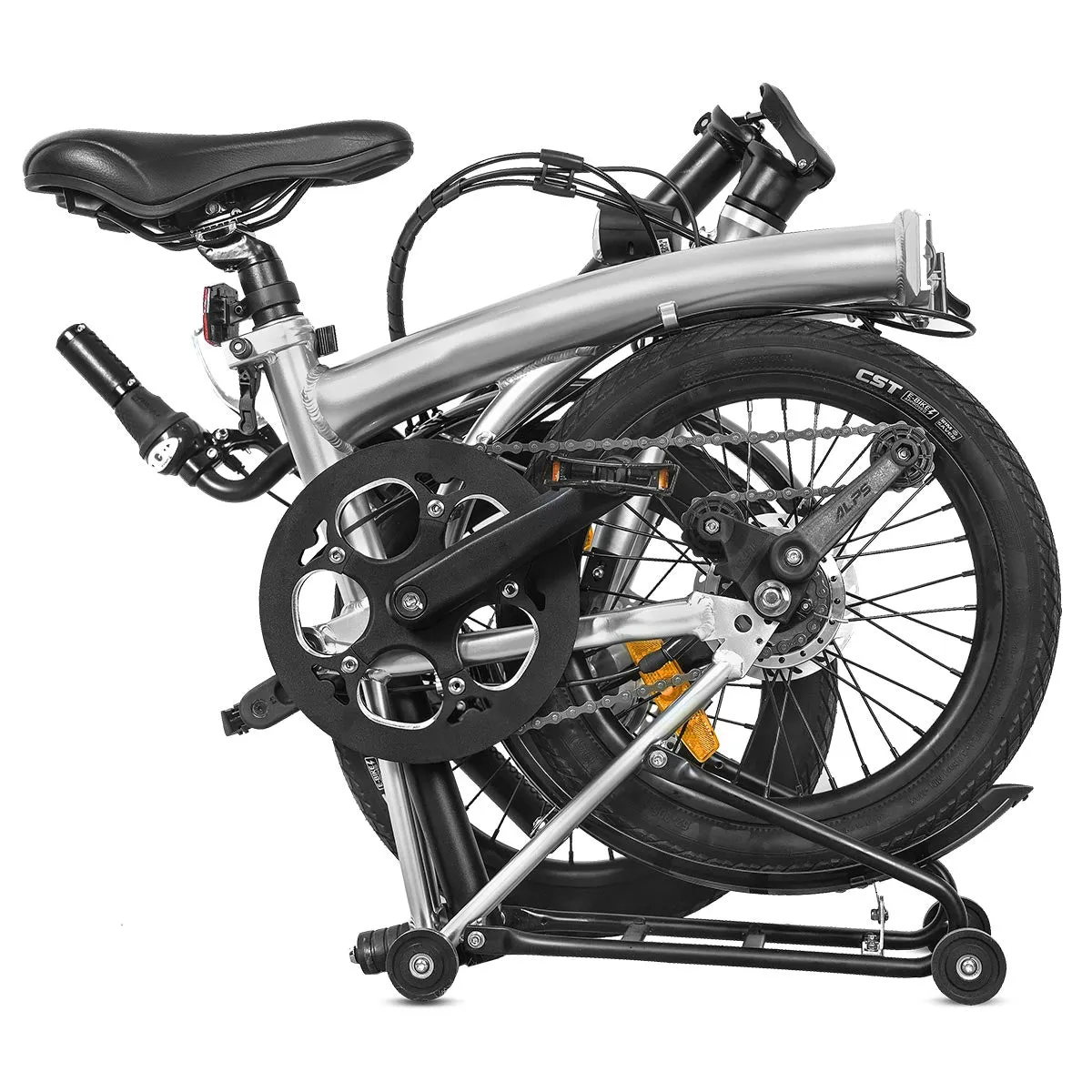

Alloy and Foldable
The Tri-Folding Alloy Frame, folding alloy pedals and Stem of the Power Shuttle makes it compact and convenient. The alloy material offers greater durability, increasing the bike's lifespan while remaining lightweight and offering superb handling. The Power Shuttle is designed to be folded and easily carried, making riding on public transport or moving through unrideable terrains effortless.

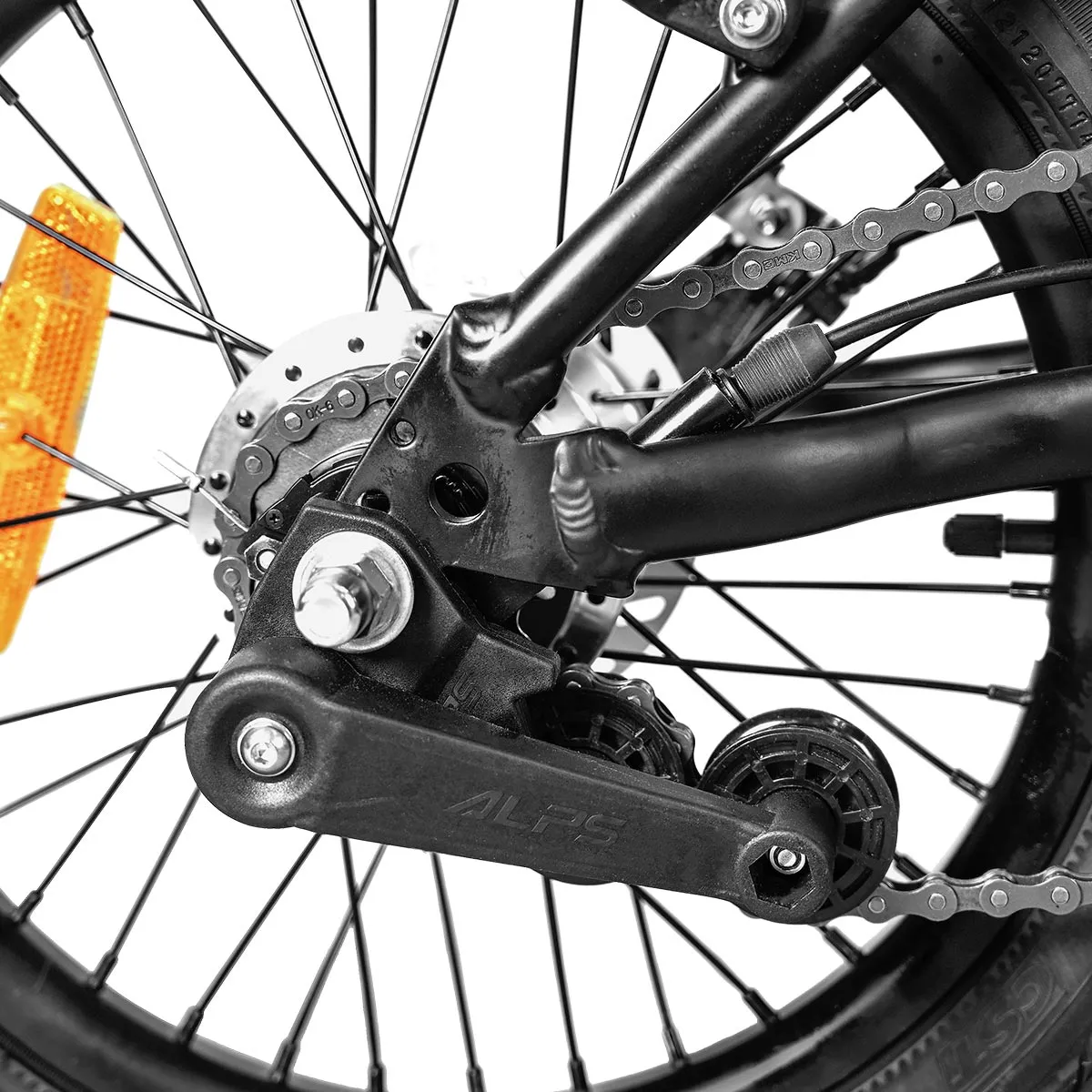

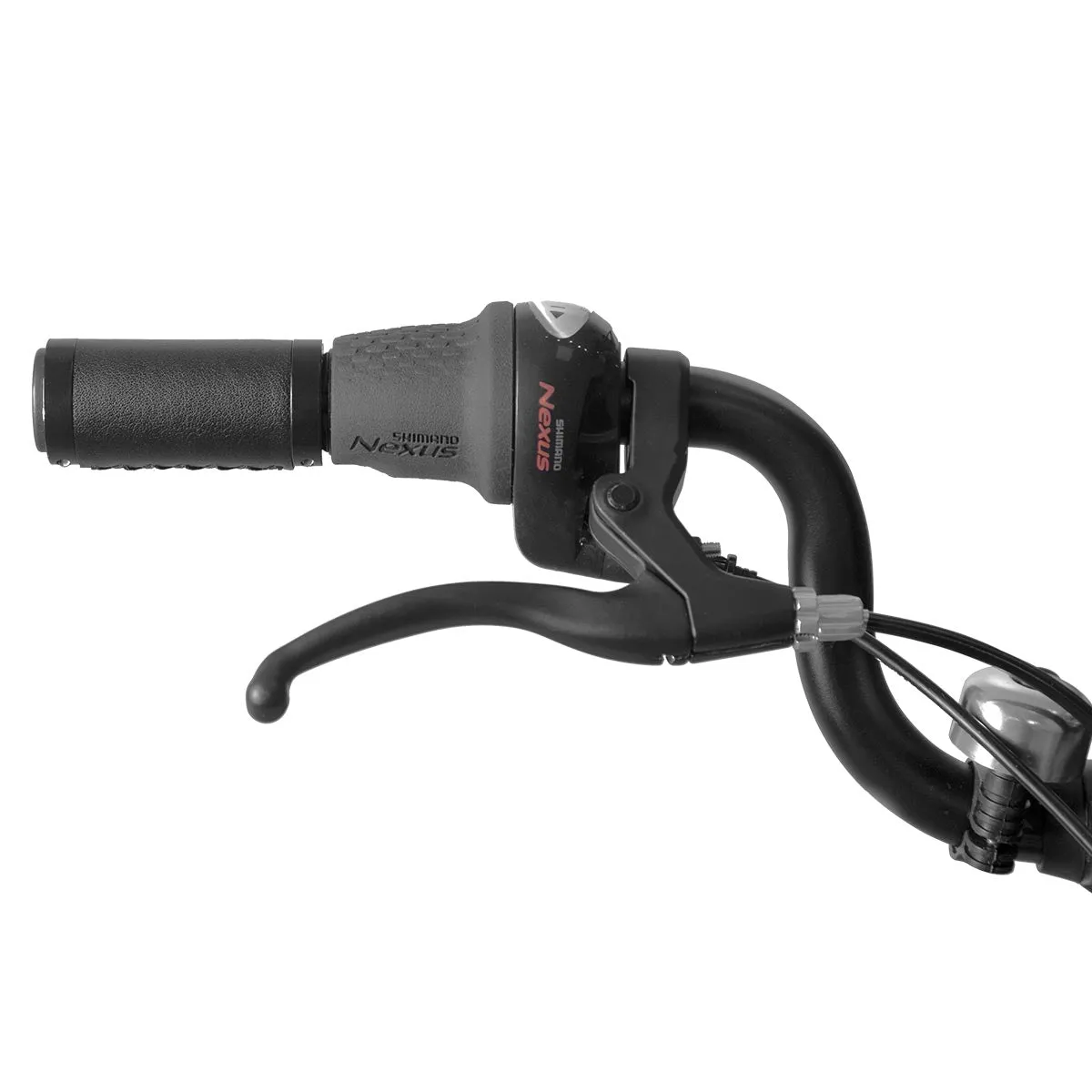

Shimano 7 Speed Drivetrain
Grip shift it super easy for every-day commuting. Our 7-Speed reliable Shimano drivetrain comes with great gearing ratios for smooth and easy street/urban riding. We know these bikes can be folded up and tossed around so we've chosen less intrusive, integrated grip shifters.
The Blueprints
The practical cycle
- A. Tri-folding Alloy
- B. Alloy 33.9 x 550mm with clamp
- C. Aikema 250v Electric Motor
- D. Shimano 7 Speed Drivetrain
- E. 16 x 1.75 x 32h Double Wall
Where to ride?
Specification
Technical Specifications
| FRAME SIZE | 16" |
|---|---|
| FRAME | Tri-folding Alloy |
| FORK | AL straight leg all Alloy |
| HANDLEBAR | Alloy 570mm wide |
| GRIP | Rubber Comfort |
| STEM | Alloy left folding mode with double order lock |
| SEATPOST | Alloy 33.9 x 550mm with clamp |
| SEAT CLAMP | Alloy |
| SADDLE | Comfort |
| GEAR SHIFTER | Shimano SL - C3000-7 speed |
| REAR DERAILLEUR | N/A |
| FRONT BRAKE | Tektro MD280 mechanical with 160mm rota |
| REAR BRAKE | AL Drum type |
| FREEWHEEL | Shimano 16th |
| PEDAL | Alloy folding |
| CHAINWHEEL | Alloy 165mm Crank with 52th chain wheel |
|---|---|
| CHAIN | 1/2 x 3/32 KMC |
| BOTTOM BRACKET | 3 pcs with torque sensor |
| HEADSET | Steel |
| FRONT HUB | Aikema 36v 250w 28h |
| REAR HUB | Shimano ASG C3001-7 DBAS 32h with roller brake |
| SPOKES | 13g front/14g rear black with black nipples |
| TYRE | 16 x 1.95 all black |
| RIM | 16 x 1.75 x 32h Double Wall |
| BELL | Alloy flick |
| CHAINGUARD | Round |
| KICKSTAND | NA |
| RACK | Alloy, weight loading 7kg |
| MUDGUARDS | Plastic full length |
| APPROX. WEIGHT | 17.5kg |
| ASSEMBLED DIMENSIONS | 65cm x 39cm x 152cm (L x W x H) |
| FOLDED DIMENSIONS | 65cm x 39cm x 74cm(L x W x H) |
Electrical Components
| MOTOR | Aikema 36v 250w 28h |
|---|---|
| BATTERY | Greenway 36v/6.8Ah Samsung battery core, battery weight 1.25kg |
| TORQUE SENSOR | Bottom bracket |
| CONTROLLER | DMHC 36v W/TC490 LCD cordination torque |

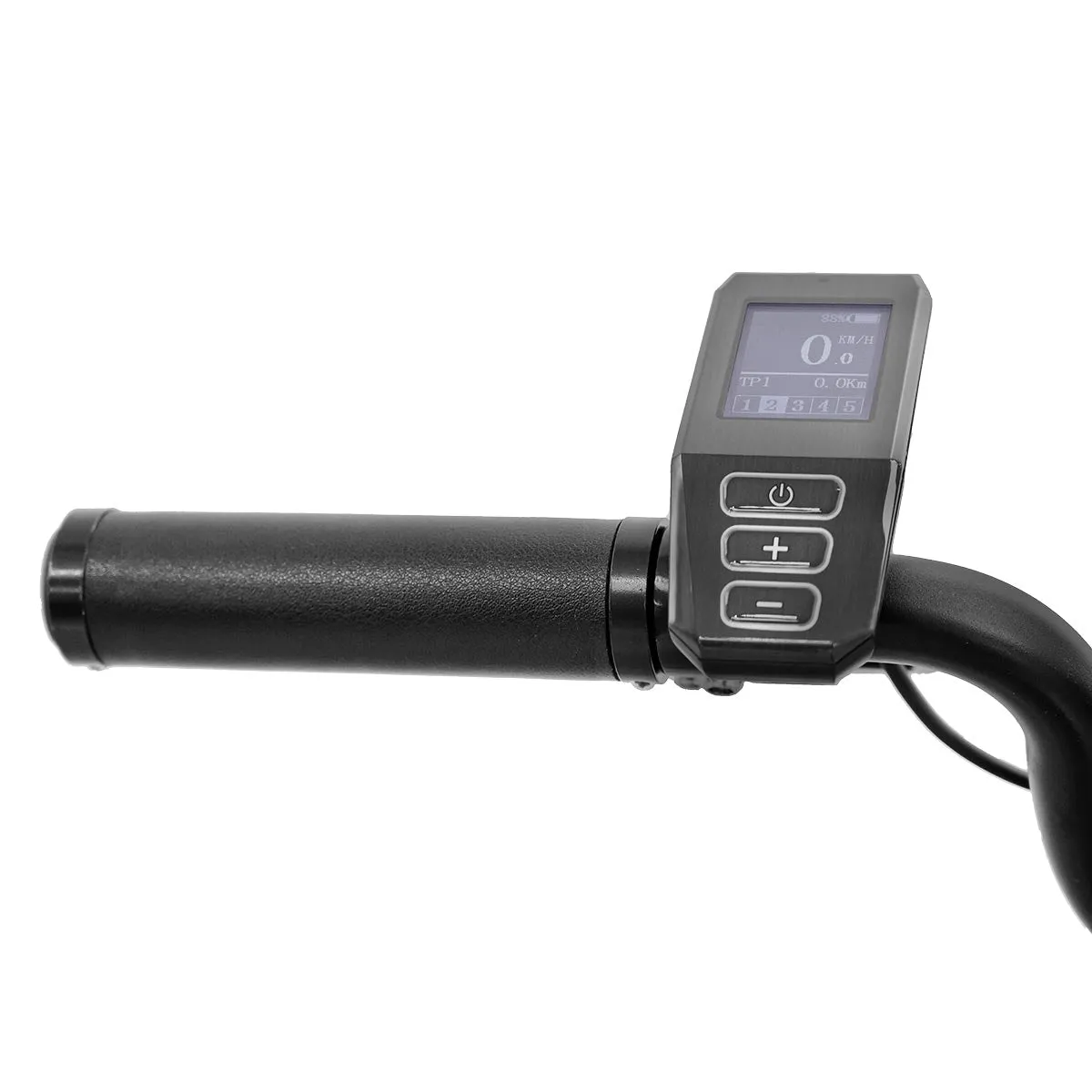

| DISPLAY | DMHC 5-gear electric power adjustable, power,speed, mileage display |
|---|---|
| CHARGER | 36V input |
| FRONT LIGHT | QD236 2 x 150mm |
| REAR LIGHT | CHP-Solar |
