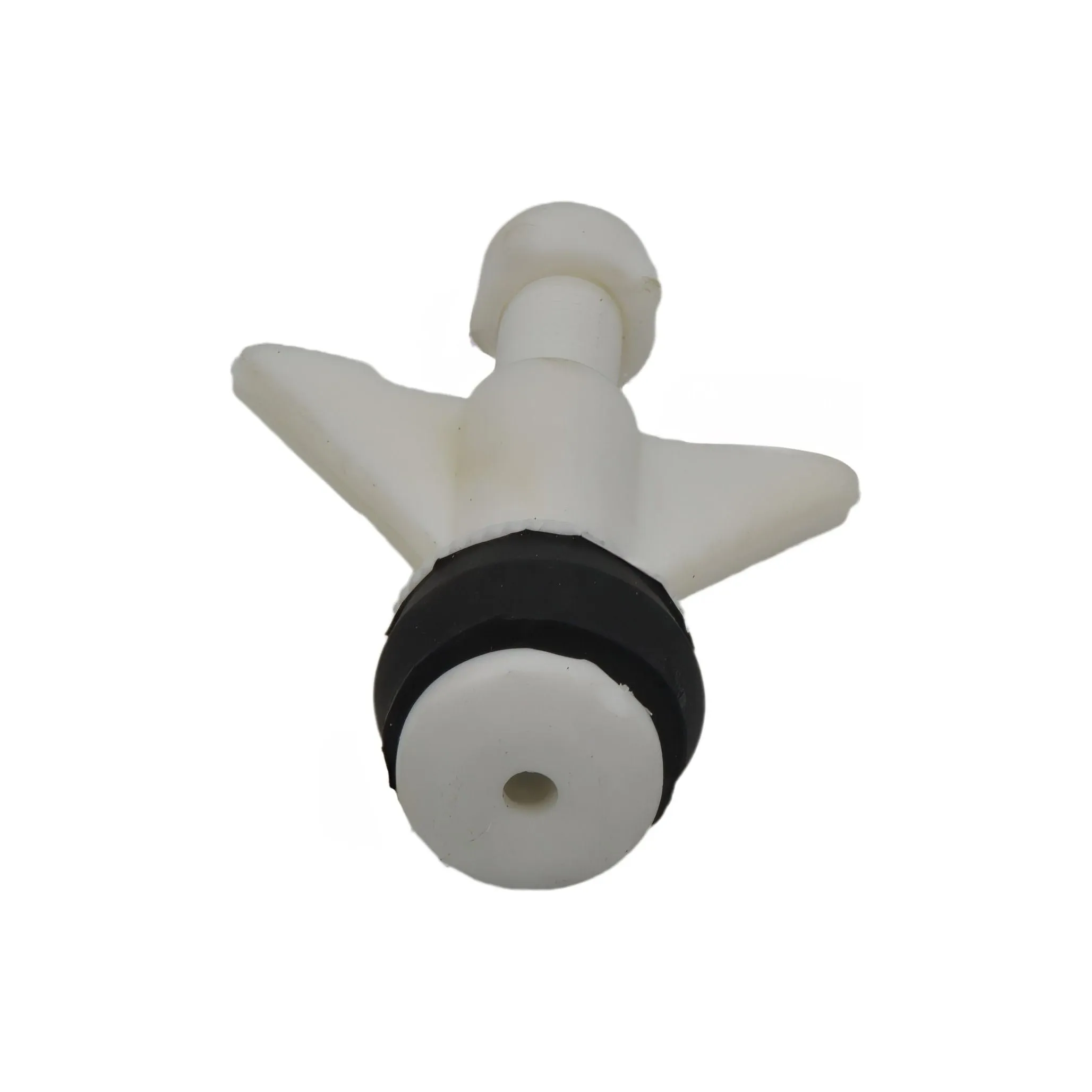

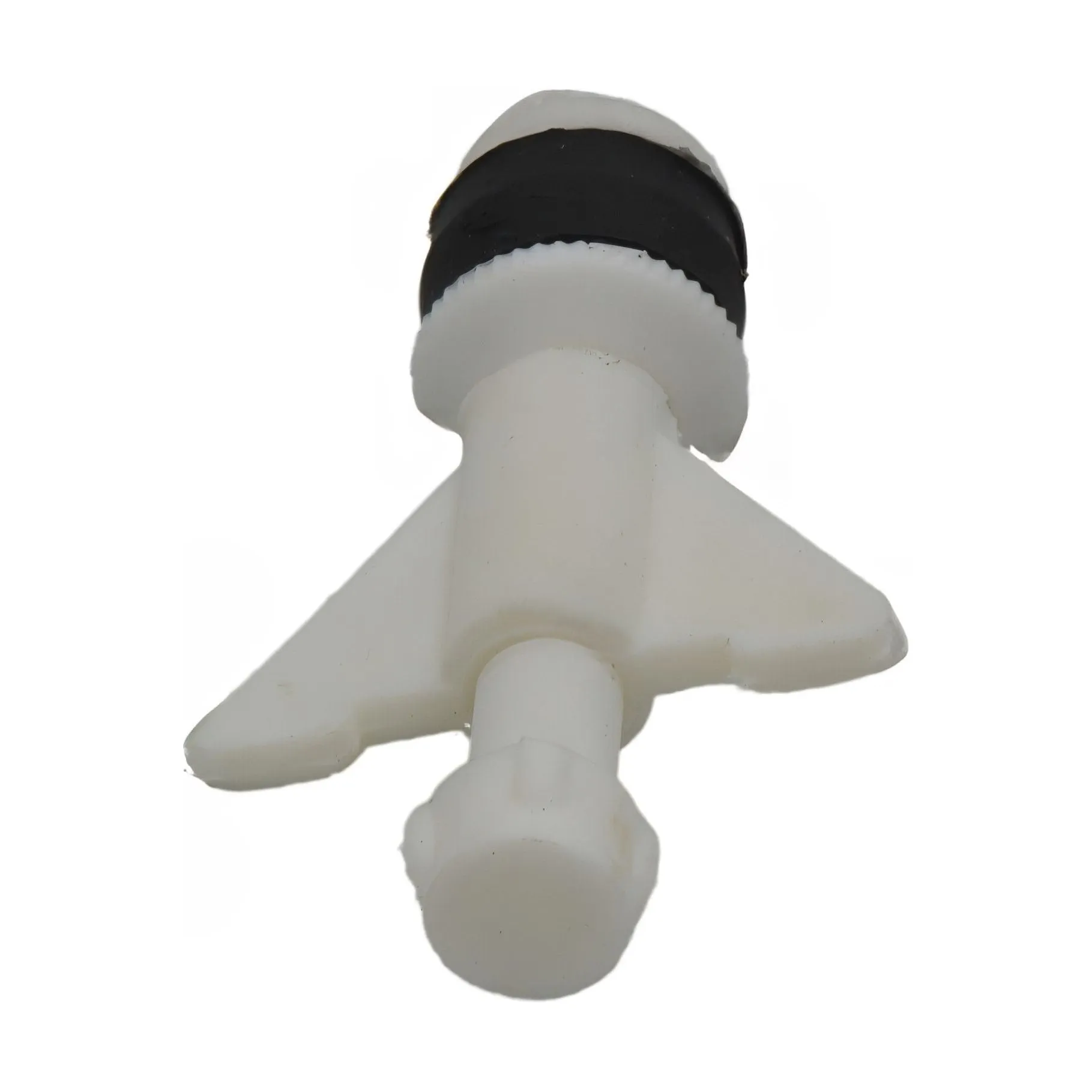

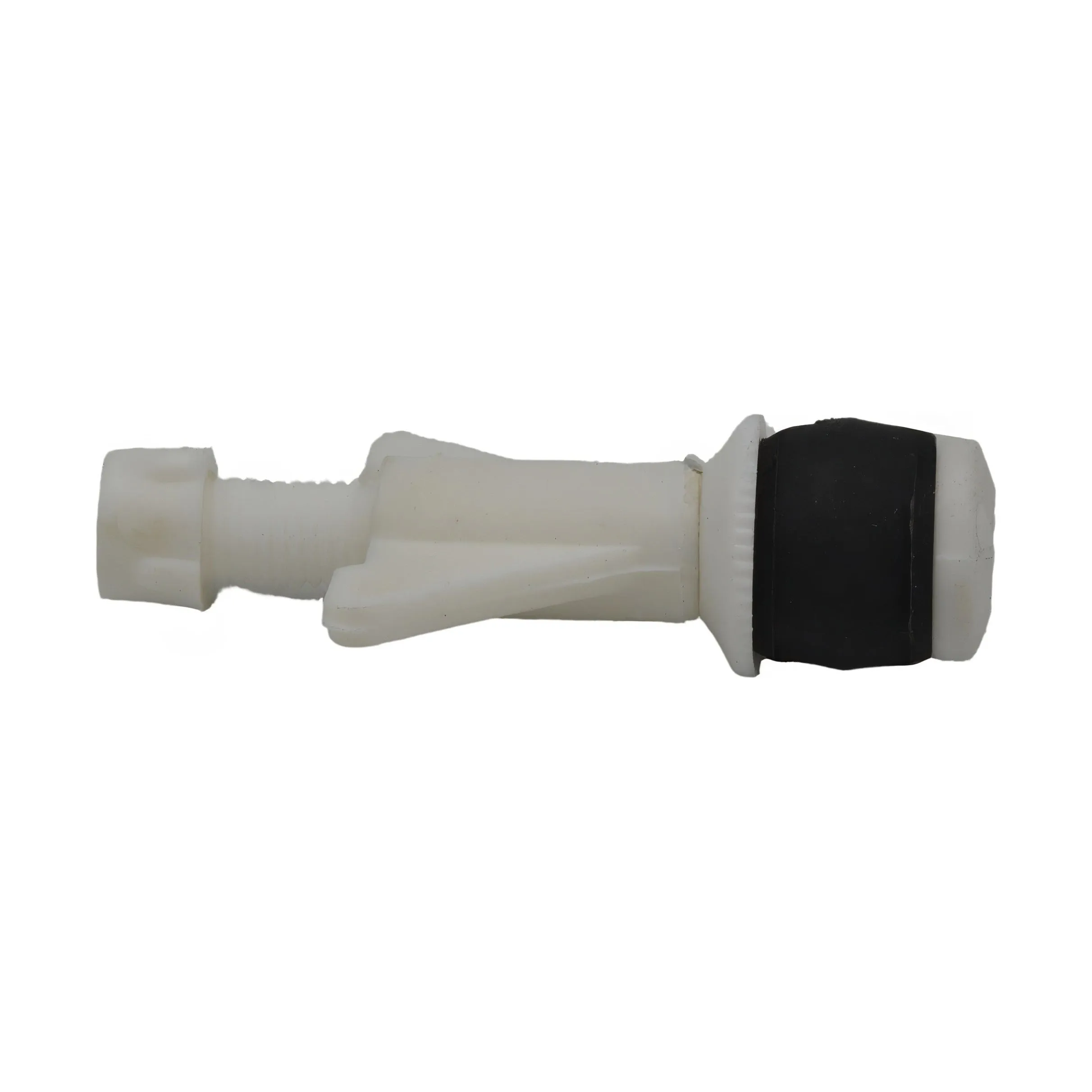

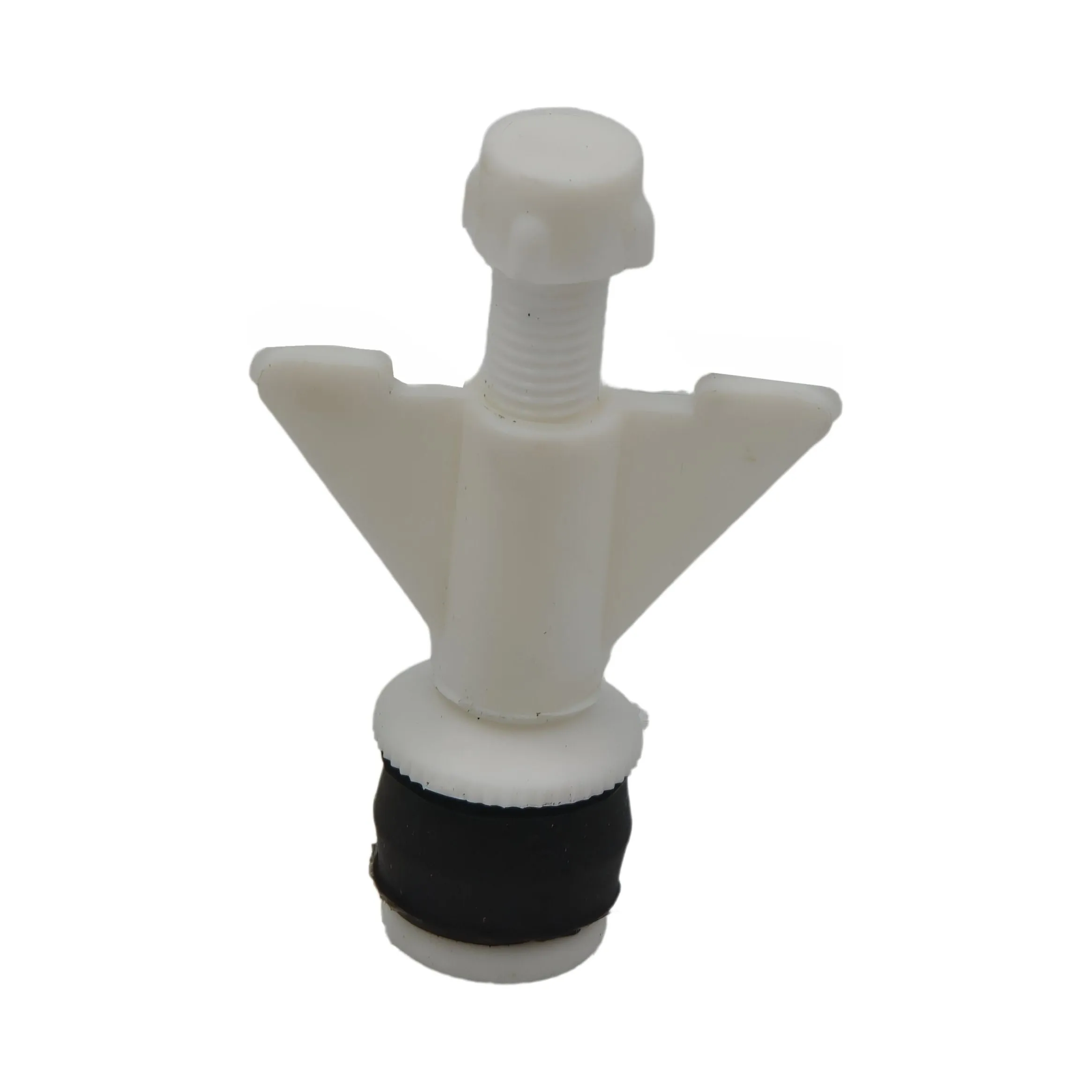

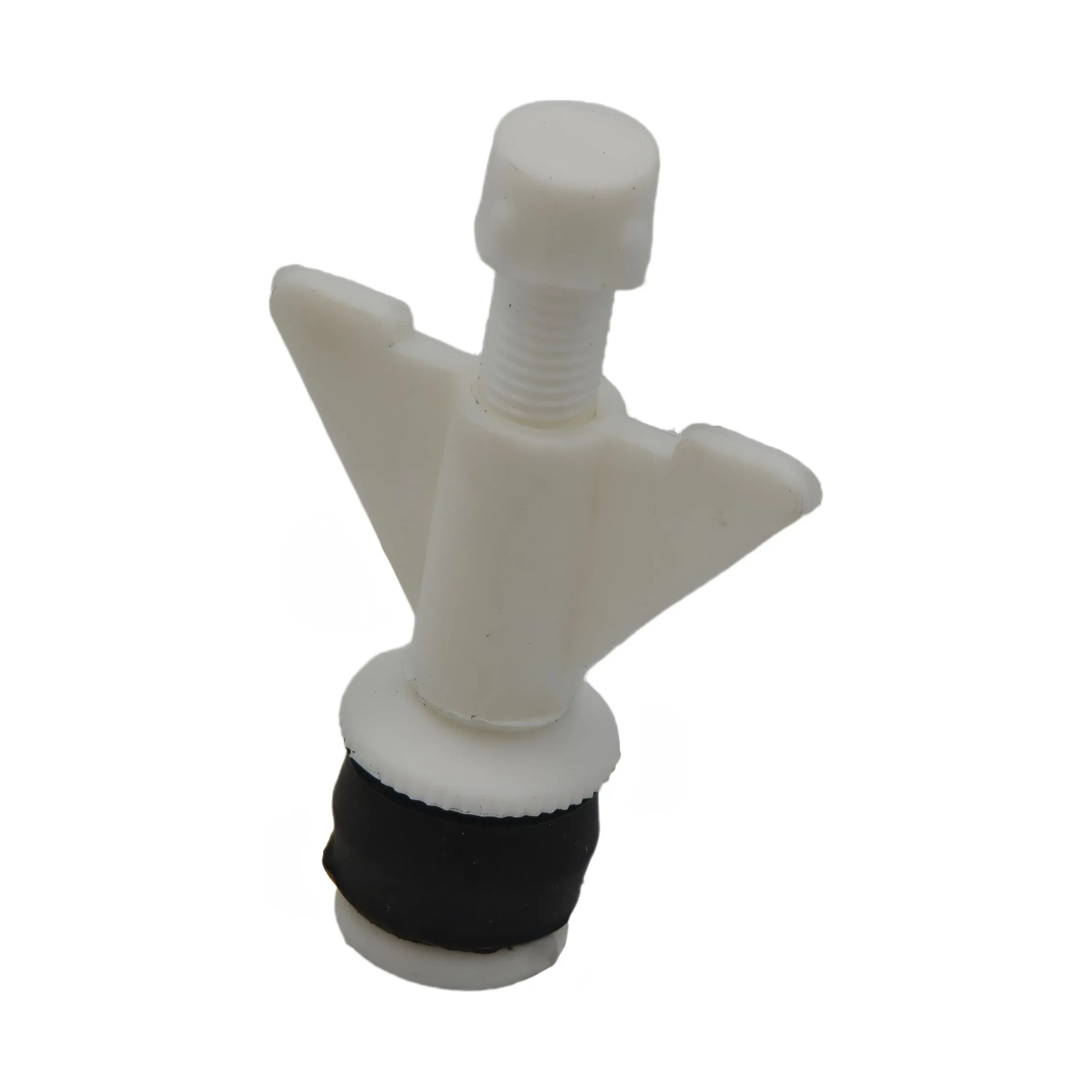

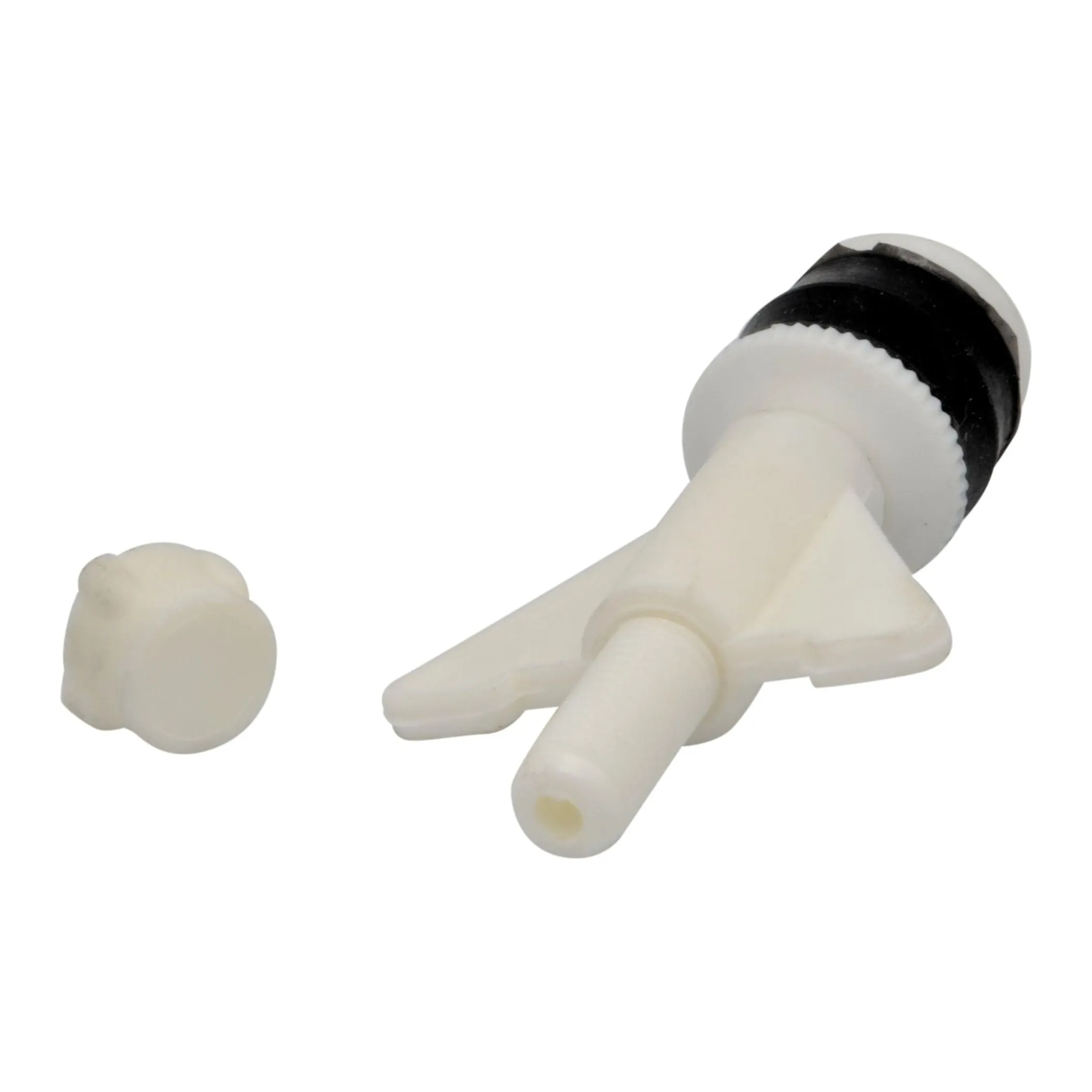

Nylon Plug with 10mm Bypass

This Nylon Plug is designed for effective pipe sealing across a variety of industries, including water, pool, and gas applications. Versatile, lightweight, and compact, these plugs range from 13 mm to 152 mm in size, making them suitable for a wide array of uses. They are particularly useful as Weld Purge Plugs, offering a reliable barrier for purging pipes, tubes, or fittings when other purge systems or purge films cannot be used. Manufactured to high standards, these plugs are the international standard for testing the leak-tightness of water lines.

Key Features:

• Part Number: 203 MPN 019-10
• Start Range: 18 mm
• End Range: 25 mm
• Purge Port: 10 mm
• Effective Sealing: Easy to insert and tighten using the wing nut and friction-free washers
• Material: Durable nylon with rubber ring for positive seal

The Nylon Plugs provide a simple and reliable solution for sealing pipes, pipe joints, and pipework assemblies. By inserting the plug and turning the wing nut clockwise, the rubber ring expands to create a secure seal. These plugs are commonly used in industrial applications to test and seal water lines, ensuring leak-tightness and dependable performance.
