Making high-quality aluminium frame is what MERIDA stands for. With half a century of experience, our entry-level bikes offer outstanding quality, well thought through frame features, proven geometries and reliable components. Our disc brake equipped SCULTURA 200 is no exception.Â

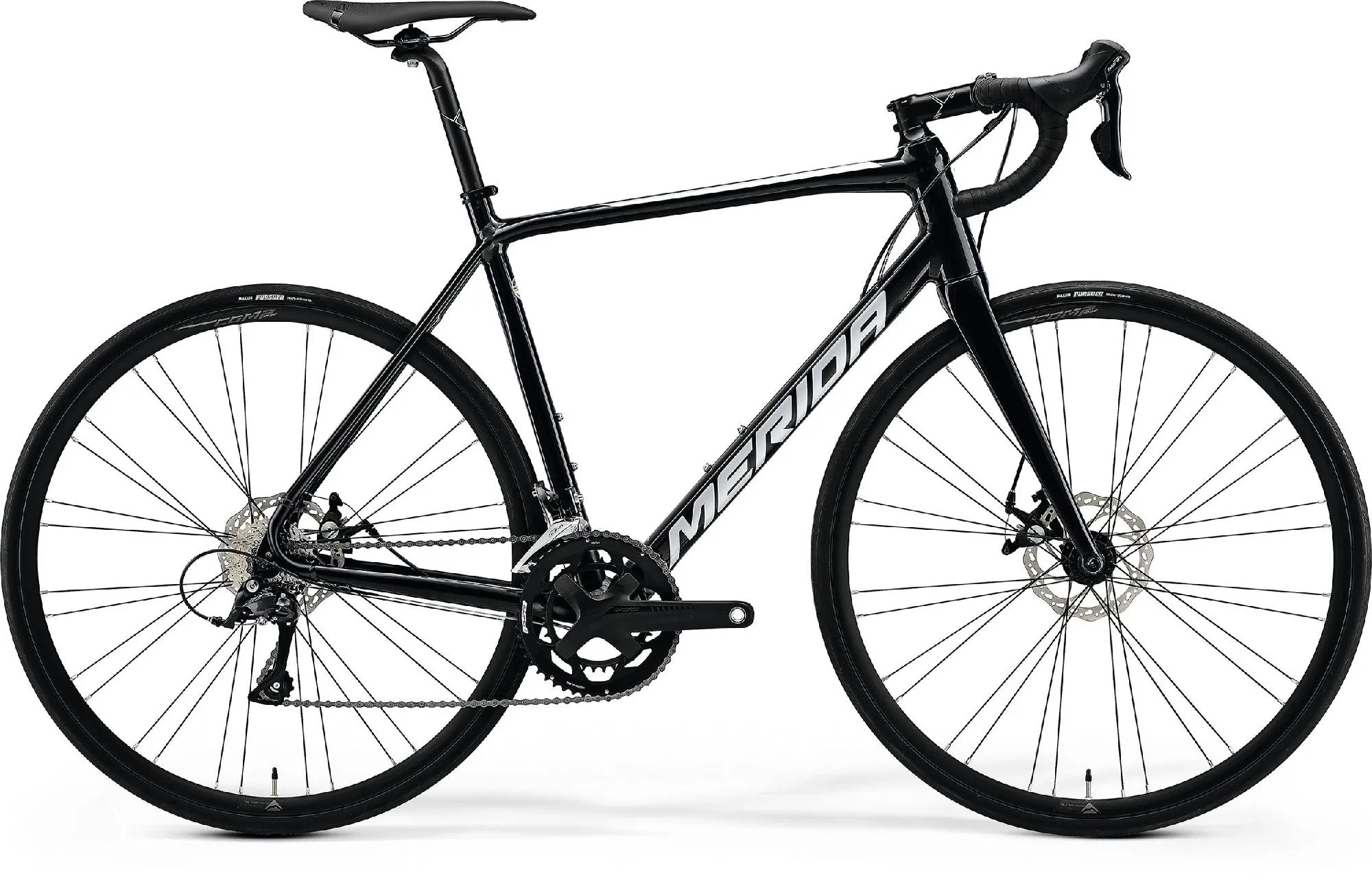

Our SCULTURA range has been part of the MERIDA line-up for a number of years and has been a reliable road companion for road riders all over the world. Our SCULTURA 200 is based on our lightweight triple butted aluminium frame that features a less aggressive geometry and seating position compared to our latest high-end SCULTURA models, for long and efficient miles on the road. Specced with a reliable Shimano/FSA drivetrain and proven MERIDA parts, the 200 will be your trusted road bike companion for years to come.Â
Specifications
FRAME | SCULTURA DISC LITE; MAT aluminium; 700x28C max. WHS; 100x12/ 142x12 AST; Pressfit BBR |
SIZE | XXS-XS-S-SM-ML-L-XL |
FORK | SCULTURA CF2 disc; 700x28C max. WHS |
GEARS | 2 x 9 |
CHAINWHEEL | FSA Omega; 50-34 ATC |
CRANK/SIZE | 165 mm-XXS, 170 mm-XS/S, 172.5 mm-SM/ML, 175 mm-L/XL |
BOTTOM BRACKET | FSA BB-AL86/Ř19 |
CASSETTE | Microshift CS-9S; 11-28 ATC; 9 GER |
CHAIN | KMC M99 |
DERAILLEUR - FRONT | Shimano Sora |
DERAILLEUR - REAR | Shimano Sora; GS |
SHIFTERS | Shimano Sora |
BRAKES | Promax DSK-330R; Mechanical disc |
ROTOR - FRONT | Promax 160G; 160mm |
ROTORS - REAR | Promax 160G; 160mm |
HANDLEBAR | MERIDA EXPERT SLII; MAT aluminium; 380mm(XXS) , 400mm (XS) , 420mm (S-M-L) , 440mm (XL) |
STEM | MERIDA COMP CC; 31.8 DSH; MAT aluminium; -7 ASD |
STEM/SIZE | 80 mm-XXS/XS, 90 mm-S, 100 mm-SM/ML, 110 mm-L/XL |
HEAD SET | MERIDA M2339 Neck |
SEAT POST | MERIDA COMP CC; MAT aluminium; 27.2 DSP; 5 SSB |
SADDLE | MERIDA COMP SL; V-mount |
HUB-FRONT | Joytech D981-12; 100x12 WHF; 28 SPH, 6 SBD |
HUB-REAR | Joytech D982TSE-R; 142x12 WHR; 28 SPH; 6 SBD |
AXLE-FRONT | MERIDA EXPERT SL |
AXLE-REAR | MERIDA COMP SL; including removable lever; 6/4mm allen key |
SPOKES | Black stainless |
RIMS | MERIDA COMP SL; 17 IWR; 22 HRI; MAT aluminium; Tubeless ready (tubeless tape and valves not included) |
TYRES | Maxxis Pursuer; 700x25C; fold |
MAX RIDER WEIGHT | 120kg |
Please note - specifications subject to change without prior notice.
Road bikes come in varieties to cater for differing ride styles. So whether you're a hard core racer or a weekend warrior, there will be a bike just right for you. Our team at Wollongong Bike Hub can help you navigate all the technologies so you can choose the best road bike and accessories to suit your ride style and budget.
