GGH Economy Series Mechanical U- Channels

The GGH Mechanical Channel offers a reliable, hassle-free glazing solution for monolithic tempered glass panels. Designed for glass thicknesses of 3/8" to 1/2" (10 to 12 mm), this channel system does not require holes to be drilled into the glass, making installation quick and easy. Available in a standard 10FT (120") header length, it provides strong support for glass panels without the need for wet silicone glazing.

Key Features:

• Overall Cross Section Size: 1-9/16" x 1-7/16"
• Glass Compatibility: Suitable for 3/8" to 1/2" (10 to 12 mm) monolithic tempered glass
• No Glass Drilling Required: Eliminates the need for holes in the glass, streamlining installation
• Available Length: 10FT (120") header length for versatile application

• Efficient System: Easy-to-install two-piece front load clamp-on system ideal for applications where lift and drop glazing isn't possible.

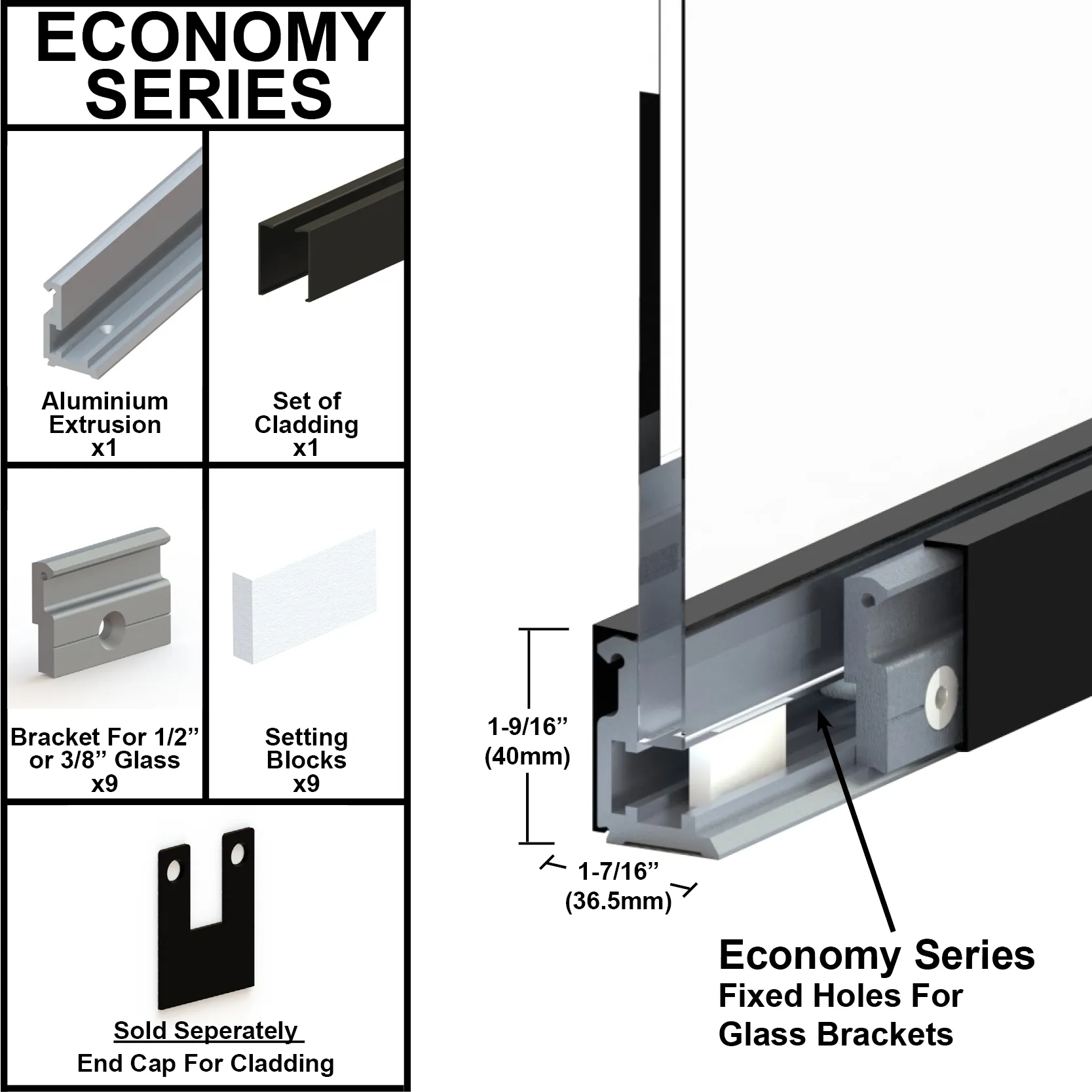

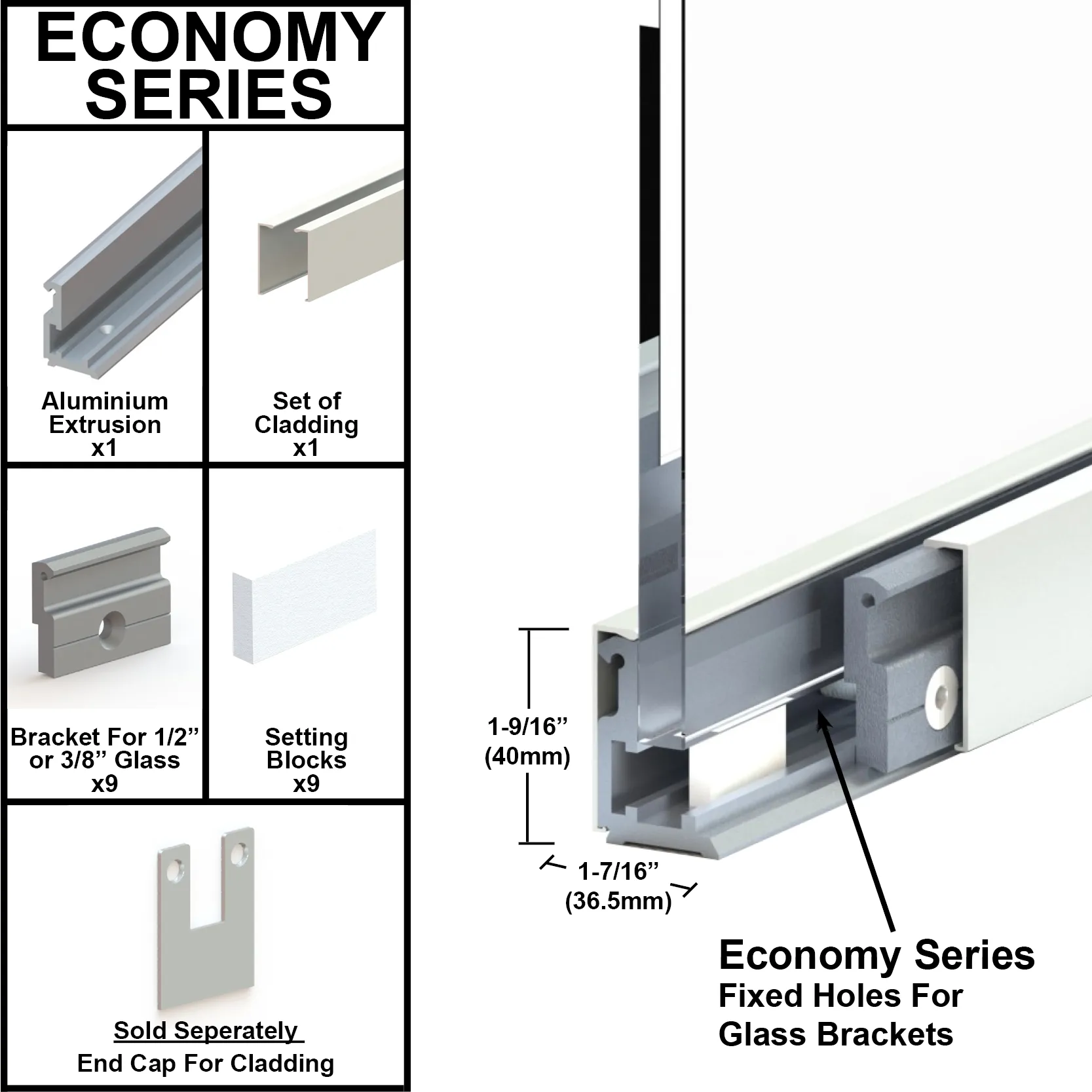

Included in Kit:

• Aluminum Extrusion x1
• Channel brackets with screws x9
• Setting blocks x9
• Set of cladding x1

Finishes Available:

• Brushed Anodize Aluminum
• Matte Black Aluminum
• Satin Anodized Aluminum
• Custom Finishes (contact: )

For more information or custom length requests, please contact us at .
