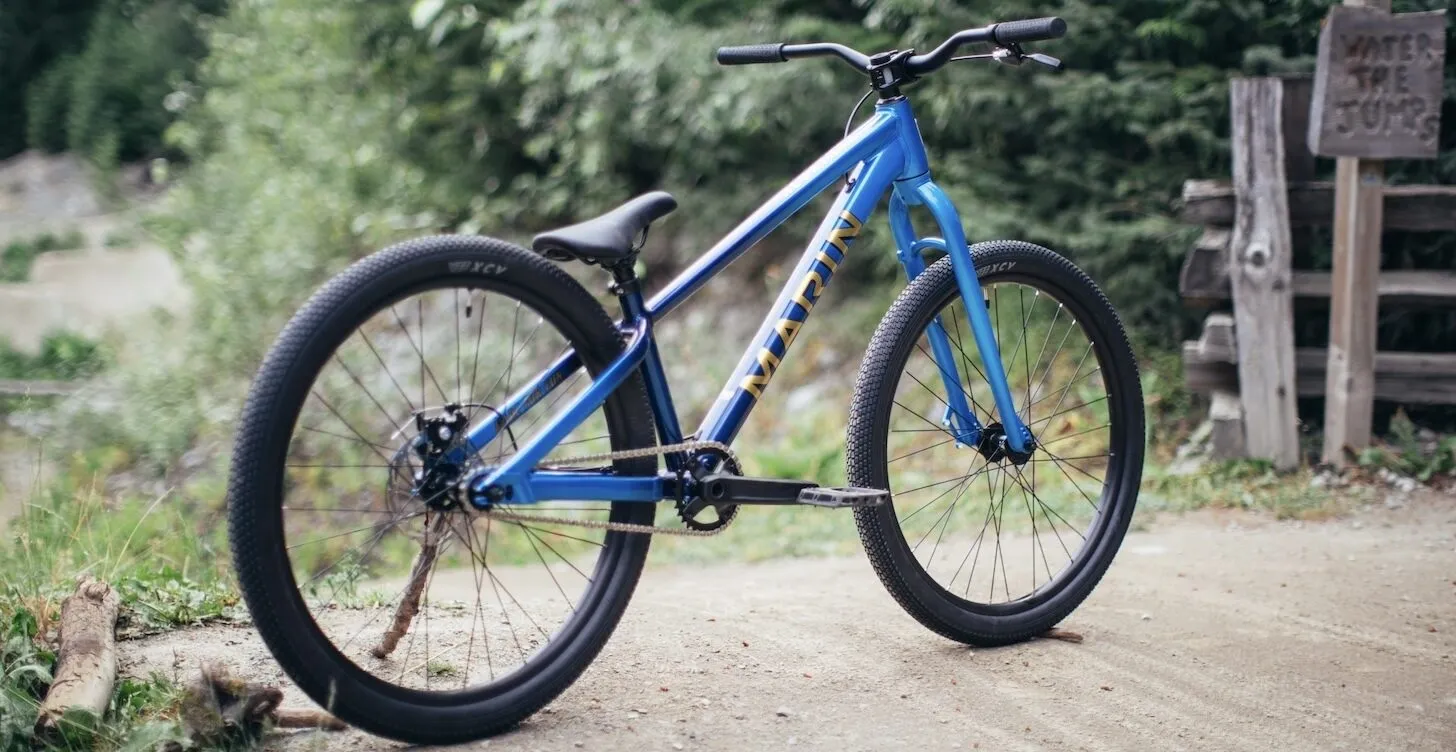

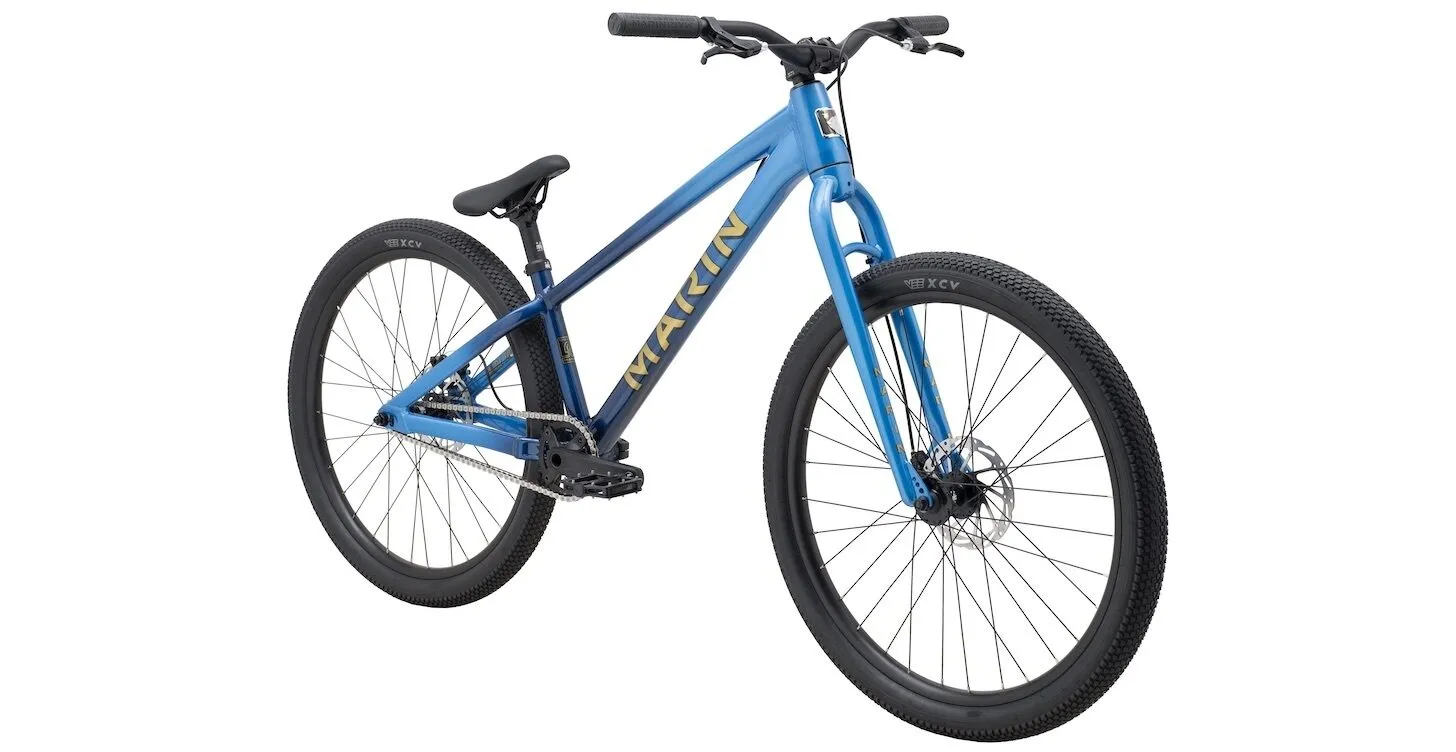

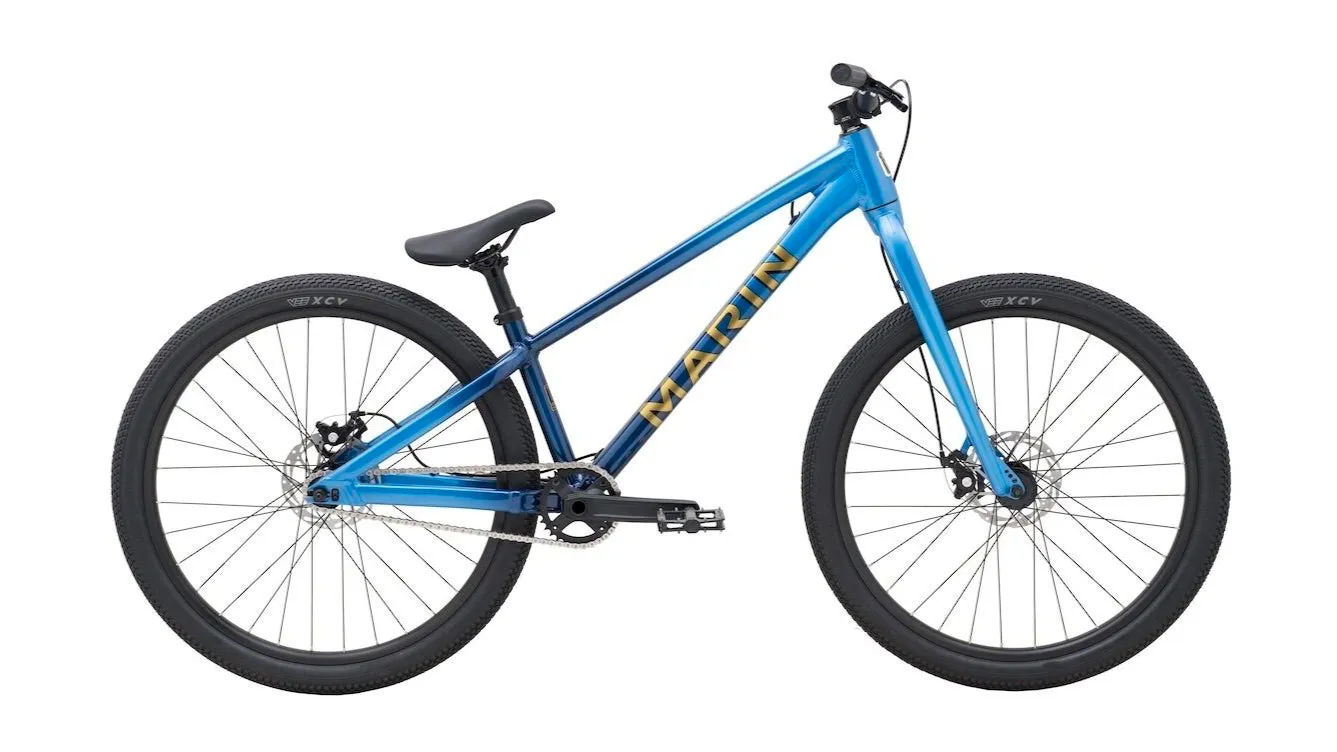

MARIN-25 ALCATRAZ 1- BLUE FADE-Dirt Jumper
The Alcatraz 1 is the entry level into the Matt Jones matrix, the base to which, if they wish, the rider can build from and personalize the best dirt jump bike possible. At home boosting your local 6-pack, ripping up the pump track, or hitting the local skate park, the Alcatraz 1 allows you to take care of business in a solid and reliable package.
The Series 3 aluminum frame is built for hard knocks and stiff enough for lightning-fast acceleration. Short chainstays make manuals easy whilst little details like ambidextrous cable routing means you can run your brake on the left or right of the bars. There’s a suspension-corrected CrMo fork to keep the angles as Matt designed, front and rear Tektro disc brakes, Vee Tire rubber and plenty of bombproof Marin components. Best of all, it’s available in two frame sizes, regular and long.
Specifications
Frame
Series 3 6061 Aluminum, 26” Wheels, 135x10mm Horizontal Single Speed Dropouts, 73mm Threaded BB, ISCG 05 Tabs
Fork
Marin Series 2 CroMo 26", Suspension Corrected, 100x9mm Dropouts
Rear Suspension
-
Rims
Marin Custom Extrusion, 27mm Inner, Pinned Joint
Hub, Rear
Forged Alloy, 135x10mm, Bolt-On, Quad Sealed Bearings, Disc, 32H
Hub, Front
Forged Alloy, Bolt On 3/8" Axle, 100mm Spacing
Spokes
14g Black Stainless Steel
Tires
Vee Tire Co. XCV 26x2.25”, LSG Compound, Wire Bead
Derailleur, Rear
-
Derailleur, Front
-
Shift Lever
-
Crankset
Marin Forged Alloy, Alloy 32T Chainring, 104mm BCD
Bottom Bracket
External Sealed Cartridge Bearings
Chain
KMC HL-1
Cassette
14T Single Speed Cog
Brake, Front
Tektro MD-M280 Mechanical Disc 160mm Rotor
Brake, Rear
Tektro MD-M280 Mechanical Disc 160mm Rotor
Brake Levers
Tektro CL-330TS Alloy
Handlebar
Marin Riser, 6061 Double Butted Aluminum, 31.8mm at center bulge, 38mm Rise, 750mm Width, 4º Up, 9º Back
Stem
Marin 3D Forged Alloy, 31.8mm clamp, 40mm extension
Grips
Marin MTN, Closed End
Headset
FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Seatpost
Marin Alloy, 30.9mm
Saddle
Marin DJ Saddle
Pedals
Alloy Platform
Extras
Marin Chain Tension Device
Specifications, pricing, and availability are subject to change without notice.
Geometry
| Short | Long | |
|---|---|---|
| Stack | 575 | 580 |
| Reach | 385 | 430 |
| Headtube Angle | 69° | 69° |
| Headtube Length | 115 | 120 |
| Seattube Angle | 69° | 69° |
| Seattube Length | 320 | 320 |
| Toptube Effective | 600 | 646 |
| BB Height | 317 | 317 |
| BB Drop | 22 | 22 |
| Chainstay | 395 | 395 |
| Wheelbase | 1037 | 1083 |
| Standover Height | 370 | 400 |
| Fork Offset | 42 | 42 |
| Seatpost Diameter | 30.9 | 30.9 |
| Handlebar Width | 750 | 750 |
| Stem Length | 40 | 40 |
| Crank Length | 170 | 170 |
All lengths in millimeters
Technology

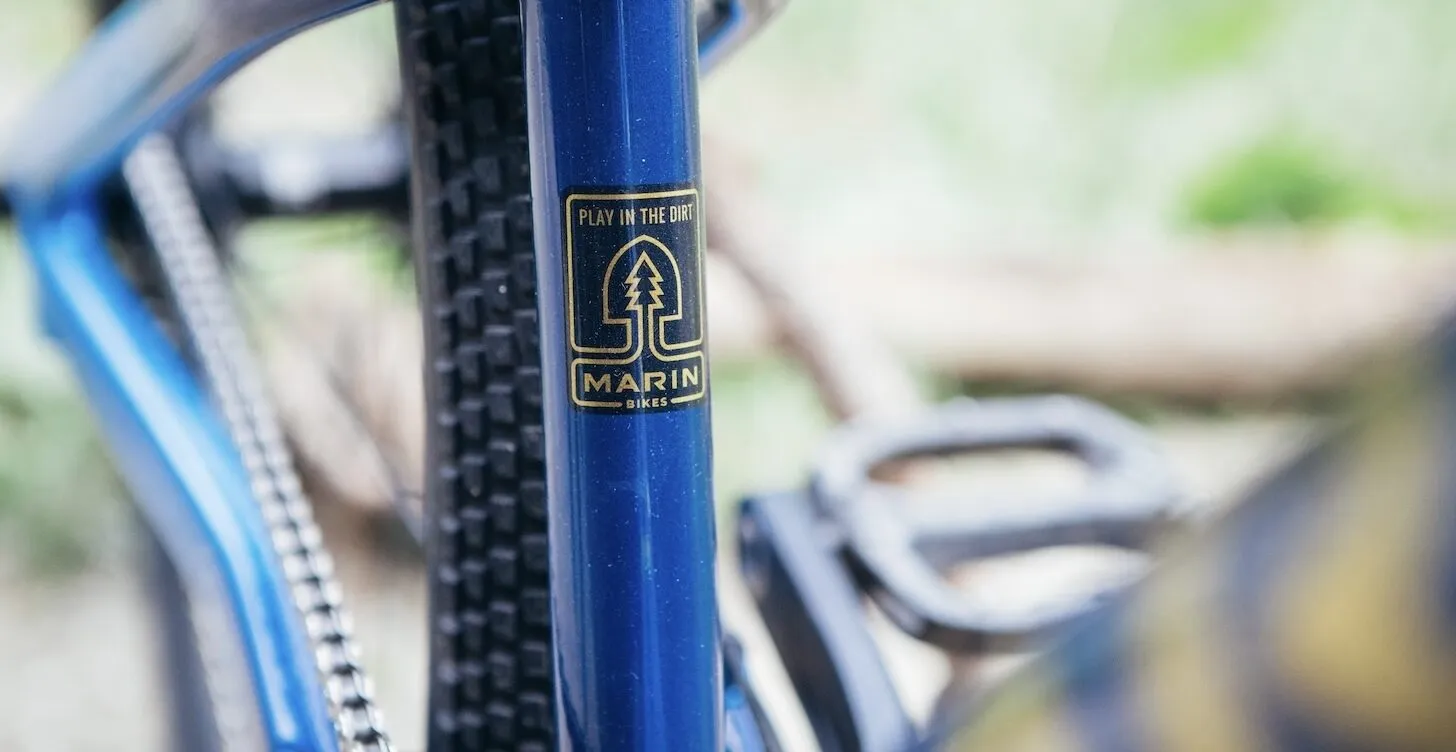

SERIES 3 ALUMINUM FRAME
The Alcatraz features a 6061 Series 3 alloy frame, with a burly double butted tubesets for the best ride quality and stiffness, tapered headtubes for maximum strength on big jumps, and horizontal drop out with slotted IS disc brake tabs.
Learn MoreSHORT CHAINSTAYS
Chainstay lengths are optimized at 395mm to make sure you can have the shortest possible, giving you the ability to pop a wheelie or manual anywhere at anytime.
135X10MM HORIZONTAL DROPOUTS
The Alcatraz features 135x10mm horizontal single speed only dropouts — the standard in dirt jump technology for axle and dropout strength.
AMBIDEXTROUS INTERNAL ROUTING
The location of the internal routing port allows for the rear brake to be located on the left or right hand side of the handlebars.
