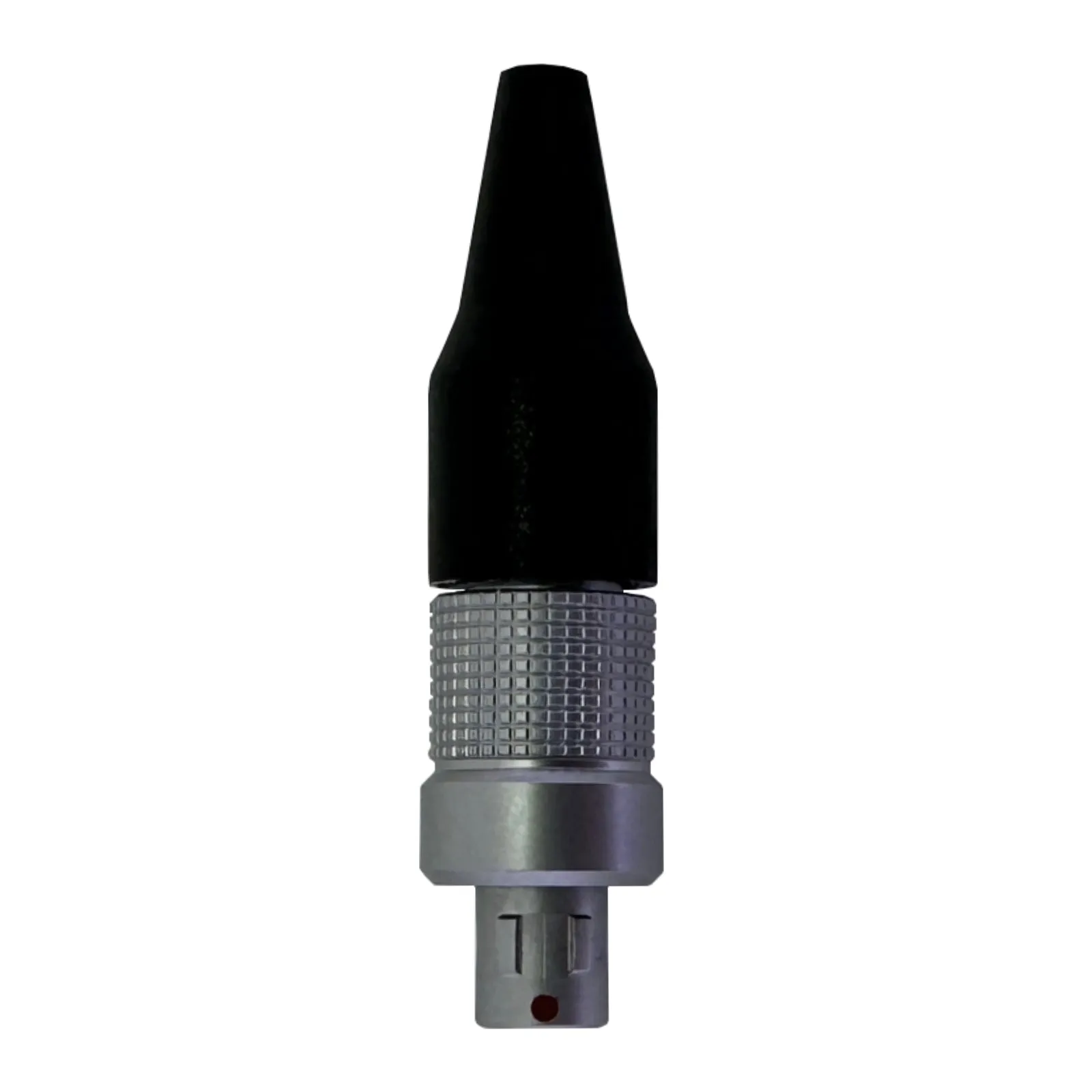

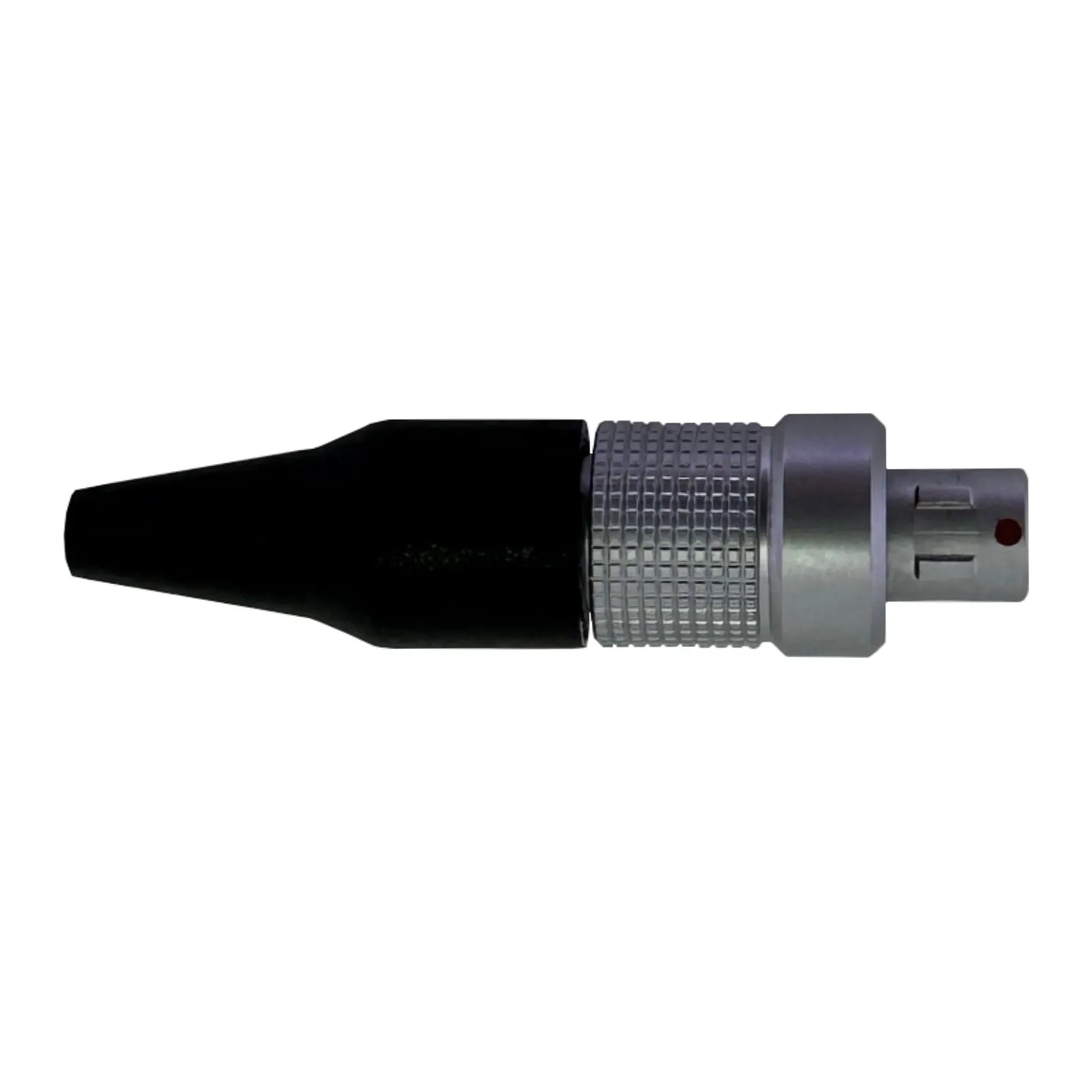

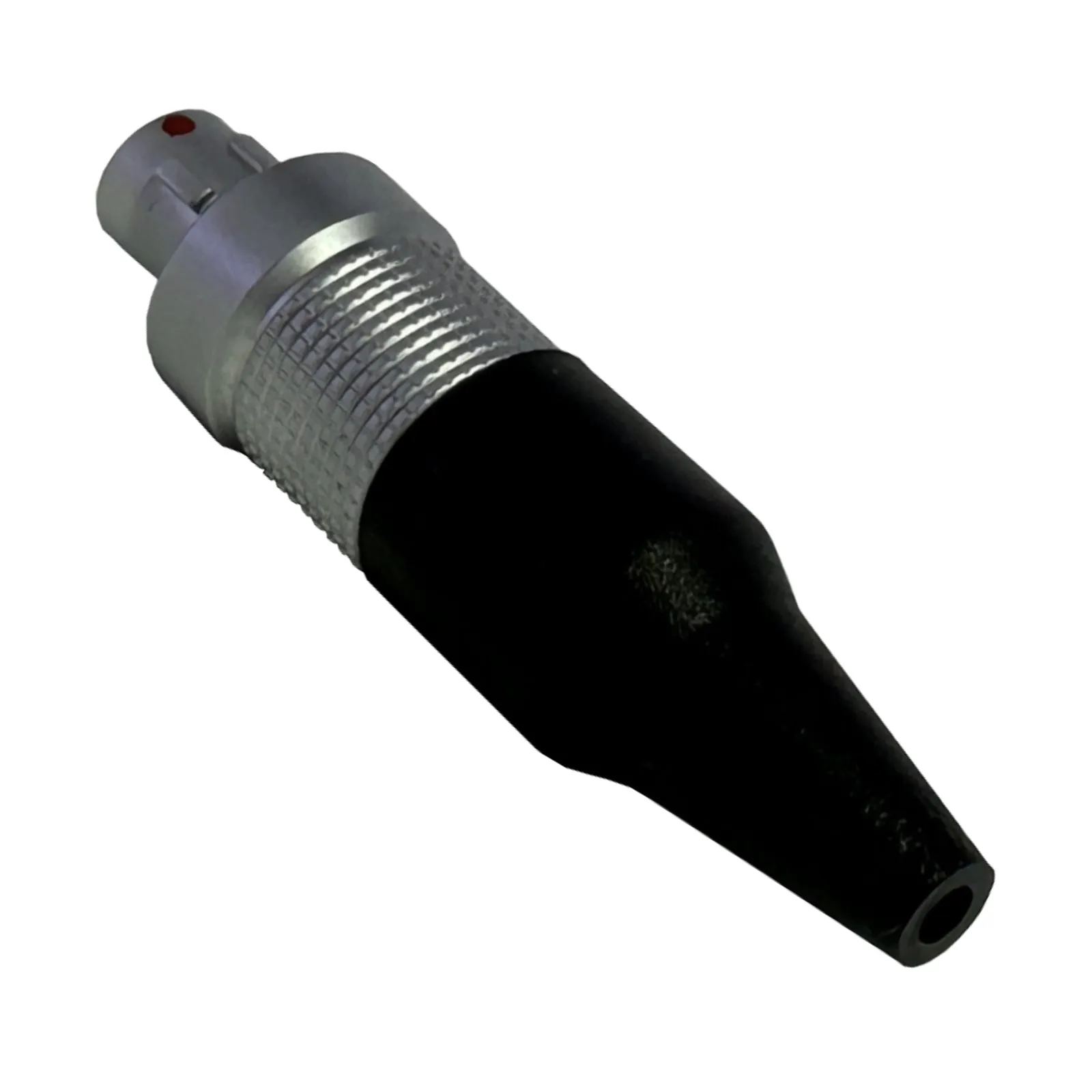

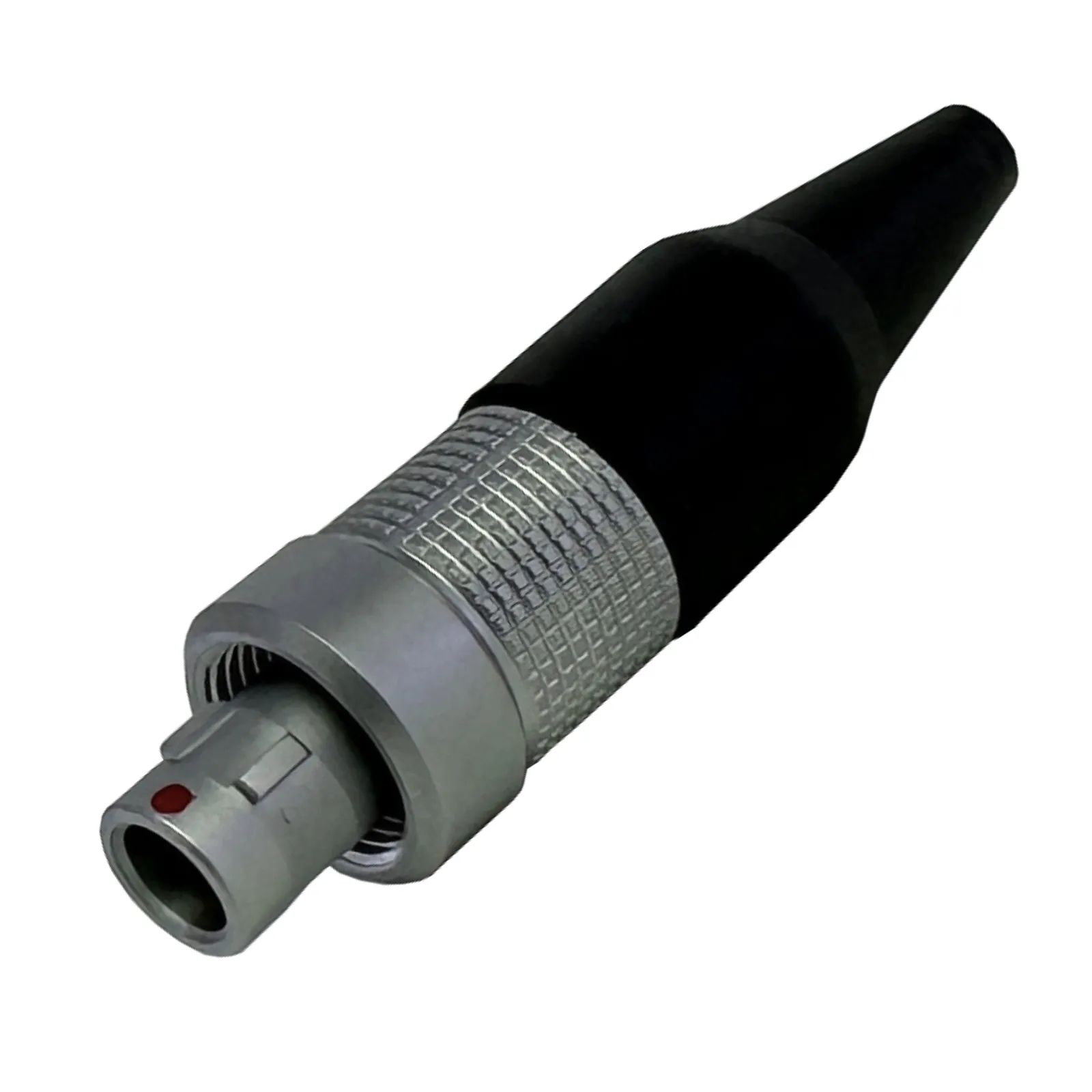

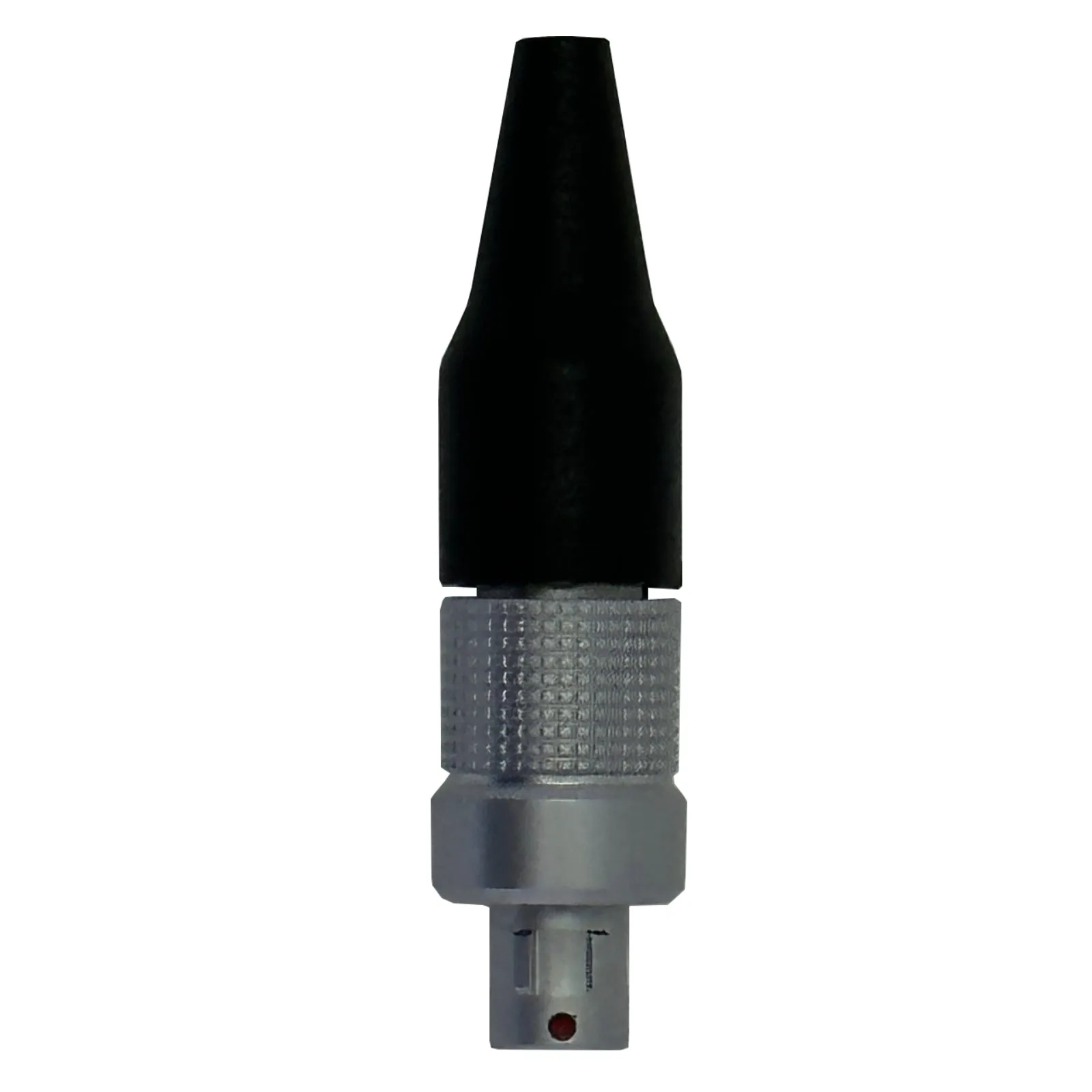

Lemo 3 pin screw on connector - FVB.00.303.NLAE24: Straight plug with key (B), 00 series, short shell for special screw on collet cable crimping for fitting a bend relief and includes a black silicon rubber strain relief.

This Lemo 3 pin connector is used in professional audio applications due to the highly reliable gold-plated contacts and rugged outer shell design. The Lemo 3 pin connector is widely used in wireless microphone systems.

Sennheiser, Shure, WisyCom, Zaxcom are all compatible with this connector.

Mechanical Details:
Shell Style / Model: FVB - straight plug for screw on cable crimping

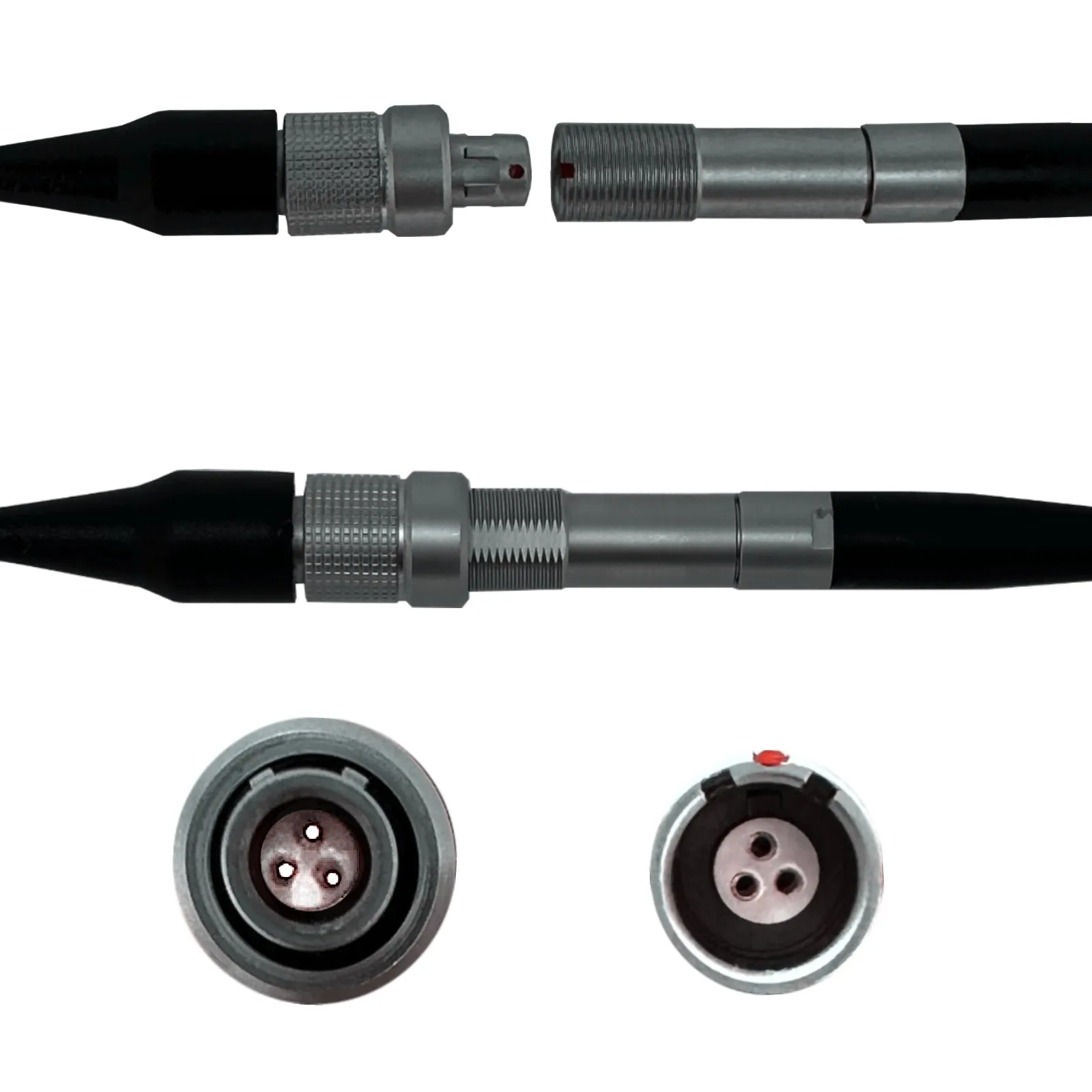

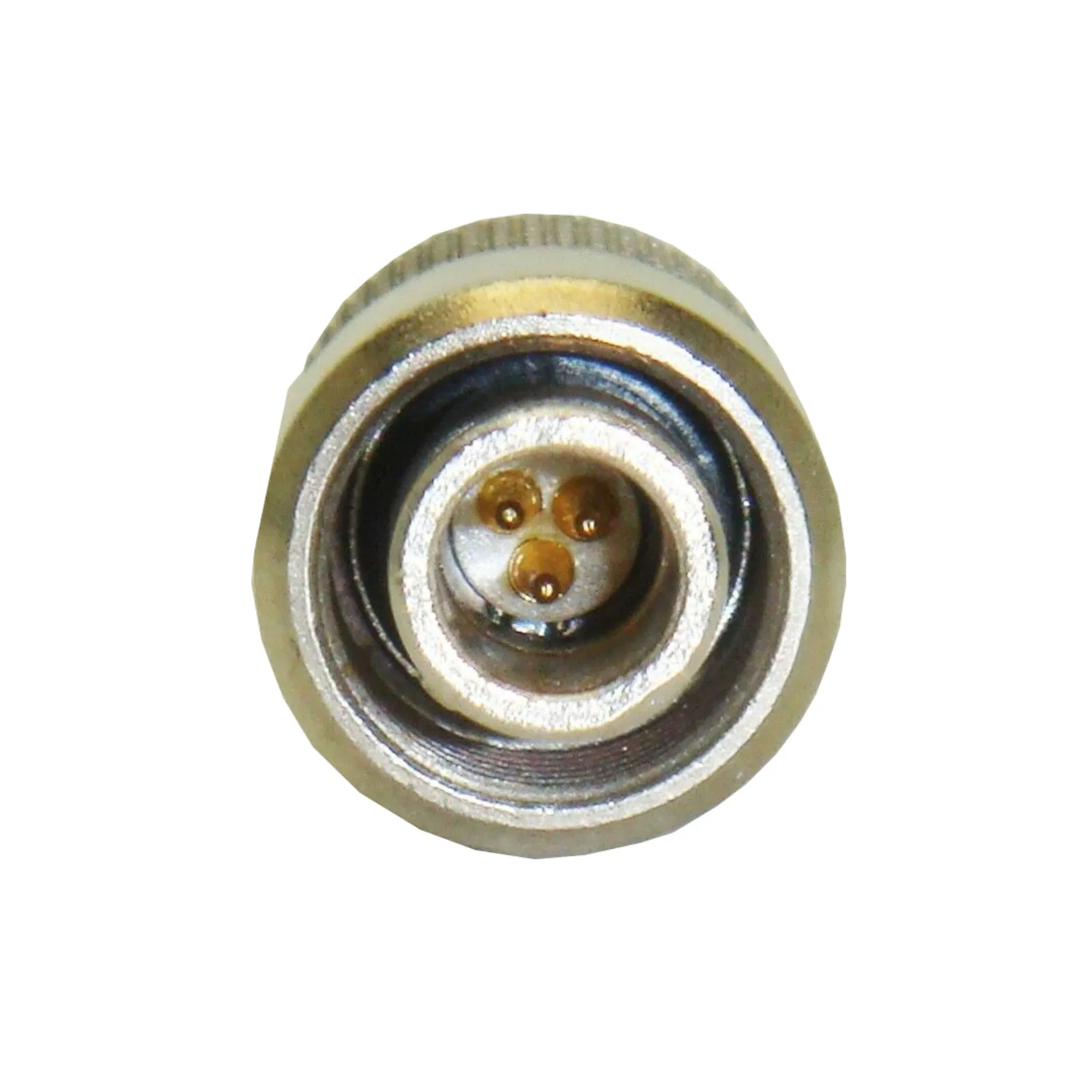

Keying: 2 keys (alpha=60, plug: male contacts, receptacle: female contacts)

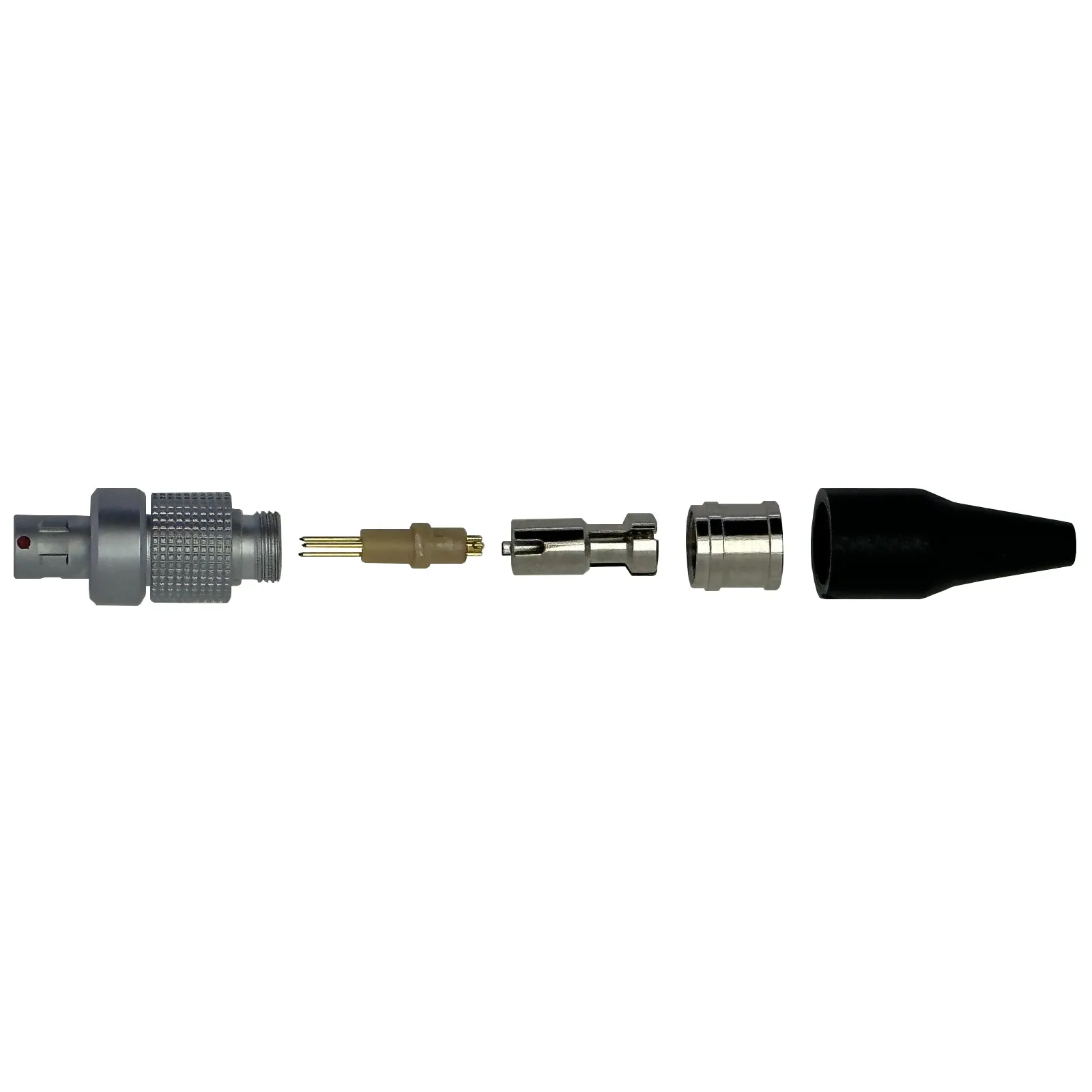

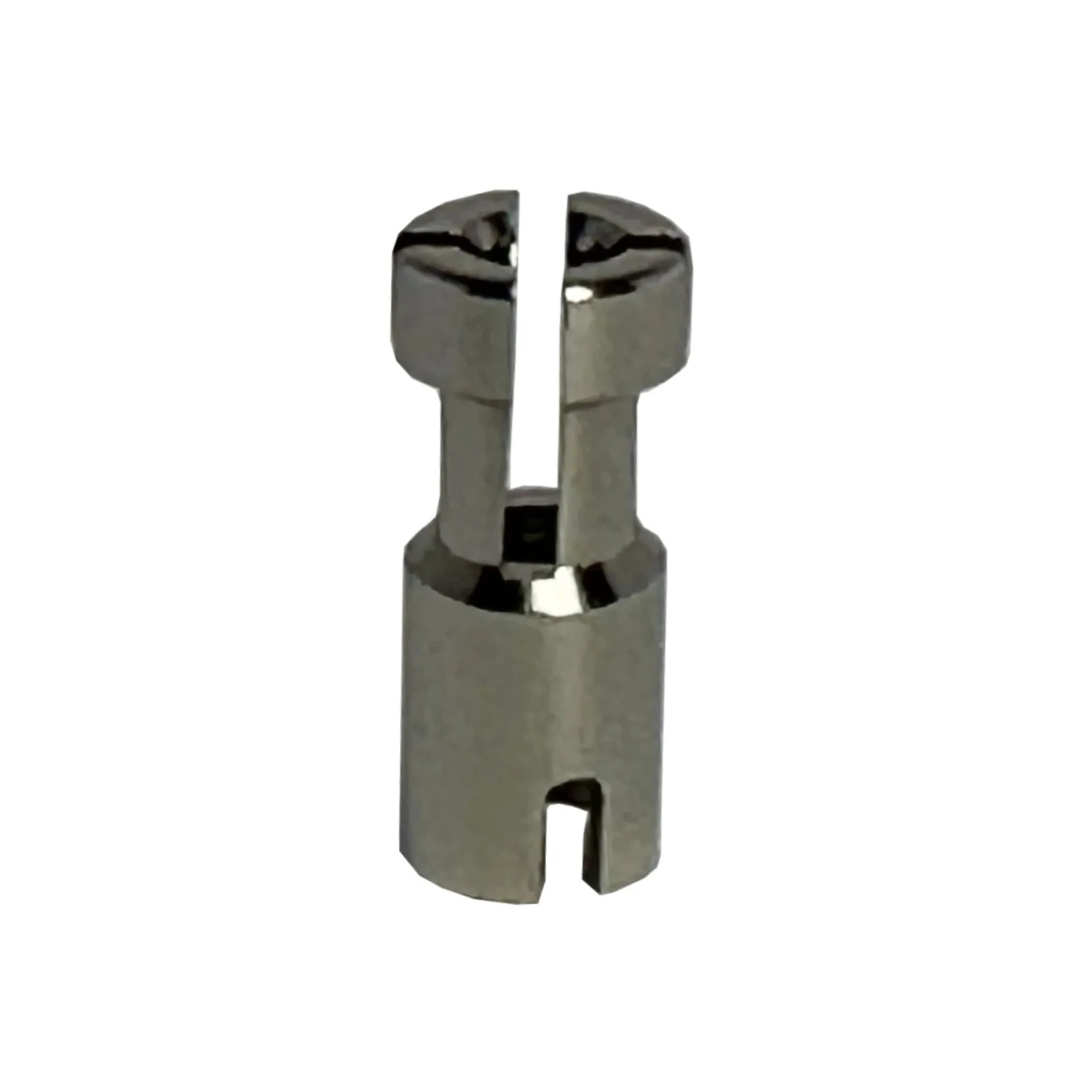

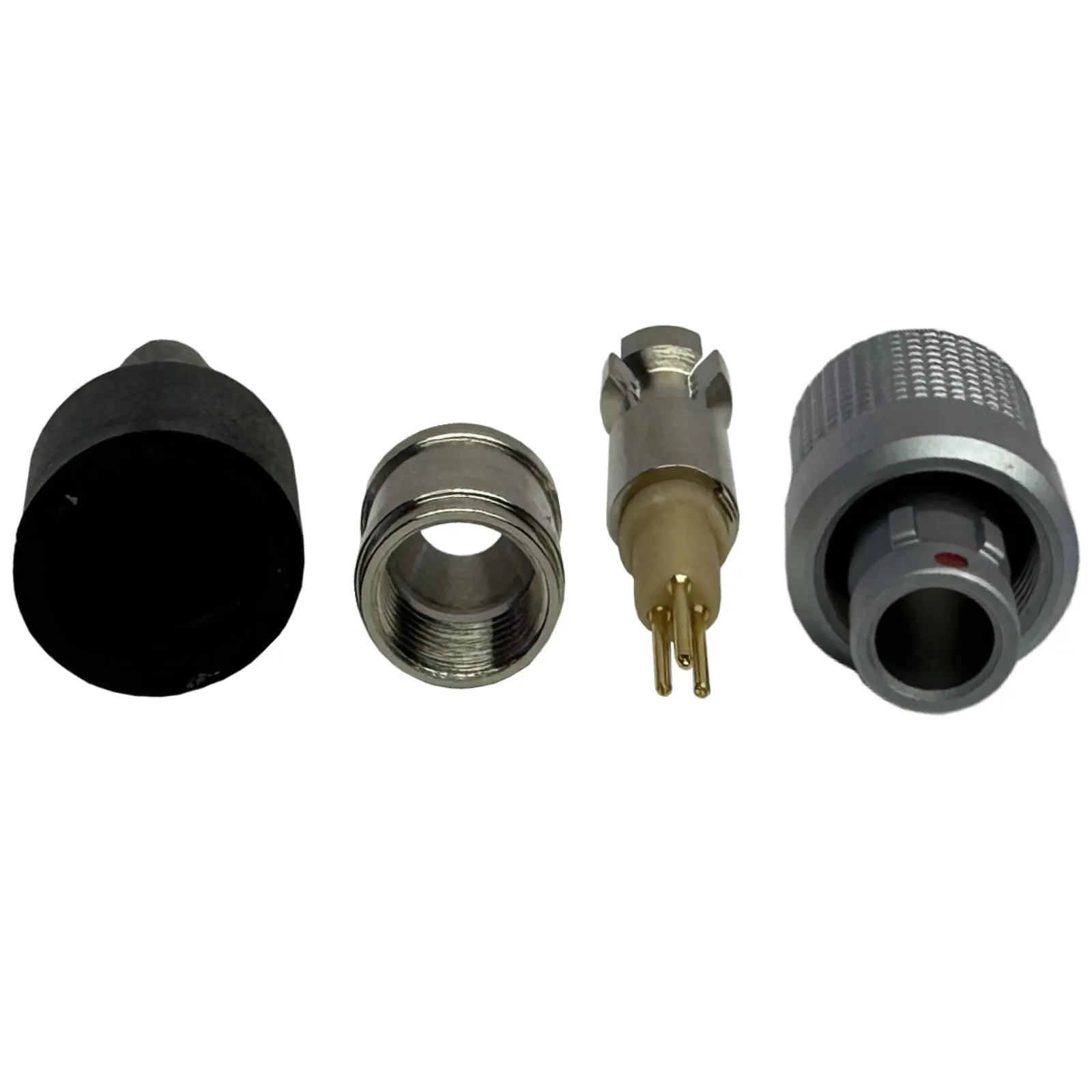

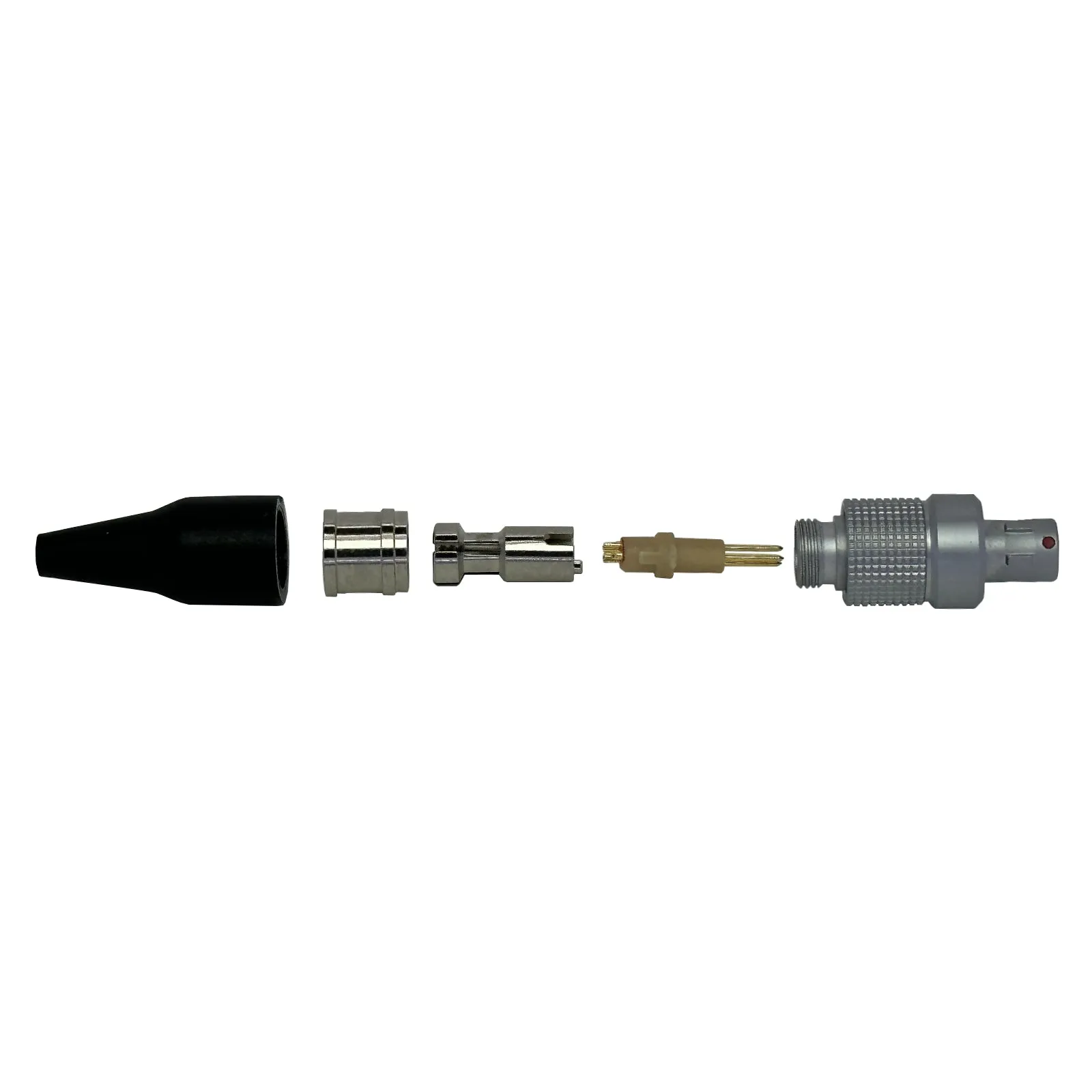

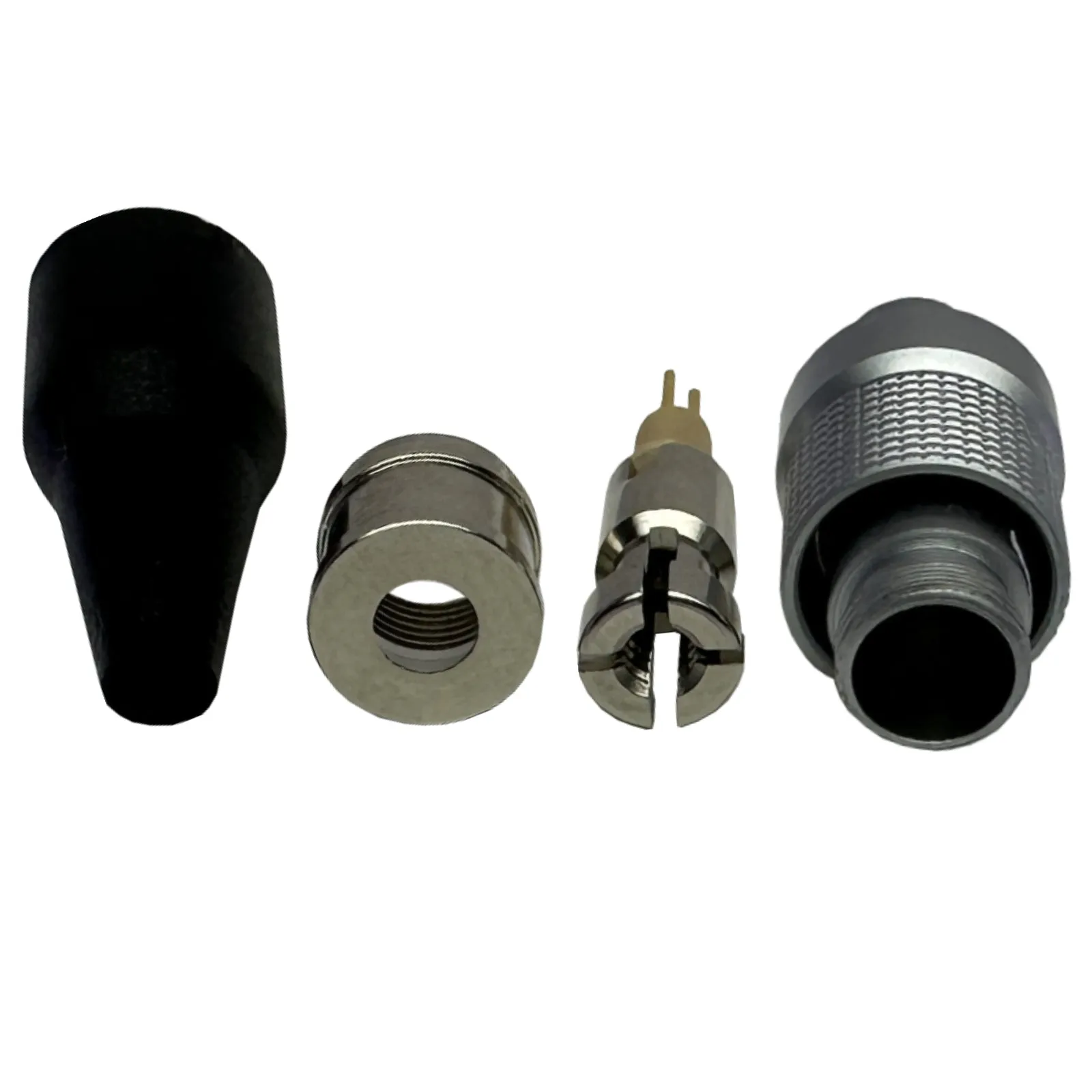

Housing Material: Brass (nickel plated) shell, collet nut, latch sleeve and mid pieces
Performance Details:
Contact Type: Solder
Diameter: Contact: 0.02 in | 0.5 mm
Bucket: 0.016 in | 0.4 mm
Max. Solid Conductor: 0.09 mm^2 (AWG 28)
Max. Stranded Conductor: 0.05 mm^2 (AWG 30) R (max): 8.7 mOhm
Rated Current (A): 3A
V test (Contact-Shell): 950 V (AC), 1300 V (DC)
V test (Contact-Contact): 800 V (AC), 1100 V (DC
