COMMON APPLICATIONS

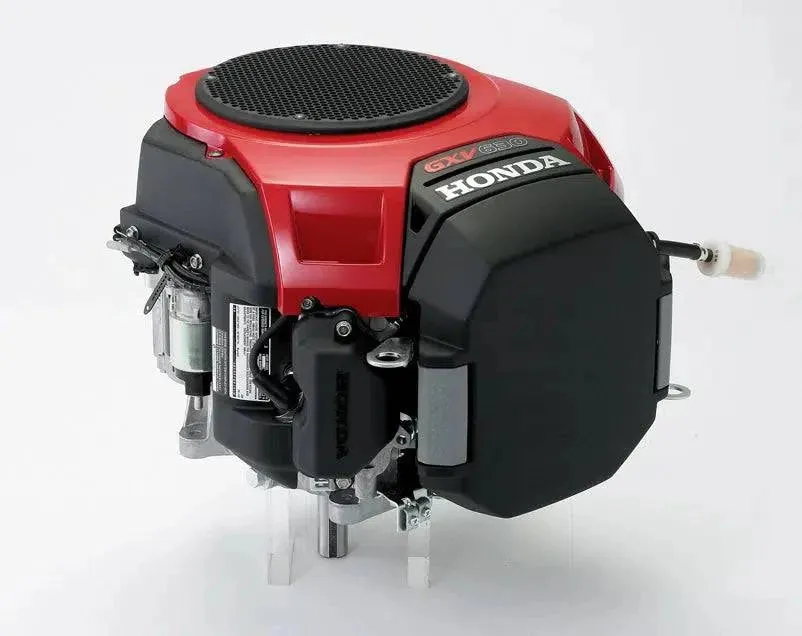

The GXV690 V-Twin is adaptable to many different functions from commercial lawncare equipment to the more demanding range of construction and industrial equipment. It's often the engine of choice for tractors and small vehicles.
PROVEN RELIABILITY
The high capacity pump facilitates consistent oil delivery and a handy Oil Alert. Honda’s Oil Alert system prevents engine seizure due to a low oil condition. When the oil reaches a level that is too low for safe operation, the engine warns you or stops automatically. It's a great addition to help protect your engine.
It features aluminium push rods with steel tips are lightweight with low vibration. Teamed with a high capacity 36 blade cooling fan, this engine is exceptionally quiet.
The result is a long-lasting, high-performing and reliable engine.
FUEL EFFICIENT OPERATION
Fuel economy is similar to fuel injection, with the simplicity of carburetion and it works brilliantly in the GSV690.
Honda’s Variable Timing Digital CDI ignition allows optimal ignition timing based on engine speed. The results in excellent starting, high power output, reduced fuel consumption, and outstanding emissions performance. An engine rev limiter is also incorporated to prevent over-revving.
3 YEAR WARRANTY
Honda's leading range of power equipment comes with leading warranty periods. Our range of GXV engines carrying up to a 3 year warranty*.
With regular servicing by a Honda authorised dealer, using only Honda Genuine Parts and Accessories, your Honda product will work hard around your home for many years.
| Product Code | GXV690RHTAF |
| Model | GXV690 |
| Type | Air-cooled 4-stroke OHV |
| Bore & Stroke | 78 X 72mm |
| Displacement | 688cm³ |
| Compression Ratio | 9.3:1 |
| Net Power | 22.1 HP (16.5 kW) @ 3,600 rpm |
| Max Net Torque | 35.6 lb-ft (48.3 Nm) @ 2,500 rpm |
| Ignition System | Digital CDI with variable ignition timing |
| Starting System | Electric |
| Cooling System | |
| Lubrication System | Forced lubrication |
| Recommended Fuel | Unleaded |
| Lamp/Charge coil options | 2.7A, 17A, 26A |
| Governor System | Mechanical |
| Air Cleaner | Dual element |
CAPACITY AND DIMENSIONS
| Oil Capacity | 2.2L |
| Dry Weight | 44.7 kg |
