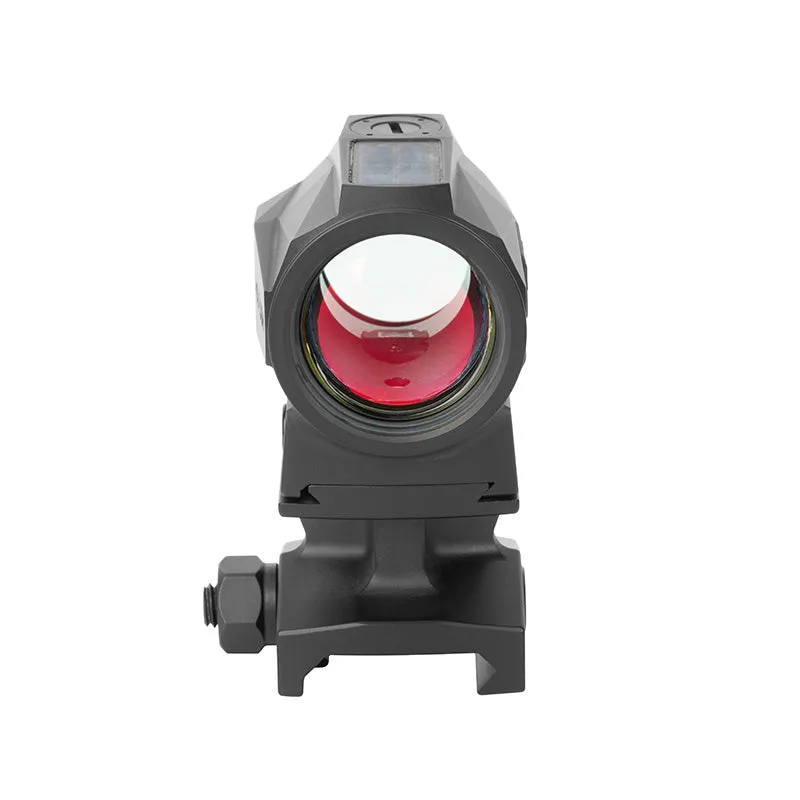

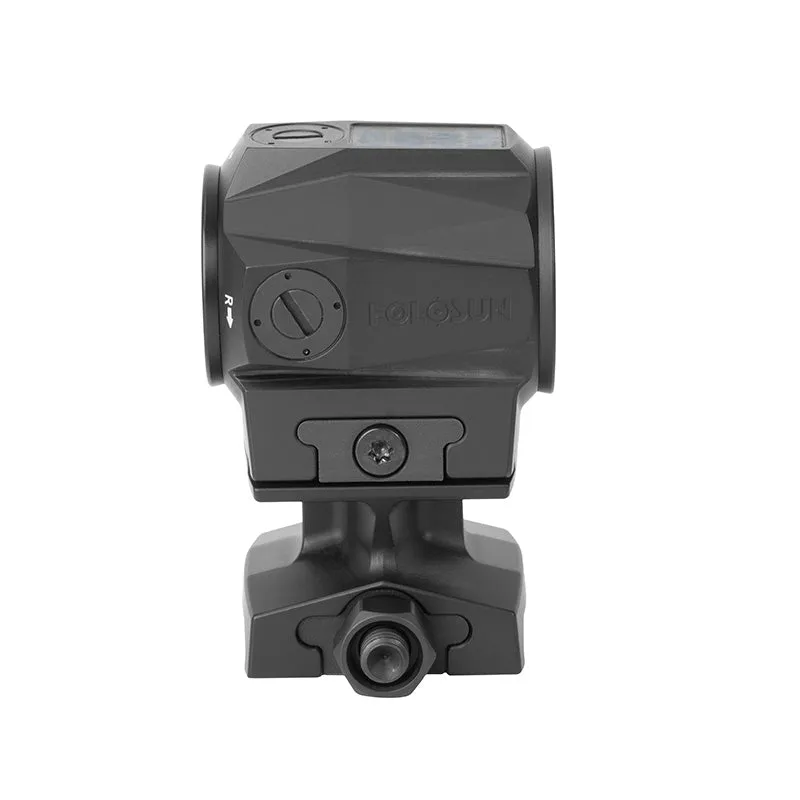

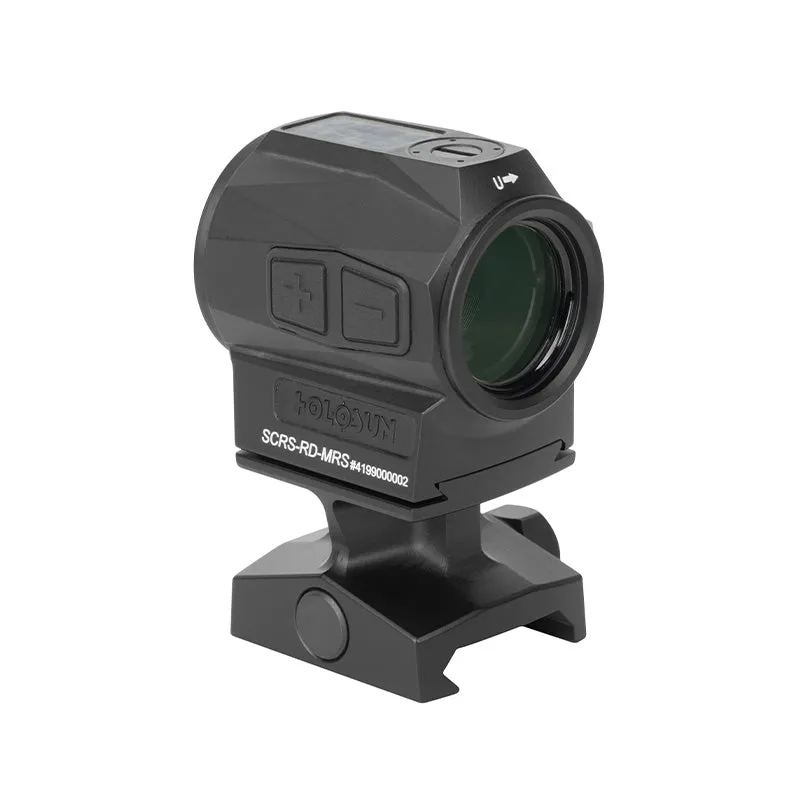

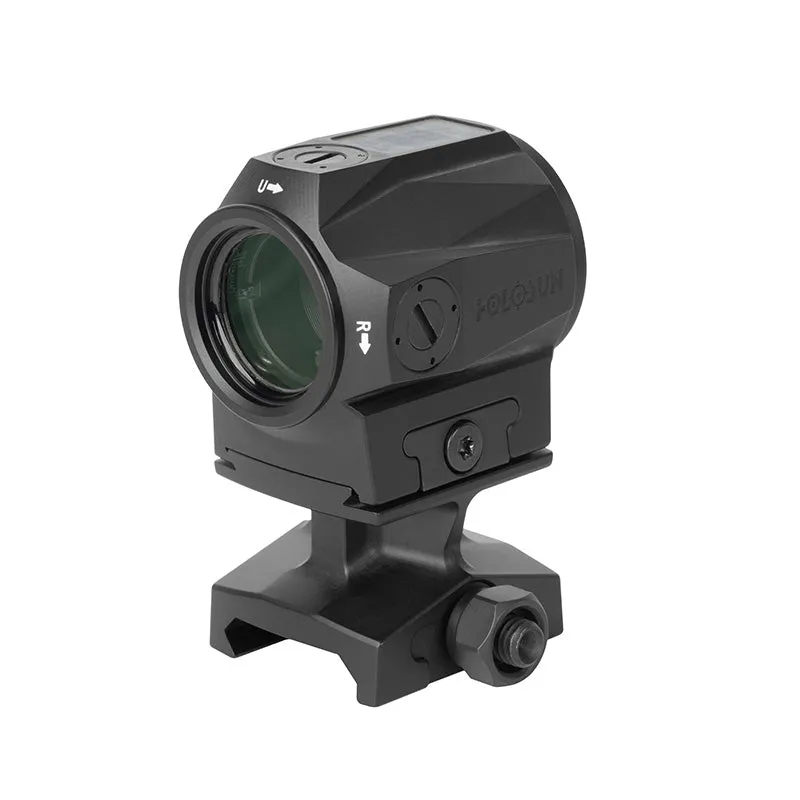

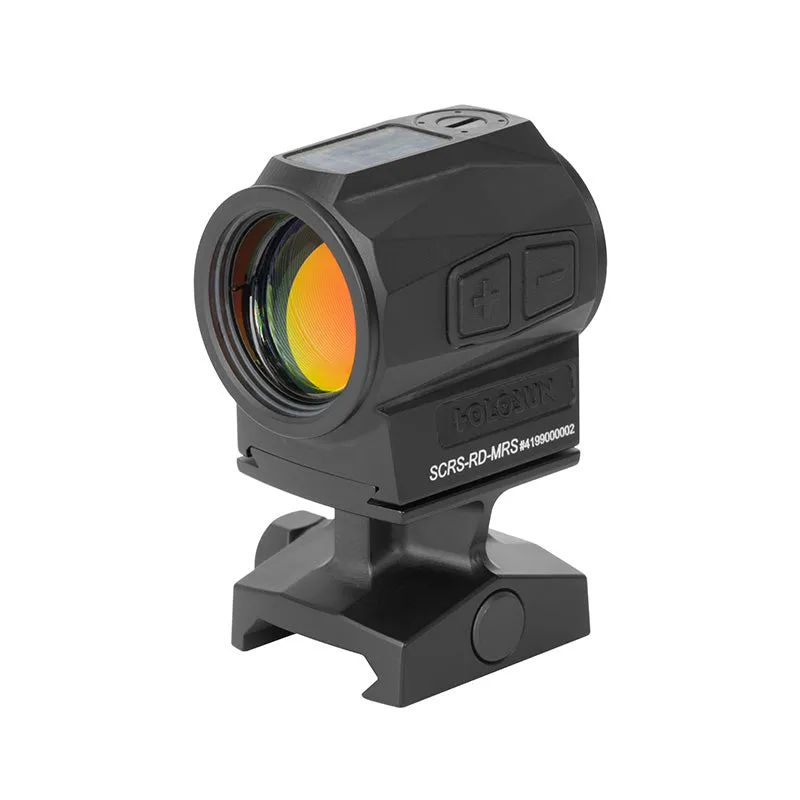

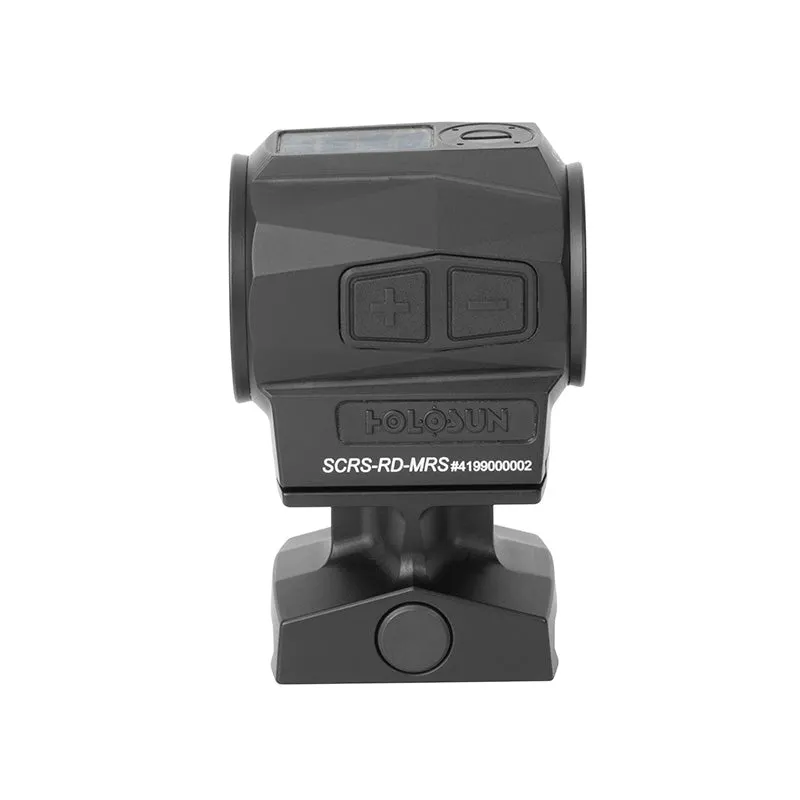

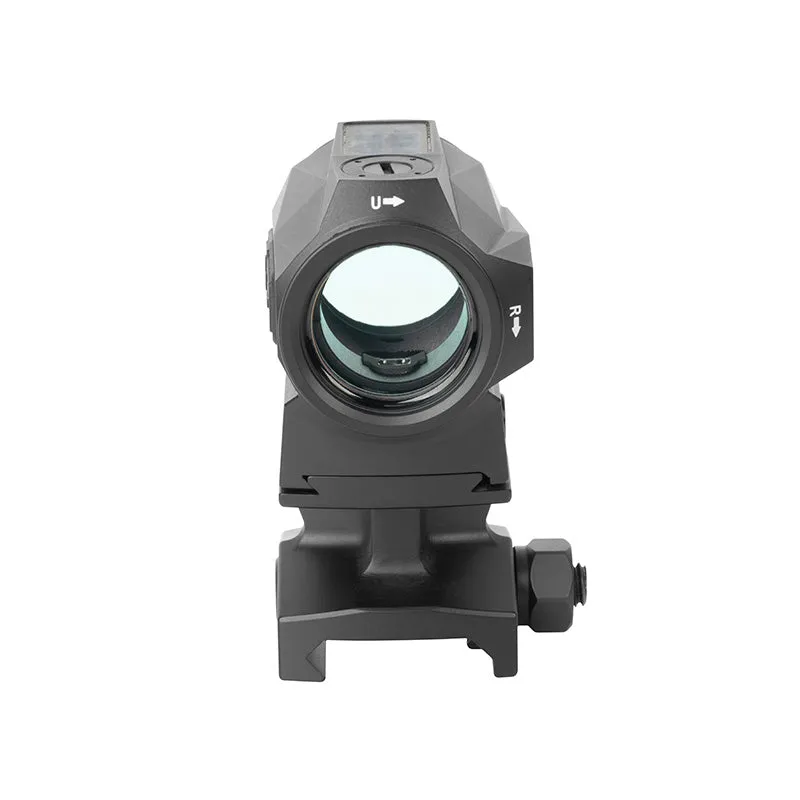

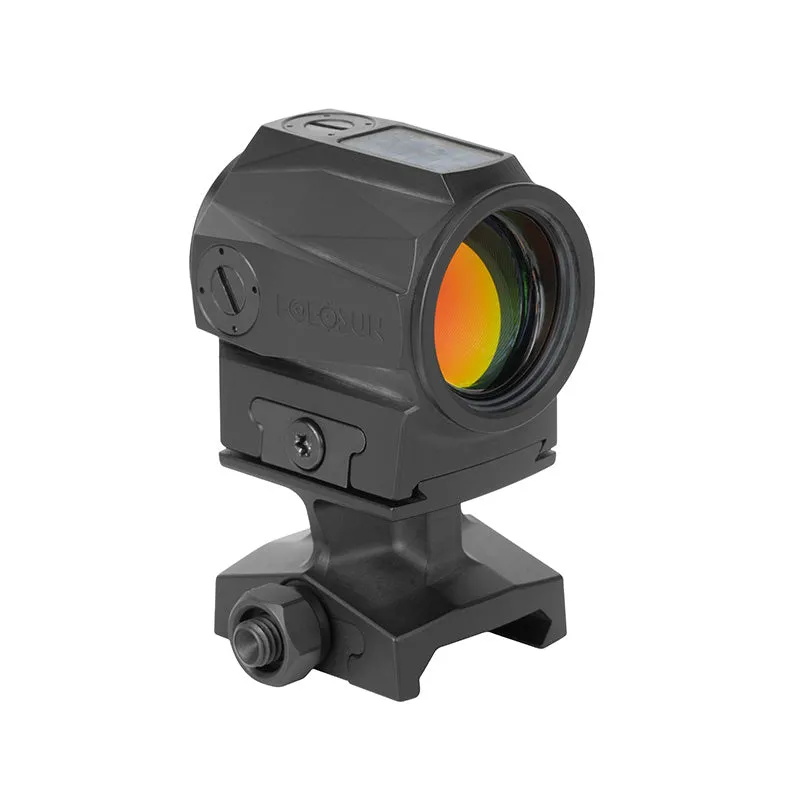

The SCRS-RD (Solar Charging Rifle Sight) advances Holosun’s SCS technology creating an all-new, ultra compact 20mm tube sight designed for long gun applications. SCRS-RD features multi-directional light sensors and an advanced Auto Mode for automatic reticle intensity settings and Manual Mode for manual control of dot intensity.
SCRS-RD is made from 7075 aluminum and includes a lower 1/3 co-witness, 1.63” mount that utilizes Holosun’s proven 509T footprint for compatibility with third-party offset RDS mounts. SCRS-RD is available with a 2MOA dot only or Holosun’s MRS (Multi-Reticle System). SCRS-RD features 12 reticle intensity settings, four of which are compatible with night vision devices and up to 50k hour battery life.
Items Dimensions (in inches)
In the Box
- Lower 1/3 Cowitness Mount
- T10 L Key
- Rubber Cover
- User Manual
- Lens Cloth
OPTICAL SPECS
| Reticle | 2 MOA Dot & 65 MOA Circle |
| Light Wavelength | 650nm |
| Reticle Color | Red |
| Parallax Free | Yes |
| Unlimited Eye Relief | Yes |
| Magnification | 1x |
| Multi-Coatings | Yes |
ELECTRONIC SPECS
| Power Source | Solar & Battery |
| Battery Type | Internal Rechargeable Battery |
| Battery Life (Hours) | Unlimited |
| Brightness Setting | 8 DL&4 NV |
PHYSICAL SPECS
| Window Size | 20mm Diameter |
| Dimension (in) | 1.7×1.35×1.6 |
| Weight (oz) | 2.45 |
MECHANICAL SPECS
| Housing Material | 7075 T6 Aluminum |
| Surface Finish | Anodize |
| Adjustment per Click | 1 MOA |
| W&E Travel Range | ±50 MOA |
ENVIRONMENT SPECS
| Storage Temperature | -40℃~70℃ |
| Working Temperature | -30℃~60℃ |
| Submersion | IP67 |
| Vibration | 1000G |
