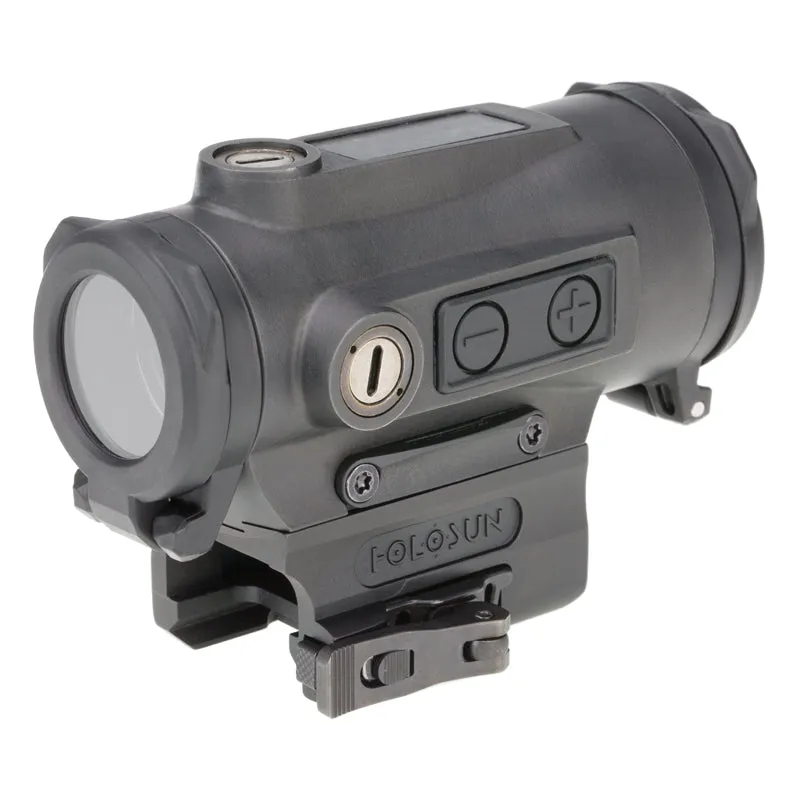

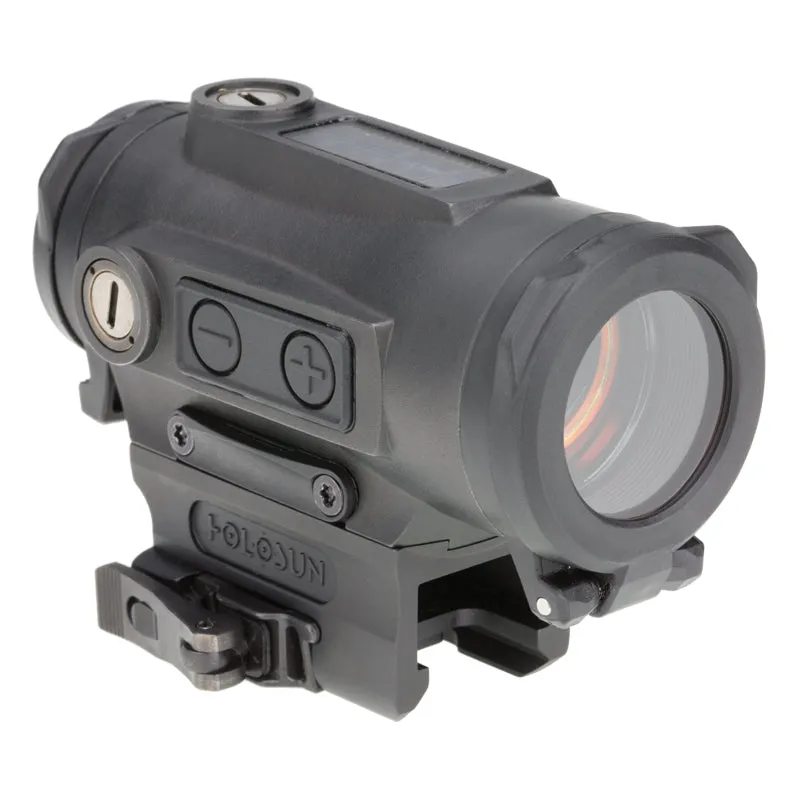

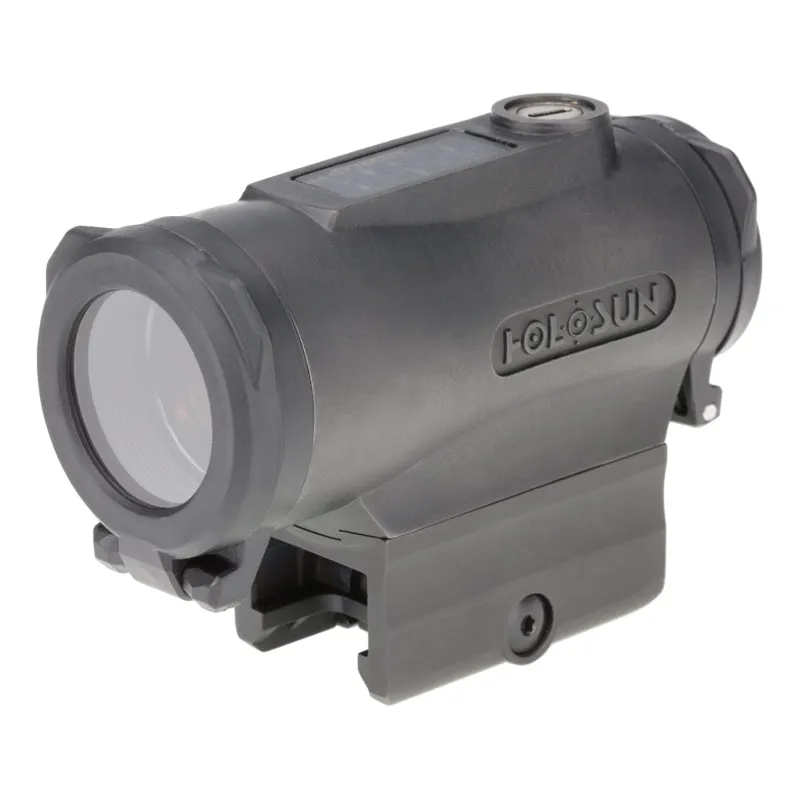

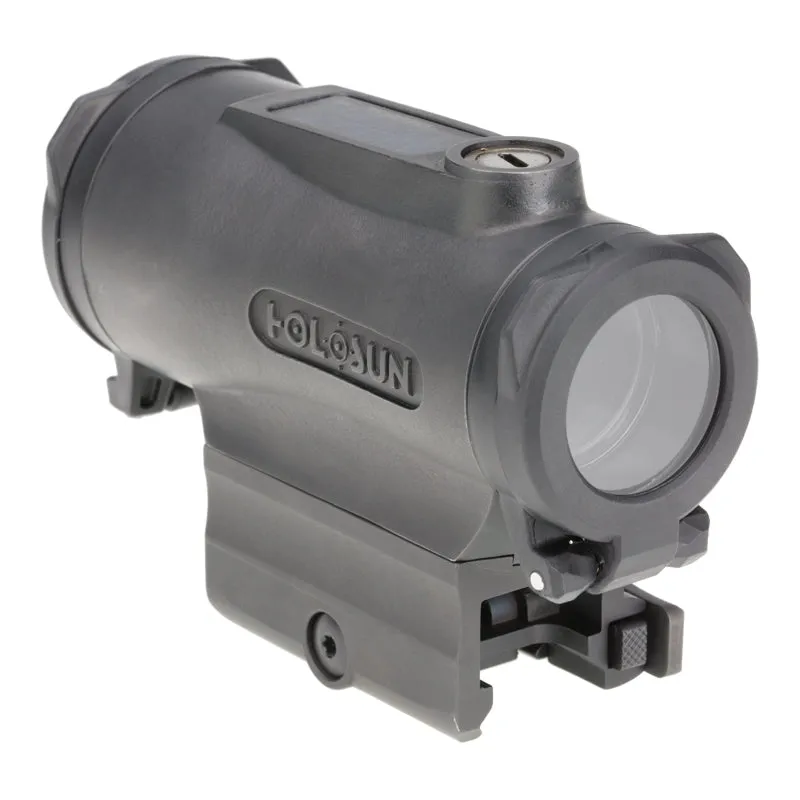

The HE530C-GR is an ultra durable, titanium, 30mm micro sight designed for hard-use rifle and carbine applications. The HE530C-GR is made from grade 5 titanium and includes clear, removable/rotating lens caps, a QD absolute co-witness (1.41”) mount, and is IP68 certified waterproof and dustproof rating with Solar Failsafe technology.
Additional features include our MRS (Multi-Reticle System) with Green Super LED, 10 daylight and 2 night vision compatible reticle intensity settings, Shake Awake technology, and up to 50k hour battery life. The 2032 battery is housed in a side mounted tray for easy access. The HE530C-GR is designed for sporting and professional users.
Items Dimensions (in inches)
In the Box
- Quick Release Mount
- Absolute Co-witness Mount
- T10 L Key
- User Manual
- CR2032 Battery
- Lens Cloth
OPTICAL SPECS
| Reticle | 2 MOA Dot & 65 MOA Circle |
| Light Wavelength | 540nm |
| Reticle Color | Green |
| Parallax Free | Yes |
| Unlimited Eye Relief | Yes |
| Magnification | 1x |
| Multi-Coatings | Yes |
ELECTRONIC SPECS
| Power Source | Solar & Battery |
| Battery Type | CR2032 |
| Battery Life (Hours) | 50000 |
| Brightness Setting | 10 DL&2 NV |
PHYSICAL SPECS
| Window Size | 30mm Diameter |
| Dimension (in) | 3.22×1.65×1.87 |
| Weight (oz) | 6.77 |
MECHANICAL SPECS
| Housing Material | Titanium |
| Surface Finish | Titanium |
| Adjustment per Click | 0.5 MOA |
| W&E Travel Range | ±50 MOA |
ENVIRONMENT SPECS
| Storage Temperature | -40℃~70℃ |
| Working Temperature | -30℃~60℃ |
| Submersion | IPX8 |
| Vibration | 1000G |
