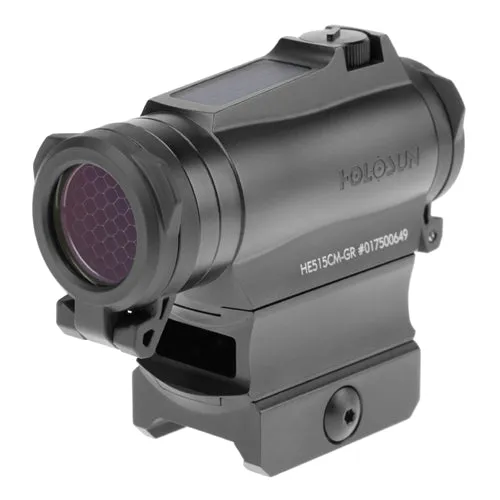

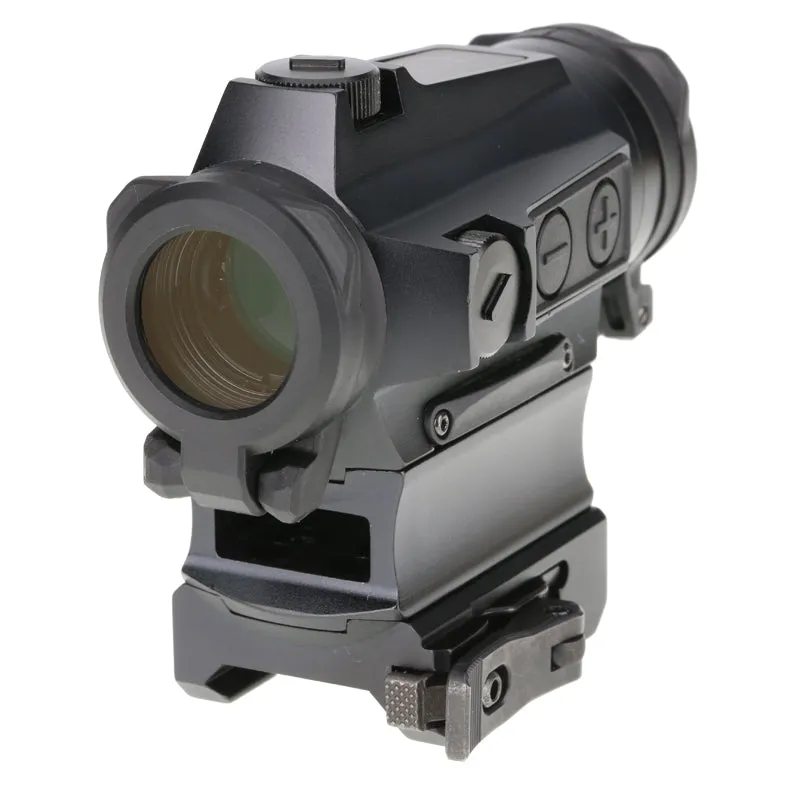

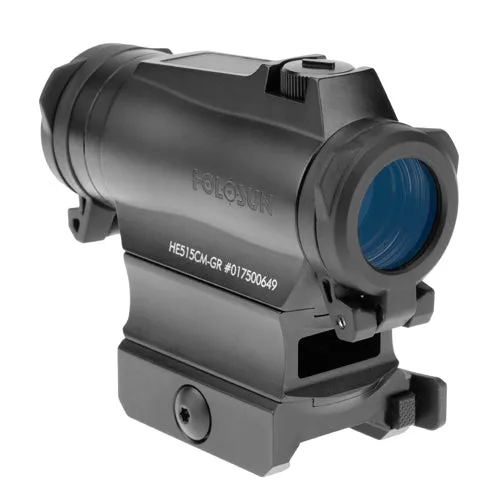

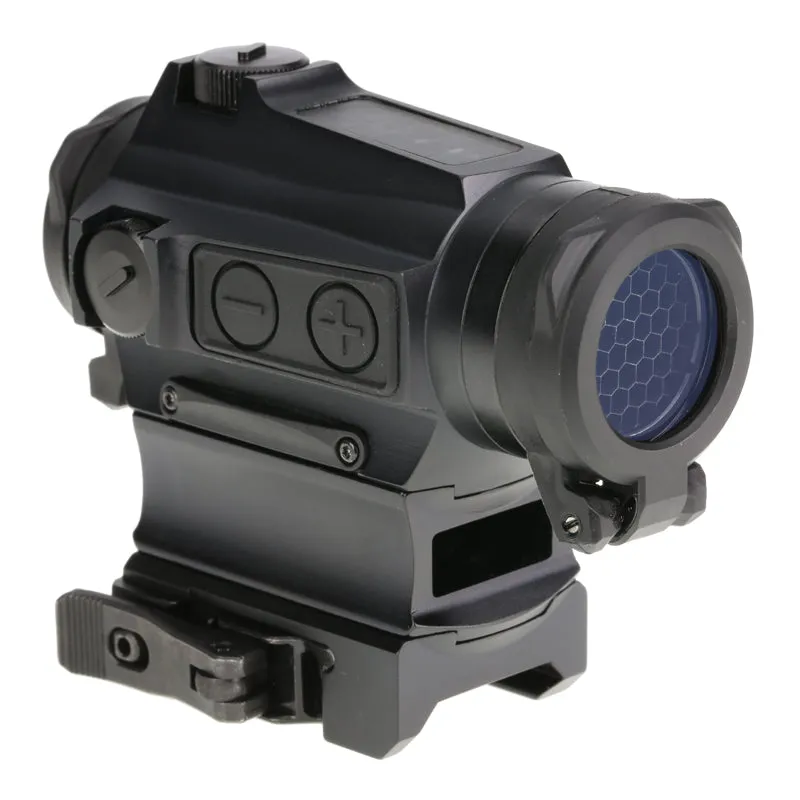

The HE515CM-GR is an ultra durable 20mm micro sight designed for hard-use rifle and carbine applications. The HE515CM-GR is made from 7075 aluminum and includes clear, removable/rotating lens caps, a QD lower 1/3 co-witness (1.63”) mount, and is IP68 certified waterproof and dustproof rating with Solar Failsafe technology.
Additional features include our MRS (Multi-Reticle System) with Green Super LED, 10 daylight and 2 night vision compatible reticle intensity settings, Shake Awake technology, and up to 50k hour battery life. The battery is housed beneath a side mounted cap for a tool-less replacement. The HE515CM-GR is designed for sporting and professional users.
Items Dimensions (in inches)
PHYSICAL SPECS
| Window Size | 20mm Diameter |
| Dimension (in) | 2.75×1.43×1.62 |
| Weight (oz) | 3.53 |
MECHANICAL SPECS
| Housing Material | 7075 T6 Aluminum |
| Surface Finish | Hard Anodize |
| Adjustment per Click | 0.5 MOA |
| W&E Travel Range | ±50 MOA |
ENVIRONMENT SPECS
| Storage Temperature | -40℃~70℃ |
| Working Temperature | -30℃~60℃ |
| Submersion | IPX8 |
| Vibration | 1000G |
