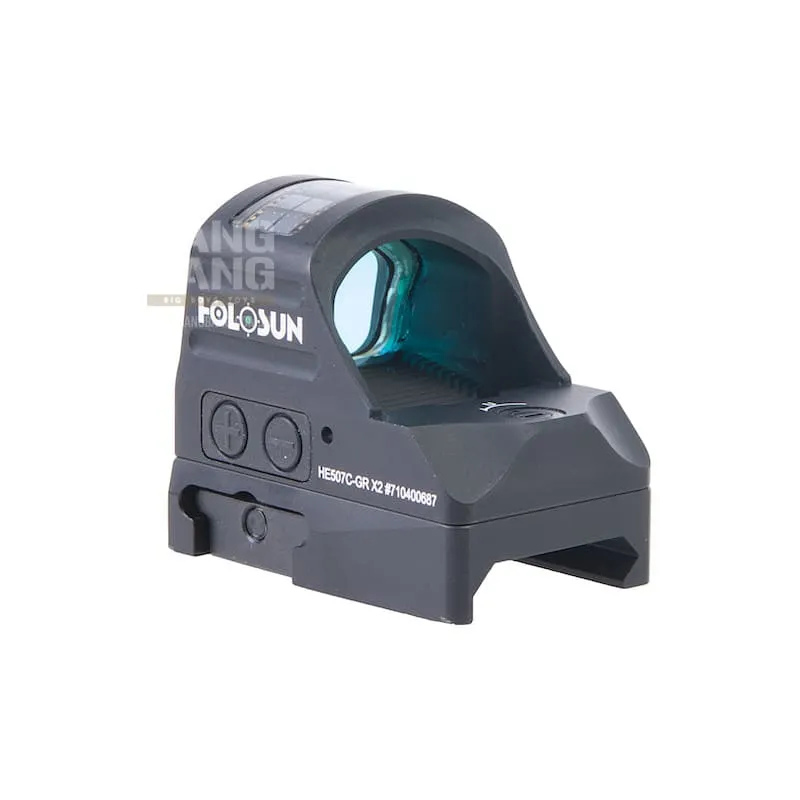

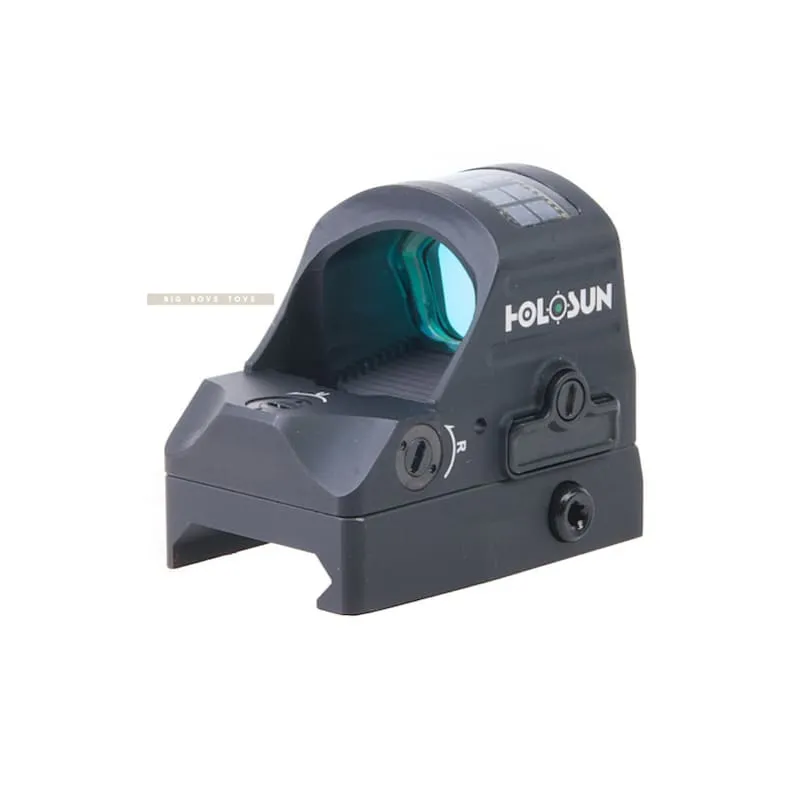

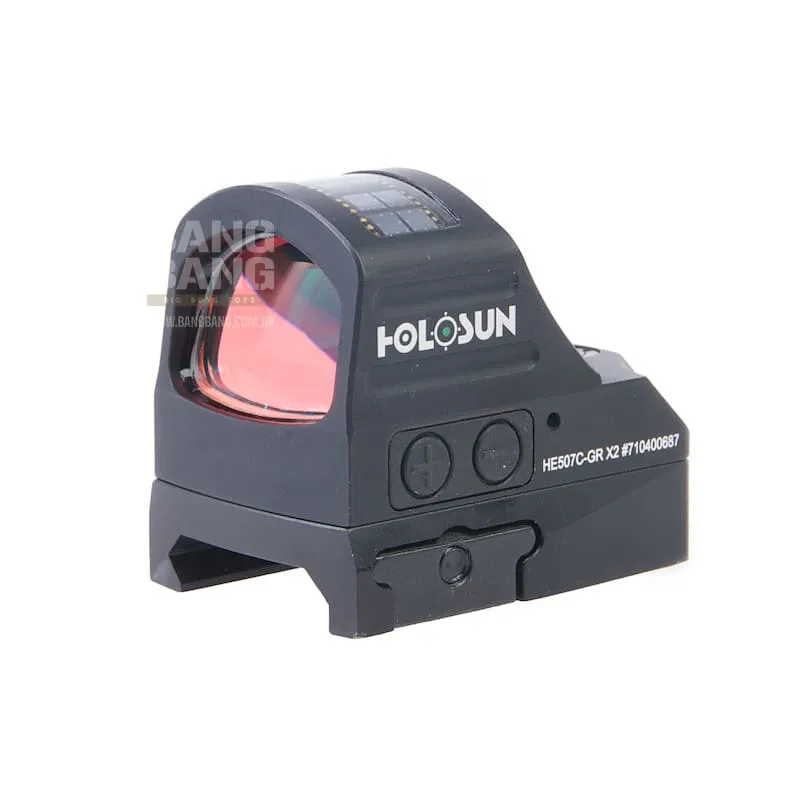

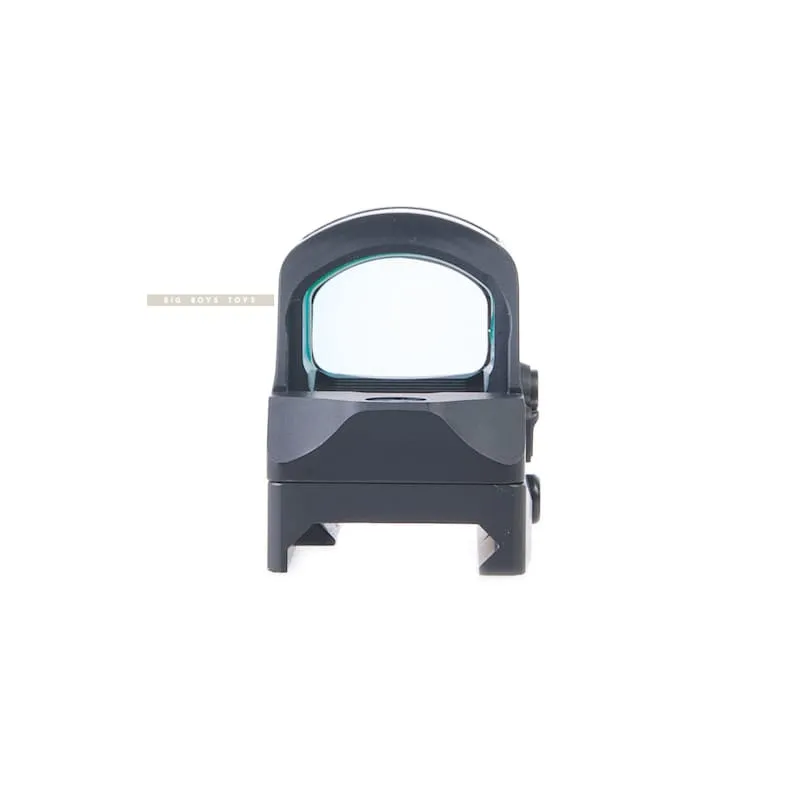

The HE507C-GR X2 is an open reflex optical sight designed full-sized for pistol applications. The HE507C-GR X2 improves on previous versions by adding Lock Mode which was first introduced in our 2018 LEM pistol optic models. Lock Mode, when activated, locks the buttons preventing inadvertent setting changes.
Additional features include Holosun’s Green Super LED with up to 50k hour battery life, Solar Failsafe, Multi-Reticle System, and Shake Awake. The durable housing is made from 7075 Aluminum, uses an industry standard footprint, and houses the 1632 battery in a side-mounted tray for easy replacement when needed.
Items Dimensions (in inches)
In the Box
- T10 L Key
- User Manual
- Lens Cloth
OPTICAL SPECS
| Reticle | 2 MOA Dot & 32 MOA Circle |
| Light Wavelength | 540nm |
| Reticle Color | Green |
| Parallax Free | Yes |
| Unlimited Eye Relief | Yes |
| Magnification | 1x |
| Multi-Coatings | Yes |
ELECTRONIC SPECS
| Power Source | Solar & Battery |
| Battery Type | CR1632 |
| Battery Life (Hours) | 50000 |
| Brightness Setting | 10 DL&2 NV |
PHYSICAL SPECS
| Window Size | 0.63x0.91 |
| Dimension (in) | 1.78x1.15x1.15 |
| Weight (oz) | 1.5 |
MECHANICAL SPECS
| Housing Material | 7075 T6 Aluminum |
| Surface Finish | Anodize |
| Adjustment per Click | 1 MOA |
| W&E Travel Range | ±50 MOA |
ENVIRONMENT SPECS
| Storage Temperature | -40℃~70℃ |
| Working Temperature | -30℃~60℃ |
| Submersion | IP67 |
| Vibration | 5000G |
