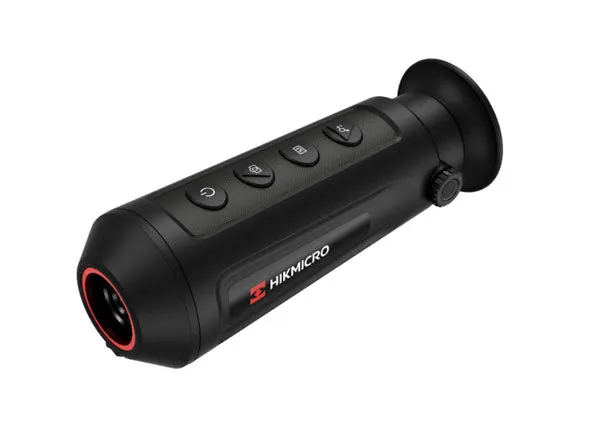

HIK Micro Lynx 6mm 35mK 160x120px 17um
Smart Thermal Monocular
This is ideal for Rabbit and small pest spotting out to 50 / 100 yards - this is not for spotting foxes at 300 yards, ideal for air rifle shooters who want to gain knowledge of where the pests are.
The HIK Micro Lynx 6mm delivers a high-quality thermal image and packs a host of features normally reserved for high-end thermal spotters.
The 160x120px, 17µm thermal sensor (35mK NETD Rating) and HIK software deliver a detailed image to the screen. The WiFi and the dedicated app allow you to take complete control of the unit's settings and features from your smartphone.
35mK NETD Rating = One of the most sensitive sensors available on the market, detecting even the smallest temperature differences!
IP67 rating guarantees a robust chassis capable of repelling dust and rain, protecting you from the worst of the weather.
Battery life = 10hrs of continuous running!
| Brand | HIKMICRO |
|---|---|
| Popularity | HIKMICRO Lynx 6mm Smart Thermal Monocular |
| SKU | HM-LC06 |
| Unit Type | Thermal |
| Colour Palettes | Yes |
| Detection Range | 550m |
| Display Resolution | 720x540 |
| Display Type | LCOS |
| FOV @ 100 yards | 24° |
| Magnification (Digital) | 4x |
| Magnification (Optical) | 0.6x |
| NETD | <35mK |
| Objective Lens Diameter | 6mm |
| Operating Temperature | -20/ 40°C |
| Pixel Pitch | 17μm |
| Rangefinder | Stadiametric |
| Refresh Rate | 50HZ |
| Sensor Resolution | 160x120 |
| Video Recording | Yes |
| WiFi | Yes |
Download the HIK App here:
MAIN
Sensor 160×120px @ 17µm
Objective Lens 6mm
Detection Range (Vehicle 1.4 x 4m) 559m
Detection Range (Human 1.8 x 0.5m) 182m
SENSOR
Type Vanadium Oxide Uncooled Focal Plane Arrays
Resolution, pixels 160×120 px
Pixel pitch, µm 17µm
Frame rate, Hz 50 Hz
NETD Rating 35mK
OPTICS
Objective lens F1.1
Magnification (Optical) 0.6x
Magnification (Digital) 1x, 2x, 4x,
Field of view 24.7° × 18.7° (H × V)
DISPLAY
Type 5.08mm, LCOS
Resolution, Pixels 720 × 540
Colour Palettes Black Hot, White Hot, Red Hot, Fusion
VIDEO & SOUND
Video Recorder YES
Sound Recorder NO
Build in memory, Gb 8 Gb
ADDITIONAL FEATURES
Hot Tracking YES
WiFI hot spot YES
T-Vision App support YES
ENVIRONMENTAL
Degree of protection, IP code IP67
Dust protection Protected against dust ingress
Water protection Protected against temporary submersion in water
Operating temperature range -20 °C to 55 °C
WEIGHT & SIZE
Dimensions, mm 158 mm × 61 mm × 57 mm
Weight, kg 0.25 kg
POWER SUPPLY
Operating time on battery
(WiFi & Hot tracking disabled) 10 hours continuous running - estimated.
Charging interface USB-C
Battery capacity after 1000 cycles 80%
