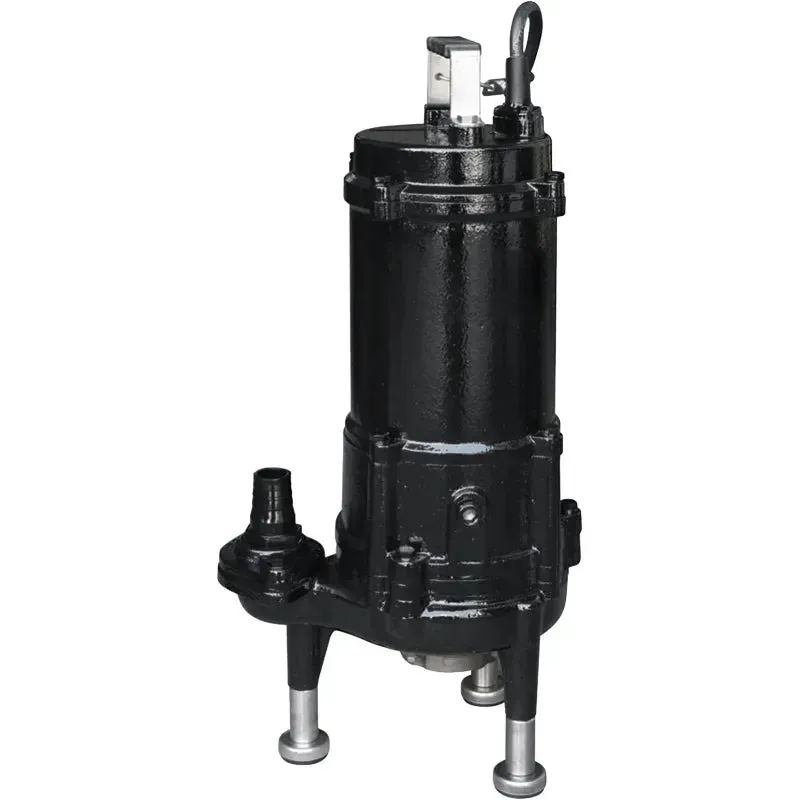

The Grinder Pump GD-75-50T is a powerful and reliable solution for handling sewage, wastewater, and industrial drainage applications. Built with a high-quality cast iron housing, this pump ensures durability and long-term performance. Featuring a VCT cable with an Epoxy resin base, a dry motor, and dura-mechanical seals, it is designed to withstand harsh environments.
The centrifugal semi-open impeller prevents clogging by effectively grinding materials such as leather, textiles, plastic bags, and rope. With a heavy-duty ball bearing system and IP 68 insulation, the pump operates efficiently while maintaining superior protection. The radial cutter and ring, constructed from SUS-440C material, provide exceptional hardness (HRc 55-60), making it highly effective in breaking down high-tenacity objects.
What's Included:
- Grinder Pump GD-75-50T
- Pre-installed Dual Mechanical Seals
- Heavy-Duty Radial Cutter and Cutter Ring
- Integrated Thermal Protection System
- User Manual
Features
Robust Construction
Designed with high-quality cast iron housing for enhanced durability and long-term use.
Superior Heat Dissipation
Ensures efficient cooling for continuous operation in demanding environments.
Vortex Impeller Design
Prevents clogging by cutting and grinding solid materials before they reach the pump.
Radial Cutter and Cutter Ring
Made from SUS-440C stainless steel, hardened to 55-60 Rockwell C, ensuring exceptional cutting performance.
High Torque Performance
Specific single-phase design provides five times stronger starting torque than general capacitor pumps.
Easy Pipe Connection
Horizontal casing with a female-threaded outlet allows direct pipe fitting.
Dual Mechanical Seals
Features an upper CA/CE/NBR and lower SIC/SIC/NBR seal system for optimal leakage protection.
What's Included
Included with Your Purchase:
- Grinder Pump GD-75-50T
- Pre-installed Dual Mechanical Seals
- Heavy-Duty Radial Cutter and Cutter Ring
- Integrated Thermal Protection System
- User Manual
Specifications
- Flow Rate: 4800 GPH
- Motor Power: 7.5 HP
- Voltage: 460V
- Phase: Three-Phase
- Frequency: 60Hz
- Nominal Speed: 3450 RPM
- Insulation Class: E Class (120°C)
- Enclosure Protection: IP 68
- Thermal Protection: Integrated
- Impeller Type: Centrifugal Semi-Open
- Radial Cutter Material: SUS-440C Hardened Steel
- Mechanical Seal: Dual (CA/CE/NBR – SIC/SIC/NBR)
- Connection Type: Horizontal casing with female-threaded outlet
- Weight: Varies by configuration
- Dimensions: Available upon request
FAQ
Q: What materials can this grinder pump handle?
A: The GD-75-50T can effectively grind and pump materials such as leather, textiles, plastic bags, rope, and other high-tenacity objects.
Q: Is this pump suitable for commercial or industrial use?
A: Yes, it is ideal for commercial buildings, industrial factories, sewage water treatments, and municipal wastewater systems.
Q: Does this pump come with thermal protection?
A: Yes, it has an integrated thermal protection system to prevent overheating.
Q: How does the vortex impeller prevent clogging?
A: The semi-open centrifugal design grinds solid objects before they can block the inlet, ensuring continuous operation.
Q: Can this pump be used in residential applications?
A: Yes, it is suitable for drainage systems in buildings, apartments, resorts, and general household wastewater management.
Resources
Documents:
- Grinder Pump GD-75-50T Technical Data
