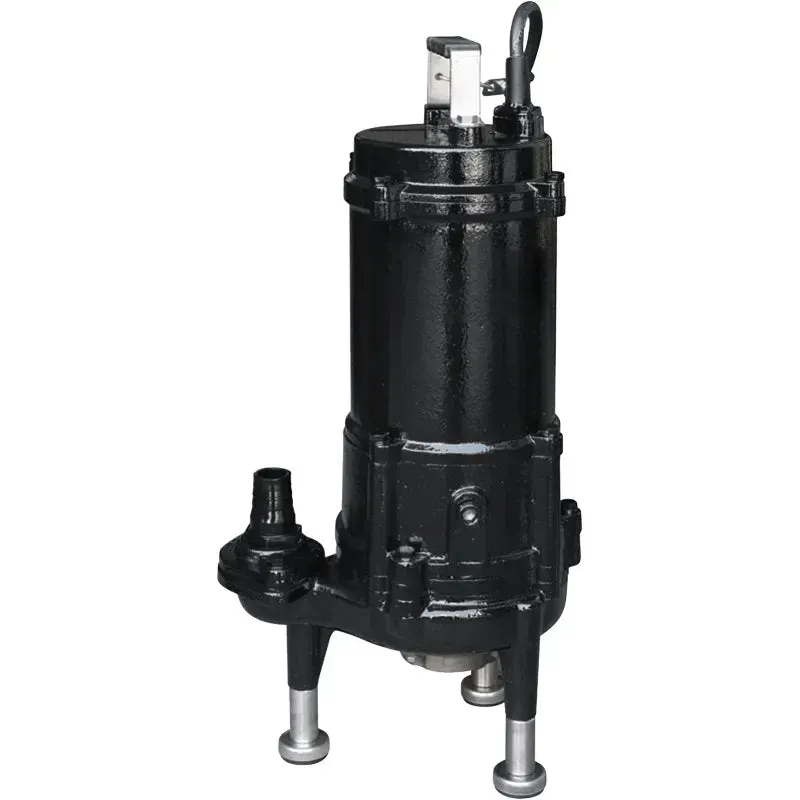

The Grinder Pump GD-50-50T is a powerful and efficient sewage pump designed for handling tough wastewater applications. Built with a high-quality cast iron housing, it ensures durability and long-term use. Featuring a robust VCT cable with an epoxy resin base, dry motor, and dura-mechanical seals, this pump delivers exceptional performance in demanding environments.

Equipped with a centrifugal semi-open impeller, it effectively prevents clogging by grinding down high-tenacity materials like leather, textiles, plastic bags, and rope. The radial cutter and ring, made from hardened SUS-440C material (HRc 55-60), enhance cutting efficiency and reliability. With an IP 68 insulation level, heavy-duty ball bearings, and built-in motor protection, the GD-50-50T is engineered for maximum performance and longevity.

What's Included:

• Grinder Pump GD-50-50T
• Heavy-duty Ball Bearings
• VCT Cable with Epoxy Resin Base
• Radial Cutter and Cutter Ring (SUS-440C)
• Installation Manual

Features

Robust Construction
Built with high-quality cast iron for durability and long-term operation.

Superior Heat Dissipation
Designed to efficiently manage heat for continuous use.

Vortex Impeller Design
Prevents clogging by effectively grinding up solid materials.

High-Strength Cutting System
Radial cutter and cutter ring made from corrosion-resistant SUS-440C, hardened to 55-60 Rockwell C.

Powerful Motor Performance
Optimized for high starting torque, providing five times stronger torque than standard capacitor pumps.

Threaded Horizontal Casing
Female-threaded casing allows for direct pipe fitting and easy installation.

Double Mechanical Seals
Upper seal: CA/CE/NBR, Lower seal: SIC/SIC/NBR for enhanced protection.

What's Included

Included with Your Purchase:

• Grinder Pump GD-50-50T
• Heavy-duty Ball Bearings
• VCT Cable with Epoxy Resin Base
• Radial Cutter and Cutter Ring (SUS-440C)
• Installation Manual

Specifications

• Flow Rate: 4800 GPH
• Motor Power: 5 HP
• Voltage: 460V – 3 Phase
• Motor Type: 2 Pole, Dry Type
• Insulation Class: E Class (120°C / 248°F)
• Nominal Speed: 3450 RPM
• Enclosure Protection: IP 68
• Thermal Protection: Built-in
• Bearing Type: Heavy-duty Ball Bearings
• Mechanical Seals: Dual (Upper: CA/CE/NBR, Lower: SIC/SIC/NBR)
• Discharge Size: 2”

FAQ

Q: What materials can this pump handle?
A: The GD-50-50T can effectively grind and pump materials like leather, textiles, food waste, plastic bags, and rope.

Q: What is the insulation level of this pump?
A: The insulation class is E Class (120°C / 248°F), ensuring safety and reliability.

Q: Is this pump suitable for industrial applications?
A: Yes, it is ideal for commercial buildings, industrial factories, wastewater systems, and sewage treatment plants.

Q: How does the impeller prevent clogging?
A: The centrifugal semi-open impeller design prevents blockages by grinding long-fiber materials before they enter the pump.

Q: What type of motor does this pump use?
A: It features a 2-pole dry-type motor with high starting torque, five times stronger than general capacitor pumps.

Resources

Documents:

• Grinder Pump GD-50-50T Technical Data
