ALLOY
FRAME
700C X 35C
TYRES
14 SPEED SHIMANO
DRIVETRAIN
SHIMANO
BAR SHIFTERS
Tackle any Terrain
We know bumps may get in the way of your commute, our GR-150 has a blend of wider tyres and comfortable geometry to give you the ultimate adventure bike. Adapt to any terrain with the versatility of the GR-150.
Lightweight 6061 Alloy Frame
Experience less drag on or off the road with a lightweight but durable alloy frame. Pedal efficiently with less energy lost through the stiff 6061 aluminum alloy frame.

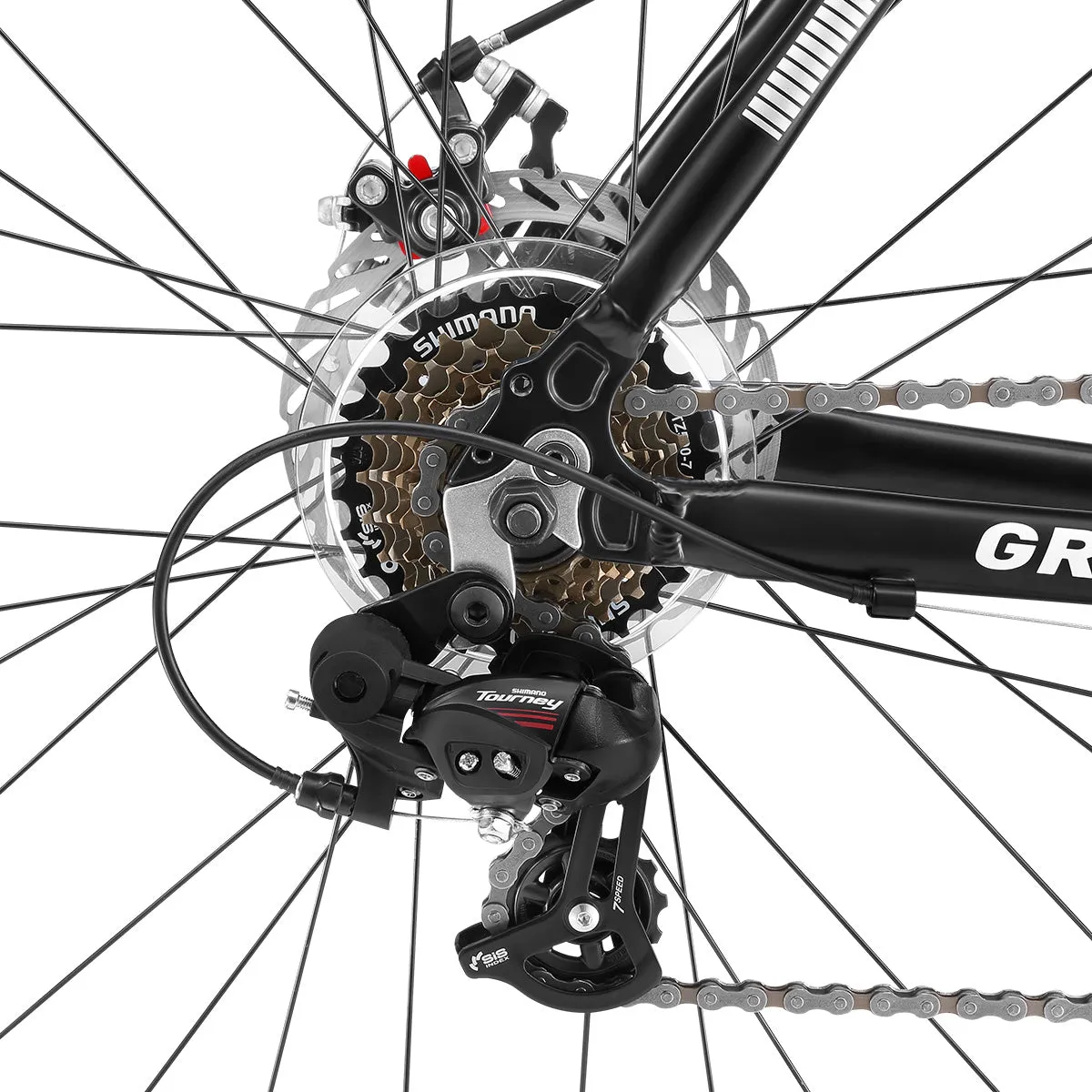

Shimano Tourney Drivetrain
Find the flexibility to tackle a range of inclines with a 14-Speed Shimano Drivetrain. You'll be able to find a suitable gear ratio to have a smooth pedal through ever changing inclines and flat roads.

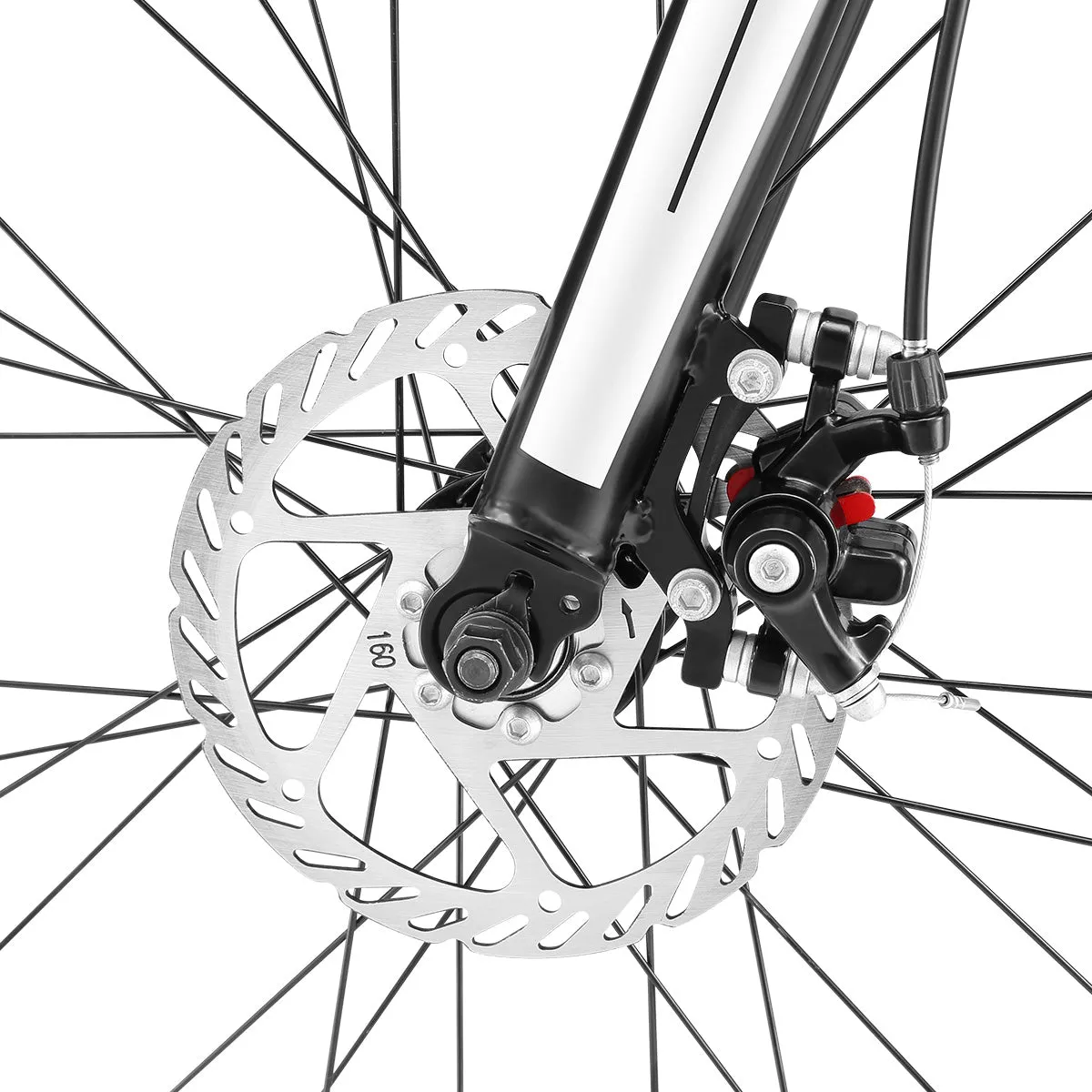

Reliable Braking
Experience a smooth and comfortable stop with Power Front and Rear mechanical disc brakes. These brakes are simple, reliable and easy to maintain.
Wide 35c Tyres
Fitted with wider 35mm tyres for a better ride on all surfaces. Increase your comfort levels against bumps and better protection from punctures.
The Blueprints
An awesome package with the following components:
- A. Cionlli Road Saddle with ED Rail
- B. Alloy, CNC Sidewall
- C. 14 Speed Shimano Tourney Drivetrain
- D. Alloy Frame
- E. Alloy Brake Levers
- F. POWER Front & Rear Disc Brakes
Where to ride?
Specification
Technical Specifications
| Frame Sizes | 53cm, 56cm |
|---|---|
| Frame | Alloy 700c |
| Fork | Steel 700c |
| Handlebar | Racing handlebar, Width:440mm |
| Grips | Black EVA Wrap |
| Stem | 90mm, H=40, angle -7° |
| Seatpost | φ27.2*350mm |
| Seat Clamp | φ31.8x13mm |
| Saddle | Black Leather |
| Pedals | 9/16" Plastic |
| L Shift Lever | Shimano A050 - Bar Mounted |
| R Shift Lever | Shimano A050 - Bar Mounted |
| Front Derailleur | Shimano Tourney A070 3sp |
| Rear Derailleur | Shimano Tourney A070 7sp |
| Front Brake | Mechanical Disc Brake 160mm |
|---|---|
| Rear Brake | Mechanical Disc Brake 160mm |
| Freewheel | 14-28T |
| Chainwheel & Cranks | 50*34T 170mm Crank |
| Chain | 1/2"*3/32"*112L |
| Bottom Bracket | L:BB68*119mm |
| Headset | 1-1/8" |
| Front Hub | 32H*100*140 |
| Rear Hub | 32H*135*180 |
| Spokes | 14G |
| Tyre | 700*33C |
| Rim | 700C* 32H |
| Bell | Included |
Bike Size Guide
| Frame Size Number | 53 | 56 |
| Wheel Size | 700C | 700C |
| Suggested Height | 160-185cm | 180-195cm |
| Minimum Suggested Inseam | 81 | 84 |
| A - Seat Tube | 53 | 56 |
| B - Seat Tube Angle | 73.5° | 73.5° |
| C - Head Tube Length | 15 | 18 |
| D - Effective Top Tube | 59 | 61 |
| E - Chainstay Length | 44 | 44 |
| F - Wheelbase | 106 | 107 |
| G - Standover | 79 | 82 |
