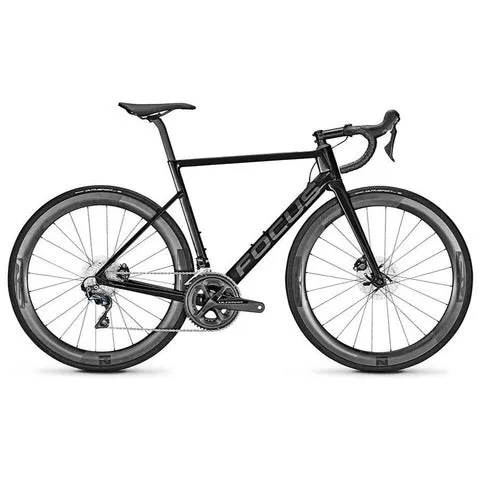

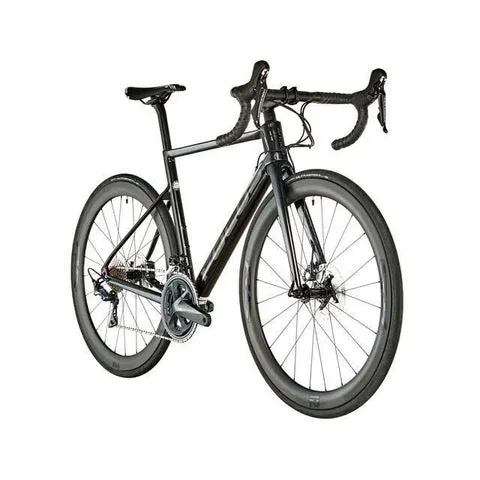

Name: Focus - IZALCO MAX DISC 8.8
SKU: 203964

More than just the fastest
- Lightweight aero carbon frame (1040 g) with disc brakes and R.A.T. Quick-release axles
- High precision and extreme reliability: Shimano Ultegra shifting
- Aerodynamic Novatec R5 carbon wheelset with rim height of 50 mm
Lightweight and optimised in the wind tunnel

To achieve the best possible mix of aerodynamics and low weight, we redesigned every tube and improved these in several stages within the wind tunnel. The result is a combination of Kamm tail profiles, hidden cables and well-balanced proportions. Thanks to highly rigid High Modulus carbon fibres, our IZALCO MAX 8 frame only weighs 1040 g and the aero fork 376 g.

Fast and comfortable

Our aerodynamic carbon seat post has a D profile with 15 mm offset - thus offering the perfect mix of ergonomics and comfort. To maintain the optimum sitting position, we have pushed the seat tube forwards so that the effective offset is only 2 mm. This means that you can enjoy the comfort of a seat post with 15 mm offset, without having to forgo a modern racing sitting position.

Reliable and versatile

We only spec disc brakes for the IZALCO MAX. Front and rear brake discs (flat mount) measuring 160 mm ensure safe and reliable braking performance in all weather conditions. Especially for a road bike as fast as the IZALCO MAX. Additionally, you can ride wider tyres up to 28 mm to enhance comfort and puncture protection, especially on poor surfaces.

FRAME MATERIAL	Carbon
FRAME	MAX technology carbon, disc, BB86, 142x12 mm thru axle, R.A.T Evo technology, Di2/mechanical, flat mount 160 mm, internal cable routing
FORK	Carbon, disc, 100x12 mm R.A.T thru axle, R.A.T Evo Technology, flat mount 160/160 mm, internal cable routing
SHIFTER	Shimano Ultegra R8020
FRONT DERAILLEUR	Shimano Ultegra R8000
REAR DERAILLEUR	Shimano Ultegra R8000
SPROCKET	Shimano Ultegra R8000
CHAIN	Shimano CN-HG701
CRANKSET	Shimano Ultegra R8000
BOTTOM BRACKET	Shimano Pressfit Road BB86
TRANSMISSION OF DRIVE	front: 52/36, rear: 11-30
HANDLEBAR	BBB Deluxe, aluminium, drop: 125mm, reach: 70mm
STEM	BBB Rider BHS-109 Deluxe, 31.8mm, 7°
HEADSET	Acros, IS 52/40-IS52/42
SADDLE	Prologo Scratch
SEATPOST	FOCUS Aero Carbon, D-shape, 350mm, set-back: 15mm
BRAKES	Shimano Ultegra R8020
BRAKE LEVER	Shimano Ultegra R8020
BRAKE	Disc
WHEELSET	Novatec R5, carbon, 20-622, front: 12x100 mm, rear: 12x142 mm, height: 50 mm
TIRES	Vittoria Rubino TLR, 700 x 25C, Folding
GEARS	22
BIKE WEIGHT INCL. BATTERY IN KG.	8,10 kg
SIZE	47,50,52,54,56,58,61

* Subject to technical modification without notice. Errors and omissions excepted.

** Weight in size M, of standard specification and without pedals.

All bikes purchased from iRIDE will have been pre-assembled by our mechanics and test ridden. You will also receive a multi point checklist of all the safety checks and bike build elements we work through to ensure you bike is correctly assembled, and then tested so that it runs as it should. Bikes being sent to a customer who is unable to collect it from iRIDE, will have it boxed, wheels, saddle and bars generally off and re-packaged.

The delivery of bikes will be organized once a freight fee can be determined based on weight and delivery location.

Assembly should take no longer than 10-20 minutes. It is recommended that a skilled mechanic assemble, or check the bike. If possible your local bike shop is likely best placed to do this from a safety perspective to ensure all is as it should be. If a rider is having any issues we can hook up an online video chat, or talk over the phone. If this service is required email us at to organise a time that suits all parties.
