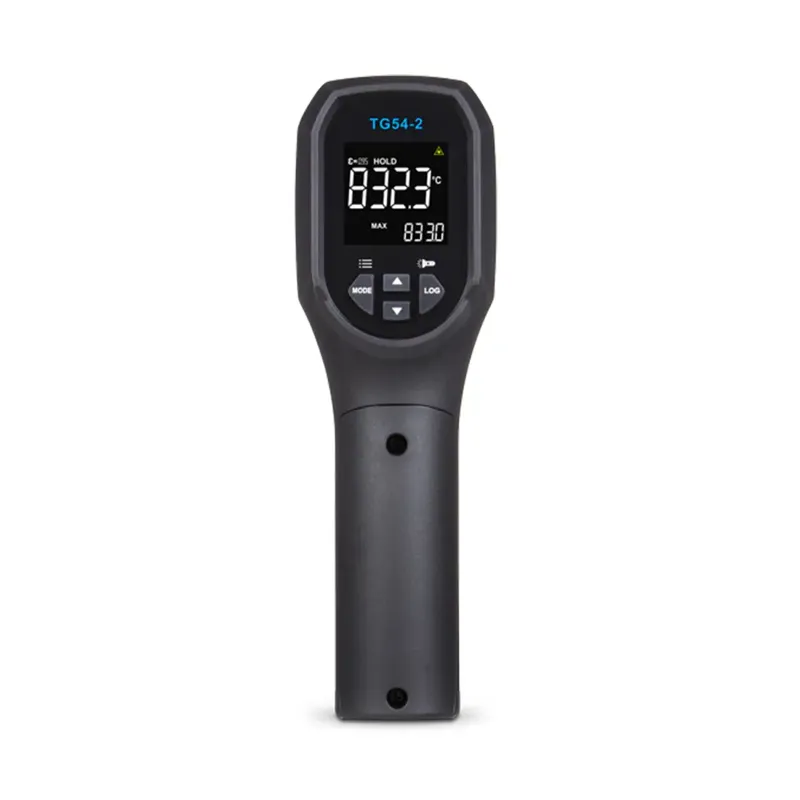

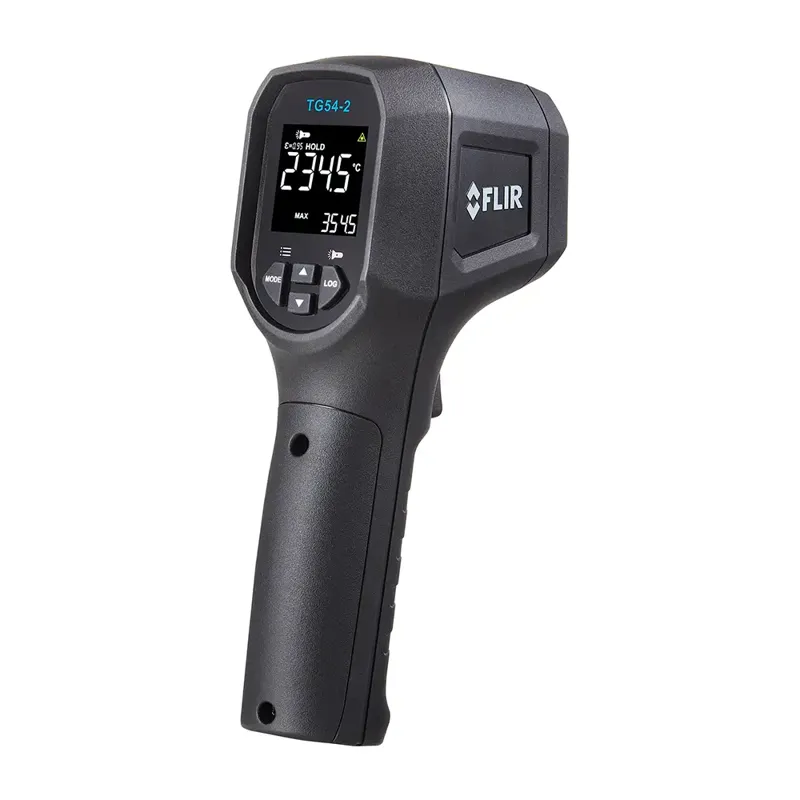

The Teledyne FLIR TG54-2 20:1 Spot IR Thermometer delivers fast, precise, and safe temperature readings without making contact. Its 20:1 distance-to-spot ratio allows users to measure smaller targets from farther away, making it ideal for inspecting hard-to-reach or hazardous areas. Designed with infrared technology and a Class II laser for pinpoint targeting, it reads temperatures as high as 1562°F (850°C).
The TG54-2 stands up to demanding environments with a rugged, IP65-rated housing and a drop resistance of up to 3 meters (9.8 feet). Whether you're monitoring industrial equipment or conducting energy audits in buildings, this tool helps detect early signs of failure or inefficiencies with minimal effort.
What's Included:
- 1 - TG54-2 Spot IR Thermometer
- 1 - 9V Alkaline Battery
- 1 - Quick Start Guide
- 1 - Storage Pouch
Features
20:1 Distance-to-Spot Ratio
Accurately measures smaller targets from a safer distance, ideal for hard-to-reach or high-temperature areas.
User-Friendly Interface
Features a vivid display with intuitive navigation for easy use in industrial environments.
Integrated Worklights and Laser Pointer
Bright LED lights and Class II laser provide precise aiming and improved visibility in dim workspaces.

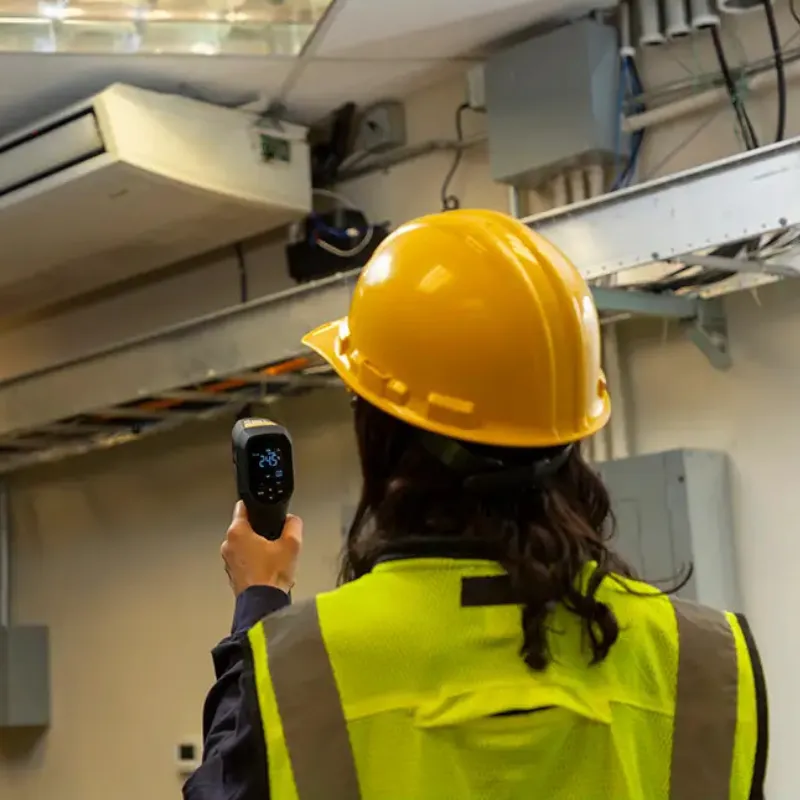

Industrial Equipment Inspection
Perfect for inspecting both electrical and mechanical components, helping identify overheating parts.
Preventive Maintenance
Enables early detection of temperature anomalies that could signal equipment degradation or failure.

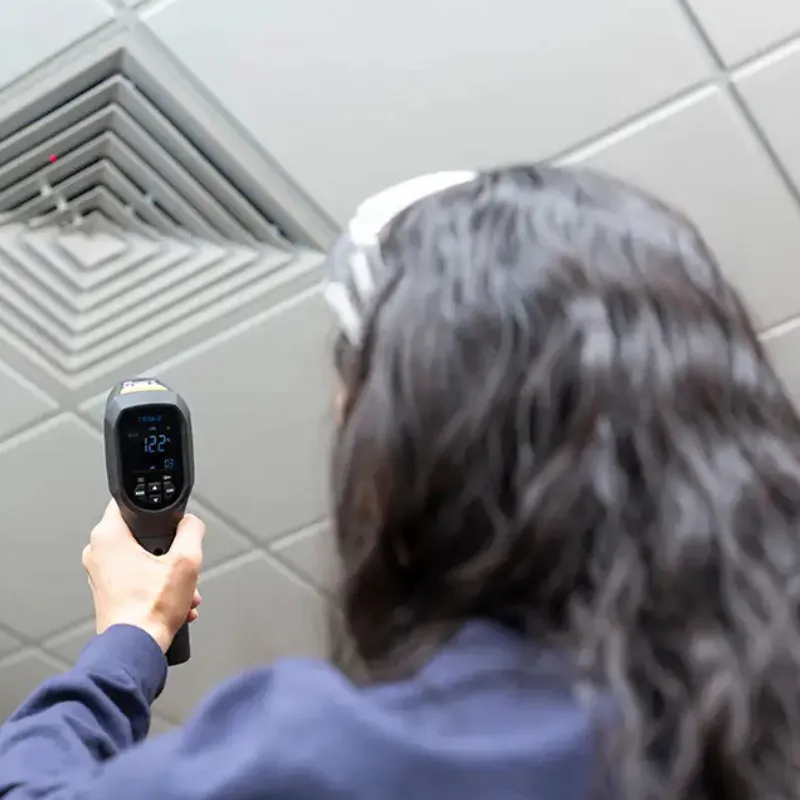

Energy Efficiency Monitoring
Useful in building inspections to detect heat loss and improve overall energy performance.
Non-Contact Temperature Measurement
Reduces risk to users by eliminating the need for direct contact with hot or moving surfaces.
Wide Temperature Range
Measures from -22°F to 1562°F, covering a broad spectrum of thermal inspection needs.
What's Included
Included with Your Purchase:
- 1 - TG54-2 Spot IR Thermometer
- 1 - 9V Alkaline Battery
- 1 - Quick Start Guide
- 1 - Storage Pouch
Specifications
- Distance-to-Spot Ratio: 20:1
- Resolution: 0.1°F
- Temperature Range: -22°F to 1562°F
- Drop Resistance: 3 m (9.8 ft)
- IP Rating: IP65
- Laser Type: Class II
- Display: Vivid digital screen with intuitive controls
- Power Source: 9V Alkaline Battery
FAQ
Q: What is the advantage of the 20:1 distance-to-spot ratio?
A: It allows you to safely measure smaller targets from farther away, improving safety and precision.
Q: Can this thermometer be used outdoors?
A: Yes, the IP65 rating and rugged construction make it suitable for tough environments, including outdoor use.
Q: Does it work in low light conditions?
A: Yes, the built-in worklights and laser pointer assist in targeting even in dim or shadowed spaces.
Q: What kind of battery does it use?
A: It runs on a standard 9V alkaline battery, which is included with the purchase.
Resources
Documents:
- FLIR TG54-2 Datasheet
