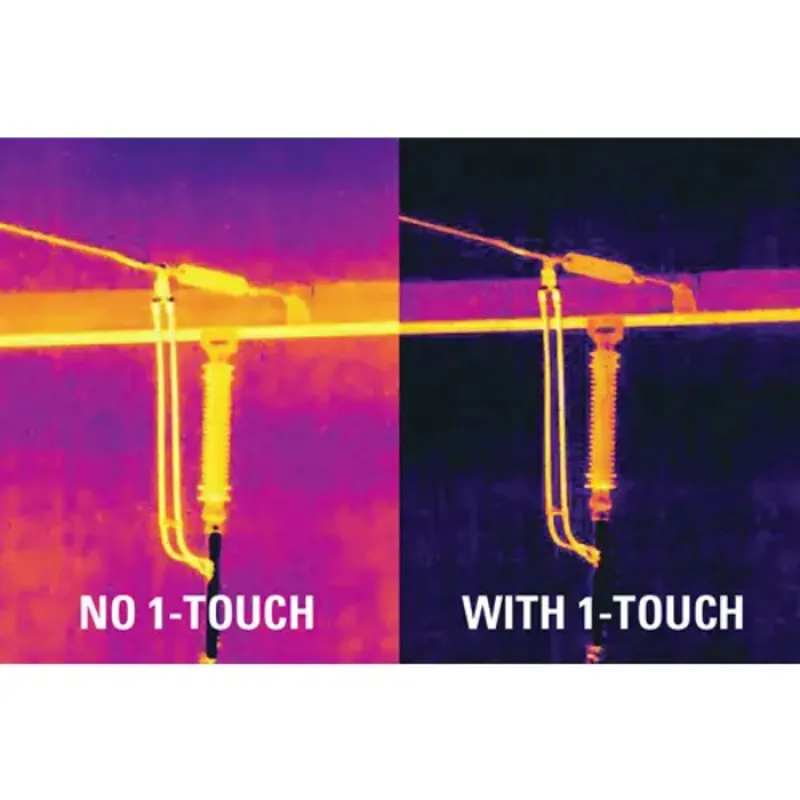

The Teledyne FLIR T865-42-NIST High-Performance Thermal Camera offers advanced non-contact inspection capabilities with its ergonomic, rotating optical block and sharp image clarity powered by MSX and UltraMax technologies. Designed to help professionals monitor electrical and mechanical systems efficiently and safely, it delivers accurate temperature measurements as precise as ±1°C or ±1% thanks to laser-assisted autofocus and 1-Touch Level/Span enhancements.

Its compatibility with AutoCal interchangeable lenses and onboard features like voice annotation, customizable folders, and Wi-Fi syncing streamline fieldwork. Whether conducting indoor or outdoor inspections, the integrated viewfinder and large 4-inch color LCD ensure clear viewing in any lighting condition. When used with FLIR Thermal Studio Pro and Route Creator, users can simplify inspections and automate reporting to boost predictive maintenance efforts.

What's Included:

• 1 - High-Performance Thermal Camera with MSX and UltraMax Technologies, 640 x 480, 30 Hz
• 1 - 42° Lens
• 1 - Small Viewfinder Eyecup
• 2 - Rechargeable Li-ion Batteries
• 1 - Battery Charger
• 2 - Hard Carrying Case
• 1 - Lanyards
• 1 - Front Lens Cap
• 1 - Power Supply
• 1 - SD Card (8 GB)
• 1 - USB 2.0 A to USB Type-C Cable
• 1 - USB Type-C to HDMI Cable
• 1 - USB Type-C to USB Type-C Cable
• 1 - License Card for FLIR Thermal Studio Pro (3-Month Subscription) and FLIR R

Features

Wide-Angle 42° Lens
Capture broader scenes with the included 42° lens for improved inspection efficiency and target coverage.

Precise Thermal Imaging
640 x 480 thermal resolution and MSX image enhancement deliver unmatched clarity for identifying hotspots and defects.

UltraMax Superresolution
Boosts pixel count to 1,228,800 using multiple image frames to enhance image detail and accuracy.

Laser-Assisted Autofocus
Ensures sharp focus and precise temperature measurements, even from a distance.

Ergonomic Design

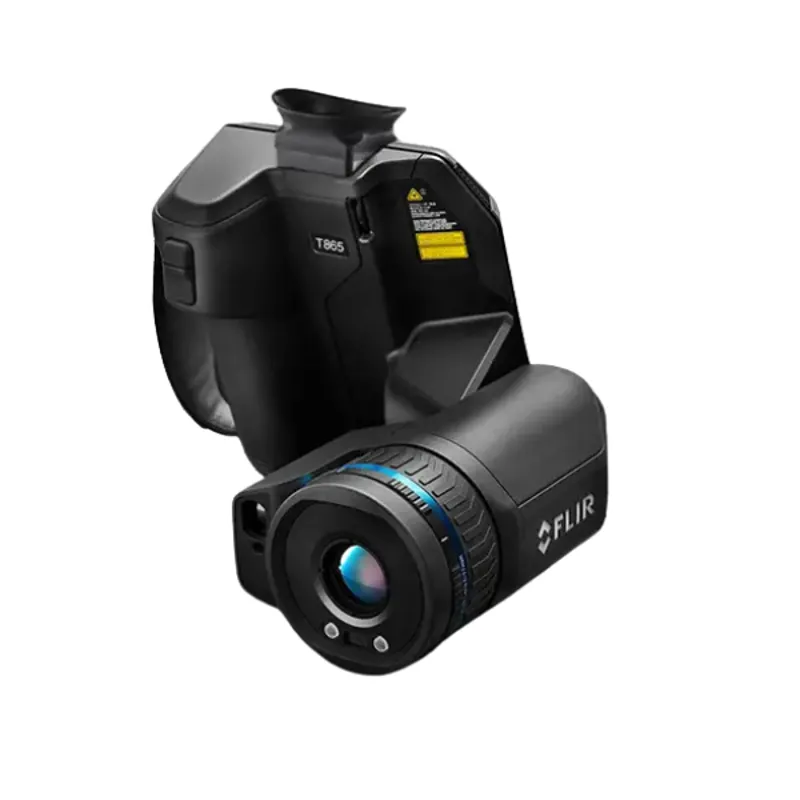

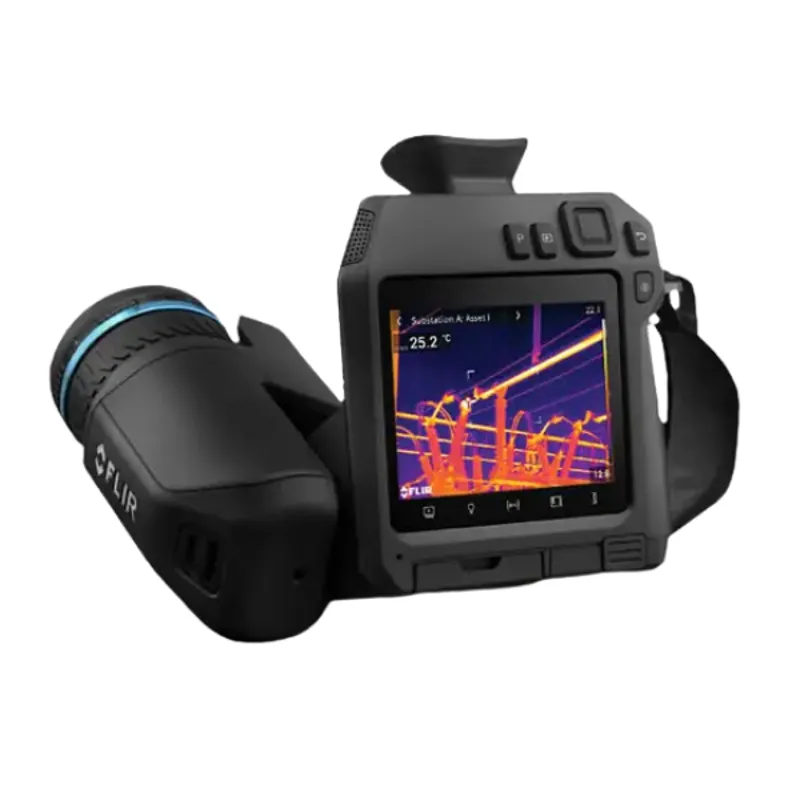

180° rotating optical block allows for comfortable inspections of overhead or low-lying components.

Flexible Viewing Options

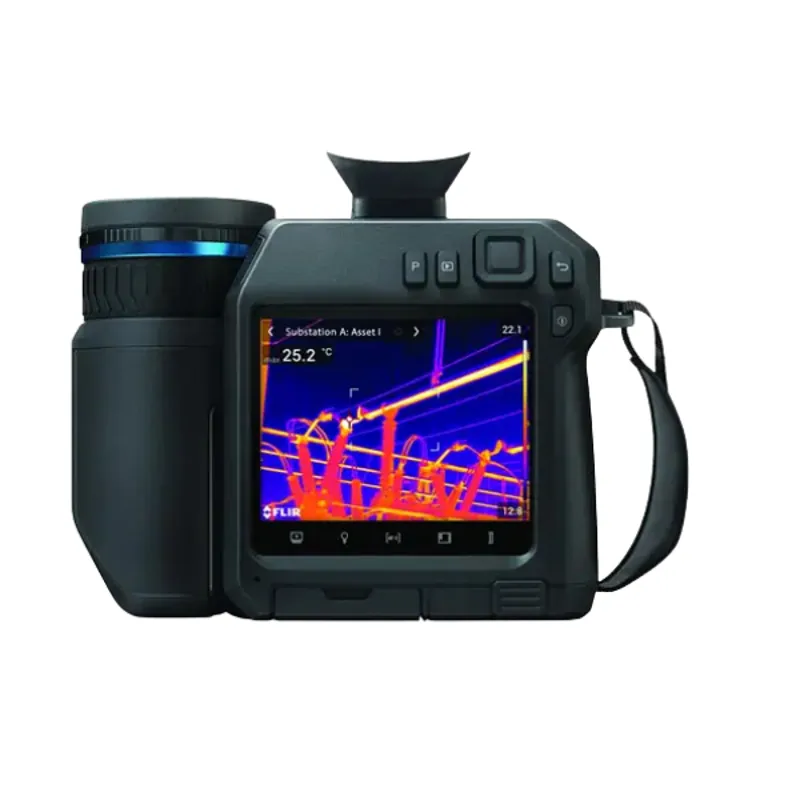

4-inch touchscreen LCD and built-in viewfinder provide visibility in bright sunlight or dark environments.

Smart Reporting Integration
Syncs wirelessly with FLIR mobile apps and includes built-in voice annotations, work folders, and GPS tagging.

Efficient Workflow Tools
Compatible with FLIR Route Creator and Thermal Studio Pro to organize, capture, and report thermal inspections faster.

Advanced Measurement Presets
Features center spot, hot spot, cold spot, and user-defined settings for quick evaluations.

Rugged and Reliable
Durably built to operate in challenging environments with IP54 encapsulation and long battery life.

What's Included

Included with Your Purchase:

• 1 - High-Performance Thermal Camera with MSX and UltraMax Technologies, 640 x 480, 30 Hz
• 1 - 42° Lens
• 1 - Small Viewfinder Eyecup
• 2 - Rechargeable Li-ion Batteries
• 1 - Battery Charger
• 2 - Hard Carrying Case
• 1 - Lanyards
• 1 - Front Lens Cap
• 1 - Power Supply
• 1 - SD Card (8 GB)
• 1 - USB 2.0 A to USB Type-C Cable
• 1 - USB Type-C to HDMI Cable
• 1 - USB Type-C to USB Type-C Cable
• 1 - License Card for FLIR Thermal Studio Pro (3-Month Subscription) and FLIR R

Specifications

• IR Resolution: 640 x 480 (1,228,800 with UltraMax)
• Detector Pitch: 12 μm
• Thermal Sensitivity: <30 mK @ 30°C (42° lens)
• Spectral Range: 7.5 to 14.0 μm
• Frame Rate: 30 Hz
• Temperature Range: -40°C to 2000°C (three ranges)
• Accuracy: ±1°C or ±1% (varies by range)
• Digital Zoom: 1-8x continuous
• Display: 4-inch, 640 x 480 LCD with auto-rotation
• Camera: 5 MP digital camera with LED lamp
• Image Modes: Infrared, visual, MSX, picture-in-picture
• Focus: Laser distance meter, 1-shot LDM/contrast, manual
• Measurement Presets: Center spot, hot/cold spot, user-defined
• Storage: Removable SD card, JPEG with radiometric data
• Video Recording: Radiometric (.csq), non-radiometric (H.264)
• Video Streaming: Over USB or Wi-Fi (radiometric and non-radiometric)
• Battery Life: Approx. 4 hours
• Operating Temperature: -15°C to 50°C
• Encapsulation: IP54
• Shock/Vibration: 25 g / 2 g
• Certifications: EN/UL/CSA/PSE 60950-1
• Included Calibration: NIST Certificate

FAQ

Q: What is the advantage of UltraMax technology?
A: UltraMax captures multiple thermal images and combines them into one high-resolution image for enhanced detail and accuracy.

Q: Can I use the camera outdoors in bright conditions?
A: Yes, the integrated viewfinder and 4-inch LCD screen offer clear viewing even in sunlight.

Q: How do I transfer inspection data?
A: You can wirelessly sync data to FLIR mobile apps or transfer it to FLIR Thermal Studio via SD card.

Q: Is the 6° telephoto lens included?
A: No, the 6° telephoto lens is optional and sold separately.

Q: How long does the battery last during operation?
A: Each battery provides up to approximately 4 hours of runtime.

Resources

Documents:

• FLIR T8xx Series Datasheet
