The Teledyne FLIR SV87-KIT SV87 Vibration Monitoring Solution is essential for manufacturing processes that use rotating machinery, industrial pumps, fans, gearboxes, and motors. Vibration trending and analysis help detect serious problems with industrial machines long before damage becomes visible.
The included remote monitoring gateway stores sensor data and wirelessly transmits readings in real time to a mobile device or PC. This enables professionals to make knowledgeable decisions about machine operation and maintenance without waiting for the next manual inspection, reducing unplanned downtime, lowering operational costs, and improving profitability.

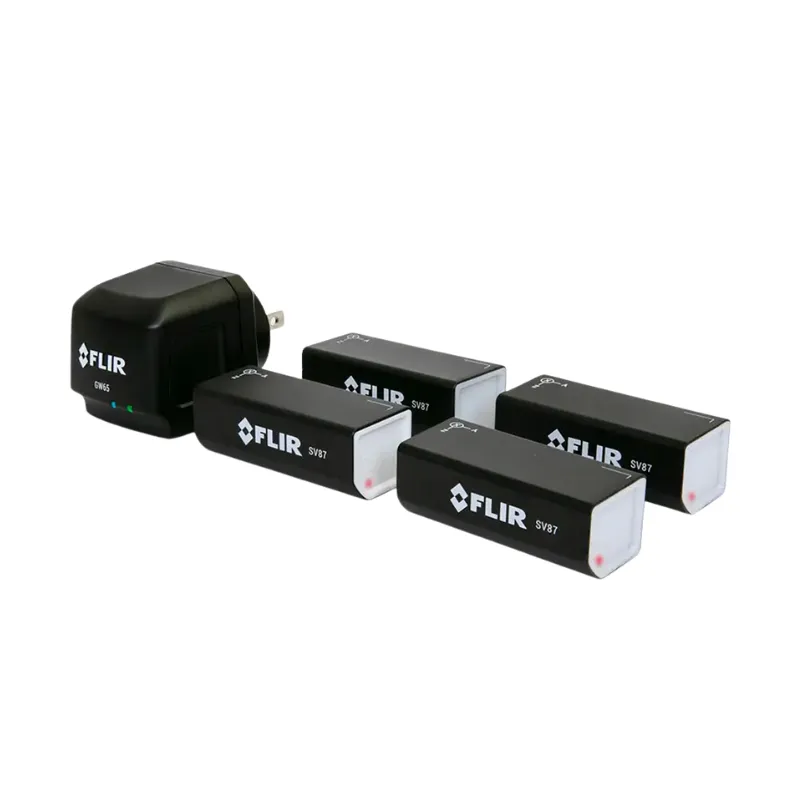

What's Included:
- 1 - Gateway for Vibration Monitoring Solution (GW65)
- 4 - Gateway AC Connectors for US/EU/UK/AUS Power Outlets
- 4 - Remote Vibration/Temperature Sensors with Adhesive Tape (SV87)
- 1 - Quick Start Guide
Features
Frequent Vibration and Temperature Monitoring
Enables better-informed maintenance decisions by providing continuous data insights.
Real-Time Data and Trending
Access live data and visualize trends instantly to detect emerging issues.
Automated Vibration Analysis
Predicts mechanical failures before they occur, allowing preemptive action.
Routine Remote Monitoring
Take corrective actions early through consistent and automated sampling.
Enhanced Worker Safety
Reduces the need for personnel to enter hazardous or hard-to-reach areas.
Mobile and PC Accessibility
Monitor machinery conditions remotely from smartphones, tablets, or computers.
Extended Sensor Battery Life
4-year battery life minimizes the need for maintenance and reduces downtime.
Immediate Alerts and Notifications
Receive instant alerts or emails when vibration or temperature thresholds are exceeded.
Automatic Data Sampling
Data is collected every 90 seconds for continuous condition tracking and analysis.
Easy Data Export
Export vibration and temperature data to CSV files for deeper review and reporting.
What's Included
Included with Your Purchase:
- 1 - Gateway for Vibration Monitoring Solution (GW65)
- 4 - Gateway AC Connectors for US/EU/UK/AUS Power Outlets
- 4 - Remote Vibration/Temperature Sensors with Adhesive Tape (SV87)
- 1 - Quick Start Guide
Specifications
- Sensitivity Range: ±32 g
- Frequency Range: 10 Hz to 1 kHz
- Velocity Data: mm/s or in/s derived from FFT
- Capture Rate: One data point every 90 seconds
- Temperature Measurement Trend: -30°C to 80°C (-22°F to 176°F)
- Data Export Format: CSV
- Data Visualization: Min, Max, live, historical data, and trending charts
- Alerts: Instant notifications when thresholds are exceeded
- Bluetooth: BLE 4.2
- Bluetooth Range: Up to 65 meters (line-of-sight)
- Wi-Fi Type: IEEE 802.11 b/g/n
- Wi-Fi Frequency: 2.4 GHz
- Data Storage: 32 MB (approx. 5 days of data for 4 sensors)
- Indicators: LEDs for power, sensor alarm, and Wi-Fi status
- Warranty: 3 years
- Certifications: ETL, IC, FCC, CE, RCM
- Supported Operating Systems: iOS 9.0 , Android 7.0 , Windows 10 with Intel Core i3 or better
- Gateway Operating Temperature: -25°C to 65°C (-13°F to 149°F)
- Sensor Operating Temperature: -30°C to 80°C (-22°F to 176°F)
- Relative Humidity: 10% to 95% non-condensing
- Operating Altitude: Up to 2000 meters
- Drop Test Rating: 1 meter
- IP Rating: Gateway IP40, Sensor IP67
- AC Input for Gateway: 100 V to 240 V AC, 50/60 Hz
- Sensor Battery Type: 3.6 V Lithium battery
- Sensor Battery Life: Typically 4 years
- Battery Status Indicator: Low battery LED on sensor
FAQ
Q: How often does the sensor capture vibration data?
A: The sensor captures one data point every 90 seconds.
Q: What happens if the Wi-Fi connection is lost?
A: The device has 32 MB of storage to back up about 5 days' worth of data for up to 4 sensors.
Q: What range does the Bluetooth connection have?
A: Bluetooth connectivity reaches up to 65 meters, line-of-sight.
Q: Can I monitor the sensors remotely?
A: Yes, you can view data remotely through a mobile device or PC.
Q: How long does the sensor battery last?
A: The battery typically lasts around 4 years depending on usage.
Resources
Documents:
- Teledyne FLIR SV87-KIT Datasheet
