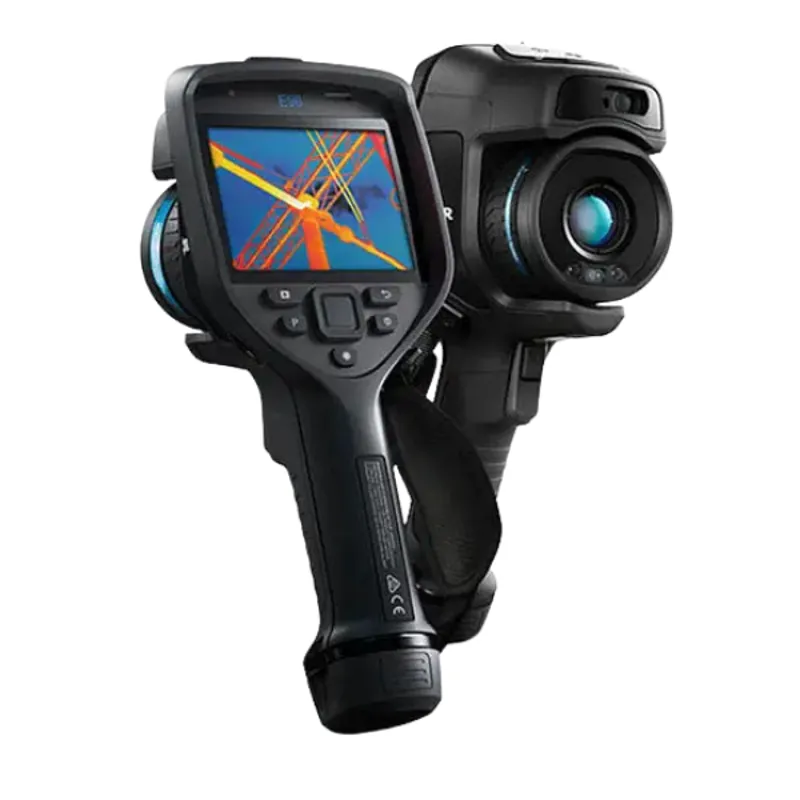

The Teledyne FLIR E96-24-14-NIST Advanced Thermal Imaging Camera is a high-performance tool for professionals who demand precision, clarity, and efficiency in thermal inspections. Equipped with a 640 x 480 thermal resolution sensor and both 24° and 14° AutoCal™ interchangeable lenses, this camera allows users to capture fine details from both near and far with outstanding clarity. The built-in laser distance meter ensures accurate focus for dependable temperature readings, while MSX® and UltraMax® imaging technologies further enhance image detail and resolution.

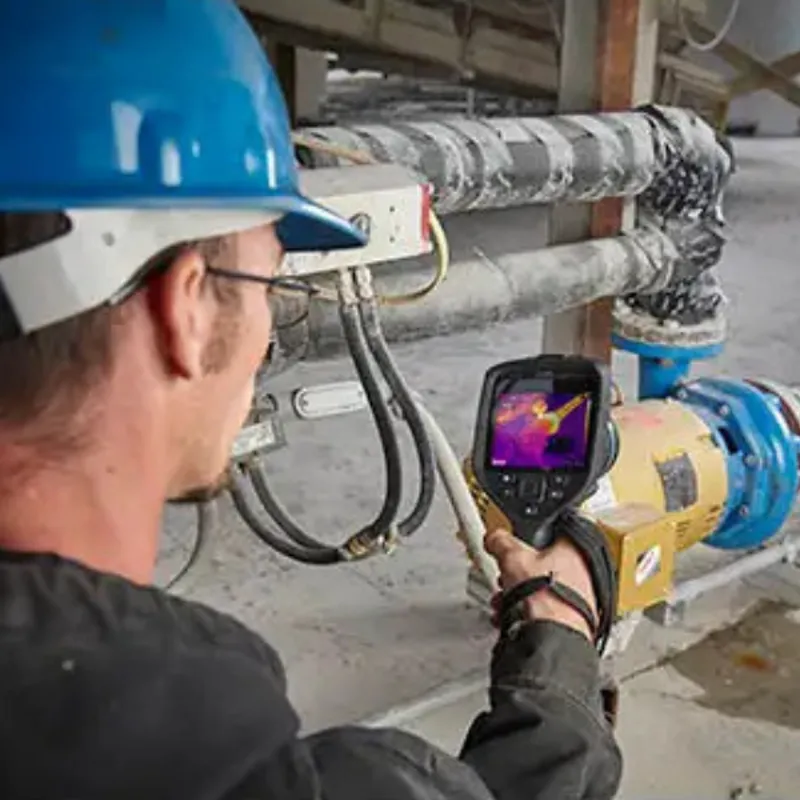

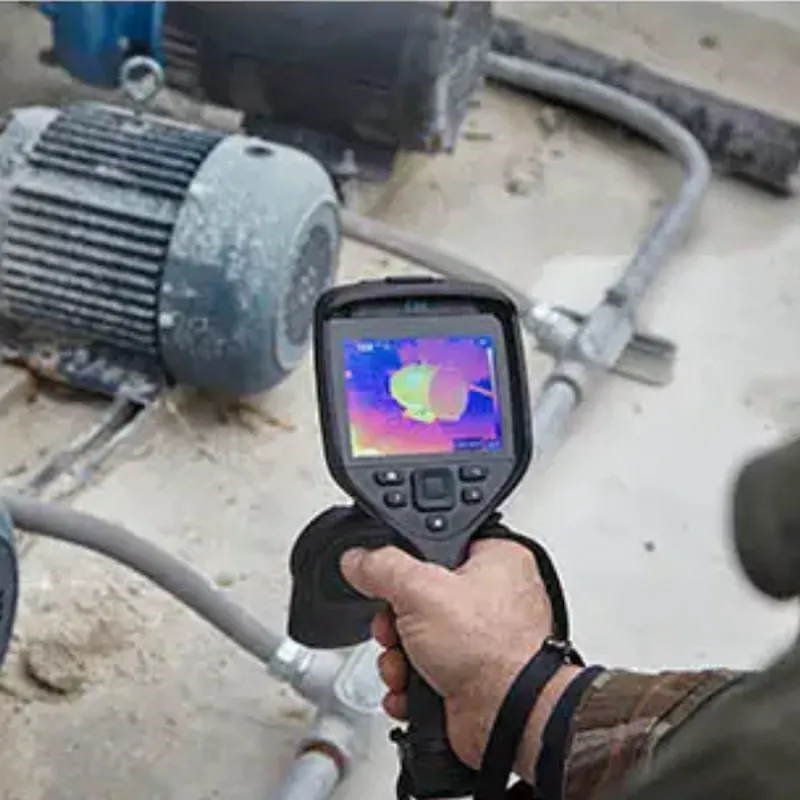

Designed for safety and versatility, the E96 enables inspectors to quickly diagnose problems in electrical, mechanical, and building systems—even from a distance. Its integrated Teledyne FLIR Thermal Studio Pro software and Inspection Route tools help users manage data, streamline workflows, and generate professional reports with ease. Whether you’re performing routine maintenance or conducting complex building surveys, the E96 delivers the detail and performance required for confident decision-making.
What's Included:
- Teledyne FLIR E96 Thermal Imaging Camera
- 24° (17 mm) AutoCal™ Lens
- 14° (29 mm) AutoCal™ Lens
- Thermal Studio Pro Software License
- NIST Calibration Certificate
- Battery and Charger
- Removable SD Card
- Carrying Case
Features
Dual AutoCal™ Lenses
Includes both 24° and 14° lenses, providing versatility for close and long-range thermal inspections without compromising image quality.
640 x 480 Thermal Resolution
Captures sharp, detailed images that allow for more precise analysis of temperature anomalies and small features.
MSX and UltraMax Technologies
Enhances thermal images with added visual detail and quadruples pixel count for clearer images and greater measurement accuracy.

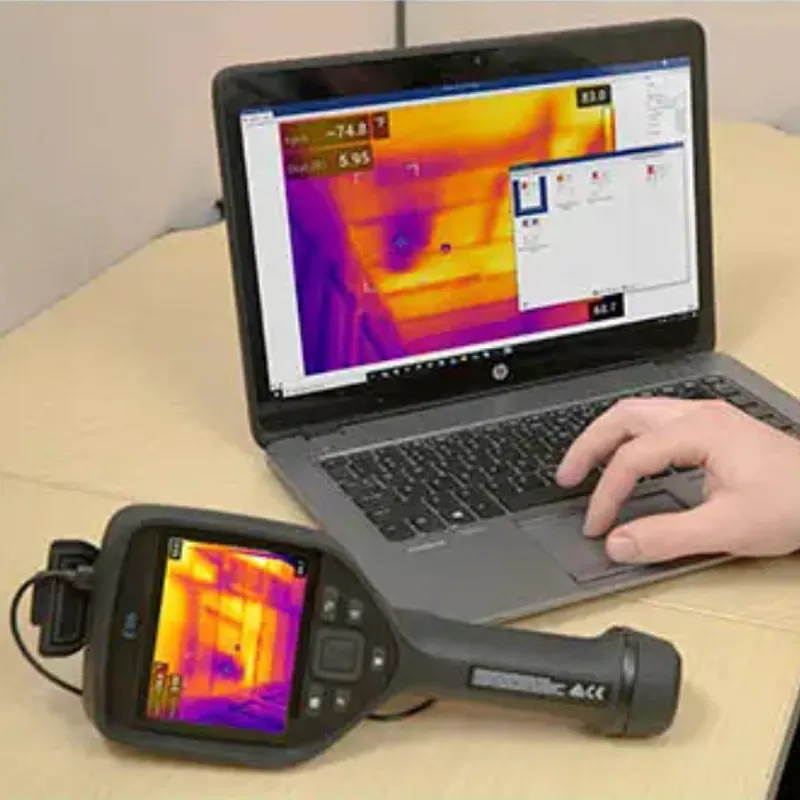

Teledyne FLIR Thermal Studio Pro
Powerful software streamlines evaluation, organization, and reporting of thermal data, increasing productivity in the field and at the desk.
Inspection Route Support
Use the Route Creator plugin to predefine and follow inspection paths, improving organization and ensuring complete data collection.
Laser Distance Meter
Built-in laser distance meter helps ensure crisp, accurate focus for reliable temperature measurements at varying distances.
Rugged and Reliable

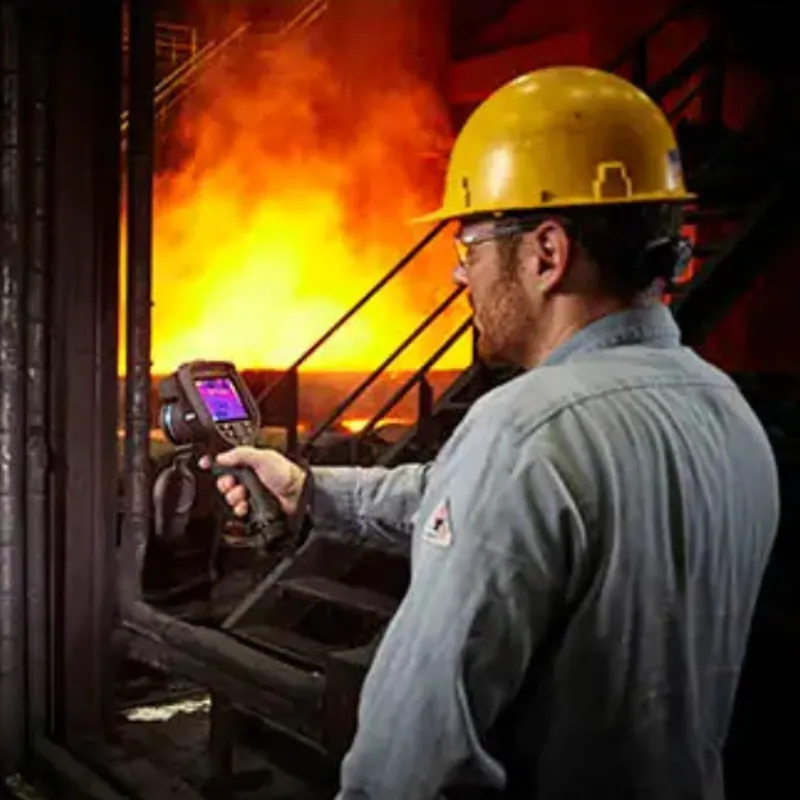

Designed to withstand tough industrial environments with IP54 rating and resistance to shock and vibration.

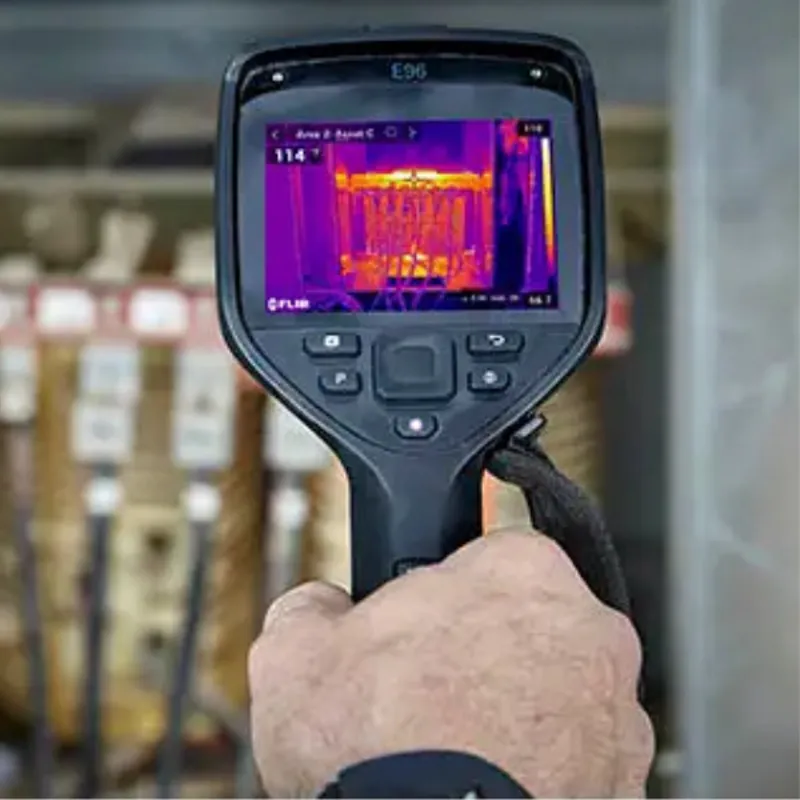

Intuitive Touchscreen Interface
Features a large 4-inch, 640 x 480 pixel LCD touchscreen with auto-rotation for easy navigation and review of thermal data.
What's Included
Included with Your Purchase:
- Teledyne FLIR E96 Thermal Imaging Camera
- 24° (17 mm) AutoCal™ Lens
- 14° (29 mm) AutoCal™ Lens
- Thermal Studio Pro Software License
- NIST Calibration Certificate
- Battery and Charger
- Removable SD Card
- Carrying Case
Specifications
- IR Resolution: 640 x 480 pixels
- Thermal Sensitivity (NETD): <40 mK at 30°C (86°F)
- Field of View (FOV): 24° x 18° (17 mm lens); 14° x 10° (29 mm lens)
- Focus: Continuous LDM, One-shot LDM, One-shot contrast, Manual
- Display: 4-inch touchscreen LCD, 640 x 480 pixels, auto-rotation
- Digital Camera: 5 MP with LED lamp
- Digital Zoom: 1-8x continuous
- Image Frequency: 30 Hz
- Spectral Range: 7.5–14 µm
- Object Temperature Range: -20 to 120°C; 0 to 650°C; 300 to 1500°C
- Accuracy: ±2°C or ±2% of reading
- Storage Media: Removable SD card
- Image Storage Modes: Infrared, Visual, MSX, Picture-in-Picture, Gallery
- Video Recording: Radiometric (.csq), H.264 (non-radiometric)
- Video Streaming: Radiometric via UVC; non-radiometric via Wi-Fi or UVC
- Battery Type: Rechargeable Li-ion
- Battery Operating Time: >2.5 hours at 25°C
- Operating Temperature: -15 to 50°C (5 to 122°F)
- Storage Temperature: -40 to 70°C (-40 to 158°F)
- Encapsulation: IP54 (IEC 60529)
- Shock/Vibration: 25g (IEC 60068-2-27), 2g (IEC 60068-2-6)
- Communication Interfaces: USB 2.0, Bluetooth, Wi-Fi, DisplayPort
- Color Palettes: Iron, Rainbow, Rainbow HC, White Hot, Black Hot, Arctic, Lava
- Laser Distance Meter: Yes; dedicated button
- METERLiNK: Yes
- Programmable Buttons: 1
- Voice Annotation: 60 seconds via built-in mic or Bluetooth
- Text Annotation: Predefined list or touchscreen keyboard
- Time Lapse: 10 seconds to 24 hours
- Lens Recognition: Automatic
- Minimum Focus Distance: 0.15 m
- Image Sketch: Touchscreen sketch on IR image
- Measurement Presets: Center Spot, Hot Spot, Cold Spot, User Presets
FAQ
Q: What is the advantage of having both 24° and 14° lenses?
A: The 24° lens is ideal for general-purpose inspections with a wider field of view, while the 14° lens is a telephoto option for capturing fine details from a greater distance.
Q: How does UltraMax improve thermal imaging?
A: UltraMax enhances image resolution by capturing multiple frames and combining them into one detailed image with higher pixel count and reduced noise.
Q: Is the E96 suitable for outdoor inspections?
A: Yes, with an IP54 rating and wide operating temperature range, the E96 is built to perform reliably in outdoor and industrial environments.
Q: What kind of software is included?
A: The package includes Teledyne FLIR Thermal Studio Pro, a professional suite for image analysis, organization, and report generation.
Resources
Documents:
- FLIR Exx Series Datasheet
