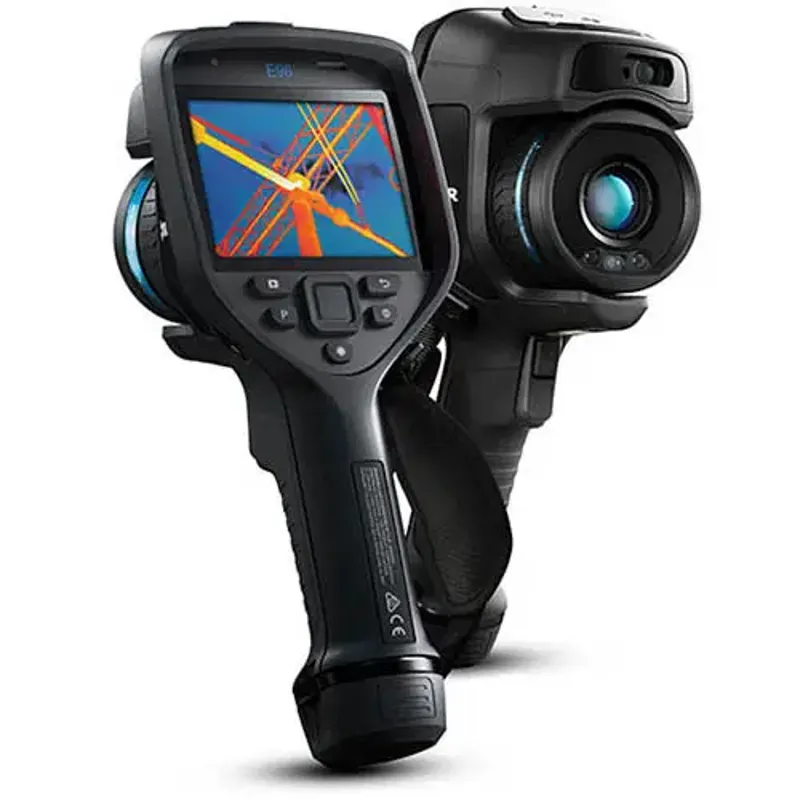

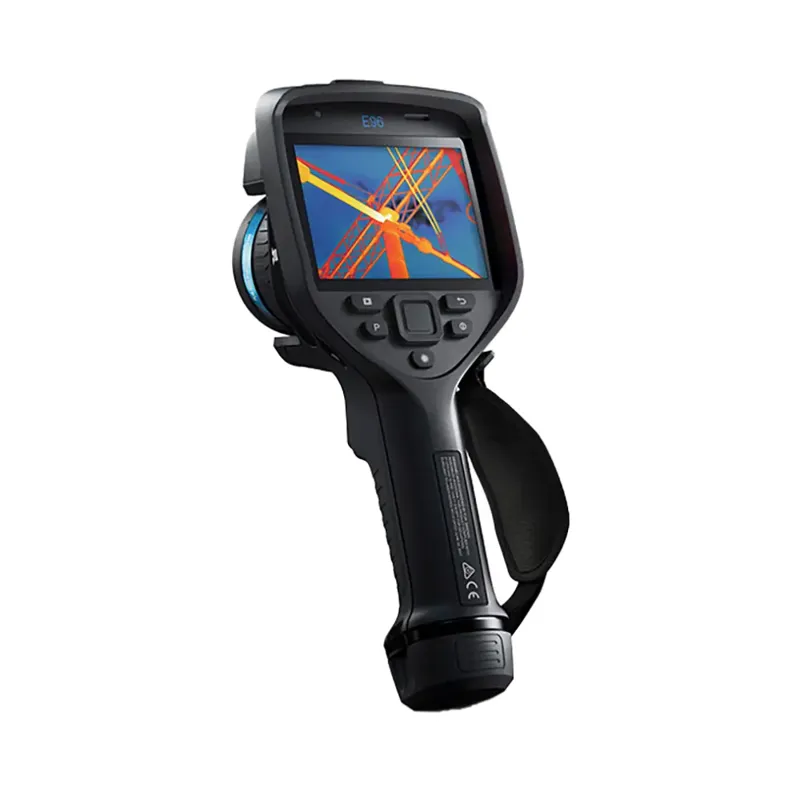

The Teledyne FLIR E96-42 Advanced Thermal Imaging Camera combines 640 × 480 resolution with a 42° lens to deliver superior clarity and efficiency in detecting electrical, mechanical, and building-related anomalies. Its pistol-grip design enhances operator comfort during long inspection sessions, while the built-in laser distance meter ensures pinpoint focusing accuracy. With features like MSX and UltraMax technologies, this camera offers image enhancement capabilities that significantly boost the interpretability of thermal data.
Perfect for professionals managing large inspection areas, the E96 supports voice annotations, text input, GPS tagging, and image sketching, making documentation and analysis both thorough and efficient. The camera integrates seamlessly with Teledyne FLIR’s Inspection Route and Thermal Studio Pro software to support structured workflows and streamlined reporting.
What's Included:
- Teledyne FLIR E96 Thermal Imaging Camera
- 42° Wide-Angle 10 mm Lens
- Removable SD Card
- Rechargeable Li-ion Battery
- USB 2.0 and USB-C DisplayPort Cable
- FLIR Thermal Studio Pro Software Access
- Built-in Mic and Speaker for Annotations
- Protective Carrying Case
Features
High-Resolution Imaging
640 x 480 thermal resolution provides vibrant thermal detail, enhanced with MSX and UltraMax technologies for clearer interpretation.
42° Wide-Angle Lens
Included 10 mm lens delivers the widest field of view for efficient building inspections and large area scans.
UltraMax Image Enhancement
Combines 16 images into one higher-resolution thermal image, improving detail and reducing noise.
MSX Technology
Multi-Spectral Dynamic Imaging adds visible-light edge details to thermal images for easier identification of labels and components.
Interchangeable AutoCal Lenses
Auto-calibrating lenses allow for flexible inspections across various distances and applications without manual recalibration.
Inspection Route Enabled
Camera supports guided inspections through FLIR’s Thermal Studio Pro software with route creator plugin.
Smart Documentation Tools
Voice annotations, GPS tagging, and touchscreen image sketching streamline field documentation.
Connectivity Options
Supports USB 2.0, Wi-Fi, Bluetooth, and DisplayPort for versatile data transfer and video output.
Durable and Ergonomic
Built to IP54 standard with rugged shock and vibration resistance, ideal for tough work environments.
Extended Temperature Range
Measures temperatures from -20°C to 1500°C across three selectable ranges.
What's Included
Included with Your Purchase:
- Teledyne FLIR E96 Thermal Imaging Camera
- 42° Wide-Angle 10 mm Lens
- Removable SD Card
- Rechargeable Li-ion Battery
- USB 2.0 and USB-C DisplayPort Cable
- FLIR Thermal Studio Pro Software Access
- Built-in Mic and Speaker for Annotations
- Protective Carrying Case
Specifications
- IR Resolution: 640 x 480 pixels
- Lens: 42°, 10 mm
- Image Frequency: 30 Hz
- Thermal Sensitivity (NETD): <40 mK at 30°C
- Spectral Range: 7.5 - 14 µm
- Focus: Continuous LDM, One-shot LDM/Contrast, Manual
- Display: 4" LCD touchscreen, 640 x 480 pixels, auto-rotation
- Zoom: 1-8x digital
- Image Storage: Removable SD card
- File Format: JPEG with radiometric data
- Temperature Ranges: -20 to 120°C, 0 to 650°C, 300 to 1500°C
- Battery Life: >2.5 hours
- Connectivity: USB 2.0, Wi-Fi, Bluetooth, DisplayPort
- Video Recording: Radiometric (.csq), Non-radiometric H.264
- Voice Annotation: 60-second recordings
- GPS: Automatic image tagging
- Protection Rating: IP54
- Shock Resistance: 25g (IEC 60068-2-27)
- Vibration Resistance: 2g (IEC 60068-2-6)
- Operating Temperature: -15 to 50°C
- Storage Temperature: -40 to 70°C
- Color Palettes: Iron, Rainbow, Rainbow HC, White Hot, Black Hot, Arctic, Lava
FAQ
Q: What is the thermal resolution of the FLIR E96-42?
A: It features a 640 x 480 pixel resolution with image enhancement via MSX and UltraMax.
Q: Can the lens be changed on the E96 camera?
A: Yes, it supports AutoCal interchangeable lenses that auto-calibrate upon attachment.
Q: What is the runtime on a single charge?
A: The rechargeable battery offers more than 2.5 hours of continuous use.
Q: Does it support video output and wireless connectivity?
A: Yes, the E96 supports DisplayPort video output and includes USB, Wi-Fi, and Bluetooth interfaces.
Resources
Documents:
- Teledyne FLIR E96 Datasheet
