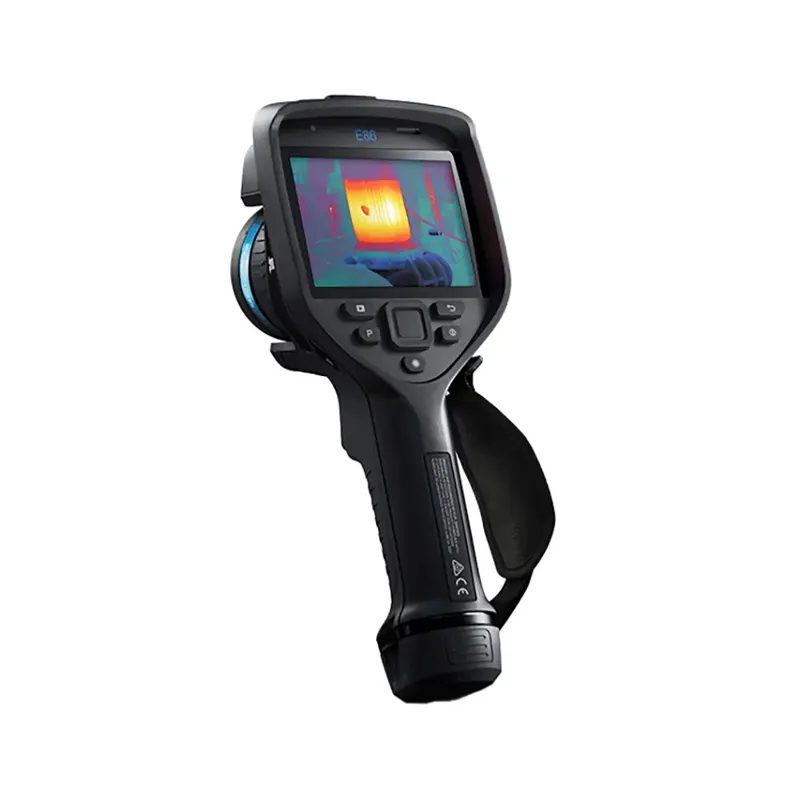

The Teledyne FLIR E86-80 30Hz Advanced Thermal Imaging Camera is engineered for professional-grade inspections, combining high-resolution thermal imaging, wide and telephoto viewing options, and real-time analysis tools. Featuring a 464 x 348 infrared resolution and a broad temperature range of -4 to 2732°F, the E86-80 makes it easier to detect anomalies and hotspots in both electrical and mechanical systems. With the FLIR FlexView lens, users can switch between an ultra-wide 80° field of view and a narrower telephoto mode at the push of a button—enhancing flexibility and coverage in a variety of applications.
The included 80°, 5 mm lens captures expansive scenes or tight spaces in one shot, perfect for inspecting cabinets, rooftops, or areas with limited access. Additional features such as FLIR’s 1-Touch Level/Span and MSX technology help highlight issues and overlay critical visual details. Streamline workflows with onboard FLIR Inspection Route and FLIR Ignite cloud connectivity, ensuring efficient data capture, secure uploads, and smooth reporting with the FLIR Thermal Studio Starter software.
What's Included:
- Teledyne FLIR E86-80 Thermal Imaging Camera
- 80° FlexView Dual Field-of-View Lens
- FLIR Thermal Studio Starter Software
Features
Dual Field-of-View Lens
Switch instantly from a wide-area scan to a detailed telephoto view using FLIR’s FlexView technology for versatile inspections.
Ultra-Wide 80° Viewing
The 80° FOV enables large area capture in tight or expansive inspection environments like control cabinets or buildings.
1-Touch Level/Span
Enhance image contrast instantly to bring attention to possible mechanical or electrical faults.
High Infrared Resolution
Capture fine thermal details with a resolution of 464 x 348 pixels for accurate temperature readings.
Broad Temperature Detection
Measure across three ranges from -4°F up to 2732°F for both standard and high-heat applications.
Accurate Thermal Readings
Achieve precision with ±2°C or ±2% accuracy, making it reliable for professional diagnostics.
Integrated Digital Camera
5 MP visual camera with LED light helps document surroundings—automatically disabled when 80° lens is used.
Responsive Touch Display
Large 4-inch touchscreen LCD with 640 x 480 resolution and auto-rotation for efficient operation.
Cloud Integration
Upload inspection results directly to the cloud with FLIR Ignite for remote access and collaboration.
What's Included
Included with Your Purchase:
- Teledyne FLIR E86-80 Thermal Imaging Camera
- 80° FlexView Dual Field-of-View Lens
- FLIR Thermal Studio Starter Software
Specifications
- IR Resolution: 464 x 348 pixels
- Thermal Sensitivity (NETD): <40 mK at 30°C (86°F)
- Temperature Ranges: -20°C to 120°C (-4°F to 248°F); 0°C to 650°C (32°F to 1202°F); 300°C to 1500°C (572°F to 2732°F)
- Accuracy: ±2°C (±3.6°F) or ±2% of reading
- Field of View: 80° x 63°
- Digital Camera: 5 MP, LED photo/video lamp (disabled when 80° lens is in use)
- Display: 4" touchscreen LCD, 640 x 480 pixels, with auto-rotation
- Frequency: 30Hz
FAQ
Q: What makes the FlexView lens unique?
A: It allows users to switch from a wide 80° view to a telephoto perspective instantly with a single button press.
Q: Can I use this camera in tight or confined inspection areas?
A: Yes, the ultra-wide 80° lens is ideal for tight spaces and large targets alike.
Q: Does the camera store images automatically?
A: Yes, with FLIR Ignite, images are automatically uploaded to the cloud for easy storage and sharing.
Q: Is software included for analyzing images?
A: Yes, the camera comes with FLIR Thermal Studio Starter software for basic post-processing and reporting.
Resources
Documents:
- FLIR E86 Series Datasheet
