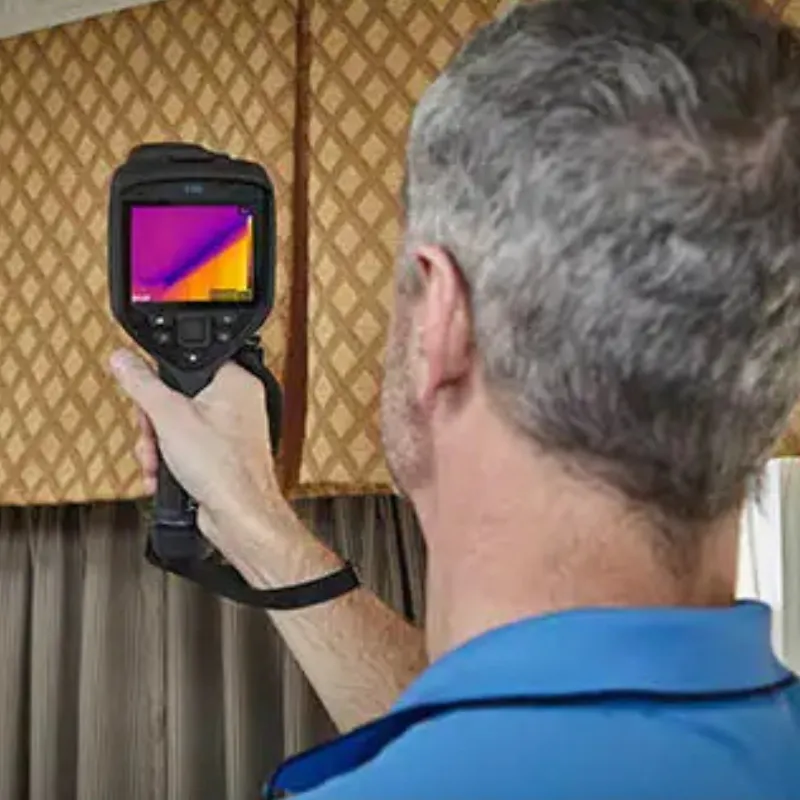

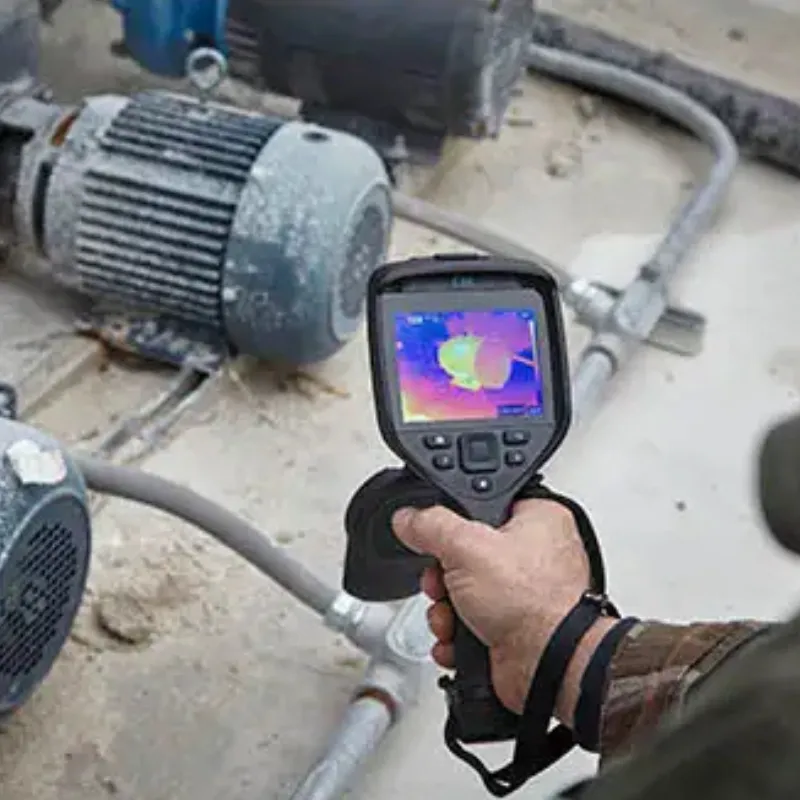

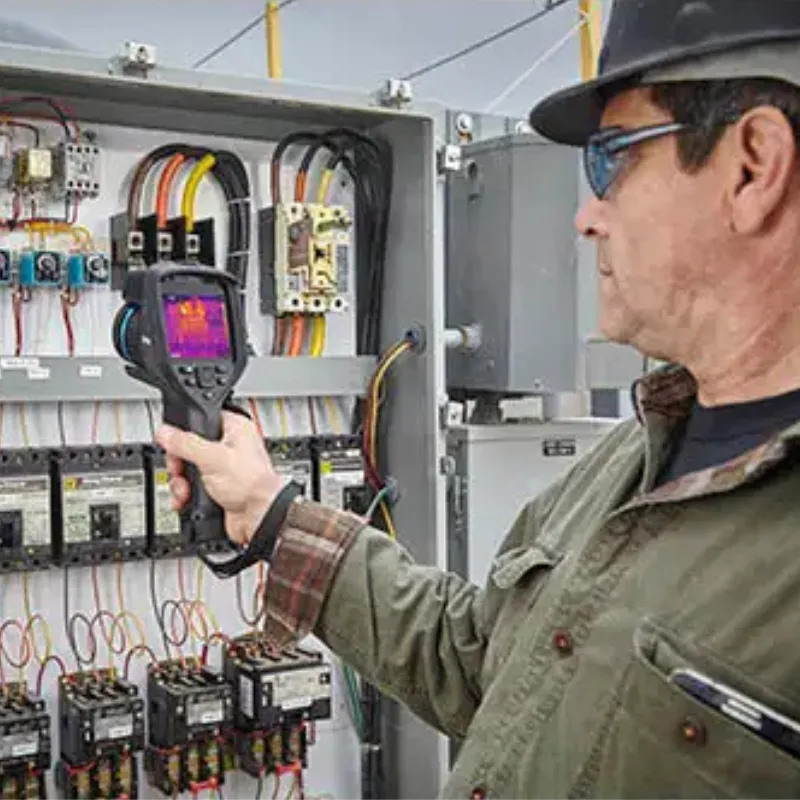

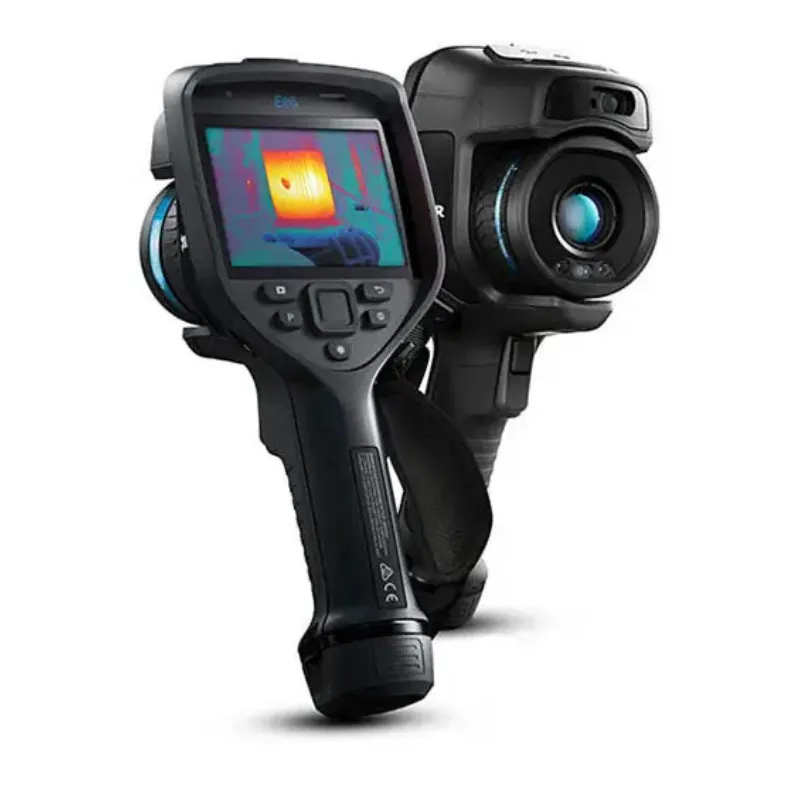

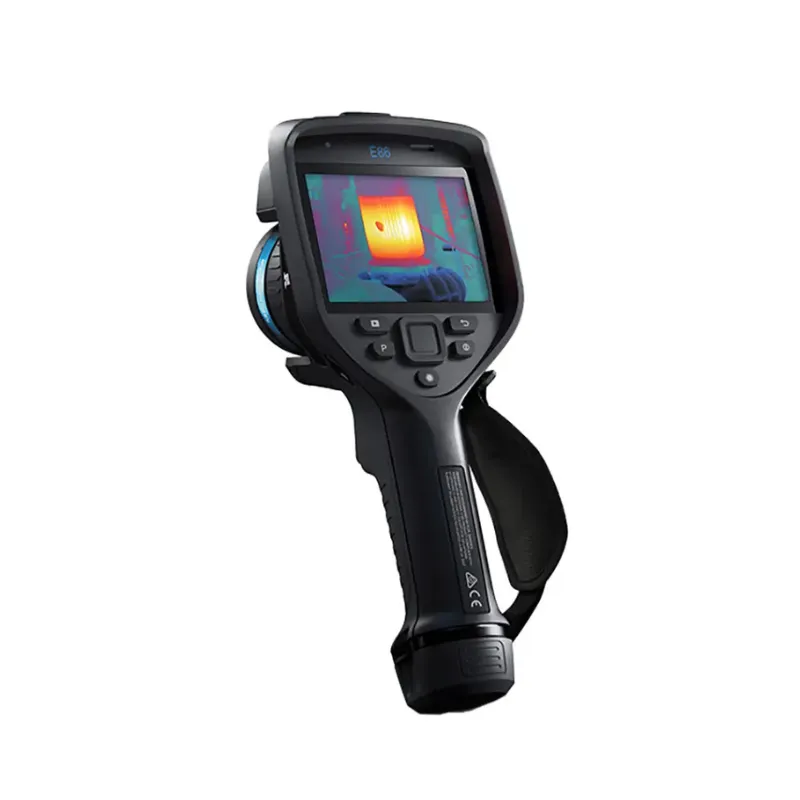

The Teledyne FLIR E86-24-14-42 Advanced Thermal Imaging Camera delivers the high-performance imaging and analysis capabilities needed for reliable inspections in demanding environments. Featuring a 464 x 348 pixel resolution and a fast 30 Hz refresh rate, the E86 is ideal for detecting thermal anomalies in electrical systems, mechanical equipment, and building diagnostics. With the flexibility of three included AutoCal lenses—24°, 14°, and 42°—users can easily adapt to a range of inspection scenarios from wide-area surveys to precision targeting at a distance.
Enhanced by MSX and UltraMax technologies, the E86 provides crisp image clarity and super-resolution thermal imaging that reveals finer details and enables more accurate diagnostics. Voice annotation, onboard image processing, and built-in FLIR Thermal Studio Pro integration streamline workflows and reporting, making this an indispensable tool for predictive maintenance and building diagnostics alike.
What's Included:
- Teledyne FLIR E86 Thermal Imaging Camera
- 24° Lens (17 mm)
- 14° Lens (29 mm)
- 42° Lens (10 mm)
- FLIR Thermal Studio Pro Software
- Rechargeable Li-ion Battery
- Battery Charger
- SD Card
- USB Cable
- Hard Carrying Case
- Lens Caps
- User Documentation
Features
Three Interchangeable AutoCal Lenses
Comes with 24°, 14°, and 42° lenses to cover a broad range of applications from close-ups to wide-area scans.
MSX Technology
Enhances thermal images with visual edge detail for improved context and readability, including labels and structural outlines.
UltraMax Image Enhancement
Improves resolution and reduces noise by combining multiple frames into a single high-detail radiometric image.
Laser Distance Meter
Allows fast and accurate autofocus and delivers data for on-screen area measurements in square meters or feet.
Robust Display
Equipped with a 4-inch, 640 x 480 LCD touchscreen with auto-rotation for easy viewing in any orientation.
Built-In Voice Annotation
Add up to 60 seconds of recorded audio to each image using the onboard mic or via Bluetooth.
FLIR Thermal Studio Pro Integration
Seamlessly syncs with software for report generation, route planning, and advanced thermal analysis.
Durable Construction
Withstands shocks, vibration, and harsh environments with an IP54 rating and 25g shock resistance.
Advanced Video Capabilities
Supports radiometric and non-radiometric streaming and recording with multiple format outputs including H.264 and MJPEG.
Comprehensive Measurement Tools
Includes center spot, hot/cold spot tracking, area measurements, and multiple temperature presets for flexible inspections.
What's Included
Included with Your Purchase:
- Teledyne FLIR E86 Thermal Imaging Camera
- 24° Lens (17 mm)
- 14° Lens (29 mm)
- 42° Lens (10 mm)
- FLIR Thermal Studio Pro Software
- Rechargeable Li-ion Battery
- Battery Charger
- SD Card
- USB Cable
- Hard Carrying Case
- Lens Caps
- User Documentation
Specifications
- IR Resolution: 464 x 348 pixels
- Image Frequency: 30 Hz
- Lenses Included: 24° (17 mm), 14° (29 mm), 42° (10 mm)
- Focus: Continuous LDM, One-shot LDM, One-shot contrast, Manual
- Minimum Focus Distance: 0.15 m
- Laser Distance Meter: Yes, with dedicated button
- Display: 4-inch touchscreen LCD, 640 x 480 pixels, auto-rotating
- Thermal Sensitivity/NETD: <40 mK at 30°C (86°F)
- Spectral Range: 7.5 - 14 µm
- Digital Camera: 5 MP with LED lamp
- Digital Zoom: 1–4x continuous
- Storage: Removable SD card
- Connectivity: USB 2.0, Bluetooth, Wi-Fi, DisplayPort
- Operating Temperature: -15 to 50°C (5 to 122°F)
- Storage Temperature: -40 to 70°C (-40 to 158°F)
- Encapsulation Rating: IP54
- Shock Resistance: 25g (IEC 60068-2-27)
- Vibration Resistance: 2g (IEC 60068-2-6)
- Battery Type: Rechargeable Li-ion
- Battery Operating Time: >2.5 hours at 25°C (68°F)
- Measurement Accuracy: ±2°C (±3.6°F) or ±2% of reading
- Object Temperature Ranges: -20 to 120°C, 0 to 650°C, 300 to 1500°C
- Color Palettes: Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava
- Video Formats: Radiometric (.csq), H.264 (non-radiometric), MJPEG (streaming)
- Software: FLIR Thermal Studio Pro, FLIR Route Creator plugin
- GPS: Automatic image tagging
FAQ
Q: What is the benefit of having multiple lenses included?
A: The 24°, 14°, and 42° lenses offer flexibility for wide-area, standard, and telephoto imaging—ideal for covering both building and electrical applications.
Q: How does MSX improve thermal imaging?
A: MSX overlays edge detail from the visible spectrum onto thermal images, making labels and structural elements clearer for faster diagnostics.
Q: Can I record audio with images or video?
A: Yes, you can add up to 60 seconds of voice annotation via the built-in mic or Bluetooth headset.
Q: Is the E86 compatible with FLIR reporting software?
A: Absolutely. It integrates seamlessly with FLIR Thermal Studio Pro and the Route Creator plugin for streamlined inspections and reporting.
Q: What is UltraMax and how does it help?
A: UltraMax captures and combines 16 thermal images into one super-resolution image for improved clarity and measurement precision.
