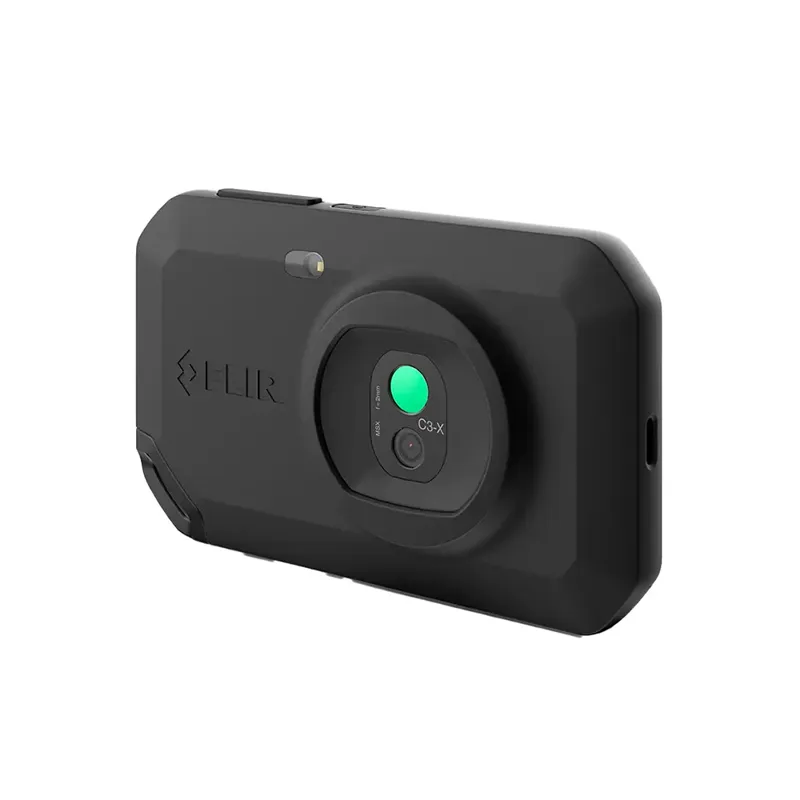

Name: FLIR C3-X Compact Thermal Camera with Wi-Fi MSX Technology Ignite Cloud Connectivity 128 x 96 9 Hz
SKU: 242056

The Teledyne FLIR C3-X Compact Thermal Camera is a powerful and portable inspection tool designed for professionals working in building diagnostics, HVAC/R, electrical systems, and facility maintenance. With a thermal resolution of 128 x 96 pixels, MSX image enhancement, and a 5 MP visual camera, the C3-X makes it easy to locate hidden faults quickly and accurately.

Featuring Wi-Fi and Ignite cloud connectivity, this camera allows users to upload and share images instantly, helping streamline workflows and ensure fast communication. A built-in LED flashlight, capacitive touch screen, and rugged IP54-rated housing provide durability and usability in challenging environments. Compact enough to carry in your pocket, the C3-X is ready for any job site.

What's Included:

1 - Compact Thermal Camera with Wi-Fi and MSX Technology, and Ignite Cloud Connectivity, 128 x 96, 9 Hz

Features

Accurate Thermal Imaging
128 x 96 (12,288 pixels) true thermal resolution and 5 MP visual camera for detailed diagnostics.

MSX Image Enhancement
Multi-Spectral Dynamic Imaging blends visual detail with thermal images for improved clarity.

Ignite Cloud Integration
Seamless upload, storage, and sharing of images with FLIR Ignite cloud services.

Smart Annotation Tools
Add notes directly to images to identify and describe findings more clearly.

Professional Reporting
Supports image export and report generation using Teledyne FLIR Thermal Studio software.

Durable and Portable
IP54 enclosure and 2-meter drop-tested design ensure resilience in field conditions.

LED Flashlight
Built-in LED illuminates dark areas, improving visibility and safety.

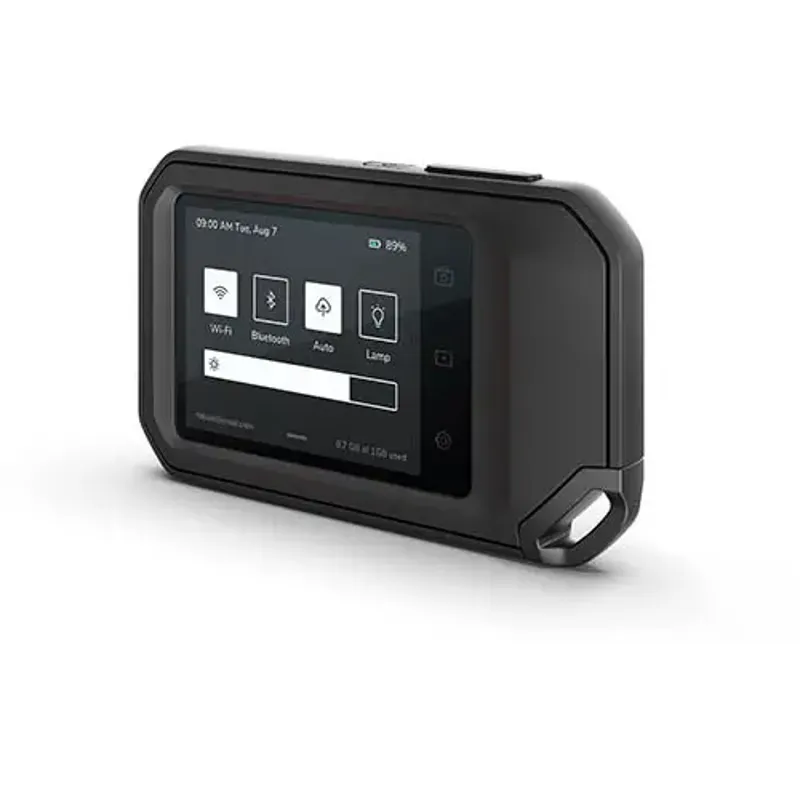

Touchscreen Interface
Capacitive 3.5-inch screen for intuitive navigation and image review.

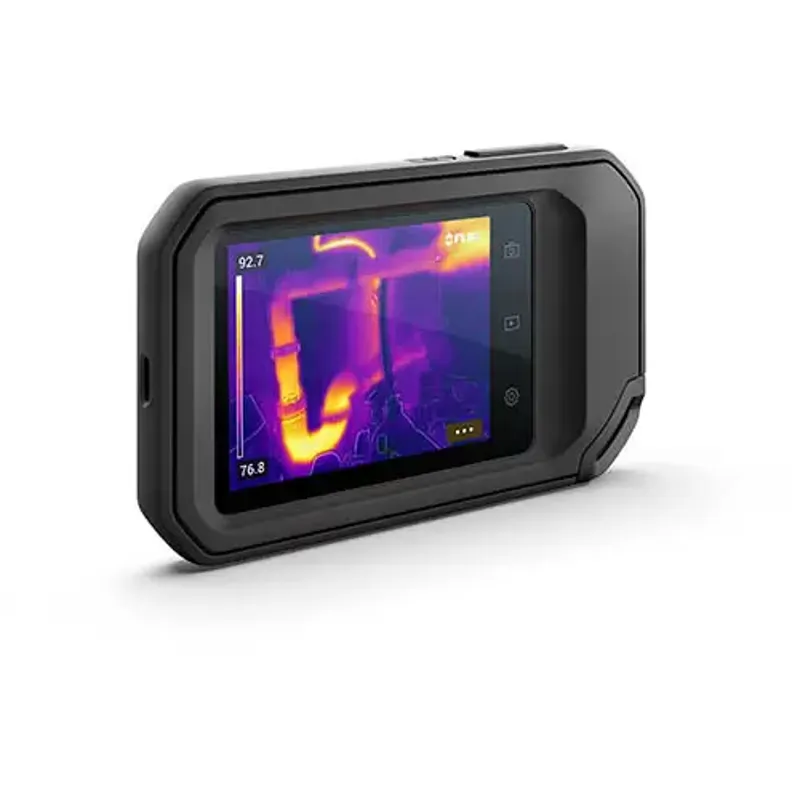

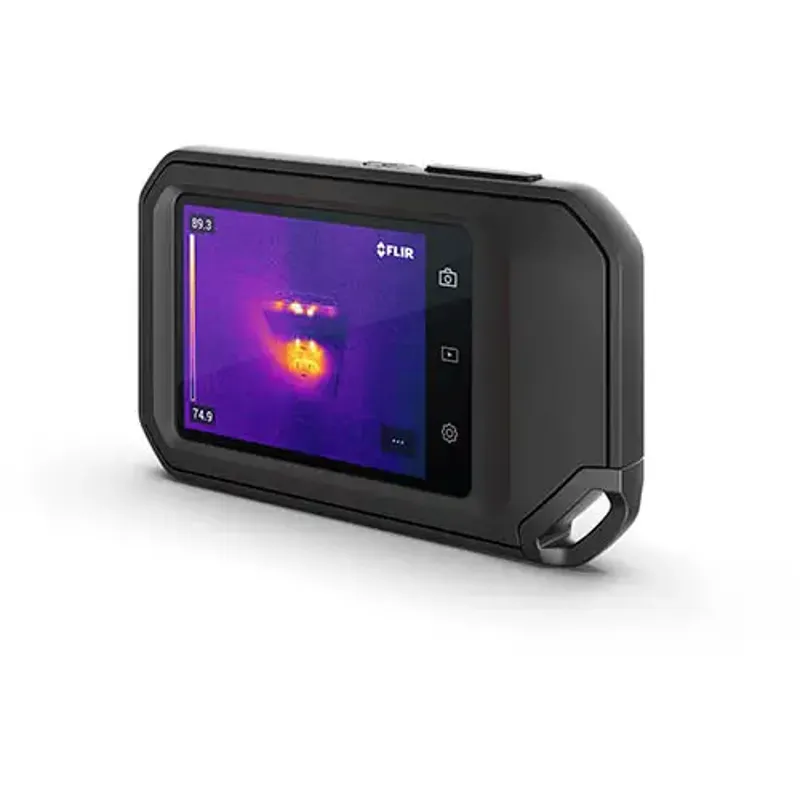

Versatile Viewing Modes
Multiple imaging options including MSX, picture-in-picture, infrared, and visual.

Wi-Fi and Bluetooth Connectivity
Effortless sharing and device integration using dual-band Wi-Fi and Bluetooth PAN.

What's Included

Included with Your Purchase:

1 - Compact Thermal Camera with Wi-Fi and MSX Technology, and Ignite Cloud Connectivity, 128 x 96, 9 Hz

Specifications

IR Sensor: 128 x 96 (12,288 pixels)
Thermal Sensitivity/NETD: < 70 mK
Field of View: 53.6°
Minimum Focus Distance: Thermal: 0.1 m; MSX: 0.3 m
Image Frequency: 8.7 Hz
Focus: Focus free
Spectral Range: 8-14 μm
Screen Size: 3.5 in
Digital Camera: 5 MP (fixed focus)
Image Adjustment: Auto/Manual level and span
Image Modes: IR, Visual, MSX, Picture-in-picture
Color Palettes: Iron, Gray, Rainbow, Rainbow HC
Temperature Range: -20 to 300°C (-4 to 572°F)
Accuracy: ±3°C or ±3%
Measurement Tools: Spot, Box (Max/Min)
Image Storage: Internal Ignite Cloud
Image Capacity: >5000 images
Image Format: JPEG with 14-bit data
Wi-Fi: 802.11 a/ac/b/g/n (2.4 & 5 GHz)
USB: USB-C 2.0
Bluetooth: PAN
Battery Type: Built-in Lithium-ion
Battery Life: 4 hours
Charging Time: 2 hours via USB-C
Operating Temperature: -10 to 50°C
Storage Temperature: -40 to 70°C
Drop Test: 2 m (6.6 ft)
Enclosure Rating: IP54
Dimensions: 138 x 84 x 24 mm
Tripod Mount: UNC 1/4 in.-20

FAQ

Q: Can the C3-X upload images directly to the cloud?
A: Yes, it supports direct upload to the FLIR Ignite cloud using built-in Wi-Fi.

Q: What is the temperature measurement range?
A: It measures from -20°C to 300°C (-4°F to 572°F).

Q: Is the camera rugged for field use?
A: Yes, it is drop-tested to 2 meters and rated IP54 for dust and water protection.

Q: Can it be mounted to a tripod?
A: Yes, it has a built-in 1/4 in.-20 tripod mount.

Q: How is MSX different from regular thermal imaging?
A: MSX overlays visual details onto thermal images for enhanced clarity and easier interpretation.
