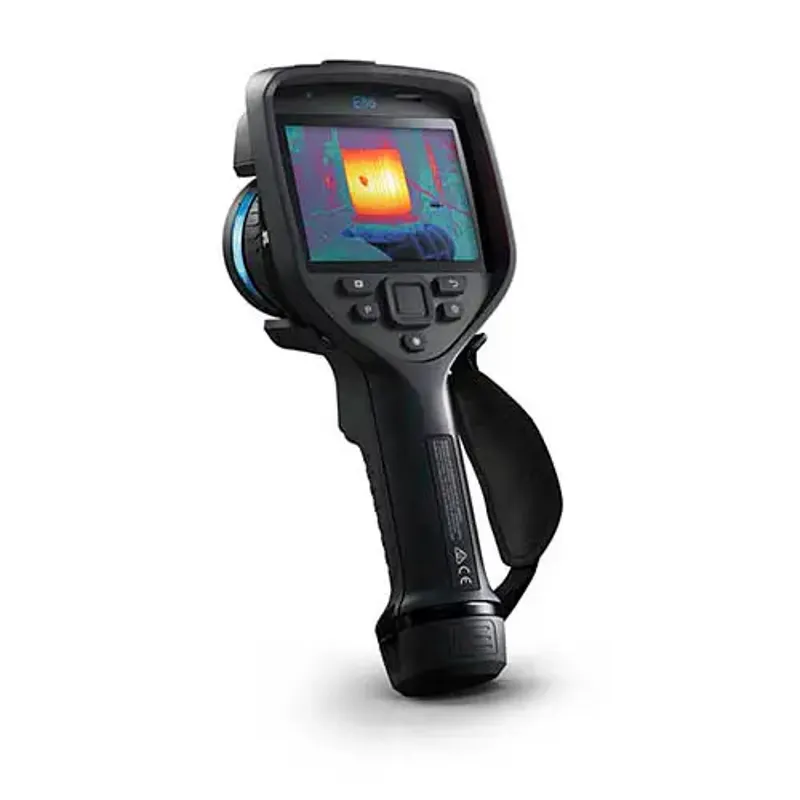

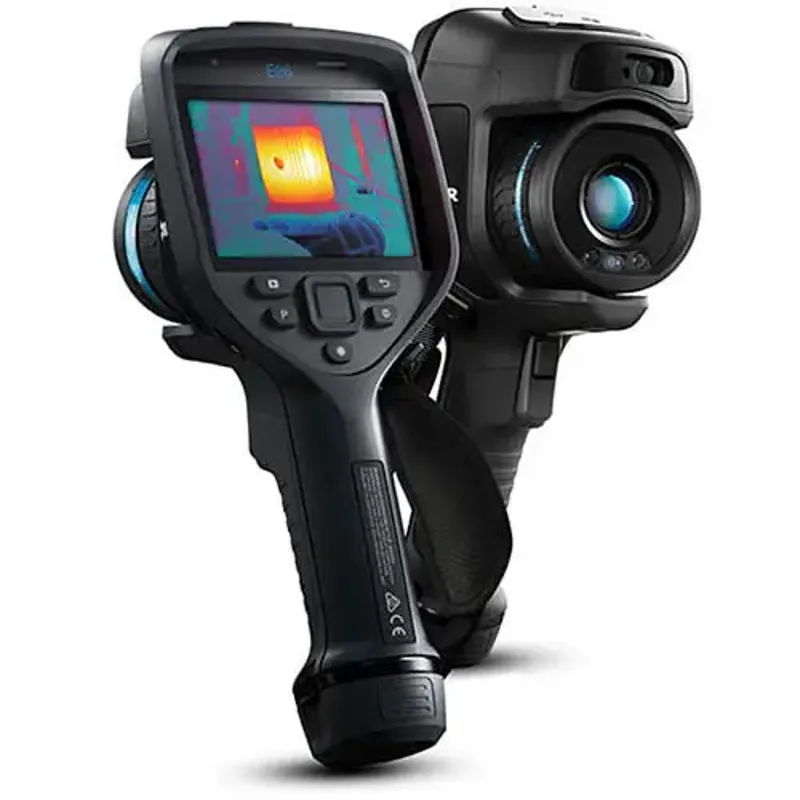

The Teledyne FLIR E86-24-42 Advanced Thermal Imaging Camera delivers high-resolution performance with cutting-edge image enhancement technologies including MSX and UltraMax. Designed for pinpoint accuracy in detecting hot spots and hidden deficiencies, this camera features a 464 × 348 pixel thermal detector, 30 Hz refresh rate, and an intuitive 4-inch LCD touchscreen.

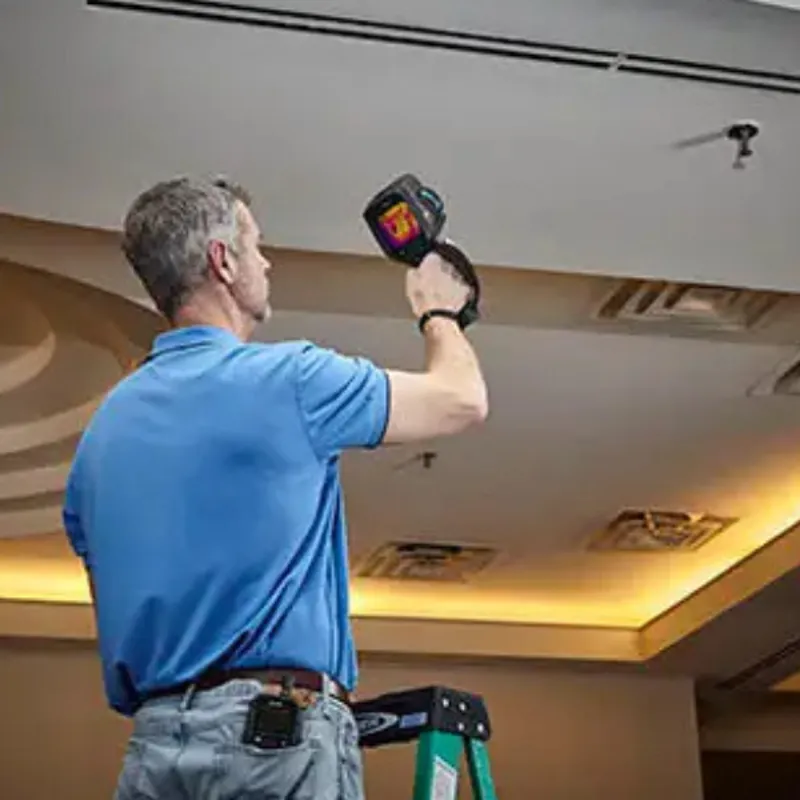

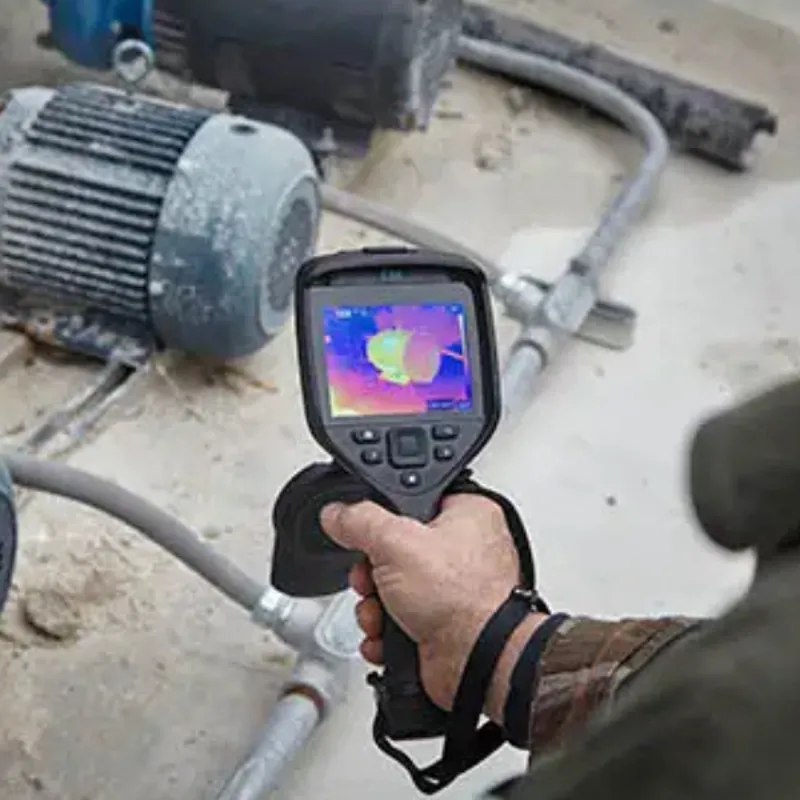

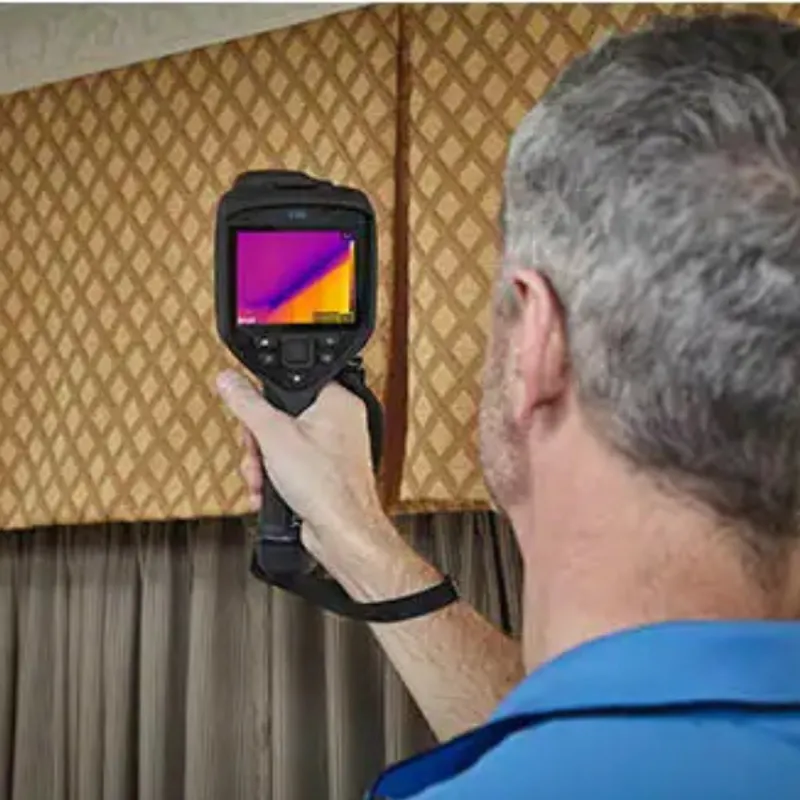

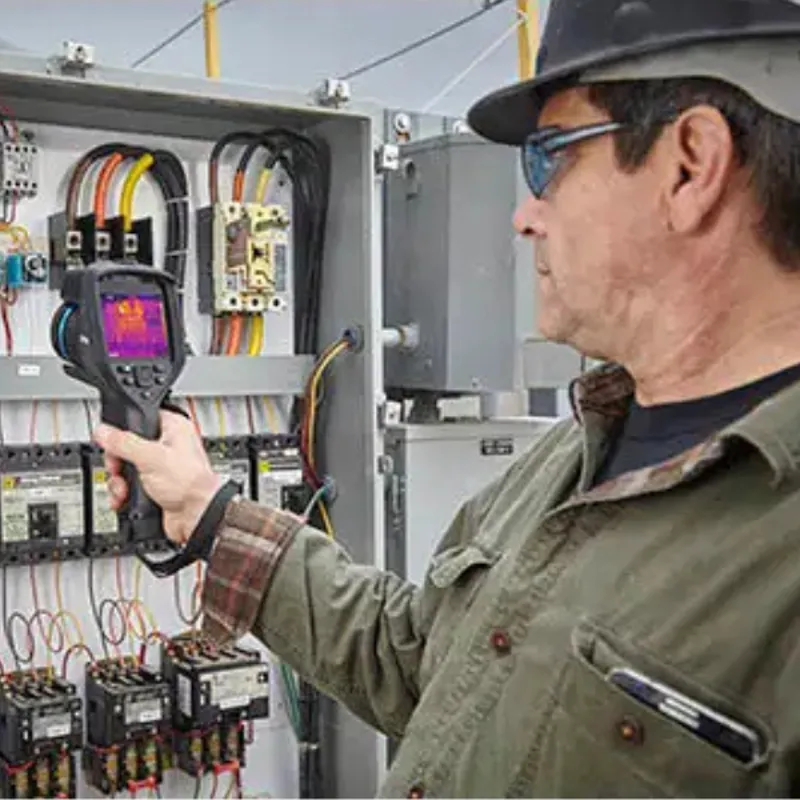

It supports interchangeable AutoCal lenses for both wide-angle and standard viewing, enabling clear imaging of targets both near and far. Built-in laser distance measurement and on-screen area calculations simplify data acquisition in the field. Rugged, reliable, and fully integrated with FLIR's software ecosystem, the E86 streamlines inspection workflows for professionals in building diagnostics, electrical, and mechanical applications.

What's Included:

• Teledyne FLIR E86 Thermal Camera
• 24° 17 mm lens
• 42° 10 mm lens
• Removable SD card
• Rechargeable Li-ion battery
• FLIR Thermal Studio Pro software access

Features

Dual Interchangeable Lenses
Includes a 24° standard lens for precise targeting from a safe distance and a 42° wide-angle lens for broad area imaging like buildings and roofs.

MSX Technology
Multi-Spectral Dynamic Imaging (MSX) overlays visible edge detail onto thermal images for sharper, more informative visuals.

UltraMax Image Enhancement
Combines multiple frames into a single, super-resolution image with four times the pixel count and full radiometric data.

Laser-Assisted Autofocus
Integrated laser distance meter enables accurate focusing and precise on-screen measurements.

Onboard Reporting & Voice Notes
Supports voice annotation, onboard reporting tools, and routing functionality for organized inspections.

High-Resolution Touchscreen
Features a 4" 640 x 480 LCD touchscreen that rotates for optimal viewing angles.

Wide Temperature Detection Range
Detects from -20°C to 1500°C across multiple presets, making it suitable for diverse industrial tasks.

Connectivity & Storage
Equipped with USB, Wi-Fi, Bluetooth, and DisplayPort, with removable SD card for storage.

Rugged and Reliable
Built to IP54 standards with robust shock and vibration resistance, ideal for harsh environments.

What's Included

Included with Your Purchase:

• Teledyne FLIR E86 Thermal Camera
• 24° 17 mm lens
• 42° 10 mm lens
• Removable SD card
• Rechargeable Li-ion battery
• FLIR Thermal Studio Pro software access

Specifications

• IR Resolution: 464 x 348 pixels
• Thermal Sensitivity/NETD: <40 mK at 30°C
• Image Frequency: 30 Hz
• Display: 4 in. 640 x 480 touchscreen LCD
• Focus: Continuous LDM, One-shot LDM, One-shot contrast, Manual
• Zoom: 1-4x continuous digital
• Storage: Removable SD card
• Video Output: DisplayPort over USB Type-C
• Communication Interfaces: USB 2.0, Bluetooth, Wi-Fi, DisplayPort
• Operating Temp Range: -15 to 50°C (5 to 122°F)
• Storage Temp Range: -40 to 70°C (-40 to 158°F)
• Battery Operating Time: >2.5 hours
• Image File Format: JPEG with radiometric data
• Object Temp Range: -20 to 120°C, 0 to 650°C, 300 to 1500°C
• GPS: Automatic image tagging
• Shock & Vibration: 25g, 2g (IEC standards)
• Enclosure Rating: IP54

FAQ

Q: What is the benefit of having both 24° and 42° lenses?
A: The 24° lens is ideal for precise measurements at a safe distance, while the 42° lens captures broader scenes, perfect for building inspections.

Q: Does this camera support software-based inspection routing?
A: Yes, it works with the FLIR Inspection Route plugin via Thermal Studio Pro to guide structured inspections.

Q: Can I capture and analyze voice annotations in reports?
A: Yes, you can add up to 60 seconds of audio per image or video, accessible in FLIR’s reporting software.

Q: How does UltraMax improve image quality?
A: UltraMax uses multi-frame superresolution to create higher-resolution thermal images with enhanced clarity and smaller measurement spot sizes.
