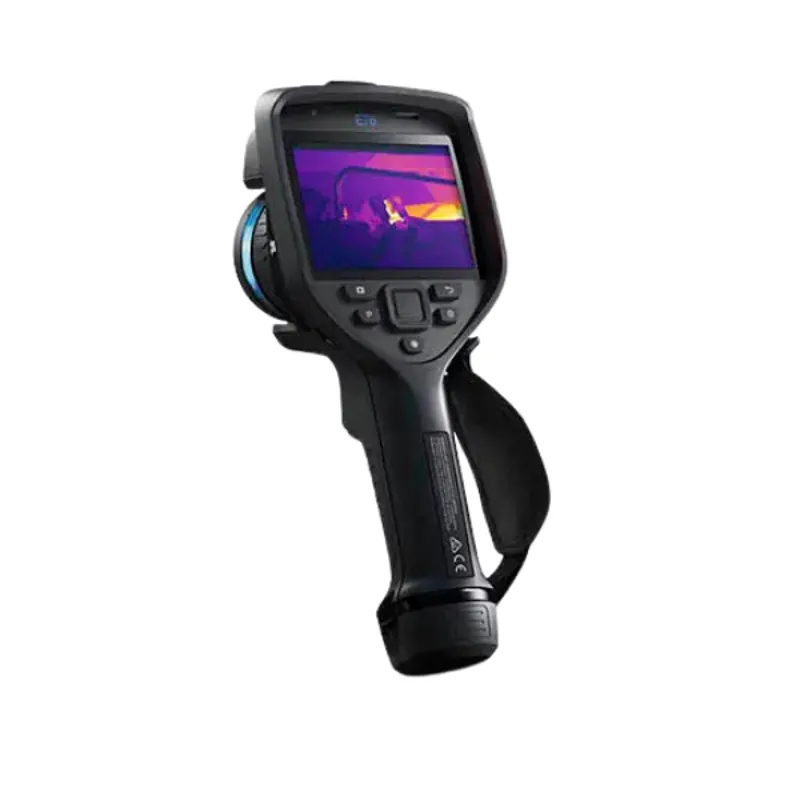

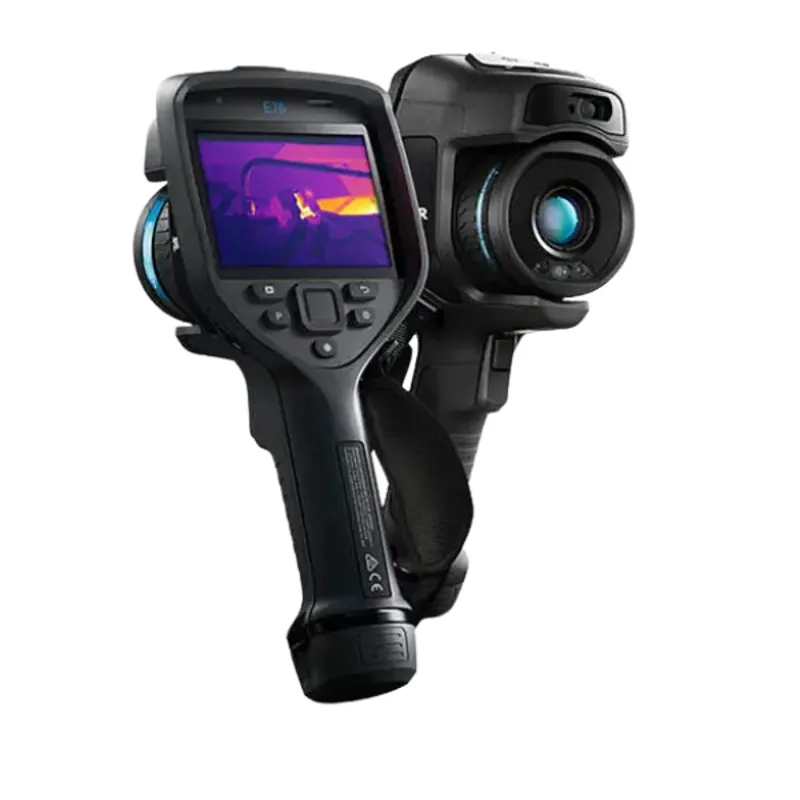

The Teledyne FLIR E76-24-14-42-NIST Advanced Thermal Imaging Camera delivers professional-grade imaging capabilities tailored for building diagnostics, electrical inspections, and mechanical evaluations. With a trio of AutoCal lenses—24°, 14°, and 42°—users can switch between wide-angle views and telephoto precision, capturing sharp thermal data from nearly any distance or application.
Equipped with FLIR’s MSX and UltraMax technologies, the E76 enhances image clarity by blending visible light detail with thermal data and boosting resolution for superior diagnostics. Its 320 x 240 thermal resolution is ideal for identifying small anomalies before they become major issues.
Designed with productivity in mind, this camera includes voice annotation, image sketching, onboard routing with FLIR Inspection Route, and compatibility with the FLIR Thermal Studio Pro suite for streamlined data management and report generation. The robust design, intuitive touchscreen interface, and high-speed communication interfaces make it a reliable companion for field professionals.
What's Included:
- Teledyne FLIR E76 Thermal Imaging Camera
- 24° Lens
- 14° Lens
- 42° Lens
- FLIR Thermal Studio Pro Software
- NIST Certificate of Calibration
- Rechargeable Li-ion Battery
- Battery Charger
- Carrying Case
- USB Type-C Cable
- User Documentation
Features
Interchangeable AutoCal Lenses
Includes 24°, 14°, and 42° lenses for flexible field of view and precise focus, auto-calibrated for quick deployment.
UltraMax SuperResolution Technology
Enhances thermal images by combining multiple shots into a single high-resolution image with full radiometric data.
MSX Image Enhancement
Adds visible-light detail to thermal images, making it easy to read labels and identify features directly on the IR display.
Onboard Inspection Routing
Built-in FLIR Inspection Route guides technicians through pre-defined routes, improving workflow and documentation.
Voice, Text, and Sketch Annotation
Adds 60-second voice notes, text entries, and touchscreen sketches directly to captured images for thorough reporting.
High-Resolution Touchscreen Display
4-inch, 640 x 480 pixel LCD with auto-rotation enables clear viewing and intuitive camera operation.
Robust File Storage Options
Supports SD card storage, JPEG image files with radiometric data, and video recording in multiple formats.
Versatile Connectivity
USB 2.0, Bluetooth, Wi-Fi, and DisplayPort ensure flexible data transfer and live streaming options.
Durable and Field-Ready
Rated IP54 with shock and vibration resistance, ready for demanding inspection environments.
Extended Temperature Range
Detects temperatures up to 1000°C (1832°F) with optional range upgrades.
What's Included
Included with Your Purchase:
- Teledyne FLIR E76 Thermal Imaging Camera
- 24° Lens
- 14° Lens
- 42° Lens
- FLIR Thermal Studio Pro Software
- NIST Certificate of Calibration
- Rechargeable Li-ion Battery
- Battery Charger
- Carrying Case
- USB Type-C Cable
- User Documentation
Specifications
- Thermal Resolution: 320 x 240 pixels
- Image Frequency: 30 Hz
- Lenses Included: 24°, 14°, 42° AutoCal
- Display: 4 in. 640 x 480 pixel LCD with auto-rotation
- Focus Options: Continuous LDM, One-shot LDM, One-shot contrast, Manual
- Digital Zoom: 1-4x continuous
- Spectral Range: 7.5–14 µm
- Thermal Sensitivity/NETD: <50 mK at 30°C (86°F)
- Accuracy: ±2°C or ±2% of reading
- Temperature Range: -20 to 120°C, 0 to 650°C, optional 300 to 1000°C
- Connectivity: USB 2.0, Bluetooth, Wi-Fi, DisplayPort
- Video Recording: Radiometric (.csq), H.264, MPEG-4, MJPEG
- Storage: Removable SD card
- Battery Life: Over 2.5 hours
- Operating Temp: -15 to 50°C (5 to 122°F)
- Storage Temp: -40 to 70°C (-40 to 158°F)
- Enclosure Rating: IP54
- Shock Resistance: 25g (IEC 60068-2-27)
- Vibration Resistance: 2g (IEC 60068-2-6)
- Color Palettes: Iron, Rainbow, Rainbow HC, White Hot, Black Hot, Arctic, Lava
- Camera Type: Uncooled microbolometer, 17 µm
- Integrated Digital Camera: 5 MP with LED light
- Measurement Presets: Center Spot, Hot Spot, Cold Spot, User Preset 1/2
- Laser Distance Meter: Yes, with dedicated button
- GPS: Automatic image tagging
FAQ
Q: What is UltraMax and how does it benefit me?
A: UltraMax is FLIR’s proprietary image enhancement that increases resolution and detail by combining multiple frames. It helps you spot smaller issues more accurately.
Q: Can I switch lenses on the E76 easily?
A: Yes, the camera features AutoCal lenses that are hot-swappable and automatically recognized for fast calibration.
Q: Is FLIR Thermal Studio Pro included with this model?
A: Yes, this bundle includes FLIR Thermal Studio Pro for professional-grade analysis and reporting.
Q: What’s the maximum temperature range I can measure?
A: The camera offers a standard range up to 650°C, with an optional upgrade to 1000°C.
Q: How long can I use the camera on a full charge?
A: The rechargeable battery provides over 2.5 hours of continuous use under typical conditions.
