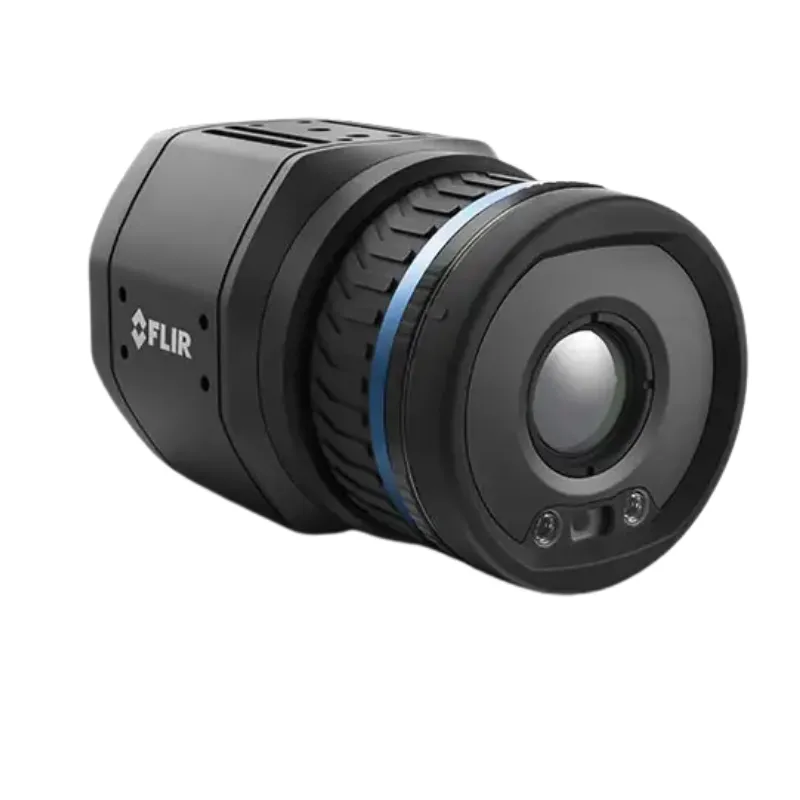

The Teledyne FLIR A700-IS-DFOV-42-24 Image Streaming Fixed-Mount Thermal Imager is designed for applications demanding precise temperature measurement and high-resolution imaging. Ideal for industrial automation, quality assurance, and safety monitoring, this robust unit integrates easily into machine vision systems using standard industry protocols. Its advanced configuration options make it suitable for both simple and complex installations.

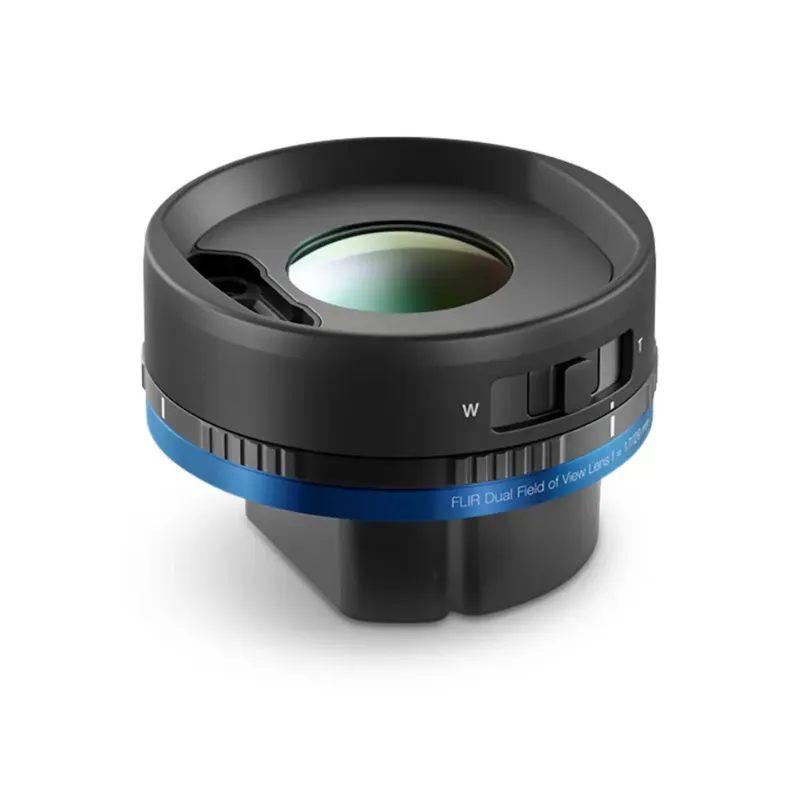

Equipped with the FlexView Dual Field of View 42°/24° lens, this thermal imager enhances image clarity and measurement accuracy while maintaining operational flexibility. The wide-angle lens supports rapid area scanning, while the narrow field sharpens detail and boosts temperature data precision. The quick toggle design allows seamless field-of-view changes, increasing safety by enabling users to work outside hazardous zones like arc flash areas.
What's Included:
- Teledyne FLIR A700-IS Thermal Imager
- FlexView DFOV 42°/24° Lens
Features
Precise Thermal Imaging
Delivers high-resolution 640 x 480 infrared imaging with exceptional temperature accuracy for demanding applications.
Industry-Standard Integration
Seamlessly integrates with existing machine vision systems through protocols like GigE Vision, MQTT, and Modbus TCP.

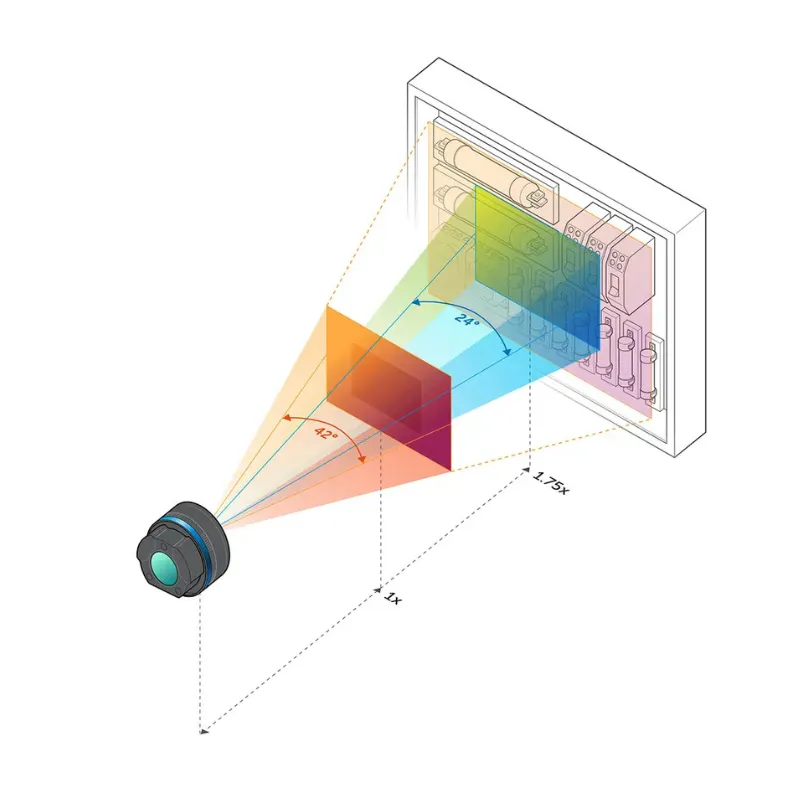

Dual Field of View Flexibility
Switch between wide and narrow fields with a simple toggle to balance rapid scanning and detailed inspection.
Enhanced Safety Design
Narrow FOV enables operation from a safe distance, keeping users outside of arc flash zones.
Multi-Stream Capability
Supports radiometric and non-radiometric streaming with various formats including MONO 16 and YUV411.
Motorized Focus Control
Offers one-shot contrast, motorized, and manual focus options for tailored performance.
Versatile Application Use
Ideal for monitoring mechanical systems, fire prevention, and quality control in industrial environments.
What's Included
Included with Your Purchase:
- Teledyne FLIR A700-IS Thermal Imager
- FlexView DFOV 42°/24° Lens
Specifications
- IR Resolution: 640 x 480
- Visual Resolution: 1280 x 960
- Spectral Range: 30 mK to 50 mK (lens dependent)
- Lens: FlexView DFOV 42°/24°
- IR Camera Focus: One-shot contrast, motorized, manual
- Image Frequency: 30 Hz
- Temperature Range: -4° to 248°F, 32° to 1202°F, 572° to 3632°F
- Accuracy: ± 3.6°F / ± 2% of reading
- Radiometric Streaming: IR source, MONO 16, JPEG-LS, FLIR radiometric encoding
- Video Streaming (GVSP): Supports unicast/multicast, IR and visual, optional overlays
- Non-Radiometric Streaming: YUV411/MONO 8, uncompressed
- Ethernet Interface: M12 8-pin X-coded, RP-SMA
- Ethernet Speed: 1000 Mbps (IEEE 802.3)
- Power over Ethernet: PoE IEEE 802.3af class 3
- Protocols: EtherNet/IP, Modbus TCP, MQTT
FAQ
Q: What is the benefit of the FlexView DFOV lens?
A: It allows quick switching between wide and narrow views for both scanning large areas and zooming in on small targets, improving accuracy and safety.
Q: Can the camera stream multiple image formats?
A: Yes, it supports radiometric and non-radiometric formats including MONO 16, JPEG-LS, and YUV411.
Q: Is this camera suitable for continuous system monitoring?
A: Absolutely, it's ideal for applications like mechanical/electrical monitoring and fire prevention.
Q: Does it support motorized focus?
A: Yes, the A700-IS supports one-shot contrast, motorized, and manual focusing modes.
Resources
Documents:
- FLIR AXXX Series Datasheet
