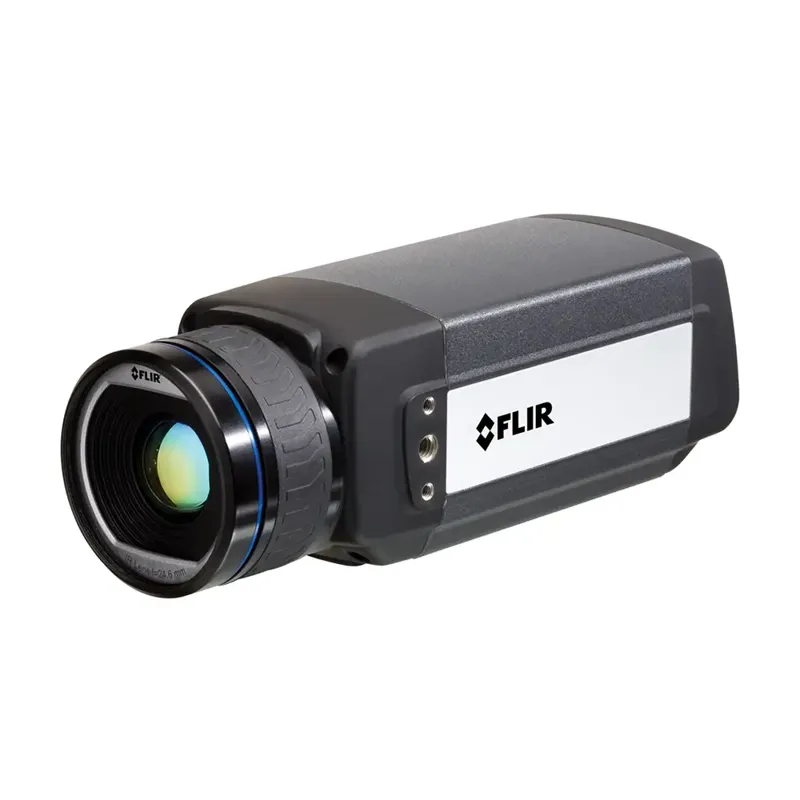

The Teledyne FLIR A655SC-FOV-15 High-Resolution Science Grade LWIR Camera Kit with 15° FOV offers advanced thermal imaging performance for researchers and scientists who require precise, real-time thermal data. Featuring a 640 x 480 pixel uncooled microbolometer and cutting-edge technology, this camera captures subtle thermal variations essential for analyzing heat dissipation, leakage, and other thermal behaviors across various materials and equipment.
With full-frame streaming at 50 Hz and high-speed windowed imaging up to 200 Hz, the A655SC-FOV-15 delivers exceptional detail and temporal resolution. Its GigE Vision connectivity ensures fast, reliable data transfer using standard Ethernet cables up to 100 meters. Designed for demanding environments, it combines robust imaging capabilities with a user-friendly interface for streamlined operation.
What's Included:
- 1 - A655sc High-Resolution Science Grade LWIR Camera Kit with 15° FOV, 640 x 480, 50 Hz/200 Hz
Features
High-Resolution Thermal Imaging
Features a 640 x 480 pixel uncooled microbolometer capable of detecting temperature differences down to <30 mK for detailed thermal analysis.
High-Speed Data Streaming
Streams full-frame 16-bit data at 50 Hz and supports up to 200 Hz through windowing, ideal for capturing fast thermal events.
GigE Vision Connectivity
Allows for quick image transfers using low-cost standard Ethernet cables up to 100 meters, ensuring reliable communication.
Flexible Temperature Range
Measures a wide range from -40°C to 150°C standard, extendable up to 2,000°C for specialized applications.
Advanced Optical Capabilities
Equipped with f/1.0 optics, automatic or manual (motorized) focus, and compatibility with close-up lenses for detailed imaging.
Precision Measurement
Offers ±2°C or ±2% of reading accuracy for dependable thermal quantification in scientific research.
Durable and Versatile Design
Encapsulated to IP30 standards with multiple mounting options for flexible installation across different environments.
What's Included
Included with Your Purchase:
- 1 - A655sc High-Resolution Science Grade LWIR Camera Kit with 15° FOV, 640 x 480, 50 Hz/200 Hz
Specifications
- Detector Type: Uncooled microbolometer
- Resolution: 640 x 480 pixels
- NETD: <30 mK
- Dynamic Range: 16-bit
- Standard Temperature Range: -40°C to 150°C and 100°C to 650°C
- Optional Temperature Range: Up to 2,000°C
- Field of View: 15° x 11° (19° diagonal)
- Focus: Automatic or Manual (Motorized)
- Spectral Range: 7.5 - 14.0 µm
- Detector Pitch: 17 µm
- Frame Rate [Full Window]: 50 Hz
- Max Frame Rate [Min Window]: 200 Hz (640 x 120)
- Subwindow Modes: User-selectable 640 x 240 or 640 x 120
- Time Constant: <8 ms
- Encapsulation: IP30 (IEC 60529)
- Mounting: 1/4"-20 and M4 on three sides
- Operating Temperature Range: -15°C to 50°C
- Storage Temperature Range: -40°C to 70°C
- Power Requirements: 12/24 VDC, 24 W Absolute Max.
- Digital Data: Via PC using ResearchIR Software
- Digital Streaming Interfaces: Gigabit Ethernet and USB
- Accuracy: ±2°C or ±2% of reading
- Bump/Vibration Resistance: 25 g / 2 g
FAQ
Q: What is the maximum frame rate of the Teledyne FLIR A655SC-FOV-15?
A: The camera can stream up to 200 Hz when windowing is enabled.
Q: What type of detector does the A655SC-FOV-15 use?
A: It uses an uncooled microbolometer with a resolution of 640 x 480 pixels.
Q: What is the standard temperature range that this camera can measure?
A: It measures from -40°C to 150°C, and an extended range from 100°C to 650°C is available.
Q: How is digital data transferred from the camera?
A: Digital data is streamed via Gigabit Ethernet and USB interfaces.
Q: Does the camera support automatic focusing?
A: Yes, it supports both automatic and manual (motorized) focusing options.
Resources
Documents:
- Teledyne FLIR A655SC-FOV-15 A655sc High-Resolution Datasheet
