Name: FLIR A500-SS-DFOV-42-24 Smart Sensor Fixed-Mount Thermal Imager 30 Hz 464 x 348 FlexView DFOV 42°/24° Lens -4° to 2732°F
SKU: 243762

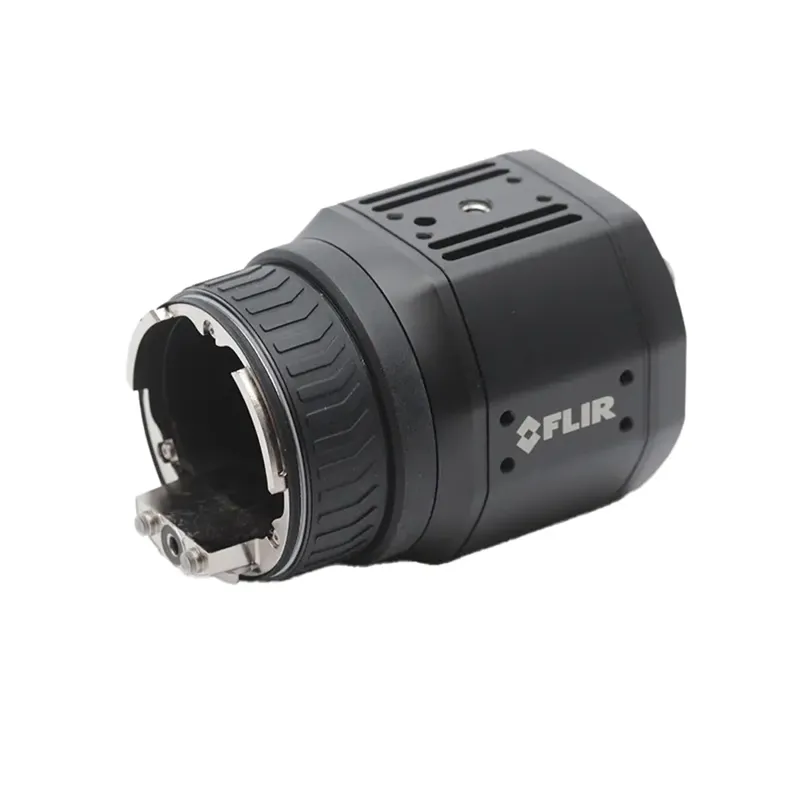

The Teledyne FLIR A500-SS-DFOV-42-24 Smart Sensor Fixed-Mount Thermal Imager is engineered for high-performance monitoring in environments where precision matters. It delivers robust thermal imaging with a powerful combination of edge-computing, measurement tools, and real-time alarming to support critical applications such as infrastructure monitoring, process control, and fire detection. Equipped with integrated connectivity and customizable analytics, this smart sensor offers seamless integration into automation systems and web applications for efficient data analysis and response.

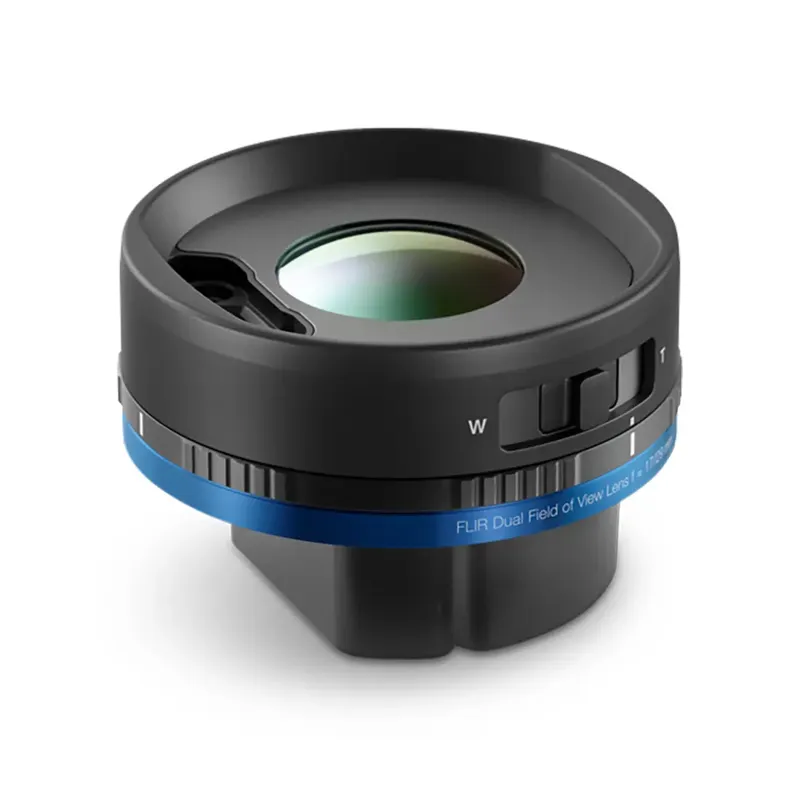

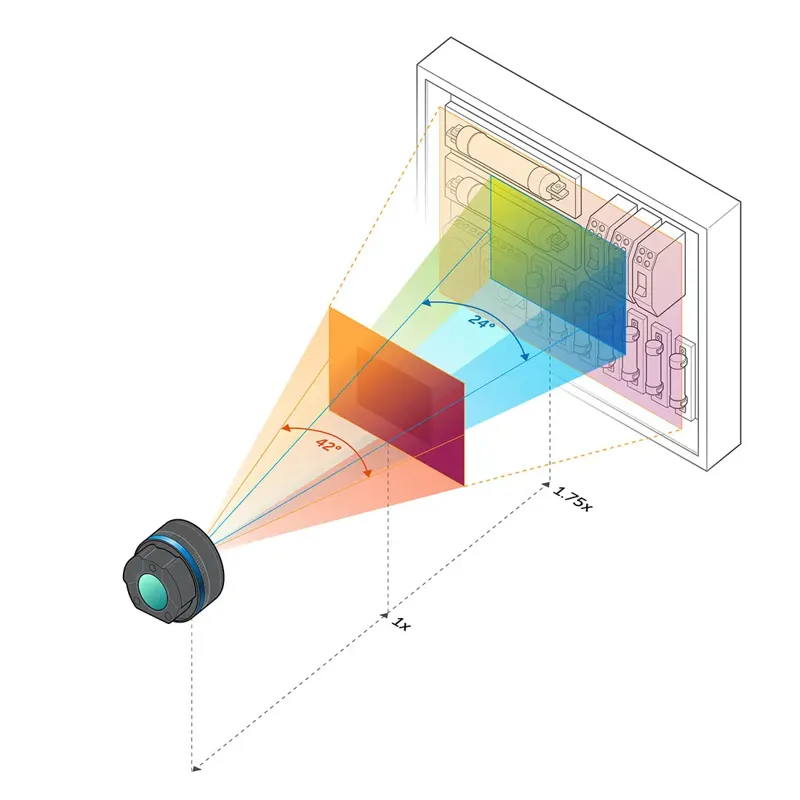

This model features the FlexView Dual Field of View 42°/24° Lens, which offers both a wide field of view for fast area scanning and a narrow field for pixel-dense, detailed inspection. The lens can be changed effortlessly with a simple toggle mechanism, enhancing safety by allowing users to remain outside hazardous zones while maintaining visibility. Its motorized, manual, and one-shot contrast focusing options provide maximum flexibility for a variety of industrial and automation tasks.

What's Included:

Teledyne FLIR A500 Smart Sensor Thermal Imager
FlexView DFOV 42°/24° Lens
Motorized Focus Capability
Ethernet Connectivity Interfaces
Measurement and Alarm Software Tools

Features

Reliable Thermal Imaging
Designed for critical environments, the A500 provides accurate temperature readings essential for industrial monitoring and quality assurance.

Edge-Based Analytics
Performs real-time analysis directly on the device, reducing latency and ensuring instant data availability.

Integrated Alarm Functions
Supports on-camera alarms triggered by user-defined measurement thresholds or environmental conditions.

Dual Field of View Lens
The FlexView DFOV lens allows users to quickly switch between wide and narrow views to enhance detail without changing lenses.

Enhanced Safety
The narrow FOV option enables thermal inspections from a safe distance, minimizing risk during electrical monitoring.

Simple Toggle Lens Adjustment
Switch between FOVs using an intuitive push/pull toggle for streamlined operation.

Wide-Area and Detailed Scanning
Examine large assets with the wide view and pinpoint issues using the narrow lens—all with one device.

Multiple Connectivity Options
Includes support for EtherNet/IP, Modbus TCP, MQTT, and REST API for easy integration.

Streaming and Recording
Offers dual-stream RTSP video (visual and IR), H.264/MPEG4/MJPEG encoding, and flexible overlay options.

Customizable Measurement Tools
Includes spotmeters, isotherms, and delta tools for advanced diagnostics and reporting.

What's Included

Included with Your Purchase:

Teledyne FLIR A500 Smart Sensor Thermal Imager
FlexView DFOV 42°/24° Lens
Motorized Focus Capability
Ethernet Connectivity Interfaces
Measurement and Alarm Software Tools

Specifications

IR Resolution: 464 x 348
Visual Resolution: 1280 x 960
Focal Plane Array/Spectral Range: 30 mK to 50 mK (lens dependent)
Lens: FlexView DFOV 42°/24°
IR Camera Focus: One-shot contrast, motorized, manual
Image Frequency: 30 Hz
Object Temperatures: -4° to 248°F, 32° to 1202°F, 572° to 2732°F
Accuracy: ± 3.6°F/± 2% of reading
Standard Measurement Tools: 10 spotmeters, 10 boxes, 3 Deltas, 1 isotherm, 1 iso-coverage, 1 reference temperature
Automatic Hot/Cold Detection: MAX/MIN within box
Measurement Frequency: ~10 Hz
Measurement Read-Out: EtherNet/IP, Modbus TCP, MQTT, REST API
Dynamic Range: 16-bit
Alarm Function: Measurement-based, digital input, internal temperature
Alarm Output: EtherNet/IP, Modbus TCP, RESTful API, e-mail
Video Streaming Protocol: RTSP (Unicast/Multicast)
Video Sources: Visual, IR, MSX
Contrast Enhancements: FSX, histogram equalization (IR)
Encoding: H.264, MPEG4, MJPEG
Pixel Format: YUV411
Ethernet Interface: Wired, optional Wi-Fi
Connectors: M12 8-pin X-coded, RP-SMA
Ethernet Standards: 1000 Mbps, IEEE 802.3
Power: PoE IEEE 802.3af class 3

FAQ

Q: What is the benefit of the FlexView DFOV lens?
A: It allows users to switch between wide and narrow fields of view instantly, improving scanning versatility and measurement accuracy.

Q: Can the device stream video?
A: Yes, it supports multiple RTSP streams including IR and visual formats with advanced encoding options.

Q: Is the device easy to integrate into automation systems?
A: Yes, it supports multiple industrial protocols including EtherNet/IP, Modbus TCP, and MQTT.

Q: What is the maximum temperature it can measure?
A: The thermal imager can detect temperatures up to 2732°F.
