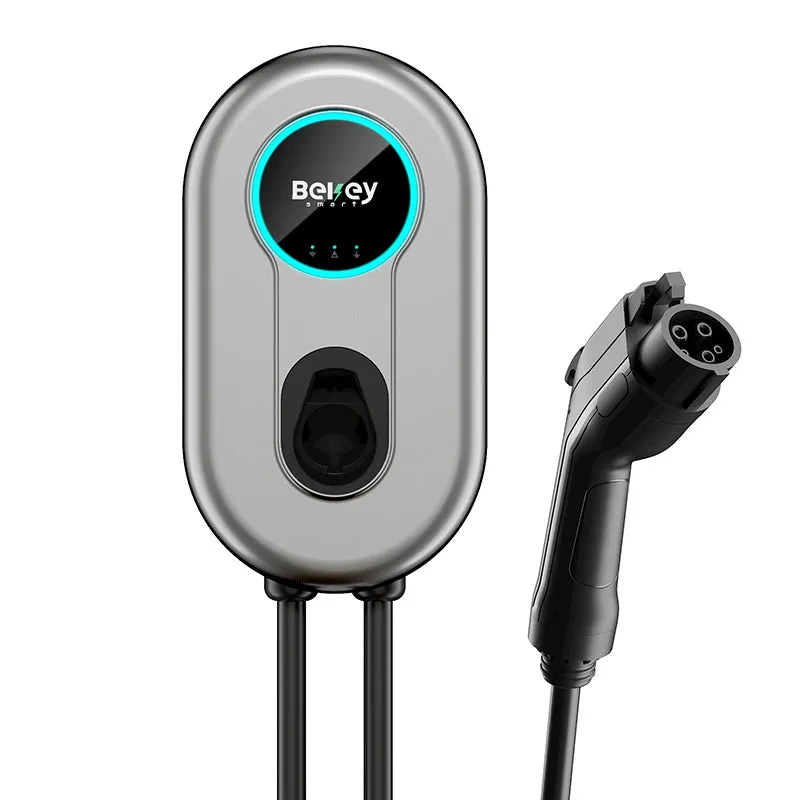

Ev Charger 32A Amp Type2 7kw 11kw 22kw ac wallbox charging station wall-mounted ev fast charger new energy vehicle parts & accessories Electric Vehicle charger with wifi app control
Techical parameter
| General Information | |
| Product Name | Bekey type2 32A/11kW EV Charger IP65 Charging Wall Box |
| Product model | BE-EV-11KEU- 02BN |
| Standard | IEC Standard |
| Certificates | CE, ROHS |
| Rated AC Voltage Power Input | 400VAC±20%-50/60Hz-16A-3 phase |
| Rated AC Power Output | 7KW |
| Current Adjustable | 6/8/12/16Amp |
| Charging Connector Type | IEC 62196-2 (Type 2/Mennekes) plug |
| Operating temperature | Plastic PC5V |
| Charging Interface | Type 2, 4.8M output |
| User Interface & Control | |
|
Charging Control | 1. Plug in and swipe RFID card |
| 2. Plug in, touch screen to start and stop charging, then plug out | |
| 3. App control | |
| Charging Data Monitoring: Power consumption, current, voltage etc. | 1. From screen |
| 2. From app | |
| Adjusting Current | 1. From touch screen |
| 2. From app | |
| Screen Display | LCD Screen |
| LCD Indicators | LCD indicators-Power/Connect/Charging/Fault |
| Internet Connection | 2.4 GHz Wifi |
| Operational Ratings | |
| IP Ratings | IP65, suitable for indoor and outdoor application |
| Storage Temperature | -40 to 75℃ (-40 to 167℉) ambient |
| Operating Temperature | -30 to 55℃ (-22 to 131℉) ambient |
| Operating Humidity | Up to 95% non-condensing |
| Altitude | ≤2000m |
| Protection | Over Voltage Protection;Over Load Protection;Earth Leakage Protection;Over-temp Protection;Under Voltage Protection;Short Circuit |
| Real-time monitoring | LCD Screen/App |
| temperature monitoring | Full link temperature monitoring system;Automatic current reduction |
| Wallbox Mechanical | |
| Charger Dimension | 390X217X107 (H x W x D, mm) ; 6.9KG |
| Package Dimension | 462X302X248 (H x W x D, mm) ; 7KG |
| Charging Cable Length | 5m,7m, or Customize Length |
| Enclosure Material | Front-Panel: Tempered Glass; Back-cover: Metal Plate;Enclosure: Plastic PC5V |
| Installation: | Wall-mount / Pole-mount |
| OEM ODM Service | |
| Warranty | We offer 1 year warranty to our product. |
|
Quality Control system | Our products are produced in a strict quality control system and the defective rate will be less than 0.2%.Secondly, during the |
|
OEM ODM Service | Our products offer a wide range of customization options, including parameters, appearance, performance, power, battery capacity, |
