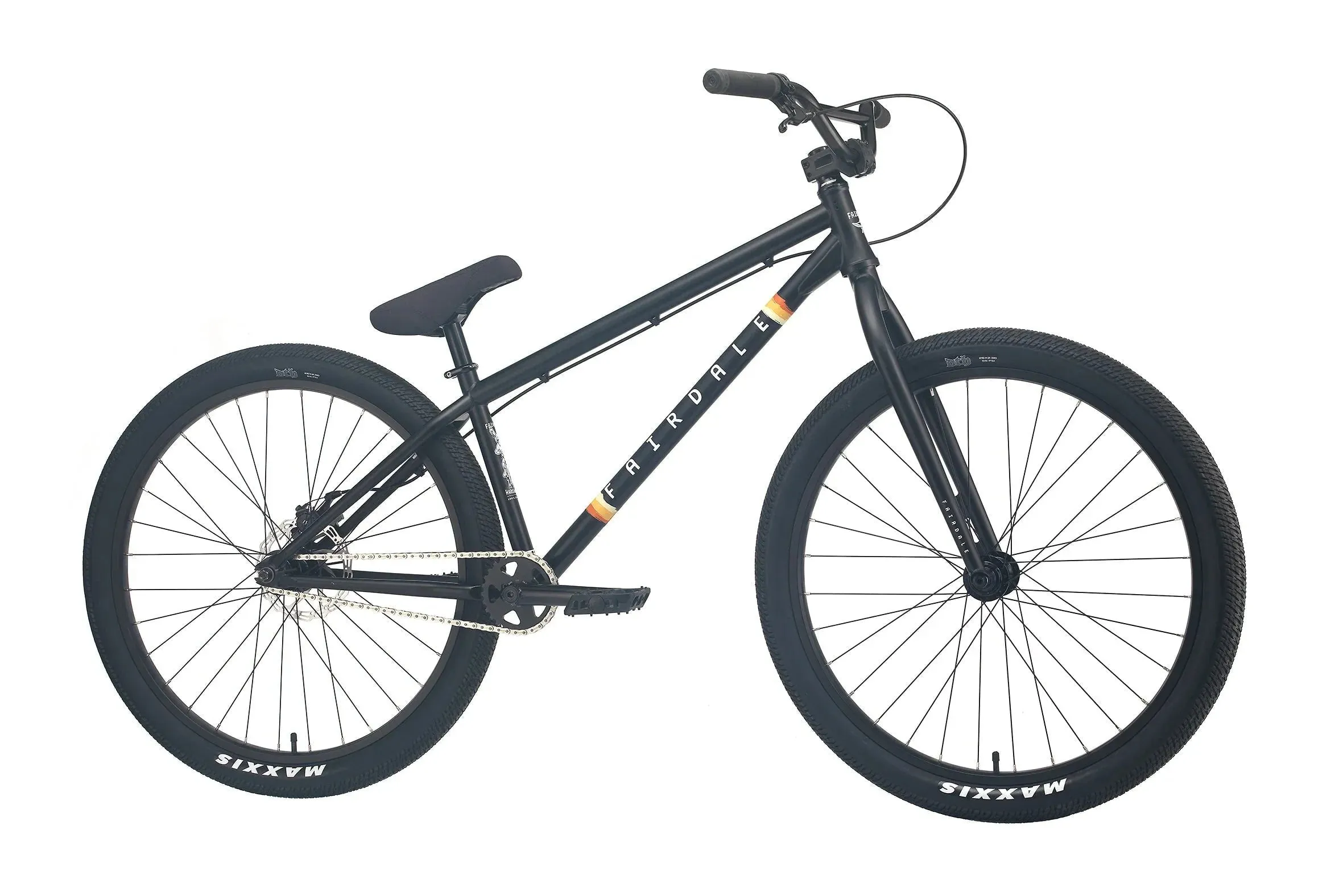

After successfully introducing the Hareraiser frame, we were asked many times for a complete bike. The frame continues to be a fully capable 26" DJ frame is made of 100% 4130 chromoly with a 3/8" axle slot, integrated chain tensioners, BSA 73mm threaded bottom bracket, ultra-short chainstays and a tapered 1-1/8” to 1-1/2” head tube with removable tabs for a traditional BMX-style Gyro.

The Hareraiser complete is available as both a rigid and a front suspension (FX) version.

The rigid version comes equipped with a Fairdale Hareraiser Chromoly fork with a 15mm through axle. Leaning into our BMX roots with a Fairdale MX-4 handlebar attached to a Sunday Freeze Front Load stem.

Designed from the ground up to make the transition between riding a MTB, DJ bike, and BMX as seamless as possible.

Available in Matte Black

Sizing

26": 5'6" height and up

Sizing is approximate. Please consult with your local bike shop to assist with fit.

Specs

Frame: 100% 4130 chromoly DJ frame, 3/8" Dropout, Threaded 73mm BB, Disc Mount

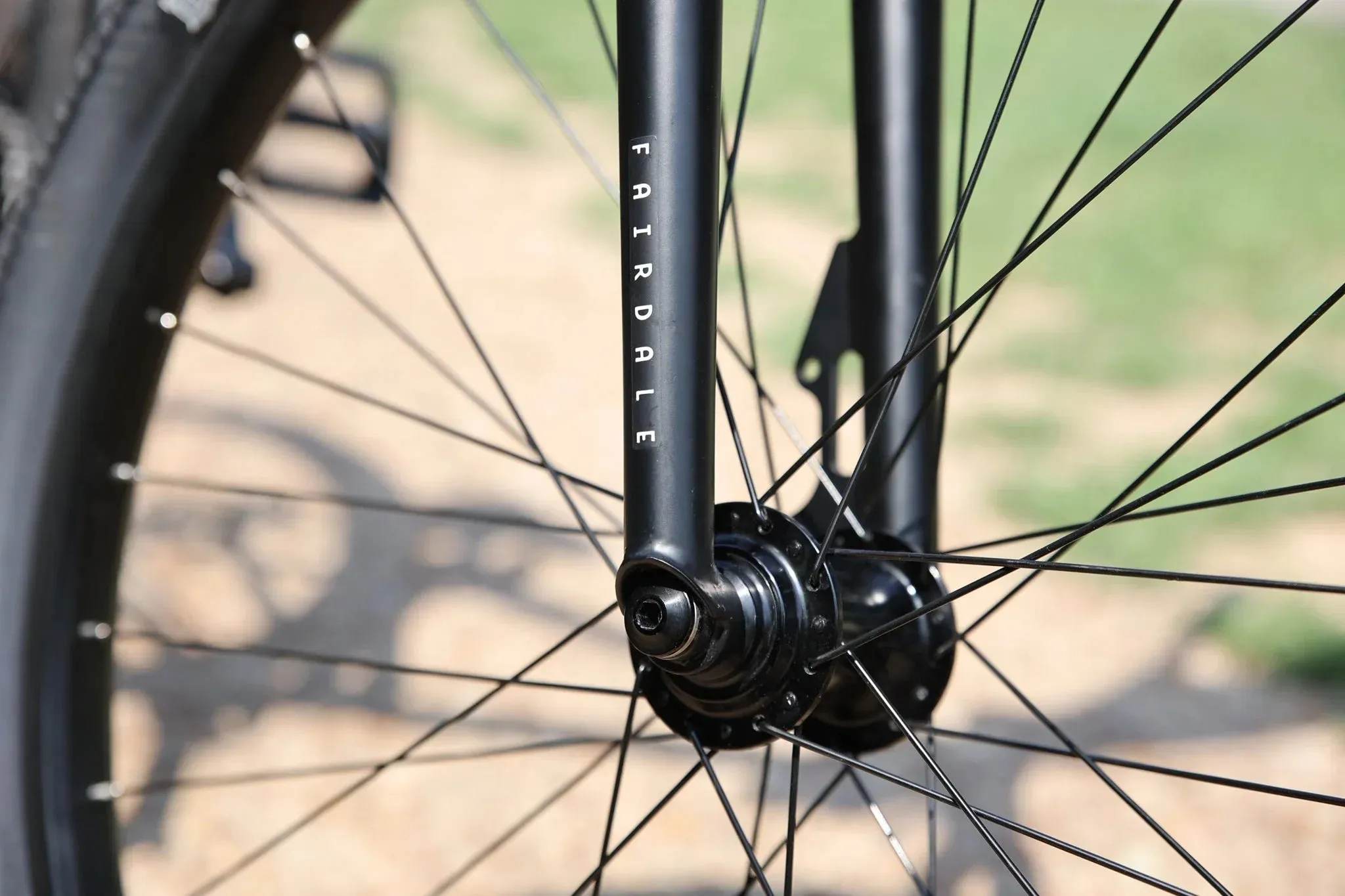

Fork: Fairdale Hareraiser Chromoly, 15mm Thru-Axle
Handlebar: Fairdale MX-4
Stem: Sunday Freeze, 48mm Front Load
Headset: FSA Orbit Sealed

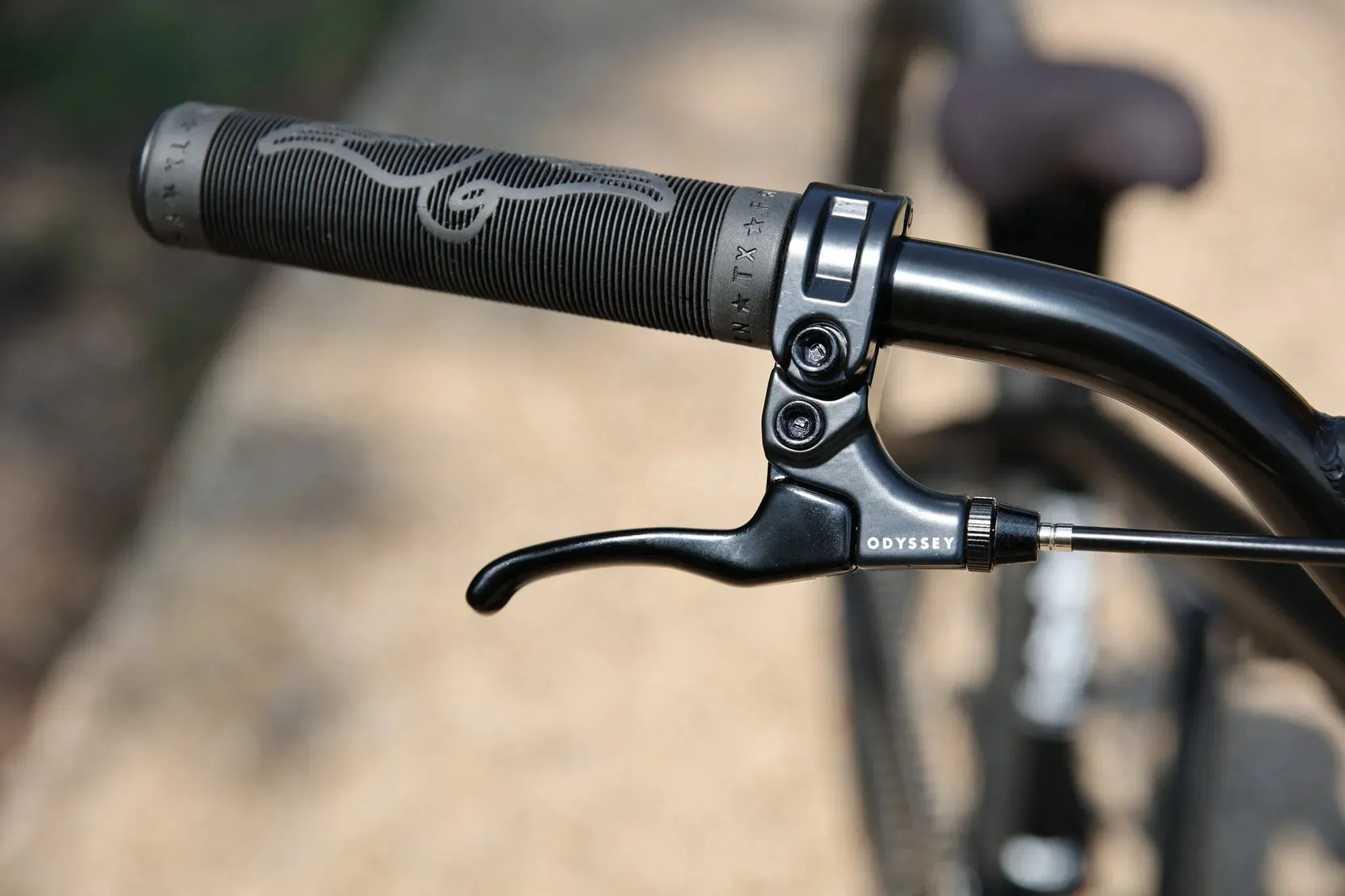

Brake Lever: Odyssey Monolever
Brakes: Mechanical Disc
Grips: Fairdale Swan

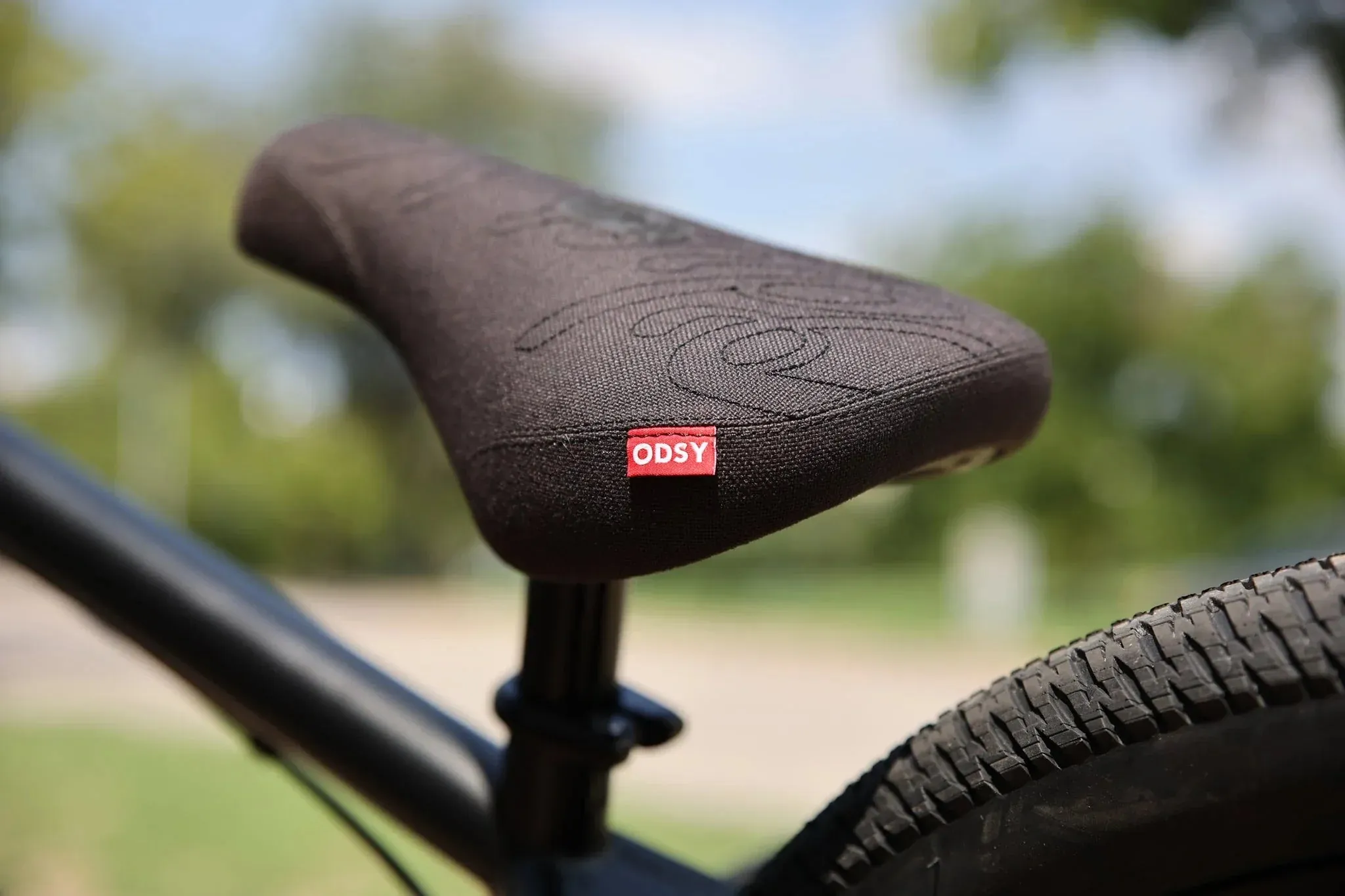

Saddle: Odyssey Big Stitch, Pivotal
Seat Post: Pivotal 27.2mm
Seat Clamp: Fairdale 30mm

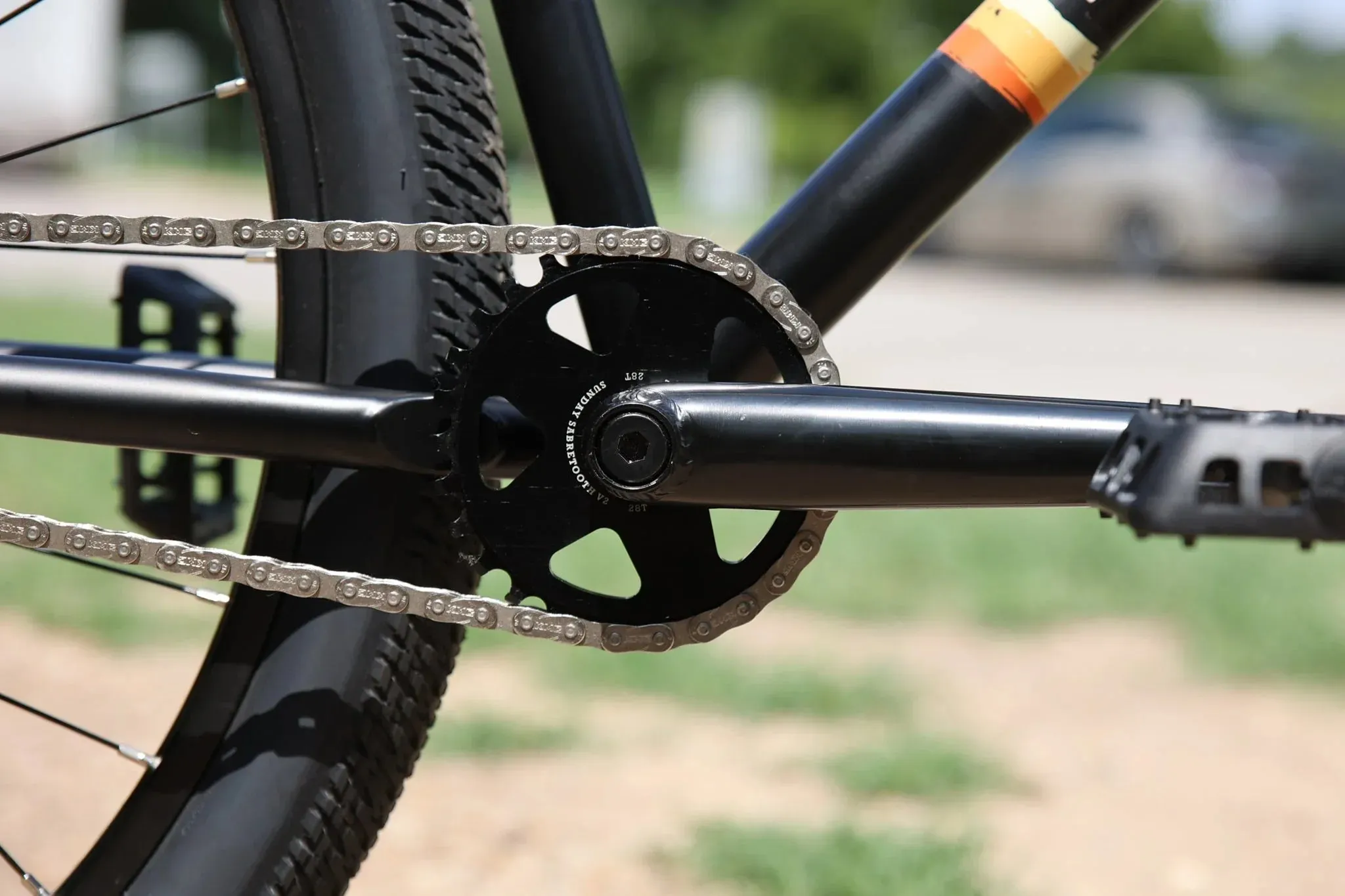

Cranks: 19mm 8-Spline, 170mm
Chainwheel: 28T
BB Parts: Euro
Pedals: Odyssey Twisted Pro PC
Rims: 26" 32H
Front Hub: Sealed 15mm Thru Axle
Rear Hub: Sealed Cassette, 3/8" Axle, Disc

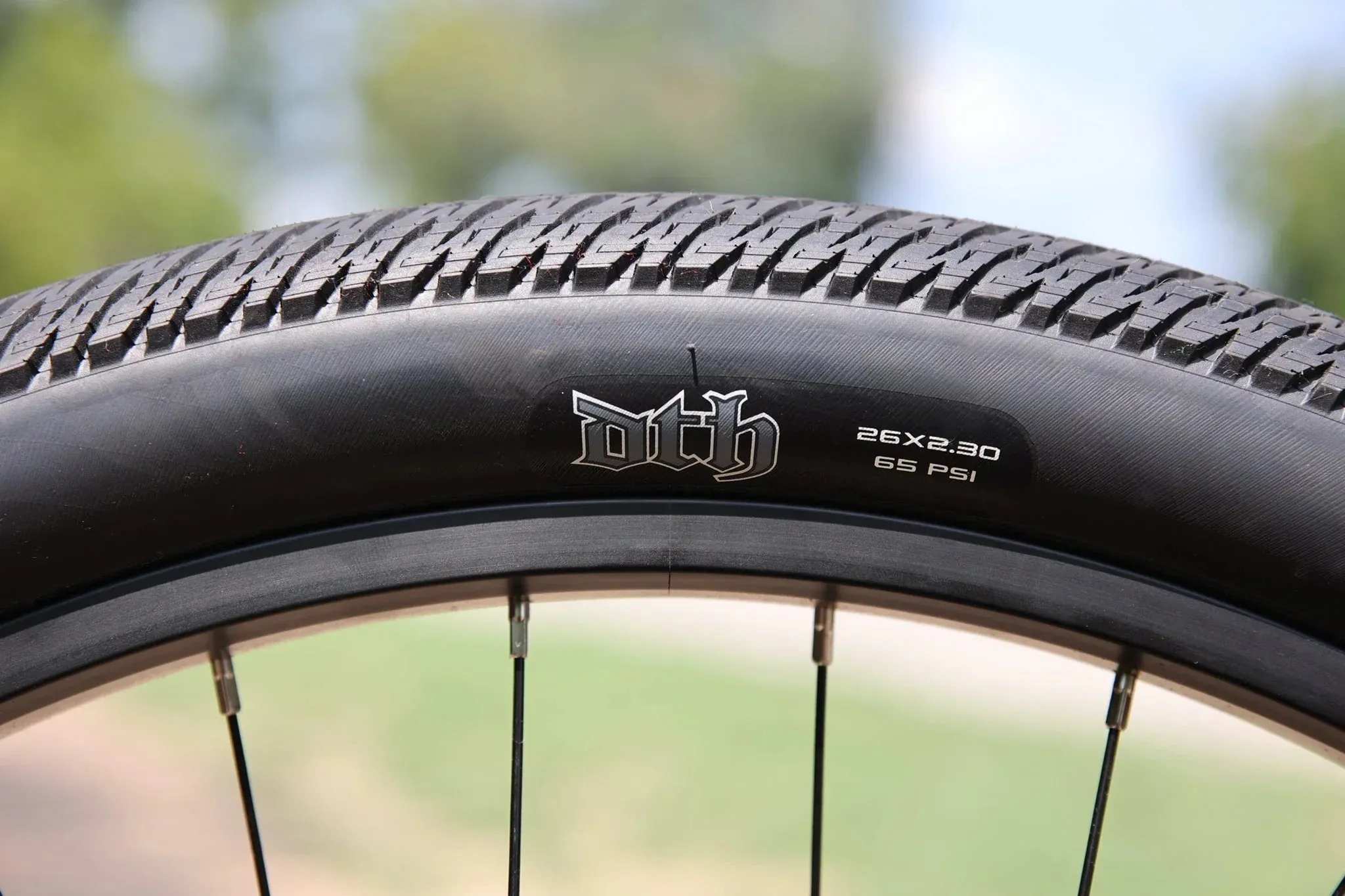

Tires: Maxxis DTH 2.3"
Chain: KMC Z1eHX
Driver: 12T

Geometry

Build	FX/Suspension	Rigid
Fork Travel	100mm	N/A
Fork Axle To Crown	482mm	455mm
Fork Offset	40mm	30mm
Top Tube (Effective)	625mm	625mm
Seat Tube (BB Center To TT Center)	340mm	340mm
Seat Tube Angle	72°	70.5°
Head Tube Length	120mm	120mm
Head Tube Angle	69.5°	73°
Chain Stay Length	379-389mm	379-389mm
Standover	690mm	678mm
Stack	570mm	561mm
Reach	440mm	452mm
BB Drop	20mm	28mm
Rear Dropout Spacing	10x135mm	10x135mm
BB Type	73mm Threaded	73mm Threaded
Seat Post	27.2mm	27.2mm
Seat Clamp	30mm	30mm
Rear Tire Clearance	2.3"	2.3"
Wheel Size	26"	26"

*Specs subject to change without notice.
