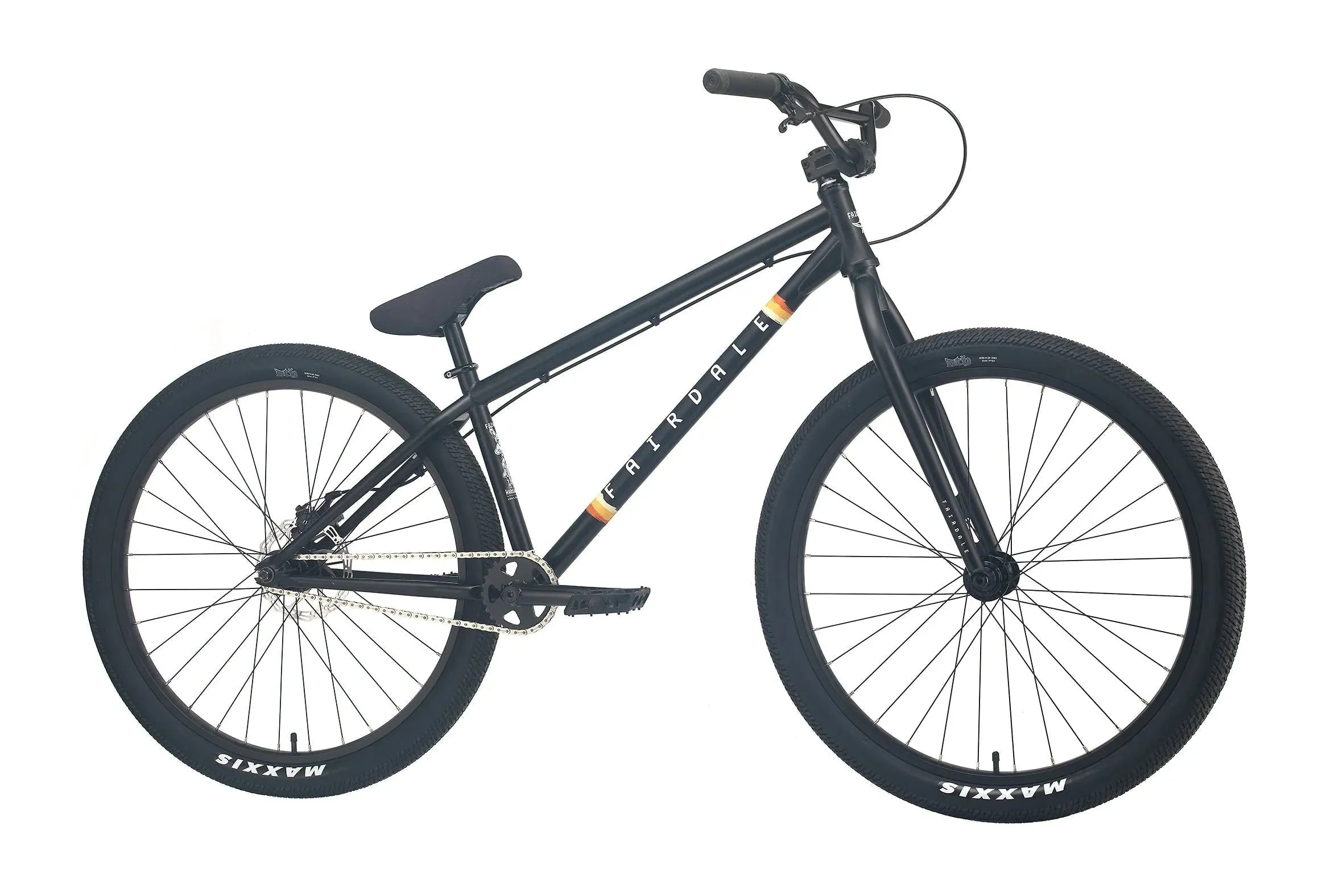

After successfully introducing the Hareraiser frame, we were asked many times for a complete bike. The frame continues to be a fully capable 26" DJ frame is made of 100% 4130 chromoly with a 3/8" axle slot, integrated chain tensioners, BSA 73mm threaded bottom bracket, ultra-short chainstays and a tapered 1-1/8” to 1-1/2” head tube with removable tabs for a traditional BMX-style Gyro.
The Hareraiser complete is available as both a rigid and a front suspension (FX) version.
The rigid version comes equipped with a Fairdale Hareraiser Chromoly fork with a 15mm through axle. Leaning into our BMX roots with a Fairdale MX-4 handlebar attached to a Sunday Freeze Front Load stem.
Designed from the ground up to make the transition between riding a MTB, DJ bike, and BMX as seamless as possible.
Available in Matte Black
Sizing
26": 5'6" height and up
Sizing is approximate. Please consult with your local bike shop to assist with fit.
Specs
Frame: 100% 4130 chromoly DJ frame, 3/8" Dropout, Threaded 73mm BB, Disc Mount

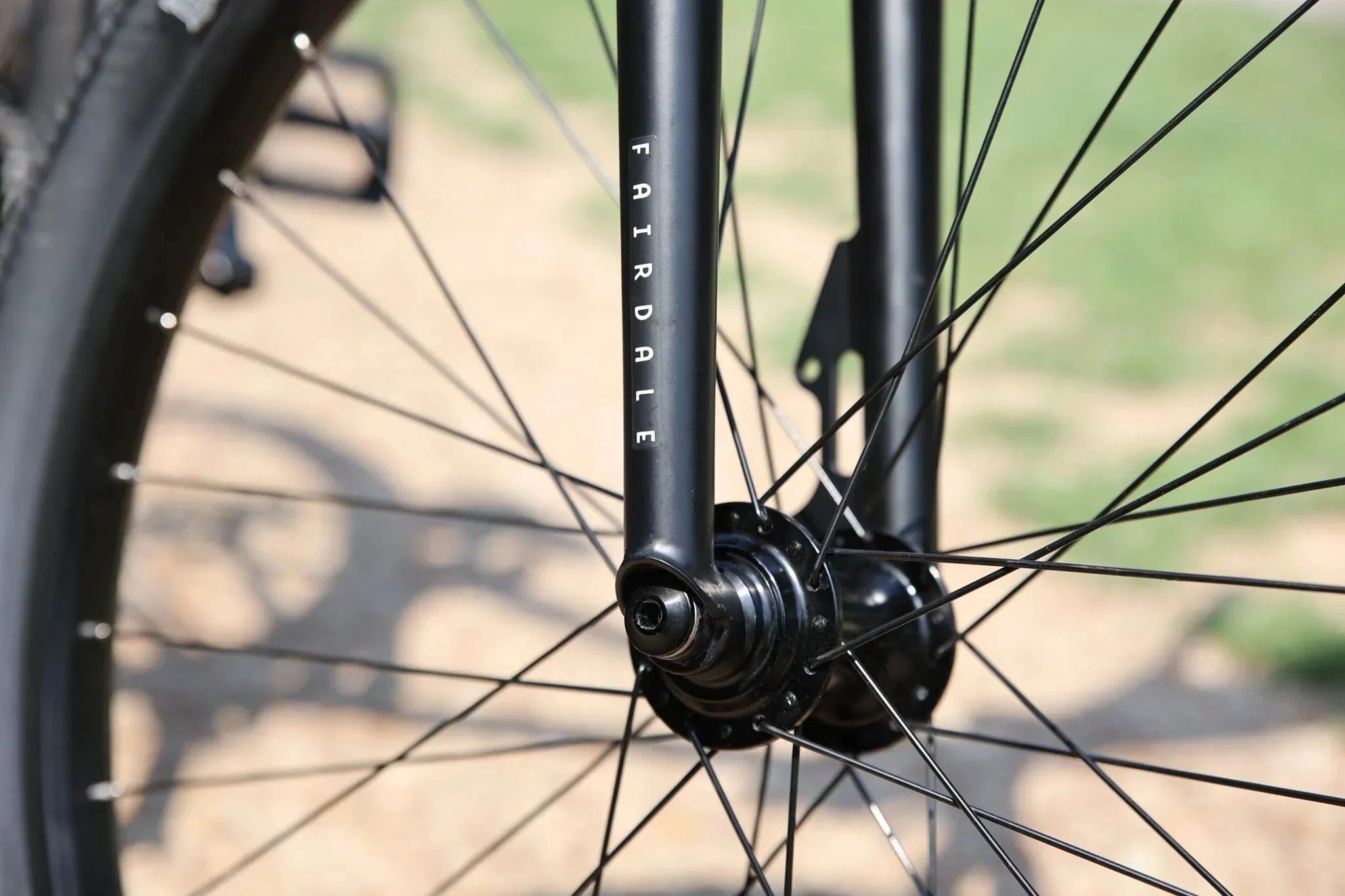

Fork: Fairdale Hareraiser Chromoly, 15mm Thru-Axle
Handlebar: Fairdale MX-4
Stem: Sunday Freeze, 48mm Front Load
Headset: FSA Orbit Sealed

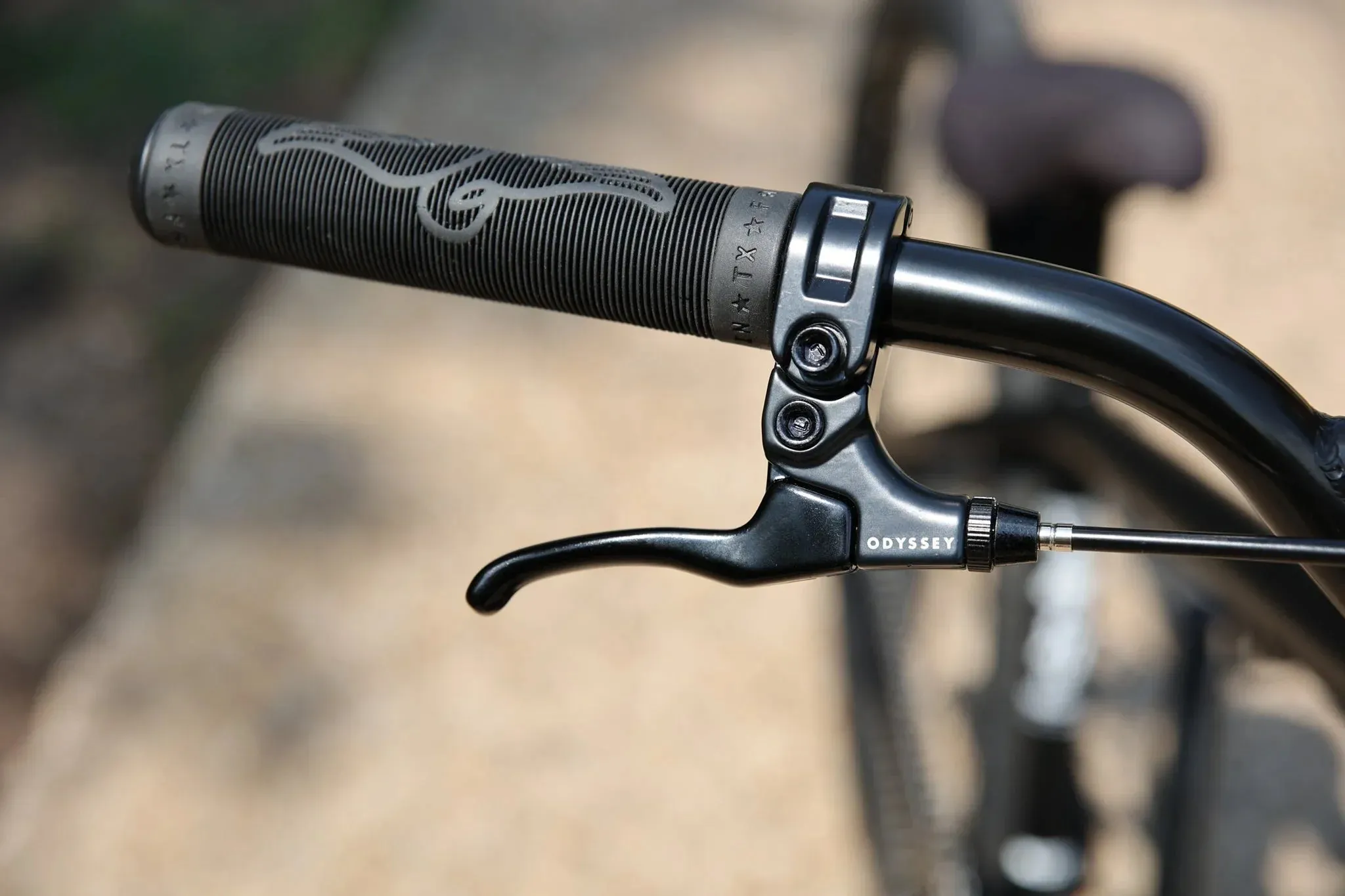

Brake Lever: Odyssey Monolever
Brakes: Mechanical Disc
Grips: Fairdale Swan

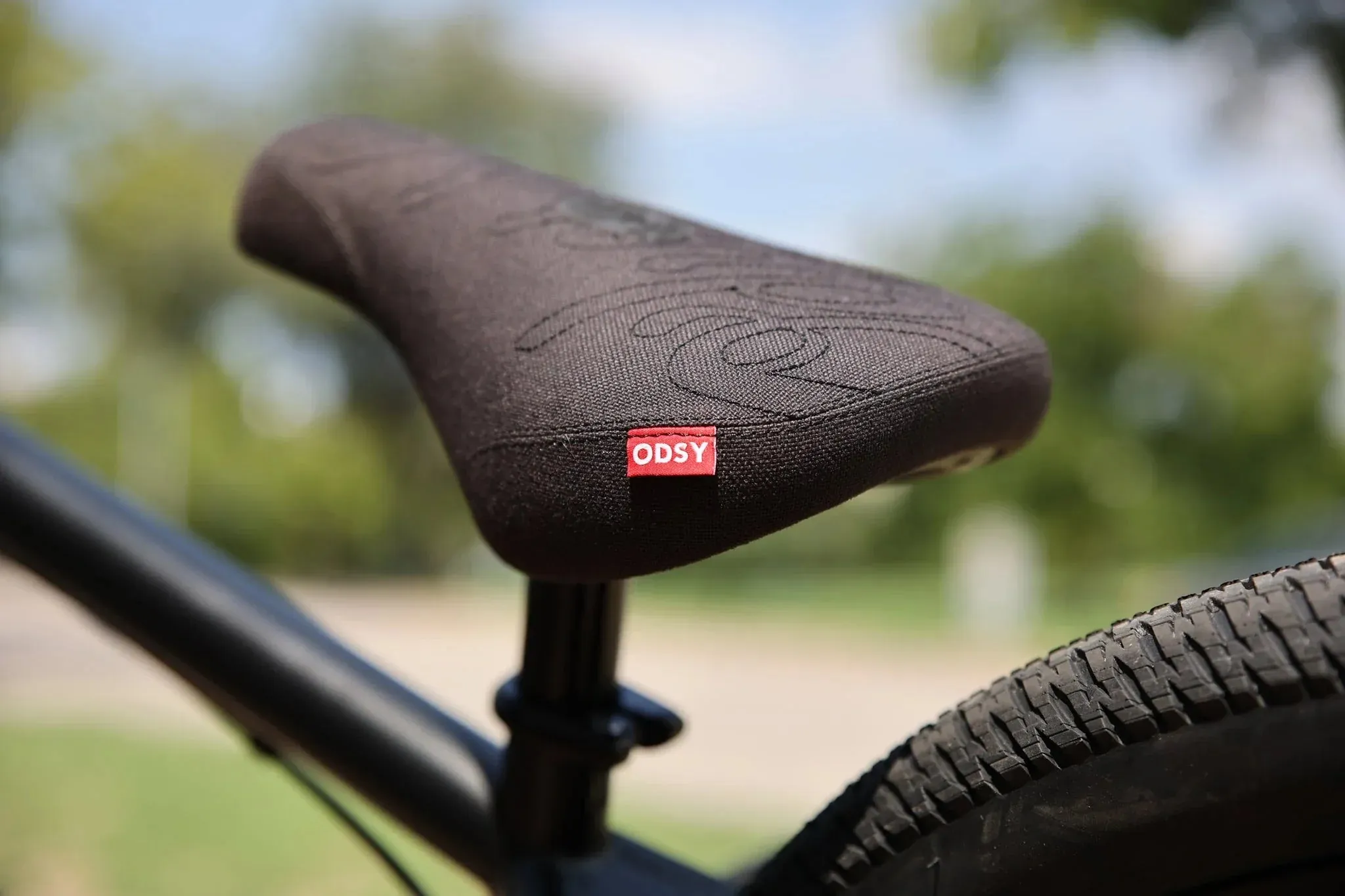

Saddle: Odyssey Big Stitch, Pivotal
Seat Post: Pivotal 27.2mm
Seat Clamp: Fairdale 30mm

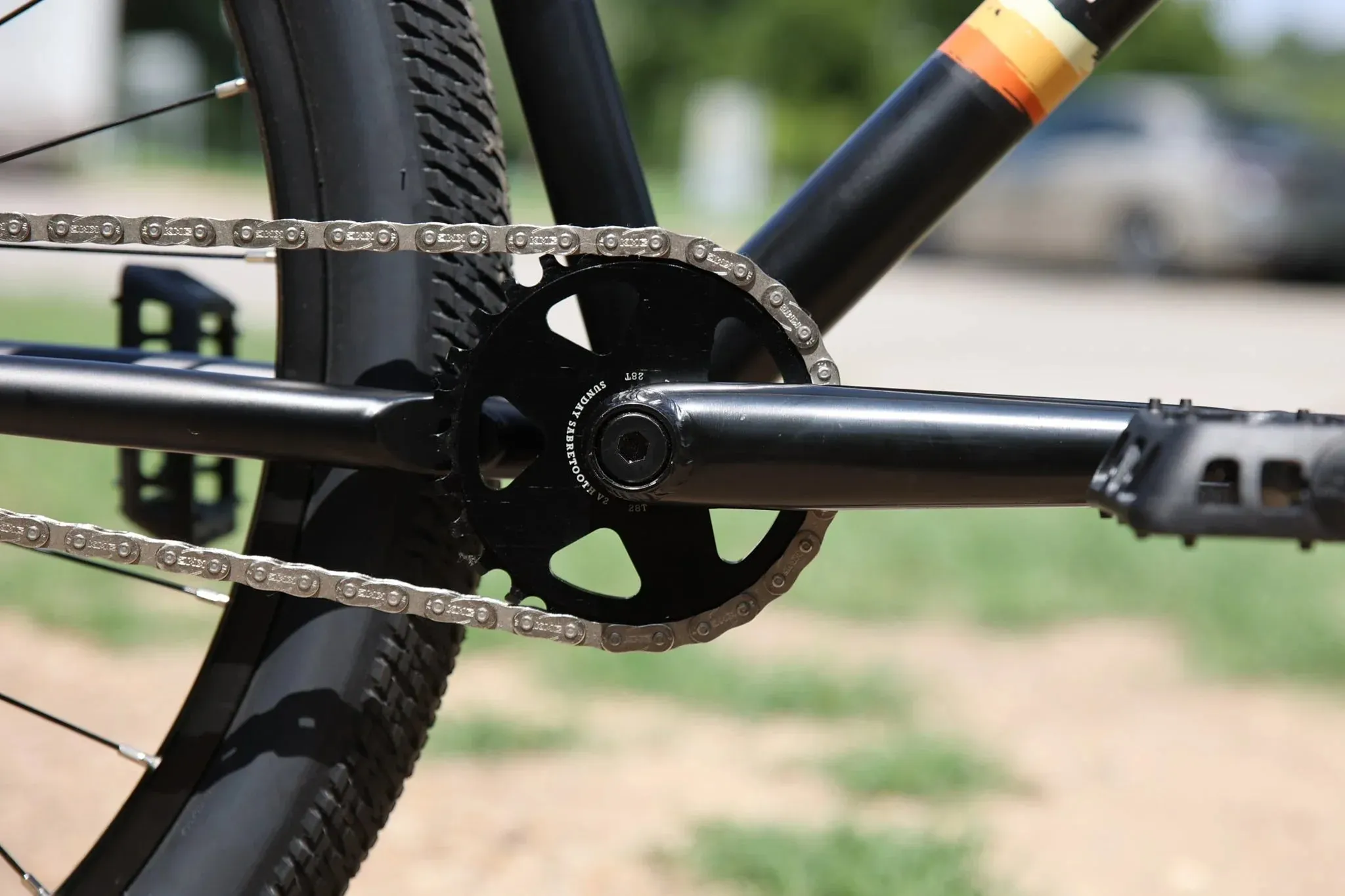

Cranks: 19mm 8-Spline, 170mm
Chainwheel: 28T
BB Parts: Euro
Pedals: Odyssey Twisted Pro PC
Rims: 26" 32H
Front Hub: Sealed 15mm Thru Axle
Rear Hub: Sealed Cassette, 3/8" Axle, Disc

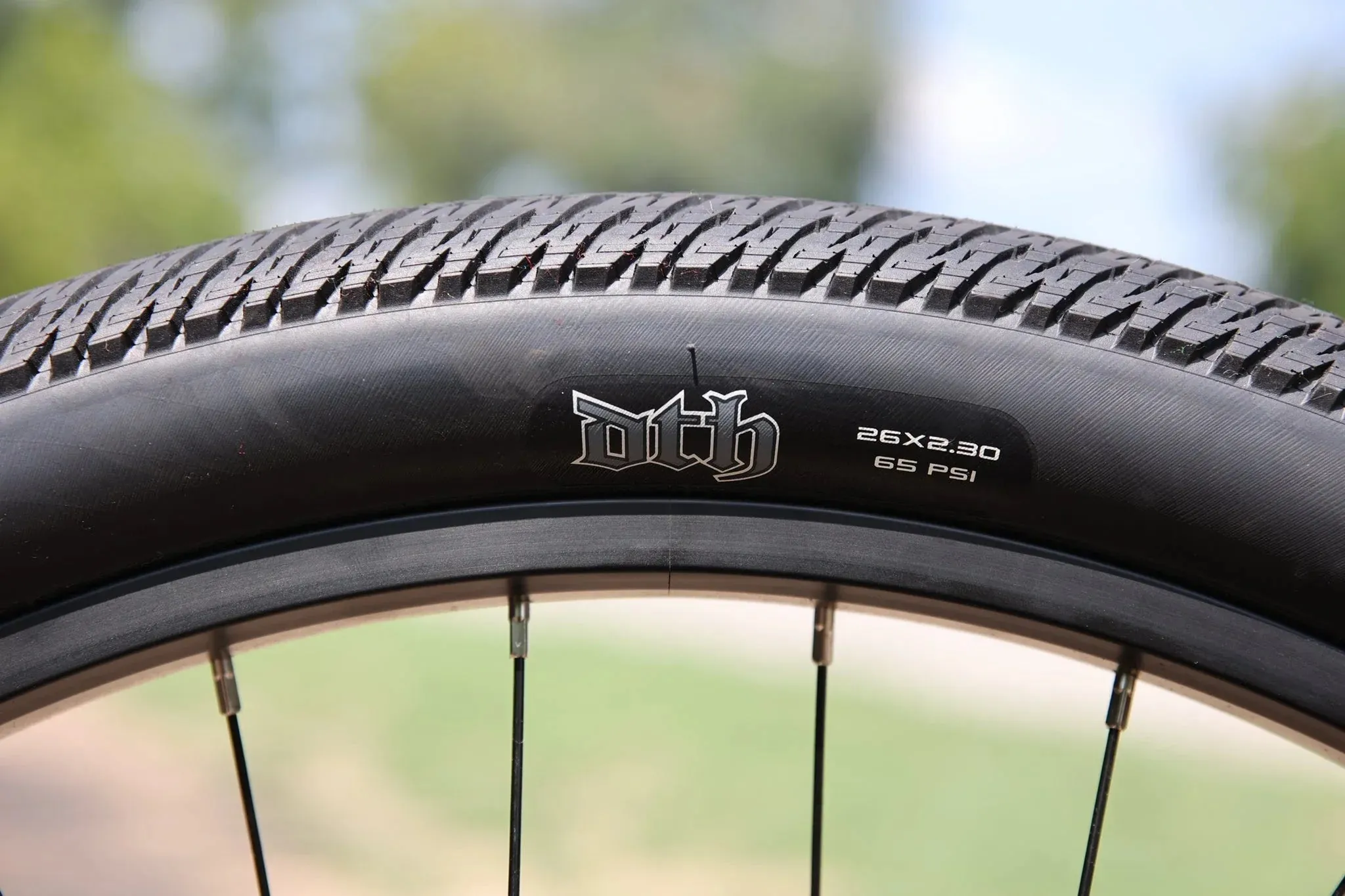

Tires: Maxxis DTH 2.3"
Chain: KMC Z1eHX
Driver: 12T
Geometry
| Build | FX/Suspension | Rigid |
| Fork Travel | 100mm | N/A |
| Fork Axle To Crown | 482mm | 455mm |
| Fork Offset | 40mm | 30mm |
| Top Tube (Effective) | 625mm | 625mm |
| Seat Tube (BB Center To TT Center) | 340mm | 340mm |
| Seat Tube Angle | 72° | 70.5° |
| Head Tube Length | 120mm | 120mm |
| Head Tube Angle | 69.5° | 73° |
| Chain Stay Length | 379-389mm | 379-389mm |
| Standover | 690mm | 678mm |
| Stack | 570mm | 561mm |
| Reach | 440mm | 452mm |
| BB Drop | 20mm | 28mm |
| Rear Dropout Spacing | 10x135mm | 10x135mm |
| BB Type | 73mm Threaded | 73mm Threaded |
| Seat Post | 27.2mm | 27.2mm |
| Seat Clamp | 30mm | 30mm |
| Rear Tire Clearance | 2.3" | 2.3" |
| Wheel Size | 26" | 26" |
*Specs subject to change without notice.
